ferrari 512 m anti-evaporative emission control system parts diagram

010 - anti-evaporative emission control system

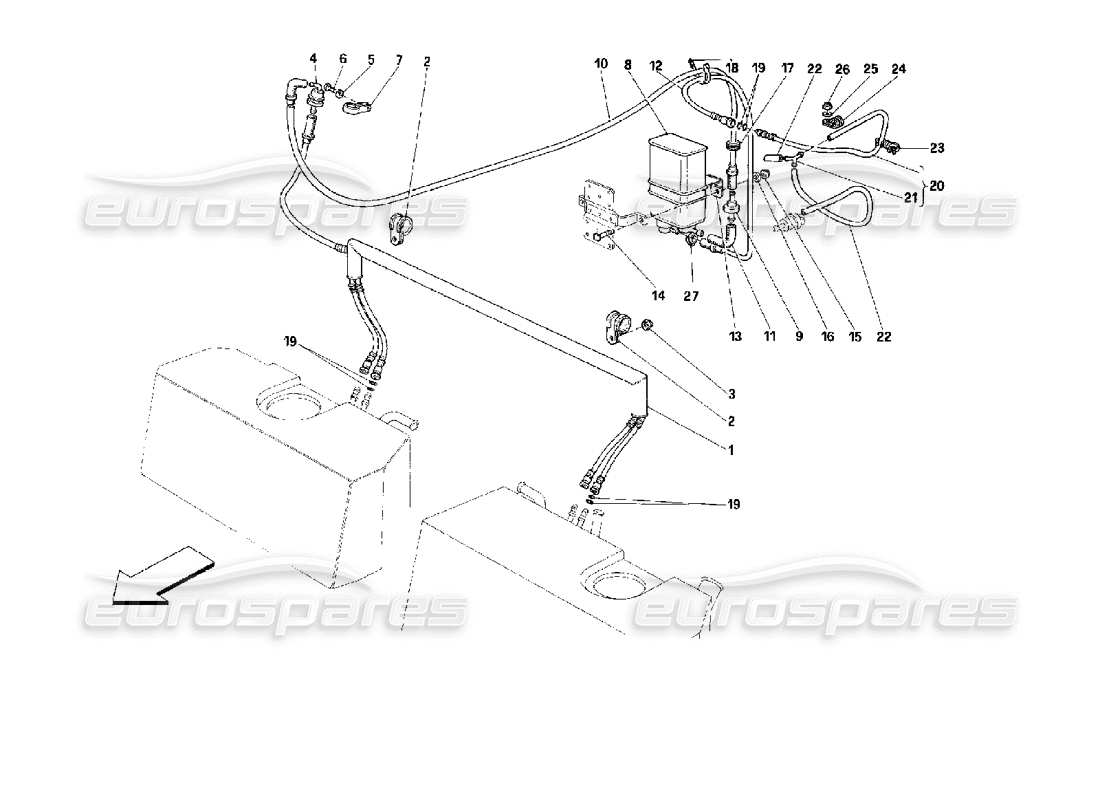

Ferrari 512 M Anti-Evaporative Emission Control System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 148408
                                                      DISAREATOR
                                                      from £351.03
                                                      from £351.03
                                                      # 002
                                                      MPN: 10442290
                                                      BRACKET
                                                      from £0.47
                                                      from £0.47
                                                      # 004
                                                      MPN: 124193
                                                      ANTI ROLL OVER VALVE
                                                      from £44.90
                                                      from £44.90
                                                      This part replaces part number 114843 - and 1 more. Click to view details
                                                      # 005
                                                      MPN: 127494
                                                      WASHER
                                                      (minimum order quantity = 20)
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                      # 006
                                                      MPN: 10902421
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 007
                                                      MPN: 124226
                                                      BRACKET
                                                      from £3.34
                                                      from £3.34
                                                      # 008
                                                      MPN: 148413
                                                      CHARCOAL CARBON CANISTER
                                                      from £136.08
                                                      from £136.08
                                                      # 009
                                                      MPN: 114910
                                                      2 WAY CHECK VALVE
                                                      from £66.15
                                                      from £66.15
                                                      # 010
                                                      MPN: 148414
                                                      PIPE
                                                      from £24.47
                                                      from £24.47
                                                      # 011
                                                      MPN: 148464
                                                      SLEEVE
                                                      from £4.43
                                                      from £4.43
                                                      # 012
                                                      MPN: 148415
                                                      PIPE
                                                      from £112.16
                                                      from £112.16
                                                      # 013
                                                      MPN: 148516
                                                      BRACKET
                                                      from £9.26
                                                      from £9.26
                                                      # 014
                                                      MPN: 14664790
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 015
                                                      MPN: 12574211
                                                      NUT
                                                      from £0.71
                                                      from £0.71
                                                      # 016
                                                      MPN: 12646601
                                                      WASHER
                                                      from £0.71
                                                      from £0.71
                                                      # 017
                                                      MPN: 10397180
                                                      CABLE GROMMET
                                                      from £1.76
                                                      from £1.76
                                                      # 018
                                                      MPN: 145854
                                                      CLAMP
                                                      from £0.47
                                                      from £0.47
                                                      # 019
                                                      MPN: 133956
                                                      GASKET OR
                                                      from £0.72
                                                      from £0.72
                                                      # 020
                                                      MPN: 149687
                                                      PIPE
                                                      from £39.97
                                                      from £39.97
                                                      # 021
                                                      MPN: 105496
                                                      UNION
                                                      from £1.38
                                                      from £1.38
                                                      # 022
                                                      MPN: 150605
                                                      PIPE
                                                      from £4.45
                                                      from £4.45
                                                      # 023
                                                      MPN: 139966
                                                      SPRING
                                                      from £0.47
                                                      from £0.47
                                                      # 024
                                                      MPN: 10441290
                                                      BRACKET
                                                      from £0.47
                                                      from £0.47
                                                      # 025
                                                      MPN: 12639701
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 12639704
                                                      # 027
                                                      MPN: 13000190
                                                      SCREW COLLAR
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12178990 - and 1 more. Click to view details
