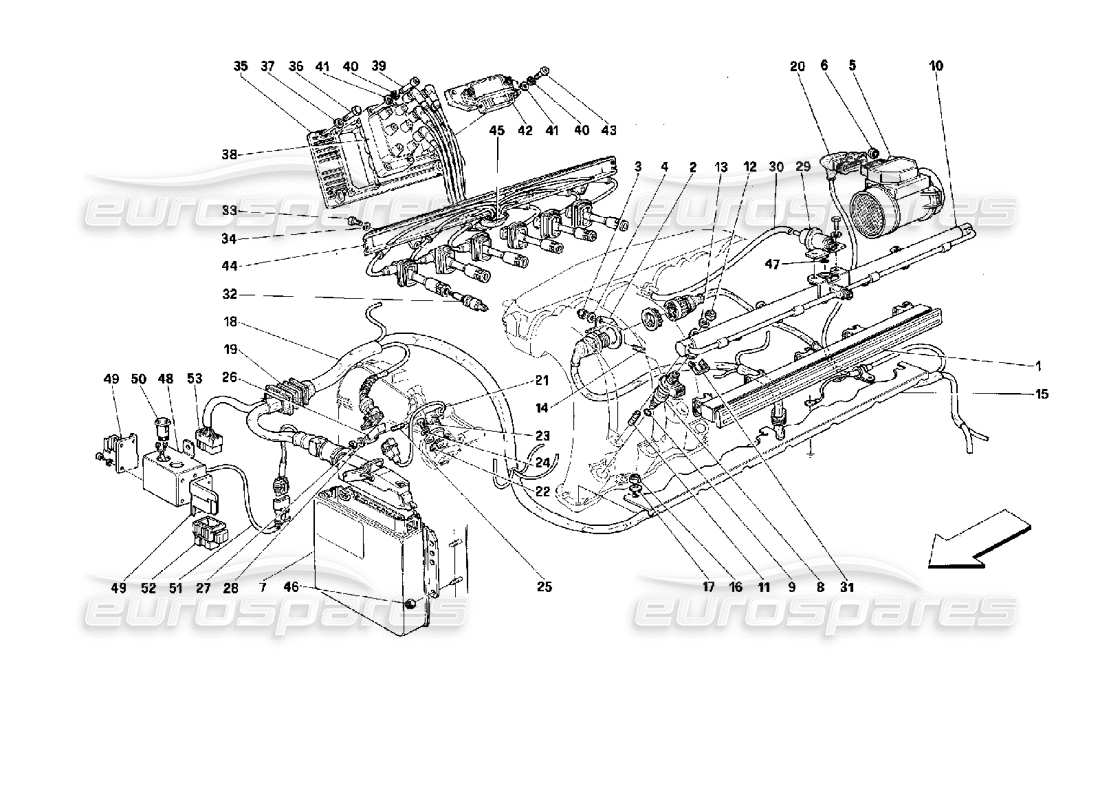

011 - air injection - ignition
Ferrari 512 M Air Injection - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
147567
CONNECTORS AND CABLES BOX
from
£425.70
from
£425.70
#
002
MPN:
145476
BRACKET
from
£0.71
from
£0.71
#
003
MPN:
12575411
NUT
Supersession
Supersession
#
004
MPN:
12601274
WASHER
from
£0.47
from
£0.47
This part replaces part number 12601221
- and 5 more. Click to view details
#
005
MPN:

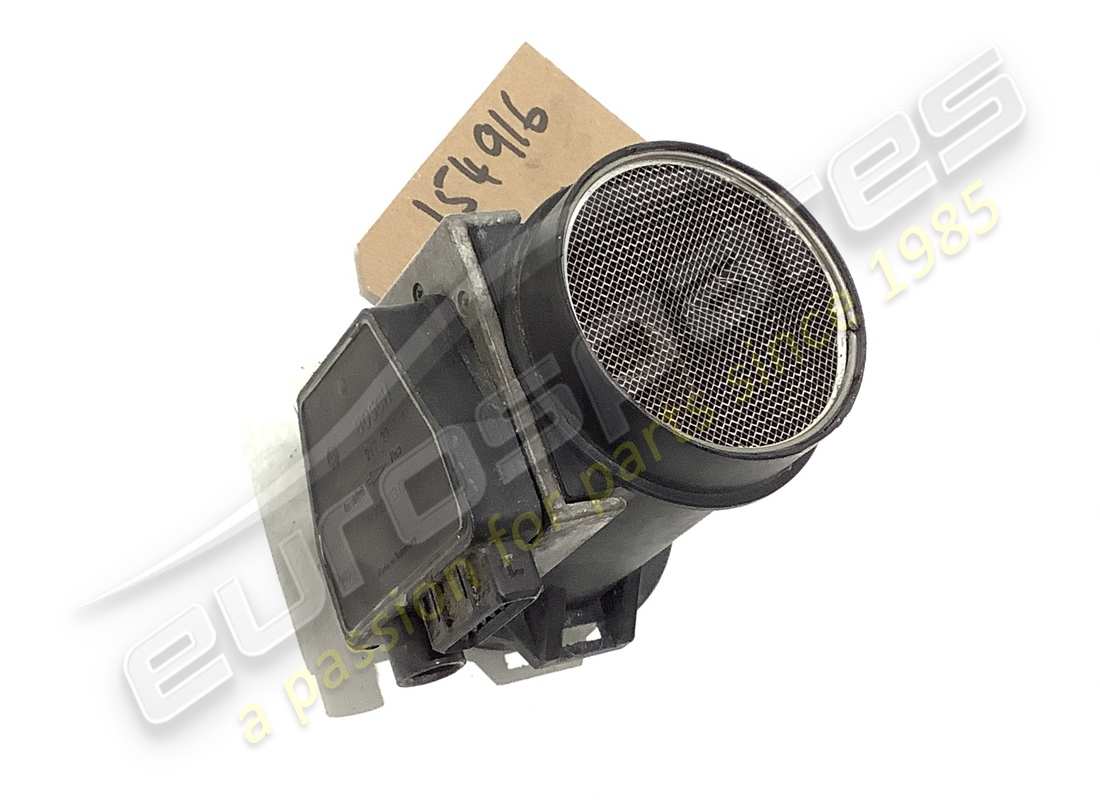

154916
AIR FLOW METER
from
£895.00
from
£895.00
This part replaces part number 138403
- and 3 more. Click to view details
#
006
MPN:
144092
PLUG
from
£7.07
from
£7.07
This part replaces part number 140189
#
007
MPN:
149338

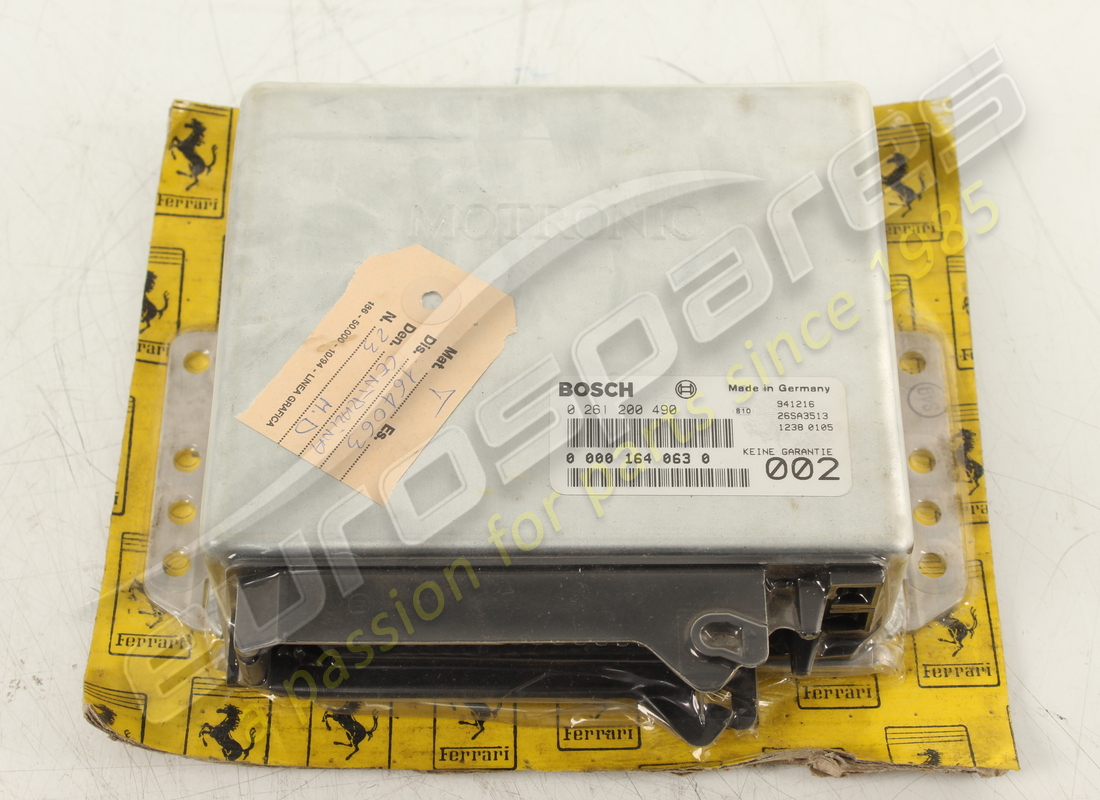

IGNITION/SUPPLY CONTROL SYSTEM
- Valid till car Ass. Nr.18213
from
£8,376.02
from
£8,376.02
#
007
MPN:
164063
IGNITION/SUPPLY CONTROL SYSTEM
- Valid from car Ass. Nr.18214
from
£1,995.00
from
£1,995.00
#
008
MPN:
144256
INJECTOR
from
£1,328.90
from
£1,328.90
#
009
MPN:
133902
GASKET
from
£2.88
from
£2.88
#
010
MPN:
149924
DELIVERY PIPE
from
£1,349.01
from
£1,349.01
This part replaces part number 148255
#
011
MPN:
11500024
STUD
from
£1.56
from
£1.56
This part replaces part number 11500011 which we have in stock
- and 1 more. Click to view details
#
012
MPN:
101239
NUT
from
£1.60
from
£1.60
This part replaces part number 92310
#
013
MPN:
12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
#
014
MPN:
11499921
STUD
from
£6.43
from
£6.43
#
015
MPN:
148533
PROTECTION
from
£52.50
from
£52.50
#
016
MPN:
16100824
NUT
from
£0.50
from
£0.50
This part replaces part number 16100814
- and 1 more. Click to view details
#
017
MPN:
11194079
WASHER
Supersession
Supersession
#
018
MPN:
160079
INJECTION SYSTEM CABLES (CYL. 1/6)
- NOT FOR USA, CDN, AUS, CH, SA, ZA, J
from
£833.47
from
£833.47
#
018
MPN:
160080
INJECTION SYSTEM CABLES (CYL.7/12)
- NOT FOR USA, CDN, AUS, CH, SA, ZA, J
from
£833.47
from
£833.47
#
018
MPN:
161942
INJECTION SYSTEM CABLES (CYL. 1/6)
- VALID FOR USA, CDN, AUS, CH, SA, ZA, J
from
£1,020.10
from
£1,020.10
#
018
MPN:
161943
INJECTION SYSTEM CABLES (CYL.7/12)
- VALID FOR USA, CDN, AUS, CH, SA, ZA, J
from
£1,047.67
from
£1,047.67
#
019
MPN:
139465
BELLOWS
from
£129.45
from
£129.45
#
020
MPN:
149023
CAP
from
£3.85
from
£3.85
#
021
MPN:
130975/A
ANGULAR SPEED SENSOR
Alternative use - 130975/A
from
£72.41
from
£72.41
This part replaces part number 130975
#
022
MPN:
140621
SPACER
from
£9.08
from
£9.08
#
023
MPN:
14305021
SCREW
from
£0.47
from
£0.47
#
024
MPN:
12601274
WASHER
from
£0.47
from
£0.47
This part replaces part number 12601221
- and 5 more. Click to view details
#
025
MPN:
11001224
STUD
from
£0.47
from
£0.47
This part replaces part number 11001221
#
026
MPN:
144805
SUPPORT
from
£45.29
from
£45.29
#
027
MPN:
15896470
NUT
(minimum order quantity = 20)
from
£0.78
from
£0.78
This part replaces part number 15896415 which we have in stock
- and 1 more. Click to view details
#
028
MPN:
11199279
WASHER
from
£0.71
from
£0.71
#
029
MPN:
148254
PRESSURE REGULATOR
Supersession
Supersession
#
030
MPN:
115042
RUBBER PIPE
from
£4.83
from
£4.83
#
031
MPN:
144730
INJECTOR RETAINING SPRING
from
£2.09
from
£2.09
#
032
MPN:
156441
SPARK PLUG
(for NGK use part number: 174954 )
from
£12.42
from
£12.42
#
032
MPN:
174954
SPARK PLUG
from
£11.45
from
£11.45
#
033
MPN:
10902124
SCREW
from
£0.51
from
£0.51
This part replaces part number 10902111
- and 1 more. Click to view details
#
034
MPN:
11193279
WASHER
from
£0.47
from
£0.47
#
035
MPN:
148421
COIL AND MODULE SUPPORT
from
£31.25
from
£31.25
#
036
MPN:
10903024
SCREW
from
£0.47
from
£0.47
This part replaces part number 10903021
#
037
MPN:
12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
#
038
MPN:
138224
COIL
from
£295.40
from
£295.40
#
039
MPN:
13274972
SCREW
from
£1.15
from
£1.15
This part replaces part number 13274911
- and 1 more. Click to view details
#
040
MPN:
149951
WASHER
from
£0.47
from
£0.47
This part replaces part number 10615301 which we have in stock
- and 4 more. Click to view details
#
041
MPN:
10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock
- and 1 more. Click to view details
#
042
MPN:
20-14-01
POWER MODULE
from
£194.34
from
£194.34
This part replaces part number 138225
- and 1 more. Click to view details
#
043
MPN:
13274672
SCREW
from
£0.78
from
£0.78
This part replaces part number 13274617
#
044
MPN:
149174
HIGH TENSION COMPLETE CABLES FOR 7/12 CYLINDERS
Supersession
Supersession
#
044
MPN:
188916
HIGH TENSION COMPLETE CABLES FOR 1/6 CYLINDERS
Supersession
Supersession
This part replaces part number 149173
#
044
MPN:
FHT007
HT LEADS SET
from
£1,051.72
from
£1,051.72
#
045
MPN:
150753
CAP
from
£25.71
from
£25.71
#
046
MPN:
14059111
NUT
from
£0.47
from
£0.47
#
047
MPN:
152211
GASKET OR
from
£2.59
from
£2.59
#
048
MPN:
149320
CONNECTORS FIX. BOX
from
£42.88
from
£42.88
#
049
MPN:
148682
CONNECTORS FIX. BRACKET
#
050
MPN:
145810
TESTER PUSH
- Valid for USA
from
£7.67
from
£7.67
#
051
MPN:
146196
TESTER PUSH CABLE
- Valid for USA
from
£374.53
from
£374.53
#
052
MPN:
146042
PM CONNECTOR
from
£16.20
from
£16.20
#
053
MPN:
146043
PF CONNECTOR
from
£8.99
from
£8.99
