014 - Air Intake Manifolds

Ferrari 512 M Air Intake Manifolds Parts Diagram

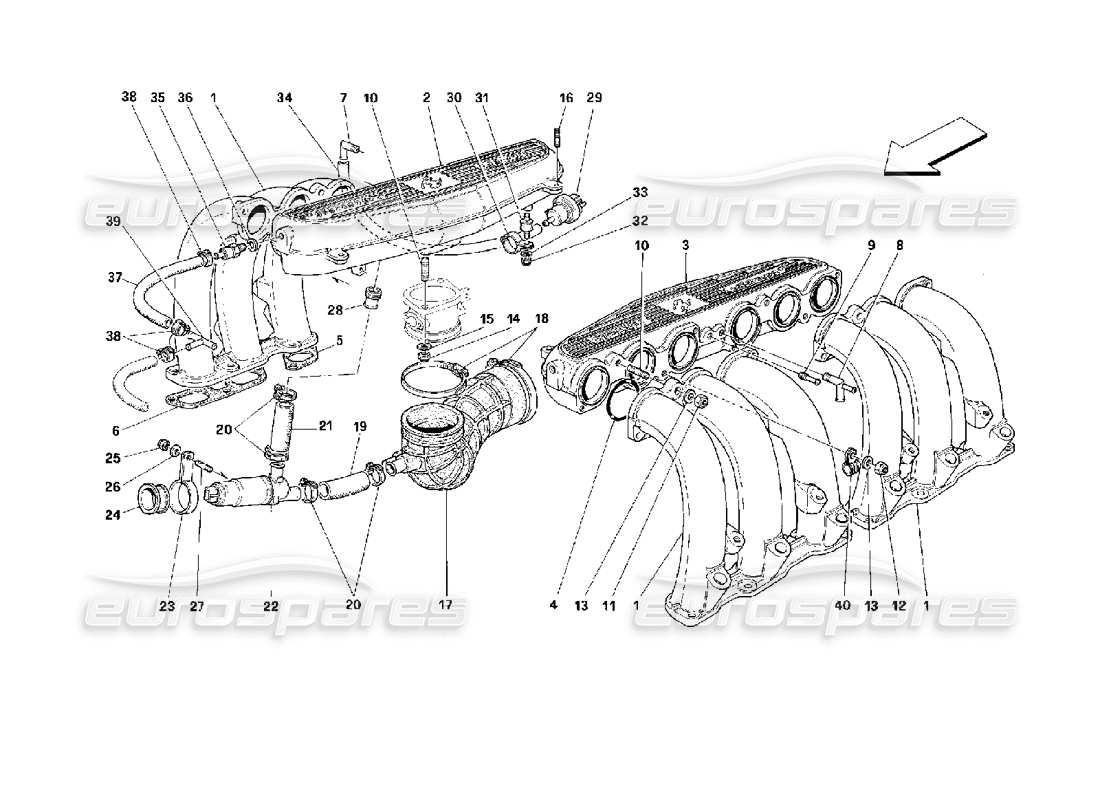

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 143953
                                                                              INTAKE MANIFOLD
                                                                              from £471.07
                                                                              from £471.07
                                                                              # 002
                                                                              MPN: 137719
                                                                              AIR CAPACITY FOR RH INTAKE MANIFOLD
                                                                              from £1,686.07
                                                                              from £1,686.07
                                                                              # 002
                                                                              MPN: 164253
                                                                              AIR CAPACITY FOR RH INTAKE MANIFOLD COMPLETE
                                                                              from £895.20
                                                                              from £895.20
                                                                              This part replaces part number 155015
                                                                              # 003
                                                                              MPN: 137720
                                                                              AIR CAPACITY FOR LH INTAKE MANIFOLD
                                                                              from £895.20
                                                                              from £895.20
                                                                              This part replaces part number 147826
                                                                              # 003
                                                                              MPN: 164254
                                                                              AIR CAPACITY FOR LH INTAKE MANIFOLD COMPLETE
                                                                              from £895.20
                                                                              from £895.20
                                                                              This part replaces part number 155016
                                                                              # 004
                                                                              MPN: 142913
                                                                              GASKET
                                                                              from £3.44
                                                                              from £3.44
                                                                              # 005
                                                                              MPN: 139968
                                                                              GASKET
                                                                              from £3.46
                                                                              from £3.46
                                                                              # 006
                                                                              MPN: 139969
                                                                              GASKET
                                                                              from £4.28
                                                                              from £4.28
                                                                              # 007
                                                                              MPN: 147926
                                                                              CONNECTION
                                                                              from £40.02
                                                                              from £40.02
                                                                              # 008
                                                                              MPN: 147925
                                                                              CONNECTION
                                                                              from £54.48
                                                                              from £54.48
                                                                              # 009
                                                                              MPN: 117348
                                                                              CONNECTION
                                                                              from £3.73
                                                                              from £3.73
                                                                              # 010
                                                                              MPN: 13516824
                                                                              STUD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 13516821
                                                                              # 011
                                                                              MPN: 101240
                                                                              NUT
                                                                              from £1.30
                                                                              from £1.30
                                                                              # 012
                                                                              MPN: 150978
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              # 013
                                                                              MPN: 12601374
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                                              # 014
                                                                              MPN: 133989
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 8 D 4-UNI 207
                                                                              # 015
                                                                              MPN: 11193874
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 11193879 which we have in stock
                                                                              # 016
                                                                              MPN: 13541124
                                                                              STUD
                                                                              from £11.72
                                                                              from £11.72
                                                                              This part replaces part number 13541121
                                                                              # 017
                                                                              MPN: 145450
                                                                              RH SLEEVE
                                                                              from £77.80
                                                                              from £77.80
                                                                              # 017
                                                                              MPN: 145464
                                                                              LH SLEEVE
                                                                              from £55.09
                                                                              from £55.09
                                                                              # 018
                                                                              MPN: 13001190
                                                                              CLAMP
                                                                              from £0.62
                                                                              from £0.62
                                                                              # 019
                                                                              MPN: 144561
                                                                              PIPE FROM REGULATOR TO SLEEVE
                                                                              from £10.96
                                                                              from £10.96
                                                                              # 020
                                                                              MPN: 13000490
                                                                              CLAMP
                                                                              from £0.48
                                                                              from £0.48
                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                              # 021
                                                                              MPN: 144560
                                                                              PIPE FROM REGULATOR TO PLENUM CHAMBER
                                                                              from £11.88
                                                                              from £11.88
                                                                              # 022
                                                                              MPN: 142432
                                                                              REVOLUTION REGULATOR
                                                                              from £189.00
                                                                              from £189.00
                                                                              # 023
                                                                              MPN: 150735
                                                                              BRACKET
                                                                              from £5.46
                                                                              from £5.46
                                                                              This part replaces part number 142937
                                                                              # 024
                                                                              MPN: 150736
                                                                              SHEATH
                                                                              from £3.81
                                                                              from £3.81
                                                                              # 025
                                                                              MPN: 15896211
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 15896210
                                                                              # 026
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 027
                                                                              MPN: 11500024
                                                                              STUD
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
                                                                              # 028
                                                                              MPN: 144562
                                                                              CONNECTION
                                                                              from £2.61
                                                                              from £2.61
                                                                              # 029
                                                                              MPN: 130978
                                                                              ANTIEVAPORATION VALVE
                                                                              from £268.99
                                                                              from £268.99
                                                                              # 030
                                                                              MPN: 147923
                                                                              CLAMP
                                                                              from £0.98
                                                                              from £0.98
                                                                              # 031
                                                                              MPN: 148835
                                                                              BUFFER
                                                                              from £7.74
                                                                              from £7.74
                                                                              # 032
                                                                              MPN: 12577811
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              # 033
                                                                              MPN: 14496324
                                                                              WASHER
                                                                              from £1.39
                                                                              from £1.39
                                                                              This part replaces part number 14496301
                                                                              # 034
                                                                              MPN: 116764
                                                                              PIPE FROM ANTIEV. VALVE TO LH AIR CAPACITY CONNECTION
                                                                              - Replace the 154708
                                                                              from £14.05
                                                                              from £14.05
                                                                              This part replaces part number 105492 - and 3 more. Click to view details
                                                                              # 034
                                                                              MPN: 154708
                                                                              PIPE FROM ANTIEV. VALVE TO LH AIR CAPACITY CONNECTION
                                                                              - Not as spare parts for F512M
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 149612
                                                                              # 034
                                                                              MPN: 154709
                                                                              PIPE FROM ANTIEV. VALVE TO RH AIR CAPACITY CONNECTION
                                                                              - Valid till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 120441 - and 1 more. Click to view details
                                                                              # 034
                                                                              MPN: 154709
                                                                              PIPE FROM ANTIEV. VALVE TO RH AIR CAPACITY CONNECTION
                                                                              - Valid after stock exhaustion of 154709
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 120441 - and 1 more. Click to view details
                                                                              # 036
                                                                              MPN: 10298460
                                                                              GASKET
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 93353
                                                                              # 037
                                                                              MPN: 125031
                                                                              PIPE FROM VALVE TO 3 WAY UNION
                                                                              from £11.81
                                                                              from £11.81
                                                                              # 038
                                                                              MPN: 13000390
                                                                              CLAMP
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                                                              # 039
                                                                              MPN: 100881
                                                                              3 WAY UNION
                                                                              from £1.41
                                                                              from £1.41
                                                                              This part replaces part number 680025 - and 1 more. Click to view details
                                                                              # 040
                                                                              MPN: 10450190
                                                                              BRACKET
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 148751
