015 - AIR INTAKE

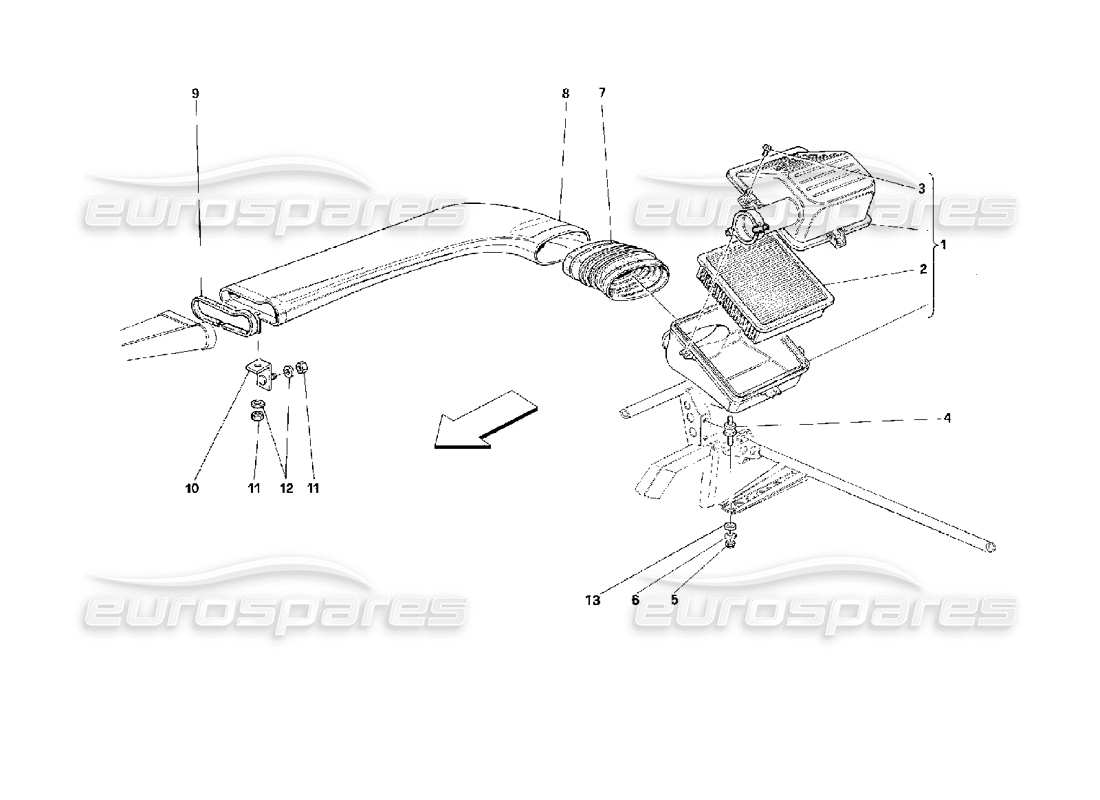

Ferrari 512 M Air Intake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 148719
                    RH AIR INTAKE ASSY
                    - Not for CH
                    from £279.47
                    from £279.47
                    # 001
                    MPN: 148720
                    LH AIR INTAKE ASSY
                    - Not for CH
                    from £279.47
                    from £279.47
                    # 001
                    MPN: 152340
                    RH AIR INTAKE ASSY
                    - Valid for CH
                    from £509.55
                    from £509.55
                    # 001
                    MPN: 152341
                    LH AIR INTAKE ASSY
                    - Valid for CH
                    from £509.55
                    from £509.55
                    # 002
                    MPN: 151564
                    AIR FILTER
                    from £21.59
                    from £21.59
                    This part replaces part number 148718
                    # 003
                    MPN: 10376577
                    SCREW
                    from £0.50
                    from £0.50
                    This part replaces part number 10376517
                    # 004
                    MPN: 142202
                    DAMPER SUPPORT
                    from £14.37
                    from £14.37
                    # 005
                    MPN: 15896211
                    NUT
                    Supersession
                    Supersession
                    This part replaces part number 15896210 which we have in stock
                    # 006
                    MPN: 12643724
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 109684 - and 3 more. Click to view details
                    # 007
                    MPN: 63379200
                    SLEEVE
                    from £28.60
                    from £28.60
                    # 008
                    MPN: 63112600
                    RH REAR AIR CONVEYOR
                    - Not for CH
                    from £22.51
                    from £22.51
                    This part replaces part number 63358600
                    # 008
                    MPN: 63112700
                    LH REAR AIR CONVEYOR
                    - Not for CH
                    from £22.51
                    from £22.51
                    This part replaces part number 63358700
                    # 008
                    MPN: 63946300
                    RH REAR AIR CONVEYOR
                    - Valid for CH
                    from £571.40
                    from £571.40
                    This part replaces part number 63588100
                    # 008
                    MPN: 63946400
                    LH REAR AIR CONVEYOR
                    - Valid for CH
                    from £423.00
                    from £423.00
                    This part replaces part number 63588200
                    # 009
                    MPN: 63112800
                    GASKET
                    - Not for CH
                    from £1.75
                    from £1.75
                    # 010
                    MPN: 63100500
                    BRACKET
                    from £0.82
                    from £0.82
                    # 011
                    MPN: 14084211
                    NUT
                    from £0.47
                    from £0.47
                    # 012
                    MPN: 12643724
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 109684 - and 3 more. Click to view details
                    # 013
                    MPN: 127494
                    WASHER
                    (minimum order quantity = 20)
                    from £0.47
                    from £0.47
                    This part replaces part number 10516470 - and 4 more. Click to view details
