ferrari 512 m throttle control -not for gd- parts diagram

016 - Throttle Control -Not for GD-

Ferrari 512 M Throttle Control -Not for GD- Parts Diagram

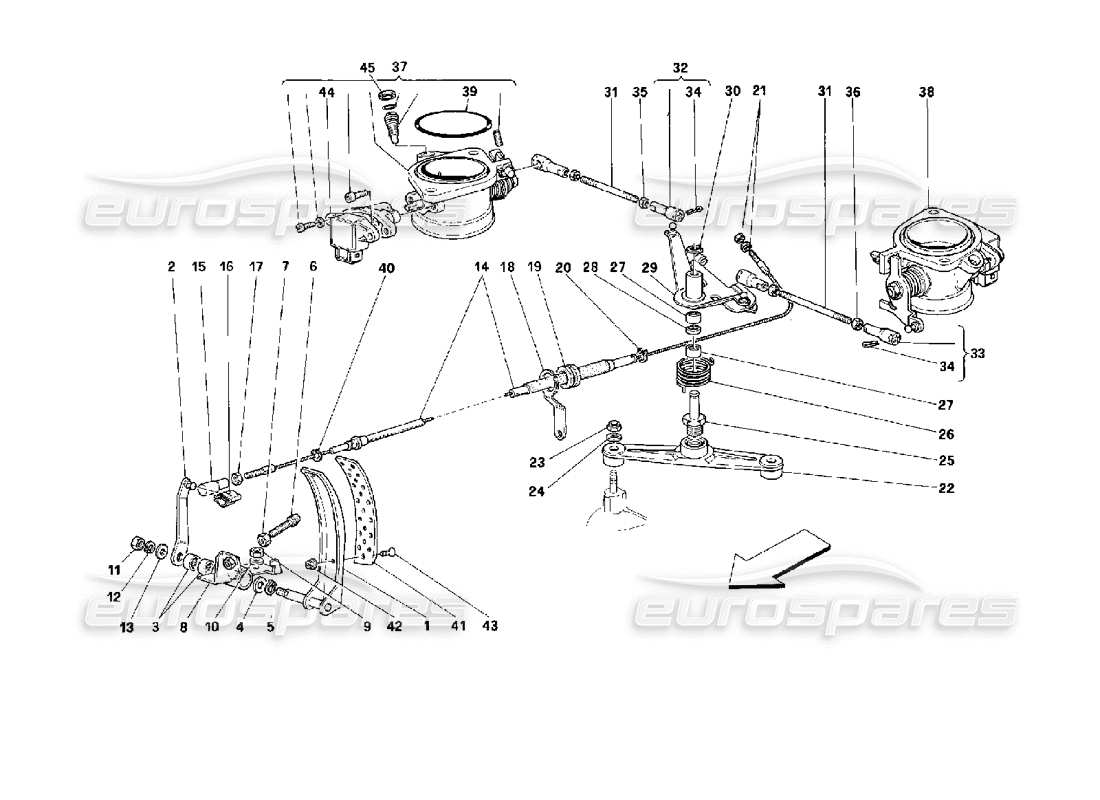

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 163902
                                                                                      throttle pedal
                                                                                      - Valid till stock exhaustion
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 001
                                                                                      MPN: 163907
                                                                                      throttle pedal
                                                                                      - Valid after stock exhaustion of 163902
                                                                                      from £187.83
                                                                                      from £187.83
                                                                                      This part replaces part number 163902
                                                                                      # 002
                                                                                      MPN: 148297
                                                                                      Throttle control lever
                                                                                      from £20.41
                                                                                      from £20.41
                                                                                      # 003
                                                                                      MPN: 101677
                                                                                      ROLLER BEARING
                                                                                      from £2.10
                                                                                      from £2.10
                                                                                      # 004
                                                                                      MPN: 108576
                                                                                      WASHER
                                                                                      from £0.70
                                                                                      from £0.70
                                                                                      # 005
                                                                                      MPN: 11066076
                                                                                      SEEGER RING
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11066075
                                                                                      # 006
                                                                                      MPN: 105232
                                                                                      CONTROL SCREW
                                                                                      from £3.71
                                                                                      from £3.71

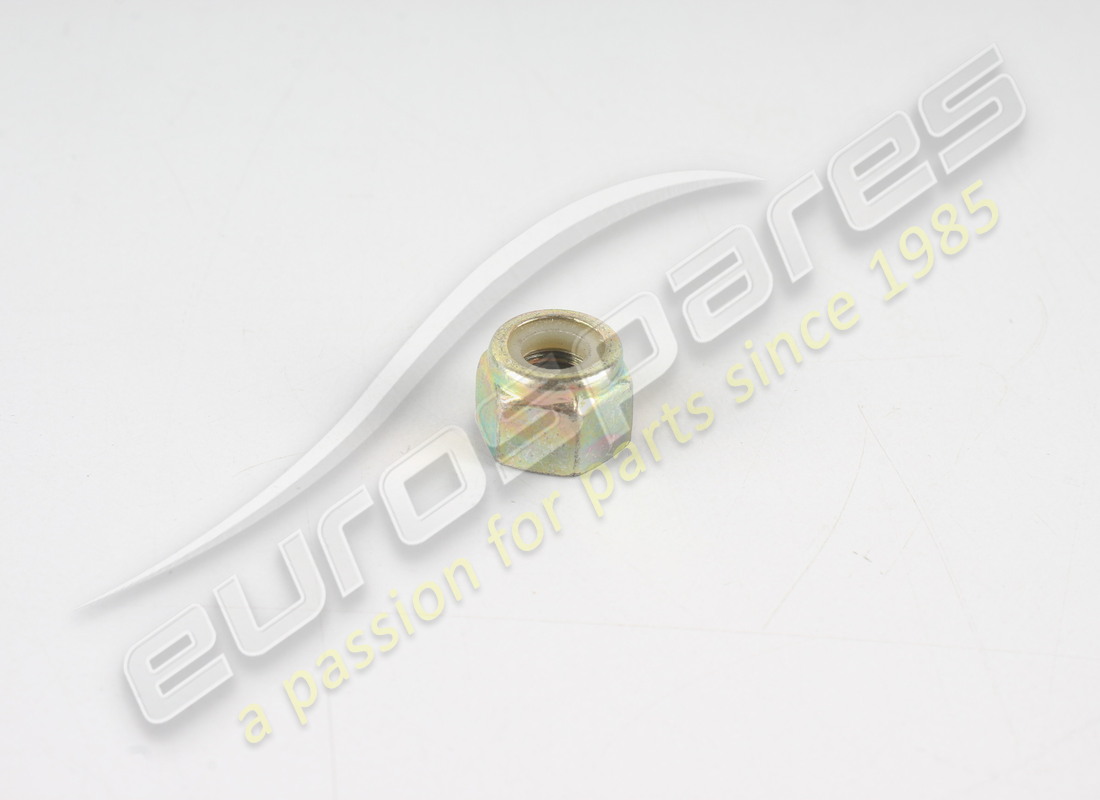

                                                                                      # 007
                                                                                      MPN: 16102311
                                                                                      NUT
                                                                                      from £0.43
                                                                                      from £0.43
                                                                                      This part replaces part number 16102315
                                                                                      # 008
                                                                                      MPN: 115396
                                                                                      THROTTLE PEDAL SUPPORT
                                                                                      from £23.85
                                                                                      from £23.85
                                                                                      # 009
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 010
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 011
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 012
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 013
                                                                                      MPN: 10519624
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                      # 014
                                                                                      MPN: 165416
                                                                                      THROTTLES CONTROL CABLE
                                                                                      from £160.63
                                                                                      from £160.63
                                                                                      This part replaces part number 159531
                                                                                      # 015
                                                                                      MPN: 10123811
                                                                                      JOINT HEAD
                                                                                      from £10.71
                                                                                      from £10.71
                                                                                      # 016
                                                                                      MPN: 10124776
                                                                                      SPRING CLIP
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 017
                                                                                      MPN: 15896470
                                                                                      NUT
                                                                                      (minimum order quantity = 20)
                                                                                      from £0.79
                                                                                      from £0.79
                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                      # 018
                                                                                      MPN: 154742
                                                                                      BRACKET
                                                                                      from £14.90
                                                                                      from £14.90
                                                                                      This part replaces part number 150814
                                                                                      # 019
                                                                                      MPN: 10396680
                                                                                      CABLE GROMMET
                                                                                      from £1.11
                                                                                      from £1.11
                                                                                      # 020
                                                                                      MPN: 11065676
                                                                                      SEEGER RING
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                      # 021
                                                                                      MPN: 10725011
                                                                                      NUT
                                                                                      from £0.85
                                                                                      from £0.85
                                                                                      # 022
                                                                                      MPN: 145696
                                                                                      THROTTLE SUPPORT
                                                                                      from £99.19
                                                                                      from £99.19
                                                                                      # 023
                                                                                      MPN: 12574211
                                                                                      NUT
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 024
                                                                                      MPN: 12639701
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 12639704
                                                                                      # 025
                                                                                      MPN: 136705
                                                                                      PIN
                                                                                      from £35.07
                                                                                      from £35.07
                                                                                      # 026
                                                                                      MPN: 153354
                                                                                      SPRING
                                                                                      from £3.60
                                                                                      from £3.60
                                                                                      This part replaces part number 150085
                                                                                      # 027
                                                                                      MPN: 132873
                                                                                      ROLLER CAGE
                                                                                      from £2.49
                                                                                      from £2.49
                                                                                      # 028
                                                                                      MPN: 136880
                                                                                      SPACER
                                                                                      from £15.87
                                                                                      from £15.87
                                                                                      # 029
                                                                                      MPN: 153356
                                                                                      LEVER
                                                                                      from £166.70
                                                                                      from £166.70
                                                                                      This part replaces part number 148157
                                                                                      # 030
                                                                                      MPN: 11065676
                                                                                      SEEGER RING
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                      # 031
                                                                                      MPN: 145762
                                                                                      TIE ROD
                                                                                      from £1.30
                                                                                      from £1.30
                                                                                      # 033
                                                                                      MPN: 173999
                                                                                      RH THREAD THROTTLE BALL JOINT
                                                                                      from £2.48
                                                                                      from £2.48
                                                                                      This part replaces part number 105617 - and 2 more. Click to view details
                                                                                      # 034
                                                                                      MPN: 10795101
                                                                                      COTTER PIN
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 035
                                                                                      MPN: 105586
                                                                                      LH THREAD NUT
                                                                                      from £4.65
                                                                                      from £4.65
                                                                                      # 036
                                                                                      MPN: 15896470
                                                                                      NUT (RH THREAD)
                                                                                      (minimum order quantity = 20)
                                                                                      from £0.79
                                                                                      from £0.79
                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                      # 037
                                                                                      MPN: 146632
                                                                                      RH THROTTLE BODY COMPLETE
                                                                                      from £552.58
                                                                                      from £552.58
                                                                                      # 038
                                                                                      MPN: 148708
                                                                                      LH THROTTLE BODY COMPLETE
                                                                                      from £543.93
                                                                                      from £543.93
                                                                                      # 039
                                                                                      MPN: 142934
                                                                                      GASKET
                                                                                      from £6.20
                                                                                      from £6.20
                                                                                      This part replaces part number 147901
                                                                                      # 040
                                                                                      MPN: 11087974
                                                                                      CIRCLIP
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 11087976
                                                                                      # 041
                                                                                      MPN: 163920
                                                                                      PEDAL PLATE
                                                                                      from £66.08
                                                                                      from £66.08
                                                                                      # 042
                                                                                      MPN: 14058311
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 043
                                                                                      MPN: 14440734
                                                                                      SCREW
                                                                                      from £1.59
                                                                                      from £1.59
                                                                                      This part replaces part number 14440721 - and 1 more. Click to view details
                                                                                      # 044
                                                                                      MPN: 158170
                                                                                      POTENTIOMETER FOR THROTTLE VALVE
                                                                                      from £121.39
                                                                                      from £121.39
                                                                                      This part replaces part number 142434 - and 1 more. Click to view details
                                                                                      # 045
                                                                                      MPN: 166419
                                                                                      SAFETY PLUG
                                                                                      from £5.94
                                                                                      from £5.94
                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
