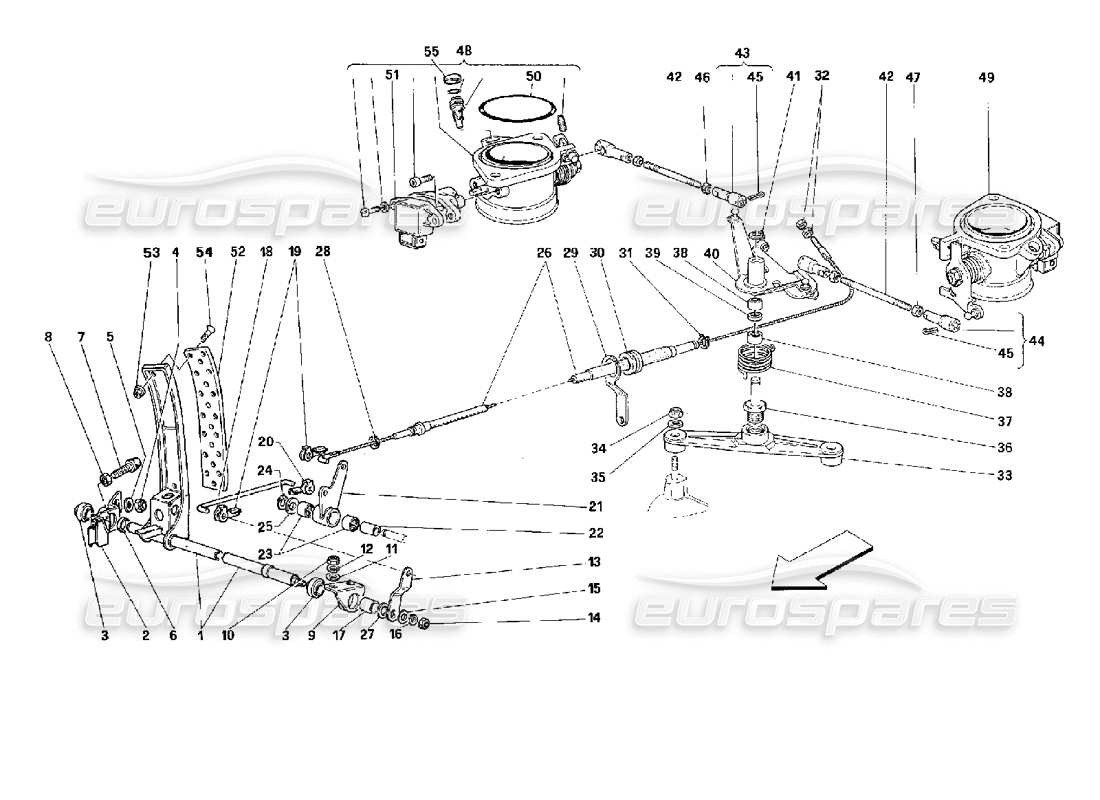

ferrari 512 m throttle control -valid for gd- parts diagram

017 - Throttle Control -Valid for GD-

Ferrari 512 M Throttle Control -Valid for GD- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 151478
                                                                                                          throttle pedal
                                                                                                          from £524.91
                                                                                                          from £524.91
                                                                                                          # 002
                                                                                                          MPN: 116526
                                                                                                          PEDAL SUPPORT
                                                                                                          from £44.82
                                                                                                          from £44.82
                                                                                                          # 003
                                                                                                          MPN: 122430
                                                                                                          BALL JOINT
                                                                                                          from £80.49
                                                                                                          from £80.49
                                                                                                          # 005
                                                                                                          MPN: 10519624
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                          # 006
                                                                                                          MPN: 121477
                                                                                                          SPACER
                                                                                                          from £2.28
                                                                                                          from £2.28
                                                                                                          # 007
                                                                                                          MPN: 100640
                                                                                                          PEDAL ADJUSTMENT PUSH ROD
                                                                                                          from £3.15
                                                                                                          from £3.15
                                                                                                          This part replaces part number 9181141 - and 1 more. Click to view details
                                                                                                          # 008
                                                                                                          MPN: 16102311
                                                                                                          NUT
                                                                                                          from £0.43
                                                                                                          from £0.43
                                                                                                          This part replaces part number 16102315
                                                                                                          # 009
                                                                                                          MPN: 116528
                                                                                                          SUPPORT FOR RELAY LEVER
                                                                                                          from £43.20
                                                                                                          from £43.20
                                                                                                          # 010
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210
                                                                                                          # 011
                                                                                                          MPN: 12643701
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                          # 012
                                                                                                          MPN: 127494
                                                                                                          WASHER
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                          # 013
                                                                                                          MPN: 124997
                                                                                                          Throttle control lever
                                                                                                          from £3.67
                                                                                                          from £3.67
                                                                                                          # 014
                                                                                                          MPN: 16100824
                                                                                                          NUT
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                          # 015
                                                                                                          MPN: 10519624
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                          # 016
                                                                                                          MPN: 127496
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                          # 017
                                                                                                          MPN: 117991
                                                                                                          SPACER
                                                                                                          from £2.36
                                                                                                          from £2.36
                                                                                                          # 018
                                                                                                          MPN: 124998
                                                                                                          TIE ROD
                                                                                                          from £4.49
                                                                                                          from £4.49
                                                                                                          # 019
                                                                                                          MPN: 119550
                                                                                                          RH FASTENED
                                                                                                          from £0.80
                                                                                                          from £0.80
                                                                                                          # 020
                                                                                                          MPN: 119551
                                                                                                          LH FASTENED
                                                                                                          from £0.77
                                                                                                          from £0.77
                                                                                                          # 021
                                                                                                          MPN: 150408
                                                                                                          RELAY LEVER
                                                                                                          from £66.69
                                                                                                          from £66.69
                                                                                                          # 022
                                                                                                          MPN: 125001
                                                                                                          INNER RING
                                                                                                          from £7.05
                                                                                                          from £7.05
                                                                                                          # 023
                                                                                                          MPN: 101677
                                                                                                          ROLLER BEARING
                                                                                                          from £2.09
                                                                                                          from £2.09
                                                                                                          # 024
                                                                                                          MPN: 11065676
                                                                                                          SEEGER RING
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                                          # 025
                                                                                                          MPN: 117311
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 026
                                                                                                          MPN: 159532
                                                                                                          THROTTLES CONTROL CABLE
                                                                                                          - Valid till stock exhaustion
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 150410
                                                                                                          # 026
                                                                                                          MPN: 165417
                                                                                                          THROTTLES CONTROL CABLE
                                                                                                          - Valid after stock exhaustion of 159532
                                                                                                          from £88.57
                                                                                                          from £88.57
                                                                                                          This part replaces part number 159532
                                                                                                          # 027
                                                                                                          MPN: 105929
                                                                                                          THRUST WASHER
                                                                                                          from £0.73
                                                                                                          from £0.73
                                                                                                          # 027
                                                                                                          MPN: 105930
                                                                                                          THRUST WASHER
                                                                                                          from £1.69
                                                                                                          from £1.69
                                                                                                          # 027
                                                                                                          MPN: 105931
                                                                                                          THRUST WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 028
                                                                                                          MPN: 11087974
                                                                                                          CIRCLIP
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 11087976
                                                                                                          # 029
                                                                                                          MPN: 154742
                                                                                                          BRACKET
                                                                                                          from £14.90
                                                                                                          from £14.90
                                                                                                          This part replaces part number 150814
                                                                                                          # 030
                                                                                                          MPN: 10396680
                                                                                                          CABLE GROMMET
                                                                                                          from £1.10
                                                                                                          from £1.10
                                                                                                          # 031
                                                                                                          MPN: 11065676
                                                                                                          SEEGER RING
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                                          # 032
                                                                                                          MPN: 10725011
                                                                                                          NUT
                                                                                                          from £0.85
                                                                                                          from £0.85
                                                                                                          # 033
                                                                                                          MPN: 145696
                                                                                                          THROTTLE SUPPORT
                                                                                                          from £99.19
                                                                                                          from £99.19
                                                                                                          # 034
                                                                                                          MPN: 12574211
                                                                                                          NUT
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 035
                                                                                                          MPN: 12639701
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12639704
                                                                                                          # 036
                                                                                                          MPN: 136705
                                                                                                          PIN
                                                                                                          from £35.07
                                                                                                          from £35.07
                                                                                                          # 037
                                                                                                          MPN: 153354
                                                                                                          SPRING
                                                                                                          from £3.60
                                                                                                          from £3.60
                                                                                                          This part replaces part number 150085
                                                                                                          # 038
                                                                                                          MPN: 132873
                                                                                                          ROLLER CAGE
                                                                                                          from £2.49
                                                                                                          from £2.49
                                                                                                          # 039
                                                                                                          MPN: 136880
                                                                                                          SPACER
                                                                                                          from £15.80
                                                                                                          from £15.80
                                                                                                          # 040
                                                                                                          MPN: 153356
                                                                                                          LEVER
                                                                                                          from £166.70
                                                                                                          from £166.70
                                                                                                          This part replaces part number 148157
                                                                                                          # 041
                                                                                                          MPN: 11065676
                                                                                                          SEEGER RING
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                                          # 042
                                                                                                          MPN: 145762
                                                                                                          TIE ROD
                                                                                                          from £1.30
                                                                                                          from £1.30

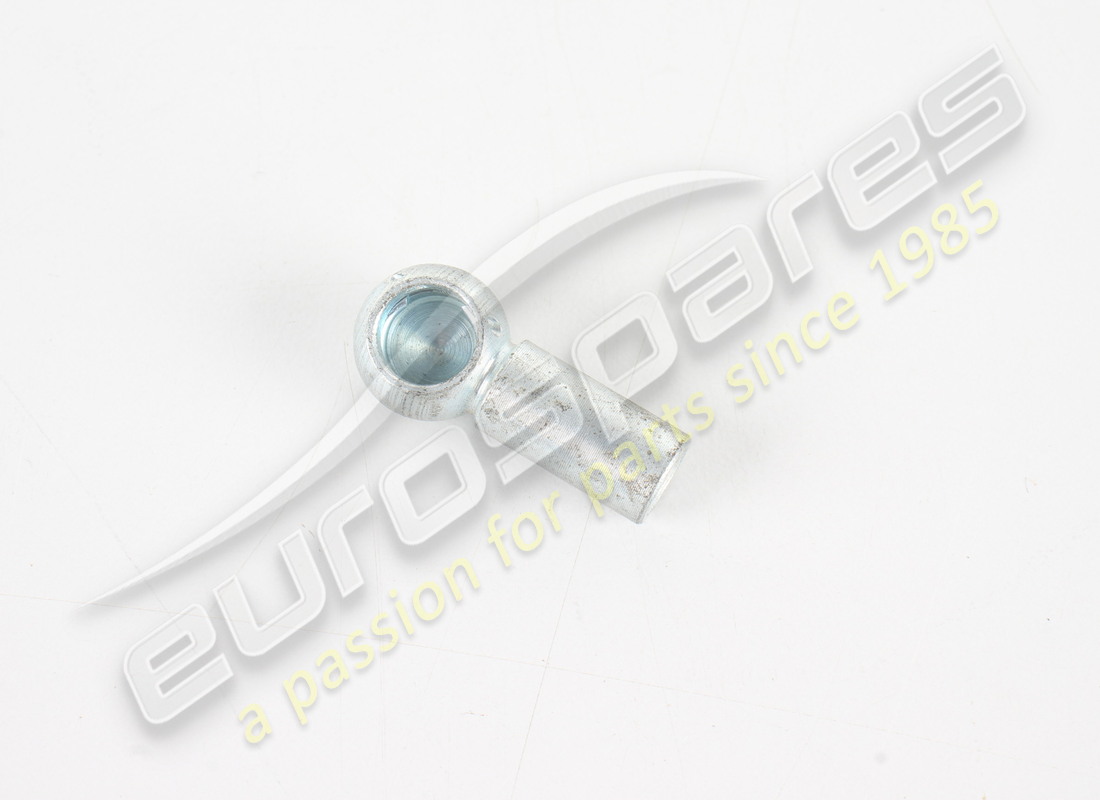

                                                                                                          # 044
                                                                                                          MPN: 173999
                                                                                                          RH THREAD THROTTLE BALL JOINT
                                                                                                          from £2.48
                                                                                                          from £2.48
                                                                                                          This part replaces part number 105617 - and 1 more. Click to view details
                                                                                                          # 045
                                                                                                          MPN: 10795101
                                                                                                          COTTER PIN
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 046
                                                                                                          MPN: 105586
                                                                                                          LH THREAD NUT
                                                                                                          from £4.65
                                                                                                          from £4.65
                                                                                                          # 047
                                                                                                          MPN: 15896470
                                                                                                          NUT (RH THREAD)
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.79
                                                                                                          from £0.79
                                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                          # 048
                                                                                                          MPN: 146632
                                                                                                          RH THROTTLE BODY COMPLETE
                                                                                                          from £552.58
                                                                                                          from £552.58
                                                                                                          # 049
                                                                                                          MPN: 148708
                                                                                                          LH THROTTLE BODY COMPLETE
                                                                                                          from £543.93
                                                                                                          from £543.93
                                                                                                          # 050
                                                                                                          MPN: 142934
                                                                                                          GASKET
                                                                                                          from £6.20
                                                                                                          from £6.20
                                                                                                          This part replaces part number 147901
                                                                                                          # 051
                                                                                                          MPN: 158170
                                                                                                          POTENTIOMETER FOR THROTTLE VALVE
                                                                                                          from £120.86
                                                                                                          from £120.86
                                                                                                          This part replaces part number 142434 - and 1 more. Click to view details
                                                                                                          # 052
                                                                                                          MPN: 163920
                                                                                                          PEDAL PLATE
                                                                                                          from £66.08
                                                                                                          from £66.08
                                                                                                          # 053
                                                                                                          MPN: 14058311
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 054
                                                                                                          MPN: 14440734
                                                                                                          SCREW
                                                                                                          from £1.58
                                                                                                          from £1.58
                                                                                                          This part replaces part number 14440721 - and 1 more. Click to view details
                                                                                                          # 055
                                                                                                          MPN: 166419
                                                                                                          SAFETY PLUG
                                                                                                          from £5.94
                                                                                                          from £5.94
                                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
