ferrari 512 m exhaust system -valid for usa, cdn, aus, ch- parts diagram

019 - Exhaust System -Valid for USA, CDN, AUS, CH-

Ferrari 512 M Exhaust System -Valid for USA, CDN, AUS, CH- Parts Diagram

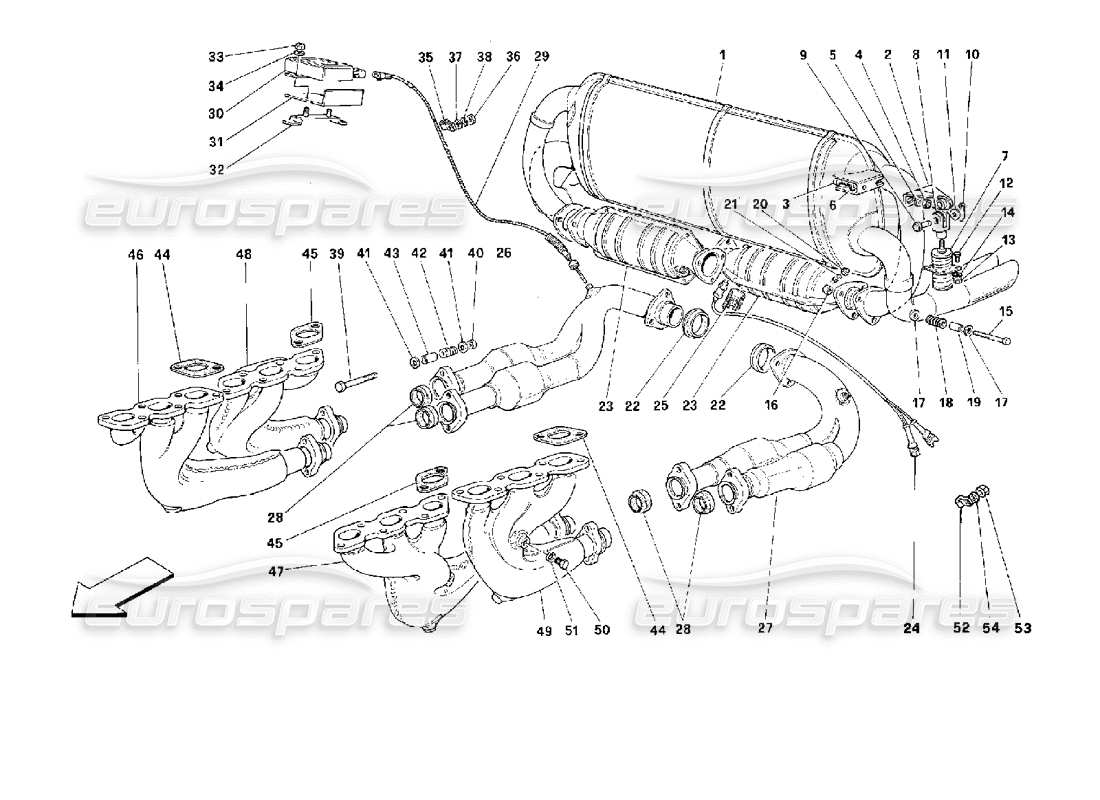

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 161819
                                                                                                      EXHAUST SILENCER
                                                                                                      - Not for CH
                                                                                                      from £2,760.26
                                                                                                      from £2,760.26
                                                                                                      # 001
                                                                                                      MPN: 163728
                                                                                                      EXHAUST SILENCER
                                                                                                      - Valid for CH
                                                                                                      from £2,649.30
                                                                                                      from £2,649.30
                                                                                                      # 002
                                                                                                      MPN: 122689
                                                                                                      BRACKET
                                                                                                      from £160.79
                                                                                                      from £160.79
                                                                                                      # 003
                                                                                                      MPN: 16043534
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 16043521 which we have in stock - and 1 more. Click to view details
                                                                                                      # 004
                                                                                                      MPN: 114748
                                                                                                      NUT
                                                                                                      from £8.85
                                                                                                      from £8.85
                                                                                                      # 005
                                                                                                      MPN: 10519624
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                      # 006
                                                                                                      MPN: 12646724
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                                                                      # 007
                                                                                                      MPN: 106052
                                                                                                      EXHAUST MOUNT
                                                                                                      from £57.78
                                                                                                      from £57.78
                                                                                                      # 008
                                                                                                      MPN: 108257
                                                                                                      FORK
                                                                                                      from £100.31
                                                                                                      from £100.31
                                                                                                      # 009
                                                                                                      MPN: 10033414
                                                                                                      PIN
                                                                                                      from £8.63
                                                                                                      from £8.63
                                                                                                      This part replaces part number 10033411 which we have in stock
                                                                                                      # 010
                                                                                                      MPN: 10796440
                                                                                                      COTTER PIN
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 10796401 - and 1 more. Click to view details
                                                                                                      # 011
                                                                                                      MPN: 103167
                                                                                                      WASHER
                                                                                                      from £1.97
                                                                                                      from £1.97
                                                                                                      # 012
                                                                                                      MPN: 10977624
                                                                                                      SCREW
                                                                                                      from £0.48
                                                                                                      from £0.48
                                                                                                      This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                      # 013
                                                                                                      MPN: 15896470
                                                                                                      NUT
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.77
                                                                                                      from £0.77
                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                      # 014
                                                                                                      MPN: 127493
                                                                                                      WASHER
                                                                                                      from £0.48
                                                                                                      from £0.48
                                                                                                      This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                      # 015
                                                                                                      MPN: 15971324
                                                                                                      SCREW
                                                                                                      from £0.86
                                                                                                      from £0.86
                                                                                                      This part replaces part number 123198 - and 1 more. Click to view details
                                                                                                      # 016
                                                                                                      MPN: 121677
                                                                                                      NUT
                                                                                                      from £3.82
                                                                                                      from £3.82
                                                                                                      # 017
                                                                                                      MPN: 121678
                                                                                                      WASHER
                                                                                                      from £6.73
                                                                                                      from £6.73
                                                                                                      # 018
                                                                                                      MPN: 121674
                                                                                                      SPRING
                                                                                                      from £12.27
                                                                                                      from £12.27
                                                                                                      # 019
                                                                                                      MPN: 121675
                                                                                                      SPACER
                                                                                                      from £23.19
                                                                                                      from £23.19
                                                                                                      # 020
                                                                                                      MPN: 100436
                                                                                                      NUT
                                                                                                      from £7.64
                                                                                                      from £7.64
                                                                                                      This part replaces part number 92896
                                                                                                      # 021
                                                                                                      MPN: 125858
                                                                                                      BALL
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 022
                                                                                                      MPN: 154985
                                                                                                      GASKET
                                                                                                      from £11.00
                                                                                                      from £11.00
                                                                                                      This part replaces part number 121426 - and 1 more. Click to view details
                                                                                                      # 023
                                                                                                      MPN: 149304
                                                                                                      CATALYTIC CONVERTER
                                                                                                      from £834.09
                                                                                                      from £834.09
                                                                                                      # 024
                                                                                                      MPN: 161853

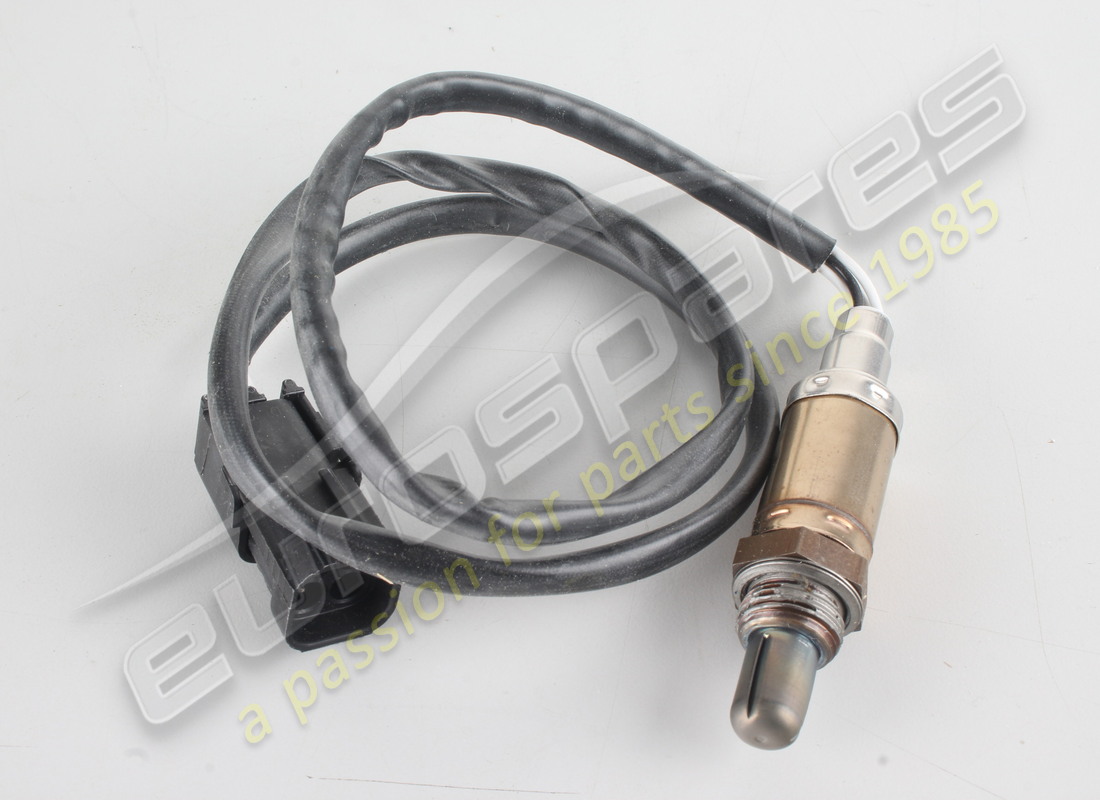

                                                                                                      OXIGEN SENSOR
                                                                                                      from £1,030.34
                                                                                                      from £1,030.34
                                                                                                      # 025
                                                                                                      MPN: 121833
                                                                                                      PROTECTION
                                                                                                      from £39.97
                                                                                                      from £39.97
                                                                                                      # 026
                                                                                                      MPN: 145524
                                                                                                      RH LIGHT OFF CATALYST
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 026
                                                                                                      MPN: 153349
                                                                                                      RH LIGHT OFF CATALYST
                                                                                                      - As an alternative
                                                                                                      from £2,484.57
                                                                                                      from £2,484.57
                                                                                                      This part replaces part number 145524
                                                                                                      # 027
                                                                                                      MPN: 145525
                                                                                                      LH LIGHT OFF CATALYST
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 027
                                                                                                      MPN: 153350
                                                                                                      LH LIGHT OFF CATALYST
                                                                                                      - As an alternative
                                                                                                      from £1,990.28
                                                                                                      from £1,990.28
                                                                                                      This part replaces part number 145525
                                                                                                      # 028
                                                                                                      MPN: 154981
                                                                                                      GASKET
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 125917 - and 1 more. Click to view details
                                                                                                      # 029
                                                                                                      MPN: 149427
                                                                                                      THERMOCOUPLE
                                                                                                      from £128.50
                                                                                                      from £128.50
                                                                                                      # 030
                                                                                                      MPN: 154470
                                                                                                      CENTRAL UNIT
                                                                                                      from £728.54
                                                                                                      from £728.54
                                                                                                      This part replaces part number 148449
                                                                                                      # 031
                                                                                                      MPN: 150043
                                                                                                      PLATE
                                                                                                      from £37.36
                                                                                                      from £37.36
                                                                                                      # 032
                                                                                                      MPN: 150044
                                                                                                      PLATE
                                                                                                      from £5.09
                                                                                                      from £5.09
                                                                                                      # 033
                                                                                                      MPN: 12574115
                                                                                                      NUT
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 034
                                                                                                      MPN: 10519377
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                                                                      # 035
                                                                                                      MPN: 10420301
                                                                                                      BRACKET
                                                                                                      from £3.08
                                                                                                      from £3.08
                                                                                                      # 036
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                                      # 037
                                                                                                      MPN: 14496401
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 038
                                                                                                      MPN: 106850
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                      # 039
                                                                                                      MPN: 16045024
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 125924 - and 1 more. Click to view details
                                                                                                      # 040
                                                                                                      MPN: 114748
                                                                                                      NUT
                                                                                                      from £8.76
                                                                                                      from £8.76
                                                                                                      # 041
                                                                                                      MPN: 128010
                                                                                                      WASHER
                                                                                                      from £2.16
                                                                                                      from £2.16
                                                                                                      # 042
                                                                                                      MPN: 111743
                                                                                                      SPRING
                                                                                                      from £6.85
                                                                                                      from £6.85
                                                                                                      # 043
                                                                                                      MPN: 114749
                                                                                                      SPACER
                                                                                                      from £1.24
                                                                                                      from £1.24
                                                                                                      # 044
                                                                                                      MPN: 138076
                                                                                                      GASKET
                                                                                                      from £6.18
                                                                                                      from £6.18
                                                                                                      This part replaces part number 133908
                                                                                                      # 045
                                                                                                      MPN: 146658
                                                                                                      GASKET
                                                                                                      from £11.95
                                                                                                      from £11.95
                                                                                                      # 046
                                                                                                      MPN: 145519
                                                                                                      RH FRONT EXHAUST MANIFOLD
                                                                                                      from £498.48
                                                                                                      from £498.48
                                                                                                      # 047
                                                                                                      MPN: 145520
                                                                                                      LH FRONT EXHAUST MANIFOLD
                                                                                                      from £488.15
                                                                                                      from £488.15
                                                                                                      # 048
                                                                                                      MPN: 145521
                                                                                                      RH REAR EXHAUST MANIFOLD
                                                                                                      from £581.05
                                                                                                      from £581.05
                                                                                                      # 049
                                                                                                      MPN: 145522
                                                                                                      LH REAR EXHAUST MANIFOLD
                                                                                                      from £1,045.84
                                                                                                      from £1,045.84
                                                                                                      # 050
                                                                                                      MPN: 110860
                                                                                                      PLUG
                                                                                                      from £9.88
                                                                                                      from £9.88
                                                                                                      This part replaces part number 11903240
                                                                                                      # 051
                                                                                                      MPN: 10298460
                                                                                                      GASKET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 93353
                                                                                                      # 052
                                                                                                      MPN: 10440990
                                                                                                      BRACKET
                                                                                                      from £0.76
                                                                                                      from £0.76
                                                                                                      # 053
                                                                                                      MPN: 127494
                                                                                                      NUT
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                      # 054
                                                                                                      MPN: 12643724
                                                                                                      WASHER
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
