021 - Lubrication

Ferrari 512 M Lubrication Parts Diagram

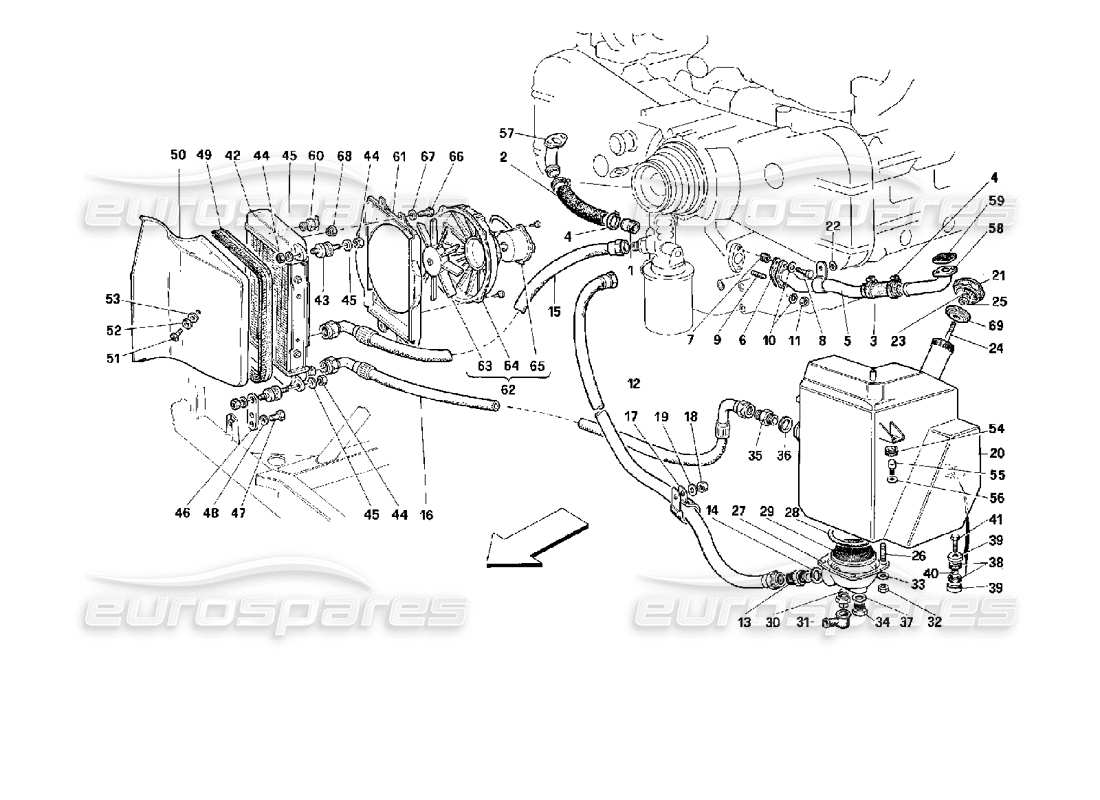

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 104561
                                                                                                                      UNION
                                                                                                                      from £7.92
                                                                                                                      from £7.92
                                                                                                                      # 002
                                                                                                                      MPN: 122828
                                                                                                                      SLEEVE
                                                                                                                      from £25.14
                                                                                                                      from £25.14
                                                                                                                      This part replaces part number 104562
                                                                                                                      # 003
                                                                                                                      MPN: 122829
                                                                                                                      SLEEVE
                                                                                                                      from £15.65
                                                                                                                      from £15.65
                                                                                                                      This part replaces part number 100077 - and 1 more. Click to view details
                                                                                                                      # 004
                                                                                                                      MPN: 12173090
                                                                                                                      CLAMP
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 105672
                                                                                                                      # 005
                                                                                                                      MPN: 149786
                                                                                                                      LH CYL. HEAD OIL EXHAUST PIPE
                                                                                                                      from £44.65
                                                                                                                      from £44.65
                                                                                                                      # 006
                                                                                                                      MPN: 150193
                                                                                                                      GASKET
                                                                                                                      from £2.55
                                                                                                                      from £2.55
                                                                                                                      This part replaces part number 104558 - and 1 more. Click to view details
                                                                                                                      # 007
                                                                                                                      MPN: 13525570
                                                                                                                      HELI COIL
                                                                                                                      from £3.26
                                                                                                                      from £3.26
                                                                                                                      This part replaces part number 109668
                                                                                                                      # 008
                                                                                                                      MPN: 10902324
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                      # 009
                                                                                                                      MPN: 11500224
                                                                                                                      STUD
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                                                      # 010
                                                                                                                      MPN: 127494
                                                                                                                      WASHER
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                      # 011
                                                                                                                      MPN: 134041
                                                                                                                      NUT
                                                                                                                      from £0.57
                                                                                                                      from £0.57
                                                                                                                      This part replaces part number 15896221
                                                                                                                      # 012
                                                                                                                      MPN: 146906
                                                                                                                      HOSE FROM RESERVOIR TO PUMP
                                                                                                                      from £1,392.74
                                                                                                                      from £1,392.74
                                                                                                                      # 013
                                                                                                                      MPN: 138149
                                                                                                                      UNION
                                                                                                                      from £17.42
                                                                                                                      from £17.42
                                                                                                                      # 015
                                                                                                                      MPN: 146905
                                                                                                                      HOSE FROM PUMP TO RADIATOR
                                                                                                                      from £1,644.62
                                                                                                                      from £1,644.62
                                                                                                                      # 016
                                                                                                                      MPN: 146904
                                                                                                                      HOSE FROM RADIATOR TO RESERVOIR
                                                                                                                      from £253.66
                                                                                                                      from £253.66
                                                                                                                      # 017
                                                                                                                      MPN: 106195
                                                                                                                      CLIP BRACKET
                                                                                                                      from £17.08
                                                                                                                      from £17.08
                                                                                                                      # 018
                                                                                                                      MPN: 102948
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                      # 019
                                                                                                                      MPN: 14496401
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 021
                                                                                                                      MPN: 145623
                                                                                                                      PLUG
                                                                                                                      from £82.04
                                                                                                                      from £82.04
                                                                                                                      This part replaces part number 139648 - and 3 more. Click to view details
                                                                                                                      # 022
                                                                                                                      MPN: 14496524
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                      # 023
                                                                                                                      MPN: 12601274
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                      # 024
                                                                                                                      MPN: 139646
                                                                                                                      OIL DIP STICK
                                                                                                                      from £11.50
                                                                                                                      from £11.50
                                                                                                                      This part replaces part number 124691 which we have in stock - and 2 more. Click to view details
                                                                                                                      # 025
                                                                                                                      MPN: 15896211
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 15896210
                                                                                                                      # 026
                                                                                                                      MPN: 11500424
                                                                                                                      STUD
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 11500421
                                                                                                                      # 027
                                                                                                                      MPN: 125473
                                                                                                                      OIL SUCTION FAN
                                                                                                                      from £957.63
                                                                                                                      from £957.63
                                                                                                                      # 028
                                                                                                                      MPN: 125521
                                                                                                                      OR RING
                                                                                                                      (minimum order quantity = 2)
                                                                                                                      from £5.65
                                                                                                                      from £5.65
                                                                                                                      # 029
                                                                                                                      MPN: 100332
                                                                                                                      SUMP FILTER
                                                                                                                      from £9.22
                                                                                                                      from £9.22
                                                                                                                      This part replaces part number 240387 - and 9 more. Click to view details
                                                                                                                      # 032
                                                                                                                      MPN: 12574211
                                                                                                                      NUT
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 033
                                                                                                                      MPN: 12601274
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                      # 034
                                                                                                                      MPN: 10300771
                                                                                                                      FUEL DRAIN PLUG
                                                                                                                      from £0.57
                                                                                                                      from £0.57
                                                                                                                      # 035
                                                                                                                      MPN: 138150
                                                                                                                      UNION
                                                                                                                      from £17.12
                                                                                                                      from £17.12
                                                                                                                      # 036
                                                                                                                      MPN: 144487
                                                                                                                      GASKET
                                                                                                                      from £18.15
                                                                                                                      from £18.15
                                                                                                                      # 037
                                                                                                                      MPN: 10257060
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                      # 038
                                                                                                                      MPN: 107978
                                                                                                                      PAD
                                                                                                                      from £1.07
                                                                                                                      from £1.07
                                                                                                                      # 039
                                                                                                                      MPN: 107979
                                                                                                                      CAP
                                                                                                                      from £1.08
                                                                                                                      from £1.08
                                                                                                                      # 040
                                                                                                                      MPN: 107980
                                                                                                                      BUSH
                                                                                                                      from £1.55
                                                                                                                      from £1.55
                                                                                                                      # 041
                                                                                                                      MPN: 123029
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 042
                                                                                                                      MPN: 154568
                                                                                                                      OIL RADIATOR
                                                                                                                      from £695.18
                                                                                                                      from £695.18
                                                                                                                      This part replaces part number 148519 - and 3 more. Click to view details
                                                                                                                      # 043
                                                                                                                      MPN: 102947
                                                                                                                      BUFFER
                                                                                                                      from £6.17
                                                                                                                      from £6.17
                                                                                                                      This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                      # 044
                                                                                                                      MPN: 102948
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                      # 045
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 046
                                                                                                                      MPN: 149548
                                                                                                                      BRACKET
                                                                                                                      from £1.76
                                                                                                                      from £1.76
                                                                                                                      # 047
                                                                                                                      MPN: 16296924
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 289834
                                                                                                                      # 048
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 049
                                                                                                                      MPN: 149533
                                                                                                                      GASKET
                                                                                                                      from £63.38
                                                                                                                      from £63.38
                                                                                                                      This part replaces part number 118059
                                                                                                                      # 050
                                                                                                                      MPN: 149339
                                                                                                                      CONVEYOR
                                                                                                                      from £18.08
                                                                                                                      from £18.08
                                                                                                                      # 051
                                                                                                                      MPN: 10902521
                                                                                                                      SCREW
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 052
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 053
                                                                                                                      MPN: 12601274
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                      # 054
                                                                                                                      MPN: 10397480
                                                                                                                      CABLE GROMMET
                                                                                                                      from £1.86
                                                                                                                      from £1.86
                                                                                                                      # 055
                                                                                                                      MPN: 125708
                                                                                                                      PIN
                                                                                                                      from £17.46
                                                                                                                      from £17.46
                                                                                                                      # 056
                                                                                                                      MPN: 108242
                                                                                                                      WASHER
                                                                                                                      from £1.64
                                                                                                                      from £1.64
                                                                                                                      # 057
                                                                                                                      MPN: 122826
                                                                                                                      RH CYLINDER HEAD OIL EXHAUST PORT
                                                                                                                      from £13.73
                                                                                                                      from £13.73
                                                                                                                      # 058
                                                                                                                      MPN: 149808
                                                                                                                      LH CYLINDER HEAD OIL EXHAUST PORT
                                                                                                                      from £35.02
                                                                                                                      from £35.02
                                                                                                                      # 059
                                                                                                                      MPN: 150192
                                                                                                                      GASKET
                                                                                                                      from £2.72
                                                                                                                      from £2.72
                                                                                                                      This part replaces part number 122823 - and 1 more. Click to view details
                                                                                                                      # 060
                                                                                                                      MPN: 123277
                                                                                                                      TEMPERATURE SWITCH
                                                                                                                      - Valid for CH
                                                                                                                      from £123.19
                                                                                                                      from £123.19
                                                                                                                      # 061
                                                                                                                      MPN: 140809
                                                                                                                      COPE
                                                                                                                      - Valid for CH
                                                                                                                      from £157.50
                                                                                                                      from £157.50
                                                                                                                      # 062
                                                                                                                      MPN: 153431
                                                                                                                      COMPLETE ELECTROFAN
                                                                                                                      - Valid for CH
                                                                                                                      from £55.17
                                                                                                                      from £55.17
                                                                                                                      # 063
                                                                                                                      MPN: 154223
                                                                                                                      FAN
                                                                                                                      - Valid for CH
                                                                                                                      from £138.99
                                                                                                                      from £138.99
                                                                                                                      # 064
                                                                                                                      MPN: 154224
                                                                                                                      CONVEYOR
                                                                                                                      - Valid for CH
                                                                                                                      from £102.72
                                                                                                                      from £102.72
                                                                                                                      # 065
                                                                                                                      MPN: 154225
                                                                                                                      MOTOR
                                                                                                                      - Valid for CH
                                                                                                                      from £103.26
                                                                                                                      from £103.26
                                                                                                                      # 066
                                                                                                                      MPN: 10902324
                                                                                                                      SCREW
                                                                                                                      - Valid for CH
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                      # 067
                                                                                                                      MPN: 14496401
                                                                                                                      WASHER
                                                                                                                      - Valid for CH
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 068
                                                                                                                      MPN: 102948
                                                                                                                      NUT
                                                                                                                      - Valid for CH
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                      # 069
                                                                                                                      MPN: 145625
                                                                                                                      GASKET
                                                                                                                      Supersession
                                                                                                                      Supersession
