024 - Cooling System

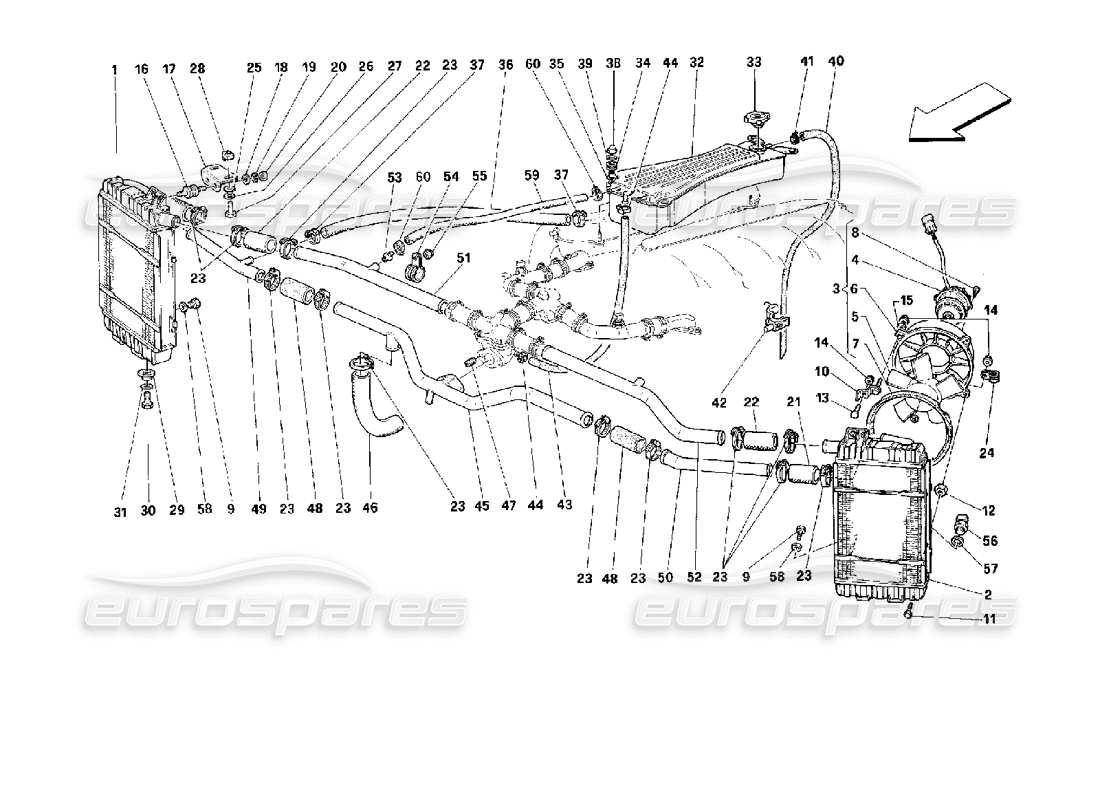

Ferrari 512 M Cooling System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 150212
RH RADIATOR
from £3,225.87
from £3,225.87
This part replaces part number 148775
# 002
MPN: 150213
LH RADIATOR
from £6,540.90
from £6,540.90
This part replaces part number 148776
# 003
MPN: 147710
ELECTRO FAN SET COMPLETE
from £419.54
from £419.54

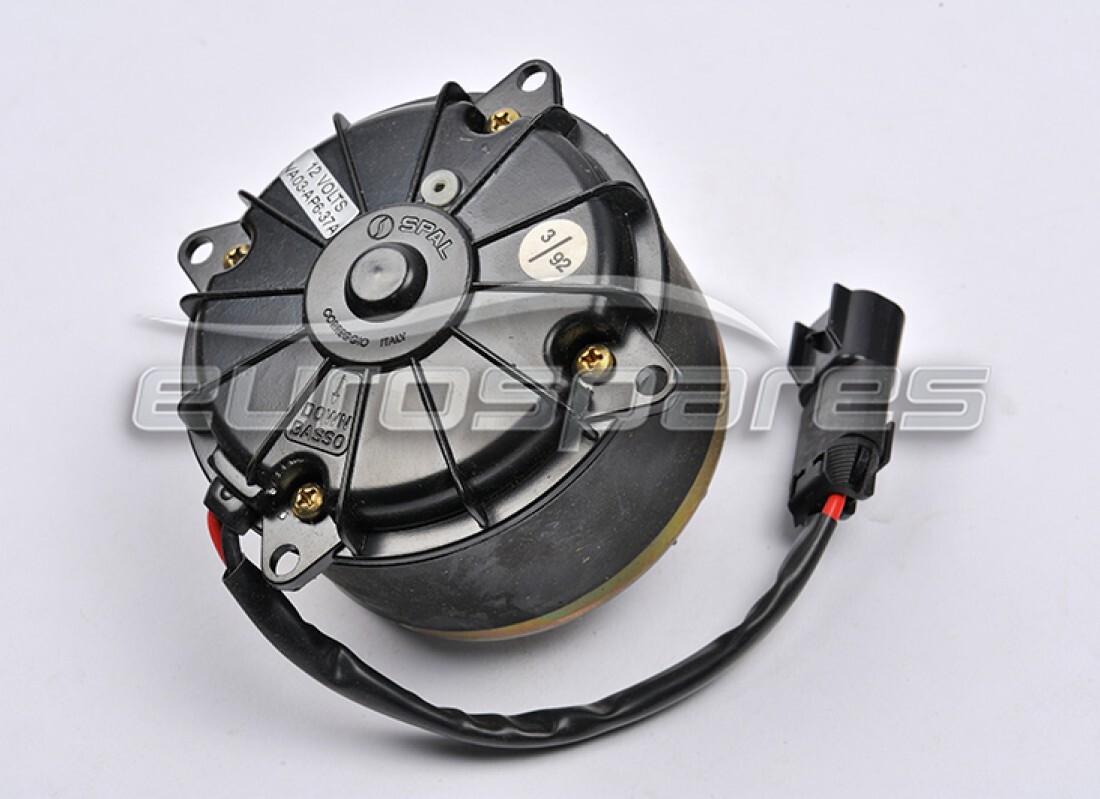

# 004
MPN: 148620
ELECTRIC FAN MOTOR
from £125.66
from £125.66
# 005
MPN: 137299
FAN
from £91.34
from £91.34
# 006
MPN: 140618
CONVEYOR
from £142.37
from £142.37
# 007
MPN: 126883
GASKET
from £10.83
from £10.83
# 008
MPN: 123298
SCREW
from £0.47
from £0.47
# 009
MPN: 140149
PLUG
from £10.53
from £10.53

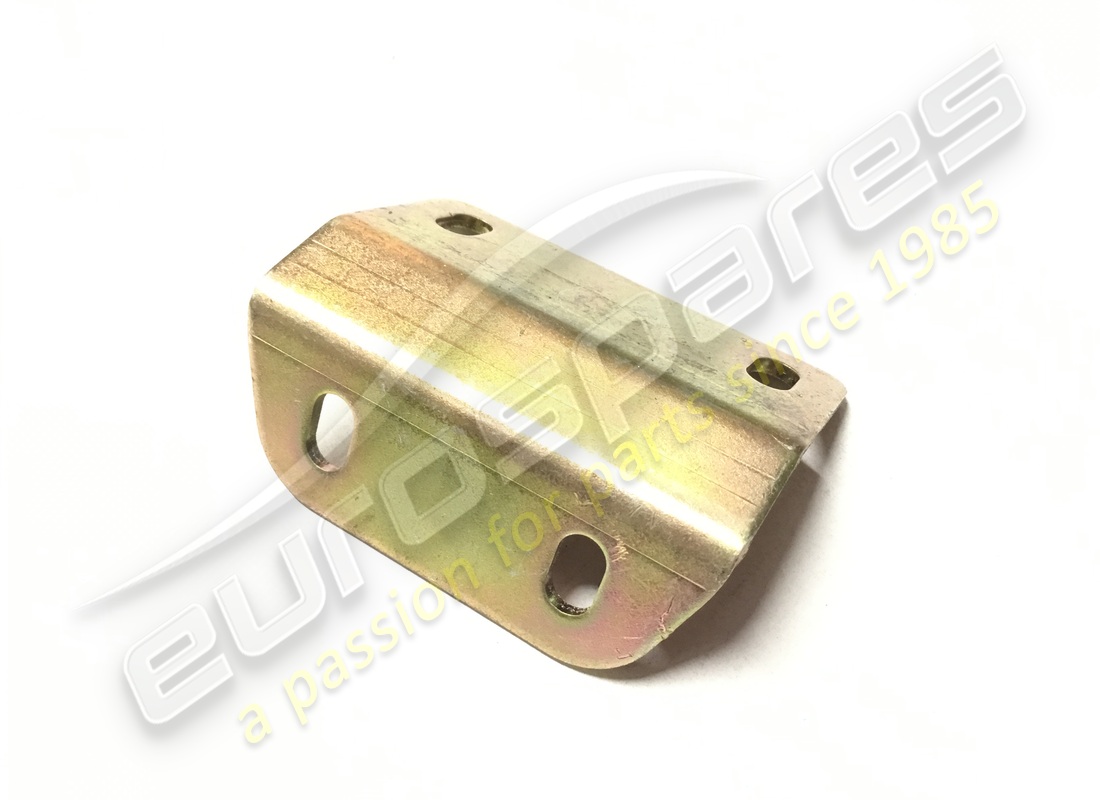

# 010
MPN: 147708
BRACKET
from £1.69
from £1.69
# 011
MPN: 10902724
SCREW
from £0.71
from £0.71
This part replaces part number 10902721 which we have in stock
# 012
MPN: 148059
NUT
from £8.45
from £8.45
# 013
MPN: 11944111
SCREW
from £0.47
from £0.47
# 014
MPN: 14058411
NUT
from £0.47
from £0.47
# 015
MPN: 12646601
WASHER
from £0.71
from £0.71
# 016
MPN: 102947
BUFFER
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 017
MPN: 148777
BRACKET
from £7.68
from £7.68
# 018
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 019
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 020
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 021
MPN: 149045
RUBBER PIPE
from £110.98
from £110.98

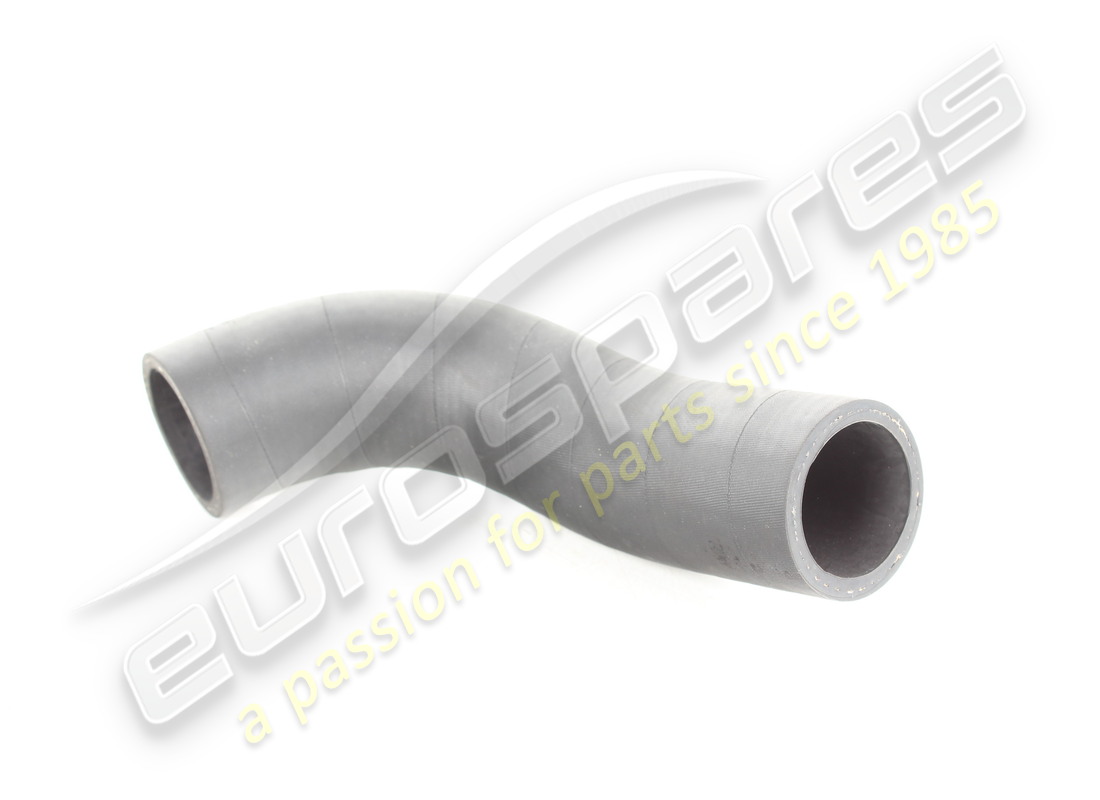

# 022
MPN: 148649
RUBBER PIPE
from £17.08
from £17.08
# 023
MPN: 296782
CLAMP
from £4.99
from £4.99
This part replaces part number 12174090

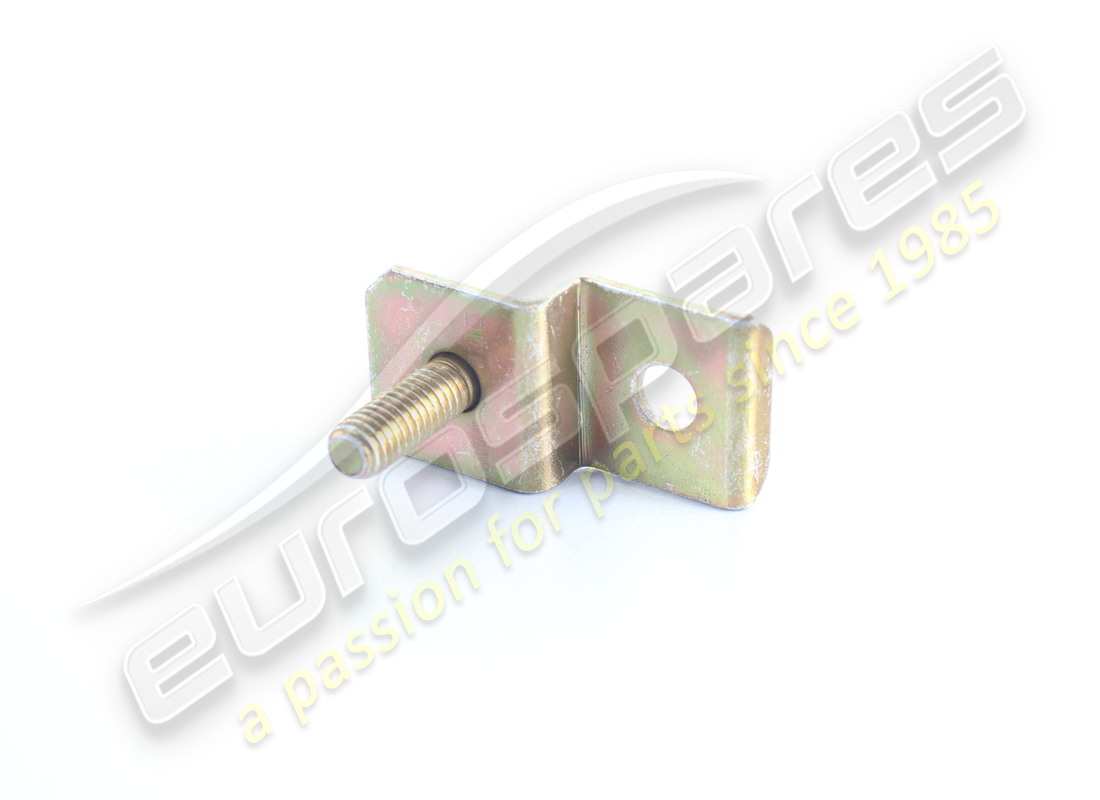

# 024
MPN: 10441990
BRACKET
from £0.47
from £0.47
# 025
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 026
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 027
MPN: 10902324
SCREW
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 028
MPN: 60758600
CRATE NUT
from £0.47
from £0.47
# 029
MPN: 137624
VIBRATION DAMPING BUFFER
from £2.64
from £2.64

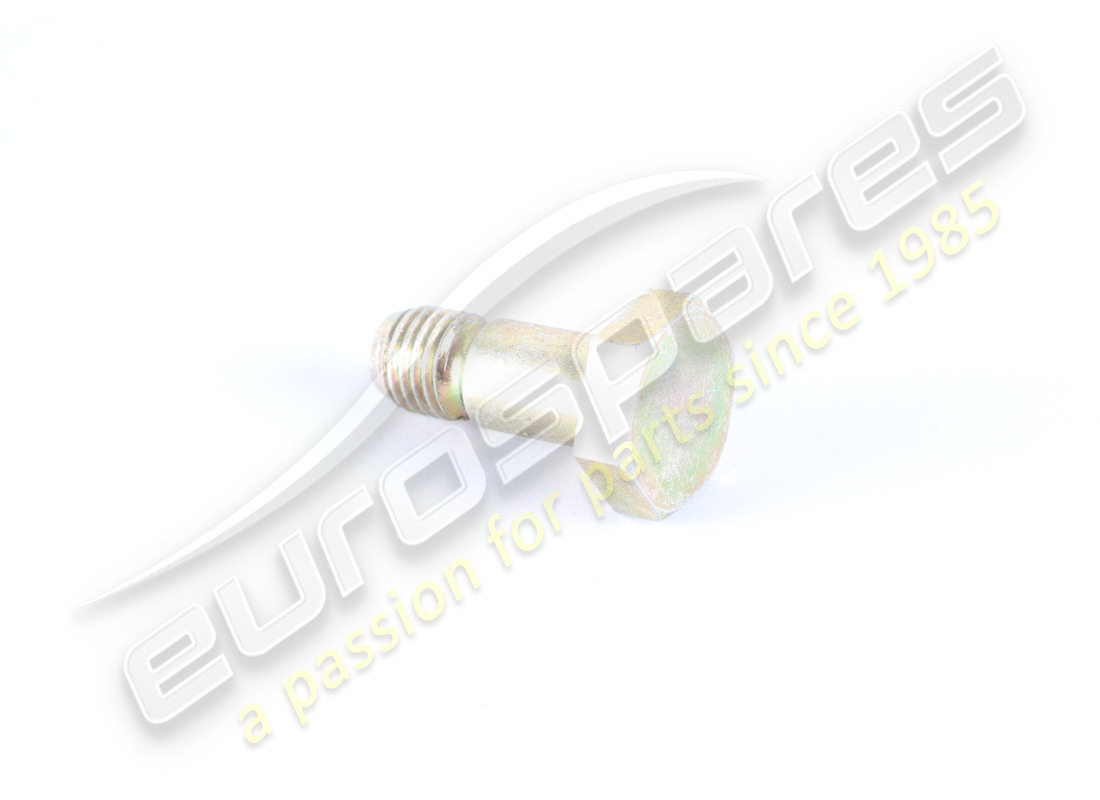

# 030
MPN: 152315
SCREW
from £4.60
from £4.60
This part replaces part number 150214
# 031
MPN: 147882
WASHER
from £5.91
from £5.91
# 032

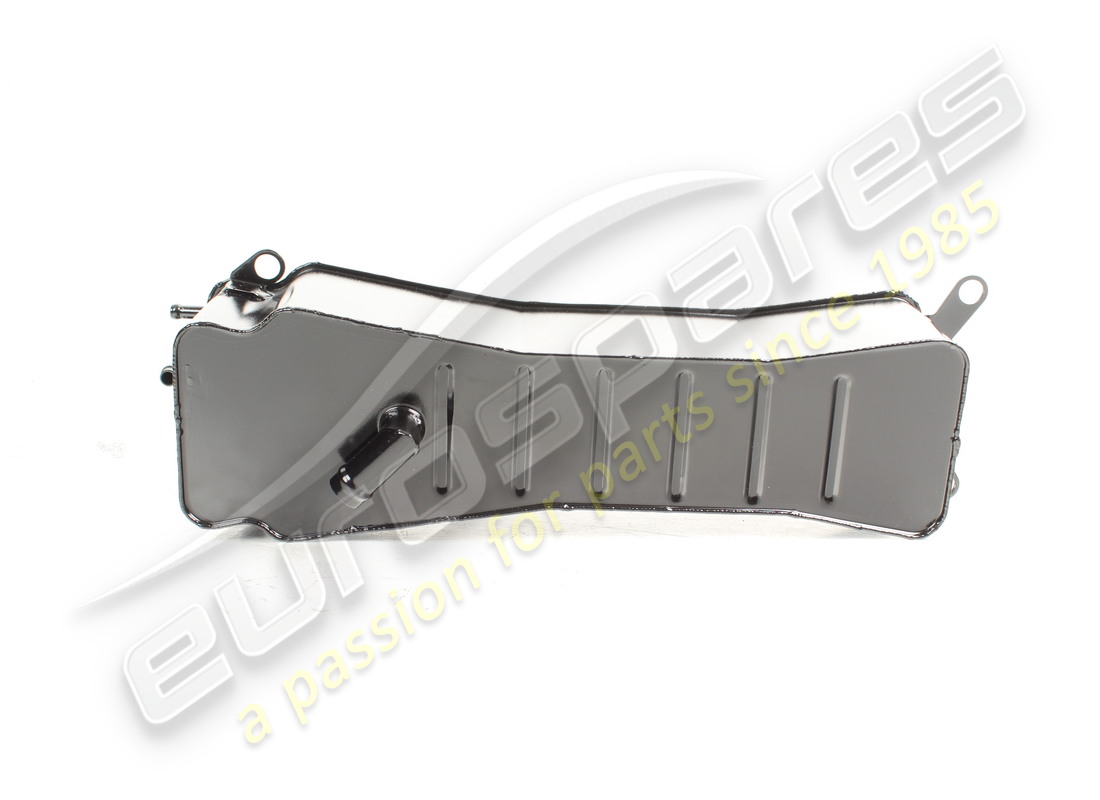

MPN: 155027
TANK FOR RADIATOR
from £896.59
from £896.59
# 033
MPN: 137644
RADIATOR PRESSURE CAP
Square cap 1.1 Bar
from £10.64
from £10.64
This part replaces part number 101499
# 033
MPN: 137644/A
OVAL CAP 1.1 BAR
from £19.63
from £19.63
This part replaces part number 137644
# 033
MPN: 137664/A
RADIATOR PRESSURE CAP
Round cap 1.1 Bar
# 034
MPN: 103549
CABLE GROMMET
from £0.64
from £0.64
# 035
MPN: 149707
SPACER
from £0.58
from £0.58
# 036
MPN: 151348
PIPE FROM TANK TO RETURN PIPE
from £227.20
from £227.20
This part replaces part number 150064
# 037
MPN: 13000490
CLAMP
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 038
MPN: 101239
NUT
from £1.60
from £1.60
# 039
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 040
MPN: 162347
PIPE
from £7.42
from £7.42
# 041
MPN: 13423379
ELASTIC COLLAR
from £0.71
from £0.71
# 042
MPN: 157385
SPRING
from £0.51
from £0.51
# 043
MPN: 122219
PIPE FROM TANK TO VALVE BODY
from £19.82
from £19.82
This part replaces part number 113351 - and 1 more. Click to view details
# 044
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 045
MPN: 148647
PIPE ON THERMOSTAT BODY
from £97.07
from £97.07
# 046
MPN: 148648
RUBBER PIPE
from £100.73
from £100.73
# 047
MPN: 13525470
INSERT
from £0.47
from £0.47
This part replaces part number 107333
# 048
MPN: 148649
RUBBER PIPE
from £17.08
from £17.08
# 049
MPN: 148780
RETURN PIPE FROM RH RADIATOR
from £36.03
from £36.03
# 050
MPN: 148781
RETURN PIPE FROM LH RADIATOR
from £46.23
from £46.23
# 051
MPN: 148778
PIPE FROM THERMOSTAT BODY TO RH RADIATOR
from £32.96
from £32.96
# 052
MPN: 148779
PIPE FROM THERMOSTAT BODY TO LH RADIATOR
from £37.77
from £37.77
# 053
MPN: 155187
BREATHER UNION
from £5.46
from £5.46
# 054
MPN: 106195
CLIP BRACKET
from £17.08
from £17.08
# 055
MPN: 12575411
NUT
Supersession
Supersession
# 056
MPN: 140314
TEMPERATURE SWITCH
Supersession
Supersession
# 057
MPN: 101508
GASKET
from £0.69
from £0.69
This part replaces part number 94706
# 058
MPN: 140150
GASKET
from £1.02
from £1.02
# 059
MPN: 126293
PIPE FROM TANK TO BREATHER UNION
from £85.73
from £85.73
# 060
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
