032 - Main Shaft Gears

Ferrari 512 M Main Shaft Gears Parts Diagram

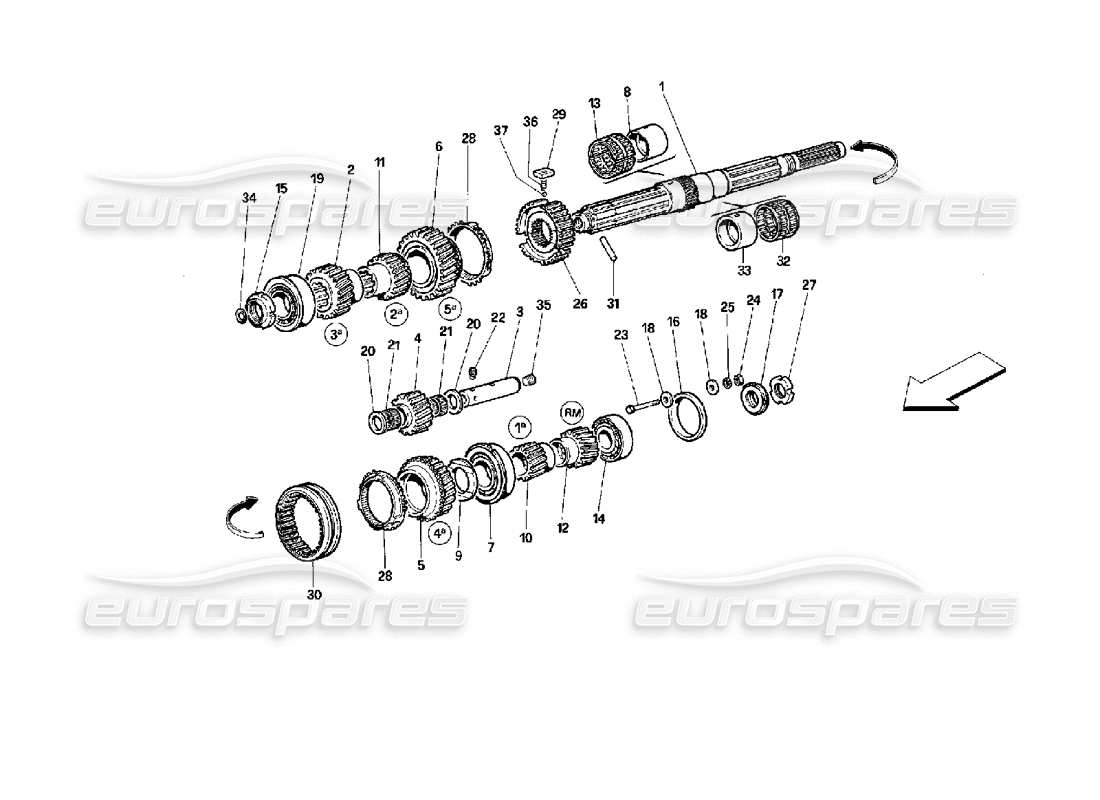

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 158680
                                                                    Main Shaft
                                                                    - Valid till gearbox Nr. 396
                                                                    from £2,208.34
                                                                    from £2,208.34
                                                                    # 001
                                                                    MPN: 163724
                                                                    Main Shaft
                                                                    - Valid from gearbox Nr. 397
                                                                    from £1,156.74
                                                                    from £1,156.74
                                                                    # 002
                                                                    MPN: 148249
                                                                    3RH SPEED GEAR
                                                                    from £556.12
                                                                    from £556.12
                                                                    # 003
                                                                    MPN: 155475
                                                                    PIN FOR REVERSE IDLE GEAR
                                                                    from £276.31
                                                                    from £276.31
                                                                    This part replaces part number 150887
                                                                    # 004
                                                                    MPN: 136340
                                                                    REVERSE IDLE GEAR
                                                                    from £532.10
                                                                    from £532.10
                                                                    # 005
                                                                    MPN: 156716
                                                                    4TH SPEED GEAR
                                                                    from £1,650.35
                                                                    from £1,650.35
                                                                    # 006
                                                                    MPN: 156713
                                                                    5TH SPEED GEAR
                                                                    from £1,855.14
                                                                    from £1,855.14
                                                                    # 007
                                                                    MPN: 103030
                                                                    ROLLER BEARING
                                                                    from £124.53
                                                                    from £124.53
                                                                    This part replaces part number 101605 - and 2 more. Click to view details
                                                                    # 008
                                                                    MPN: 107499
                                                                    5TH SPEED STRAIGHT RACE
                                                                    from £168.68
                                                                    from £168.68
                                                                    # 009
                                                                    MPN: 110173
                                                                    SPACER
                                                                    from £160.79
                                                                    from £160.79
                                                                    # 010
                                                                    MPN: 156425
                                                                    1ST SPEED GEAR
                                                                    - Valid till gearbox Nr. 396
                                                                    Supersession
                                                                    Supersession
                                                                    # 010
                                                                    MPN: 163752
                                                                    1ST SPEED GEAR
                                                                    - Valid from gearbox Nr. 397
                                                                    from £1,050.06
                                                                    from £1,050.06
                                                                    This part replaces part number 156425
                                                                    # 011
                                                                    MPN: 156428
                                                                    2ND SPEED GEAR
                                                                    from £1,154.36
                                                                    from £1,154.36
                                                                    # 012
                                                                    MPN: 136333
                                                                    REVERSE GEAR
                                                                    from £194.25
                                                                    from £194.25
                                                                    # 013
                                                                    MPN: 109002
                                                                    ROLLER CAGE
                                                                    from £16.40
                                                                    from £16.40
                                                                    This part replaces part number 114059
                                                                    # 014
                                                                    MPN: 126234
                                                                    BEARING AXLE SIDE
                                                                    from £441.28
                                                                    from £441.28
                                                                    This part replaces part number 103990
                                                                    # 015

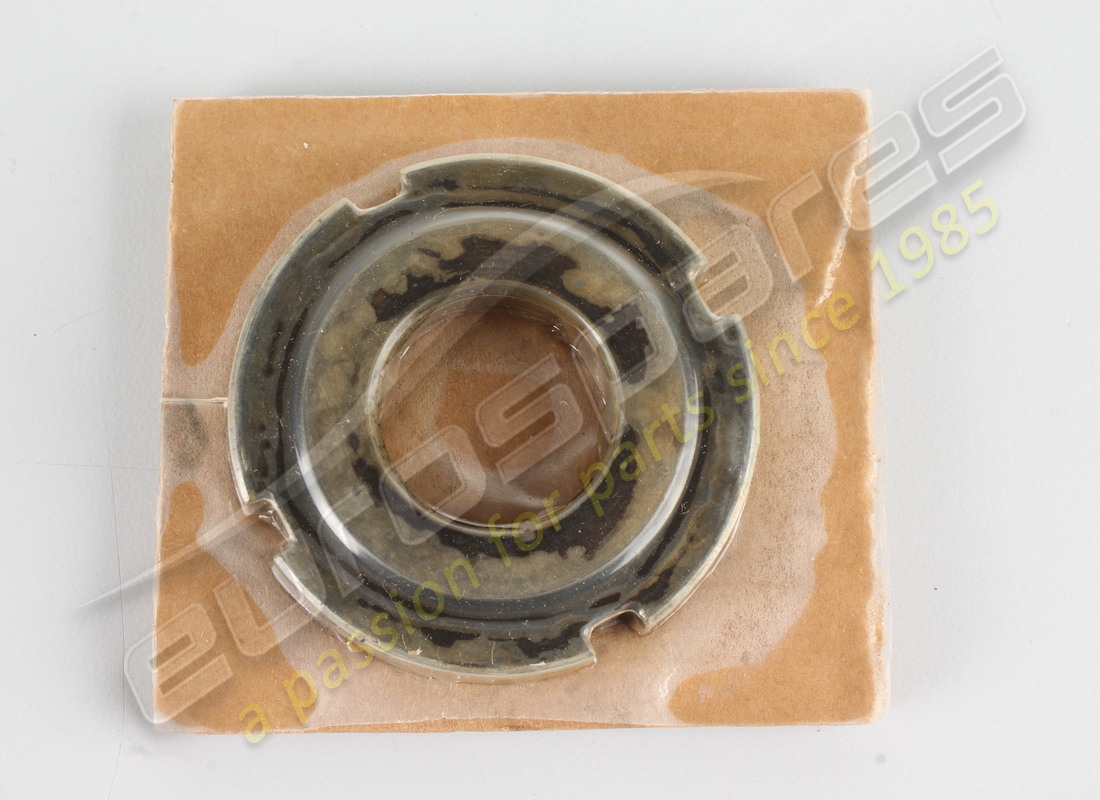

                                                                    MPN: 153060
                                                                    FRONT RING NUT
                                                                    - Valid till gearbox Nr. 396
                                                                    from £52.16
                                                                    from £52.16
                                                                    This part replaces part number 104713 - and 2 more. Click to view details
                                                                    # 015
                                                                    MPN: 163670
                                                                    FRONT RING NUT
                                                                    - Valid from gearbox Nr. 397
                                                                    from £19.86
                                                                    from £19.86
                                                                    # 015
                                                                    MPN: 163684
                                                                    FRONT RING NUT
                                                                    - Valid from gearbox Nr. 397
                                                                    from £9.91
                                                                    from £9.91
                                                                    # 016
                                                                    MPN: 105765
                                                                    BEARING STOP RING
                                                                    from £33.08
                                                                    from £33.08
                                                                    # 017
                                                                    MPN: 159268
                                                                    REAR RING NUT
                                                                    from £14.07
                                                                    from £14.07
                                                                    # 018
                                                                    MPN: 104731
                                                                    WASHER
                                                                    from £1.40
                                                                    from £1.40
                                                                    # 019
                                                                    MPN: 155694
                                                                    FRONT BEARING
                                                                    from £69.05
                                                                    from £69.05
                                                                    This part replaces part number 149774
                                                                    # 020
                                                                    MPN: 100703
                                                                    SPACER
                                                                    from £11.66
                                                                    from £11.66
                                                                    This part replaces part number 523589
                                                                    # 021
                                                                    MPN: 104734
                                                                    ROLLER CAGE
                                                                    from £5.57
                                                                    from £5.57
                                                                    # 022
                                                                    MPN: 103035
                                                                    SCREW
                                                                    from £0.74
                                                                    from £0.74
                                                                    # 023
                                                                    MPN: 10903221
                                                                    SCREW
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 024
                                                                    MPN: 134041
                                                                    NUT
                                                                    from £0.57
                                                                    from £0.57
                                                                    This part replaces part number 15896221
                                                                    # 025
                                                                    MPN: 127494
                                                                    WASHER
                                                                    (minimum order quantity = 20)
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                    # 026
                                                                    MPN: 152207
                                                                    SYNCRONIZE BODY
                                                                    from £168.75
                                                                    from £168.75
                                                                    # 027
                                                                    MPN: 159269
                                                                    RING NUT
                                                                    from £13.24
                                                                    from £13.24
                                                                    # 028
                                                                    MPN: 152209
                                                                    SYNCHROMESH RING
                                                                    from £89.66
                                                                    from £89.66
                                                                    # 029
                                                                    MPN: 152195
                                                                    SYNCHRONIZER INSERT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 030
                                                                    MPN: 152206
                                                                    SYNCHRONIZER SLEEVE
                                                                    from £42.34
                                                                    from £42.34
                                                                    # 031
                                                                    MPN: 109725
                                                                    PARALELL PIN
                                                                    from £18.06
                                                                    from £18.06
                                                                    # 032
                                                                    MPN: 107525
                                                                    ROLLER CAGE
                                                                    from £7.96
                                                                    from £7.96
                                                                    # 033
                                                                    MPN: 107524
                                                                    ROLLER RACE
                                                                    from £181.78
                                                                    from £181.78
                                                                    # 034
                                                                    MPN: 109724
                                                                    SEAL RING
                                                                    from £0.65
                                                                    from £0.65
                                                                    # 035
                                                                    MPN: 10275550
                                                                    PLUG
                                                                    from £0.78
                                                                    from £0.78
                                                                    # 036
                                                                    MPN: 152196
                                                                    SPRING
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 037
                                                                    MPN: 152197
                                                                    BALL
                                                                    from £2.09
                                                                    from £2.09
