ferrari 512 m lay shaft gears parts diagram

033 - Lay Shaft Gears

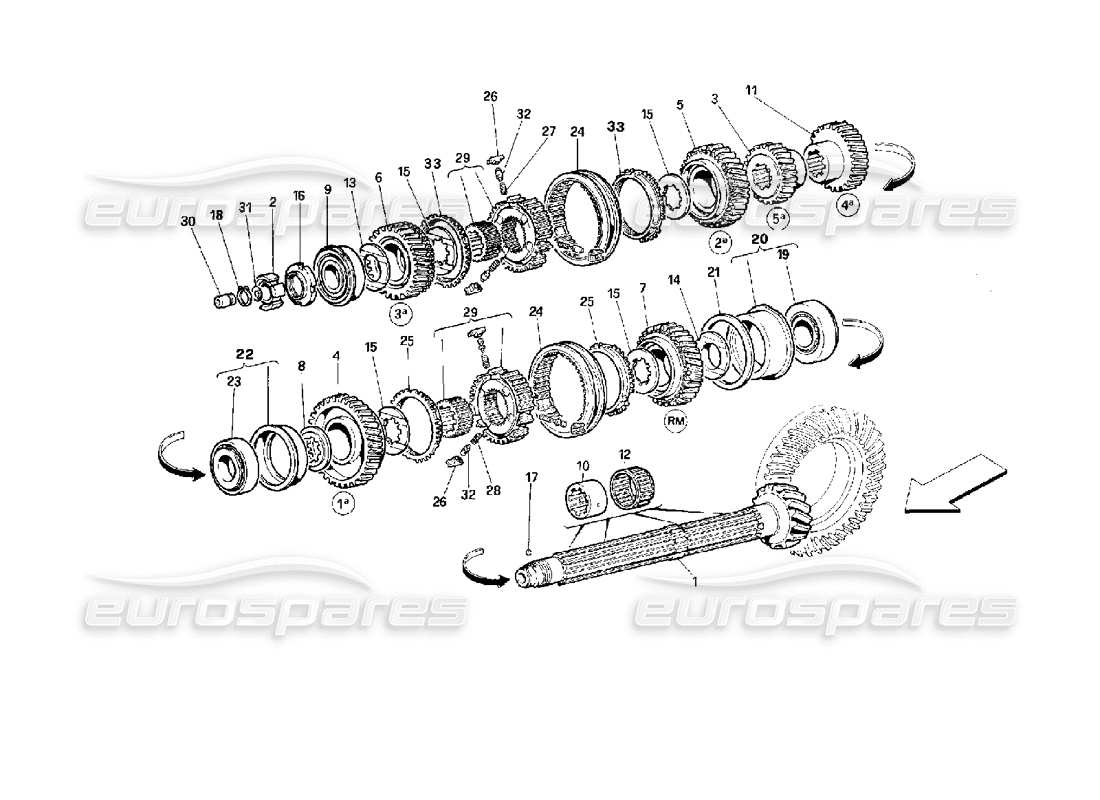

Ferrari 512 M Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 110013
                                                            PINION SHAFT (RATIO 14/45)
                                                            use : 110016
                                                            Supersession
                                                            Supersession
                                                            # 001
                                                            MPN: 163745
                                                            Driven Shaft
                                                            - Not as spare parts - With crown gear and pinion 168969
                                                            # 002
                                                            MPN: 116352
                                                            TOOTHED WHEEL
                                                            - Valid till gearbox Nr. 396
                                                            from £12.82
                                                            from £12.82
                                                            # 002
                                                            MPN: 163659
                                                            TOOTHED WHEEL
                                                            - Valid from gearbox Nr. 397
                                                            from £246.17
                                                            from £246.17
                                                            # 003
                                                            MPN: 156714
                                                            5TH SPEED GEAR
                                                            from £1,885.48
                                                            from £1,885.48
                                                            # 004
                                                            MPN: 156430
                                                            1ST SPEED GEAR
                                                            from £956.65
                                                            from £956.65
                                                            # 005
                                                            MPN: 156432
                                                            2ND SPEED GEAR
                                                            from £1,258.27
                                                            from £1,258.27
                                                            # 006
                                                            MPN: 136343
                                                            3RD SPEED GEAR
                                                            from £1,104.18
                                                            from £1,104.18
                                                            # 007
                                                            MPN: 136346
                                                            REVERSE GEAR
                                                            from £498.58
                                                            from £498.58
                                                            # 008
                                                            MPN: 110177
                                                            SPACER BETWEEN 1ST SPEED AND BEARING, 6,00 MM. THICKNESS
                                                            from £17.78
                                                            from £17.78
                                                            This part replaces part number 102977
                                                            # 008
                                                            MPN: 110178
                                                            DITTO, THICKNESS 6,10 MM.
                                                            from £17.28
                                                            from £17.28
                                                            This part replaces part number 102978
                                                            # 008
                                                            MPN: 110179
                                                            DITTO, THICKNESS 6,20 MM.
                                                            from £17.93
                                                            from £17.93
                                                            This part replaces part number 102979
                                                            # 008
                                                            MPN: 110180
                                                            DITTO, THICKNESS 6,30 MM.
                                                            from £38.04
                                                            from £38.04
                                                            This part replaces part number 102980
                                                            # 008
                                                            MPN: 110181
                                                            DITTO, THICKNESS 6,40 MM.
                                                            from £32.72
                                                            from £32.72
                                                            This part replaces part number 102981
                                                            # 008
                                                            MPN: 130985
                                                            DITTO, THICKNESS 6,50 MM.
                                                            from £82.22
                                                            from £82.22
                                                            # 008
                                                            MPN: 130986
                                                            DITTO, THICKNESS 6,60 MM.
                                                            from £82.22
                                                            from £82.22
                                                            # 008
                                                            MPN: 130987
                                                            DITTO, THICKNESS 6,70 MM.
                                                            from £76.94
                                                            from £76.94
                                                            # 009
                                                            MPN: 103030
                                                            FRONT BEARING
                                                            from £128.26
                                                            from £128.26
                                                            This part replaces part number 101605 - and 2 more. Click to view details
                                                            # 010
                                                            MPN: 104704
                                                            ROLLER RACE FOR 1ST, 2ND, 3RD, SPEED AND REVERSE GEARS
                                                            from £359.61
                                                            from £359.61
                                                            # 011
                                                            MPN: 156717
                                                            4TH SPEED GEAR
                                                            from £808.39
                                                            from £808.39
                                                            # 012
                                                            MPN: 101604
                                                            ROLLER CAGE FOR 1ST 2ND 3RD SPEEDS AND REVERSE GEARS
                                                            from £105.66
                                                            from £105.66
                                                            # 013
                                                            MPN: 110176
                                                            SPACER
                                                            from £253.32
                                                            from £253.32
                                                            # 014
                                                            MPN: 110174
                                                            SPACER
                                                            from £59.65
                                                            from £59.65
                                                            # 015
                                                            MPN: 110175
                                                            SPACER
                                                            size : 36-40-3.2
                                                            from £177.36
                                                            from £177.36

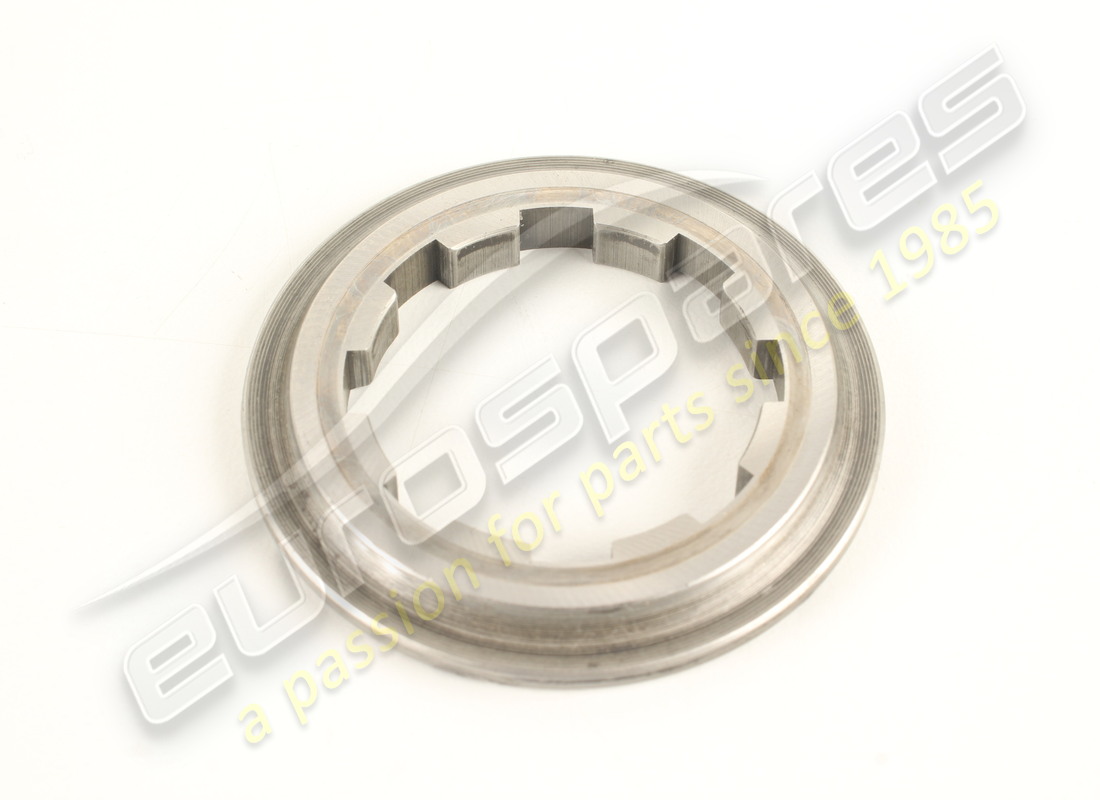

                                                            # 016
                                                            MPN: 153068
                                                            RING NUT
                                                            - Valid till gearbox Nr. 396
                                                            from £70.35
                                                            from £70.35
                                                            This part replaces part number 100729 - and 1 more. Click to view details
                                                            # 016
                                                            MPN: 163670
                                                            RING NUT
                                                            - Valid from gearbox Nr. 397
                                                            from £19.80
                                                            from £19.80
                                                            # 016
                                                            MPN: 163684
                                                            RING NUT
                                                            - Valid from gearbox Nr. 397
                                                            from £10.26
                                                            from £10.26
                                                            # 017
                                                            MPN: 10-16-11
                                                            BALL
                                                            from £0.56
                                                            from £0.56
                                                            # 018
                                                            MPN: 11067376
                                                            STOP RING
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 11067375
                                                            # 019
                                                            MPN: 101636
                                                            BEARING, AXLE SIDE
                                                            from £92.12
                                                            from £92.12
                                                            # 020
                                                            MPN: 148669
                                                            COMPLETE BUSHING FOR BEARING
                                                            from £473.78
                                                            from £473.78
                                                            This part replaces part number 109609
                                                            # 021
                                                            MPN: 104725
                                                            CROWN GEAR AND PINION ADJUSTING SHIM 2,00 MM. THICKNESS
                                                            from £35.82
                                                            from £35.82
                                                            # 021
                                                            MPN: 104726
                                                            DITTO, THICKNESS 2,10 MM.
                                                            from £11.05
                                                            from £11.05
                                                            # 021
                                                            MPN: 104727
                                                            DITTO, THICKNESS 2,20 MM.
                                                            from £10.72
                                                            from £10.72
                                                            # 021
                                                            MPN: 104728
                                                            DITTO, THICKNESS 2,30 MM.
                                                            from £19.34
                                                            from £19.34
                                                            # 021
                                                            MPN: 104729
                                                            DITTO, THICKNESS 2,40 MM.
                                                            from £21.59
                                                            from £21.59
                                                            # 021
                                                            MPN: 130979
                                                            DITTO, THICKNESS 2,50 MM.
                                                            from £15.45
                                                            from £15.45
                                                            # 021
                                                            MPN: 130980
                                                            DITTO, THICKNESS 2,60 MM.
                                                            from £40.72
                                                            from £40.72
                                                            # 021
                                                            MPN: 130981
                                                            DITTO, THICKNESS 2,70 MM.
                                                            from £13.23
                                                            from £13.23
                                                            # 021
                                                            MPN: 130982
                                                            DITTO, THICKNESS 2,80 MM.
                                                            from £15.58
                                                            from £15.58
                                                            # 021
                                                            MPN: 130983
                                                            DITTO, THICKNESS 2,90 MM.
                                                            from £14.47
                                                            from £14.47
                                                            # 021
                                                            MPN: 130984
                                                            DITTO, THICKNESS 3,00 MM.
                                                            from £12.19
                                                            from £12.19
                                                            # 022
                                                            MPN: 148670
                                                            COMPLETE BEARING CASE
                                                            from £222.34
                                                            from £222.34
                                                            This part replaces part number 104730
                                                            # 023
                                                            MPN: 103031
                                                            CENTER BEARING
                                                            from £168.43
                                                            from £168.43
                                                            # 024
                                                            MPN: 131804
                                                            SLEEVE FOR SYNCHRONIZER
                                                            from £1,067.17
                                                            from £1,067.17
                                                            # 025
                                                            MPN: 156842
                                                            SYNCHROMESH RING FOR 1ST AND REVERSE GEARS
                                                            Supersession
                                                            Supersession
                                                            # 026
                                                            MPN: 106042
                                                            INSERT FOR SYNCHRONIZER
                                                            from £77.52
                                                            from £77.52
                                                            # 027
                                                            MPN: 154424
                                                            SPRING FOR PINS
                                                            from £1.44
                                                            from £1.44
                                                            This part replaces part number 148248
                                                            # 028
                                                            MPN: 144670
                                                            SPRING FOR PINS
                                                            from £0.74
                                                            from £0.74
                                                            # 029
                                                            MPN: 146230
                                                            SYNCHRONIZER WITH BUSHING
                                                            from £338.83
                                                            from £338.83
                                                            This part replaces part number 104711 which we have in stock
                                                            # 030
                                                            MPN: 104745
                                                            BUSHING
                                                            from £38.29
                                                            from £38.29
                                                            # 031
                                                            MPN: 105329
                                                            SEAL RING
                                                            from £1.45
                                                            from £1.45
                                                            # 032
                                                            MPN: 144669
                                                            PIN FOR INSERT
                                                            from £27.83
                                                            from £27.83
                                                            # 033
                                                            MPN: 106040
                                                            SYNCHROMESH RING
                                                            from £633.06
                                                            from £633.06
