036 - Brake Hydraulic System -Not for GD-

Ferrari 512 M Brake Hydraulic System -Not for GD- Parts Diagram

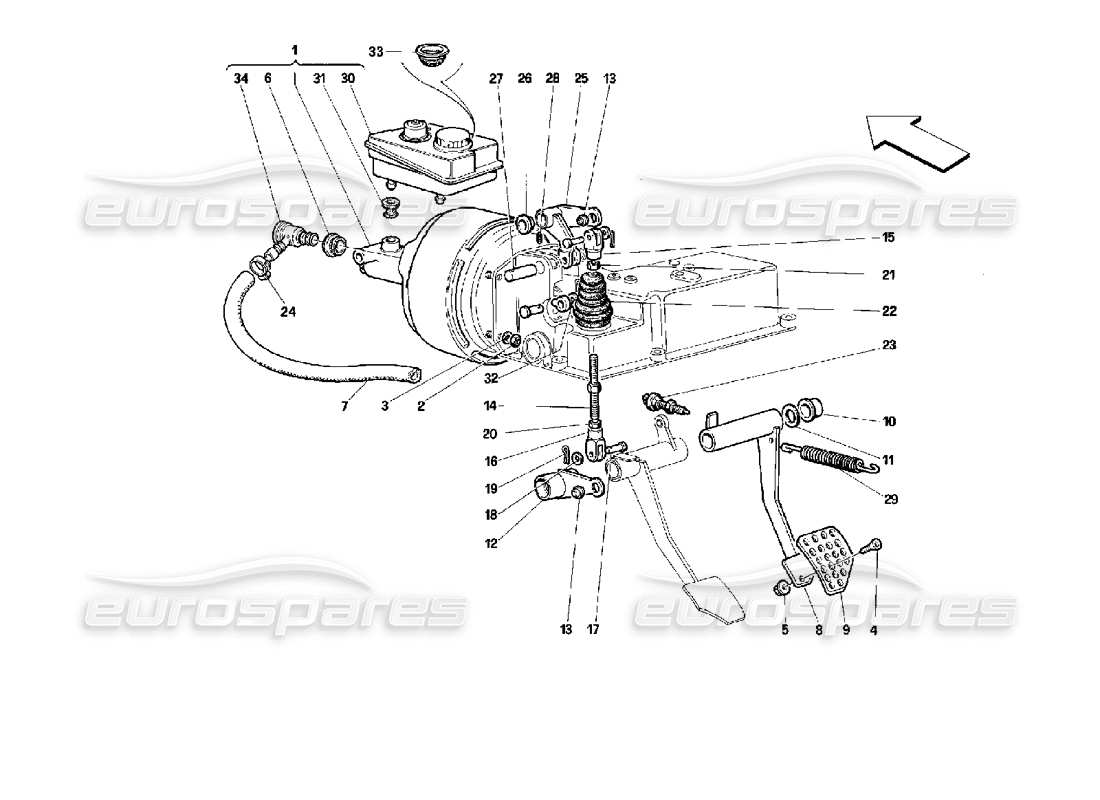

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 151471
                                                                      LHD BRAKE SERVO & PUMP
                                                                      from £1,200.00
                                                                      from £1,200.00
                                                                      This part replaces part number 133568 - and 7 more. Click to view details
                                                                      # 002
                                                                      MPN: 101139
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 16104425
                                                                      # 003
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                      # 004
                                                                      MPN: 14441324
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 005
                                                                      MPN: 14058411
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 006
                                                                      MPN: 151475
                                                                      CABLE GROMMET
                                                                      from £5.99
                                                                      from £5.99
                                                                      # 007
                                                                      MPN: 151477
                                                                      RUBBER HOSE
                                                                      from £37.08
                                                                      from £37.08
                                                                      # 008
                                                                      MPN: 163882
                                                                      BRAKE PEDAL
                                                                      from £155.49
                                                                      from £155.49
                                                                      # 009
                                                                      MPN: 163865
                                                                      PLATE
                                                                      from £78.77
                                                                      from £78.77
                                                                      # 010
                                                                      MPN: 124686
                                                                      BUSH
                                                                      from £4.76
                                                                      from £4.76
                                                                      # 011
                                                                      MPN: 112127
                                                                      SHIM 0,9 MM.
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 011
                                                                      MPN: 112128
                                                                      SHIM 1,0 MM.
                                                                      from £24.35
                                                                      from £24.35
                                                                      # 011
                                                                      MPN: 112129
                                                                      SHIM 1,1 MM.
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 011
                                                                      MPN: 112130
                                                                      SHIM 1,2 MM.
                                                                      from £0.57
                                                                      from £0.57
                                                                      # 011
                                                                      MPN: 112131
                                                                      SHIM 1,3 MM.
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 012
                                                                      MPN: 121217
                                                                      BRAKE RELAY LEVER
                                                                      from £25.21
                                                                      from £25.21
                                                                      # 013
                                                                      MPN: 100424
                                                                      BALL JOINT
                                                                      from £41.51
                                                                      from £41.51
                                                                      # 014
                                                                      MPN: 148822
                                                                      TIE ROD
                                                                      from £13.83
                                                                      from £13.83
                                                                      # 015
                                                                      MPN: 104910
                                                                      FORK, RH THREAD
                                                                      from £4.22
                                                                      from £4.22
                                                                      # 016
                                                                      MPN: 104911
                                                                      FORK, LH THREAD
                                                                      from £10.33
                                                                      from £10.33
                                                                      # 017
                                                                      MPN: 10033414
                                                                      PIN
                                                                      from £8.63
                                                                      from £8.63
                                                                      This part replaces part number 10033411 which we have in stock
                                                                      # 018
                                                                      MPN: 103167
                                                                      WASHER
                                                                      from £1.97
                                                                      from £1.97
                                                                      # 019
                                                                      MPN: 10796440
                                                                      SPLIT PIN
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 264555
                                                                      # 020
                                                                      MPN: 11690911
                                                                      NUT, LH THREAD
                                                                      from £1.32
                                                                      from £1.32
                                                                      # 021
                                                                      MPN: 10788711
                                                                      NUT, RH THREAD
                                                                      from £0.39
                                                                      from £0.39
                                                                      This part replaces part number 100965 which we have in stock - and 1 more. Click to view details
                                                                      # 022
                                                                      MPN: 112157
                                                                      BELLOWS
                                                                      from £0.49
                                                                      from £0.49
                                                                      # 023
                                                                      MPN: 133555
                                                                      STOP LIGHT SWITCH
                                                                      from £18.60
                                                                      from £18.60
                                                                      # 024
                                                                      MPN: 13000390
                                                                      CLAMP
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                      # 025
                                                                      MPN: 148788
                                                                      BRAKE BOOSTER CONTROL LEVER
                                                                      from £118.93
                                                                      from £118.93
                                                                      # 026
                                                                      MPN: 124586
                                                                      BUSH
                                                                      from £3.72
                                                                      from £3.72
                                                                      # 027
                                                                      MPN: 124714
                                                                      RELAY LEVER SUPPORTING PIN
                                                                      from £52.24
                                                                      from £52.24
                                                                      # 028
                                                                      MPN: 13736911
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 029
                                                                      MPN: 104895
                                                                      PEDAL RETURN SPRING
                                                                      from £2.97
                                                                      from £2.97
                                                                      # 030
                                                                      MPN: 108802/A
                                                                      BRAKE RESERVOIR
                                                                      from £74.58
                                                                      from £74.58
                                                                      This part replaces part number 119566 which we have in stock - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 175189
                                                                      SEAL RING
                                                                      from £13.70
                                                                      from £13.70
                                                                      This part replaces part number 106625
                                                                      # 032
                                                                      MPN: 10730514
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10730521 which we have in stock
                                                                      # 033
                                                                      MPN: 120735
                                                                      FILTER
                                                                      from £0.66
                                                                      from £0.66
                                                                      # 034
                                                                      MPN: 144552
                                                                      UNION
                                                                      from £1.76
                                                                      from £1.76
