040 - Front Brakes Calipers

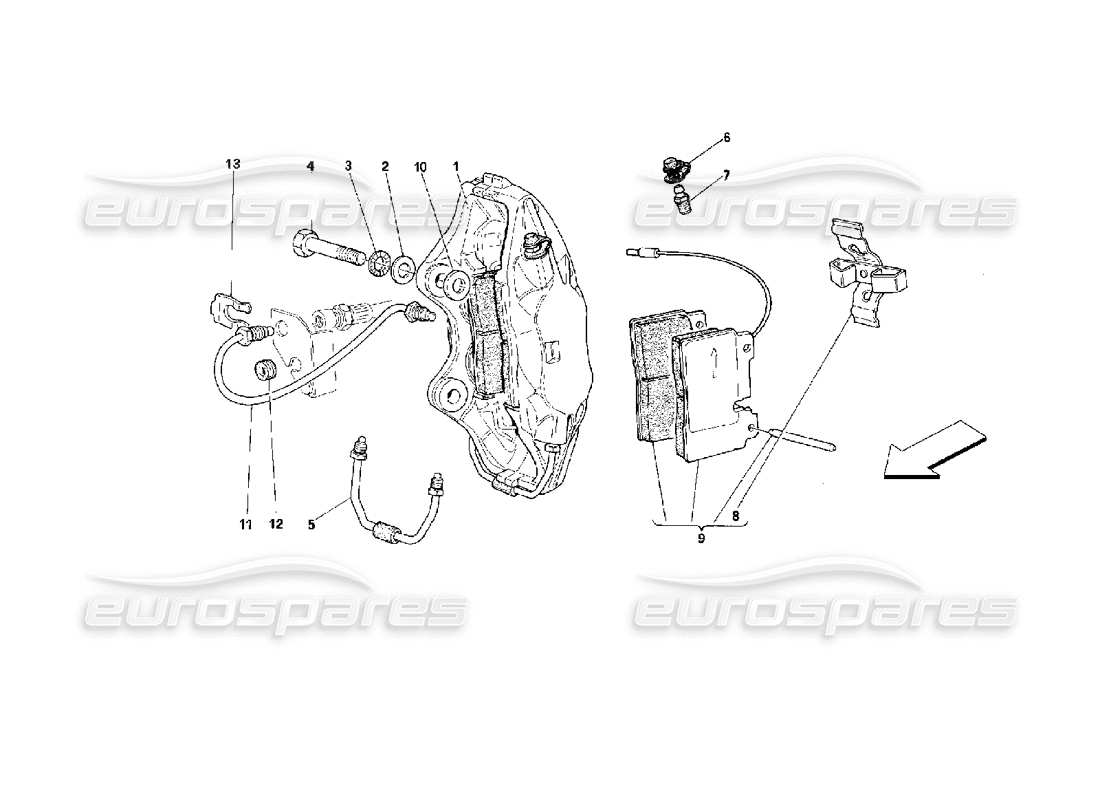

Ferrari 512 M Front Brakes Calipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price

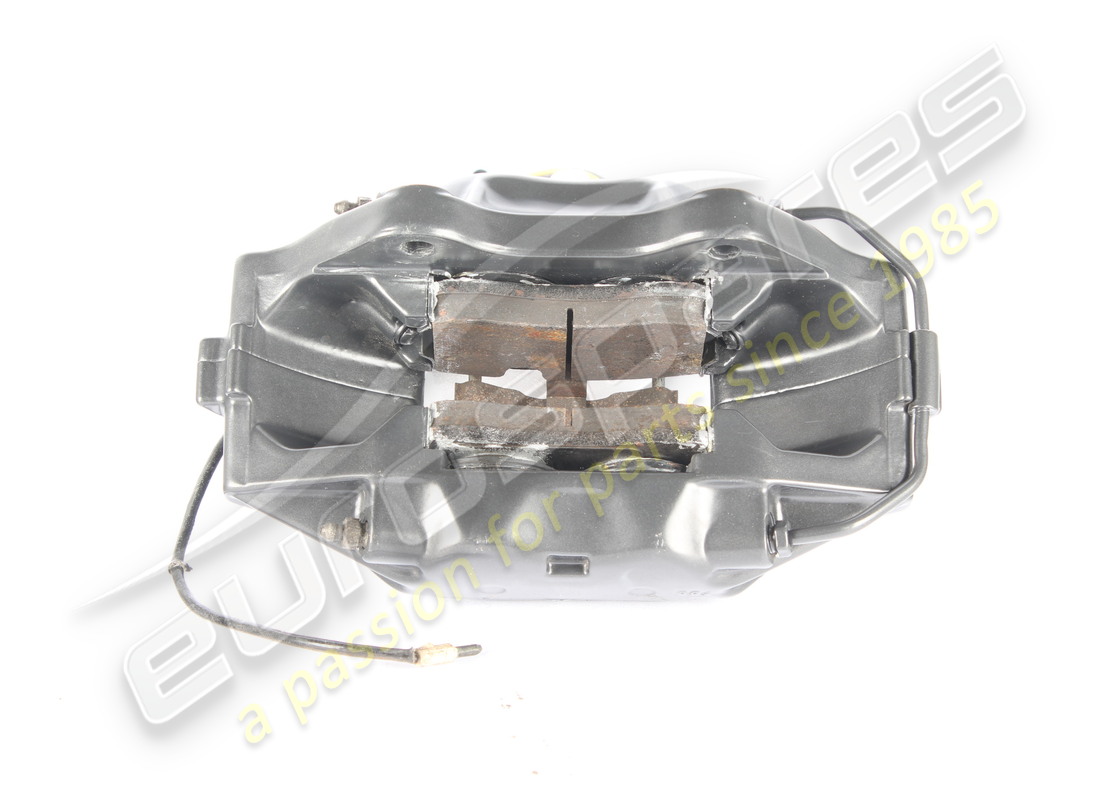

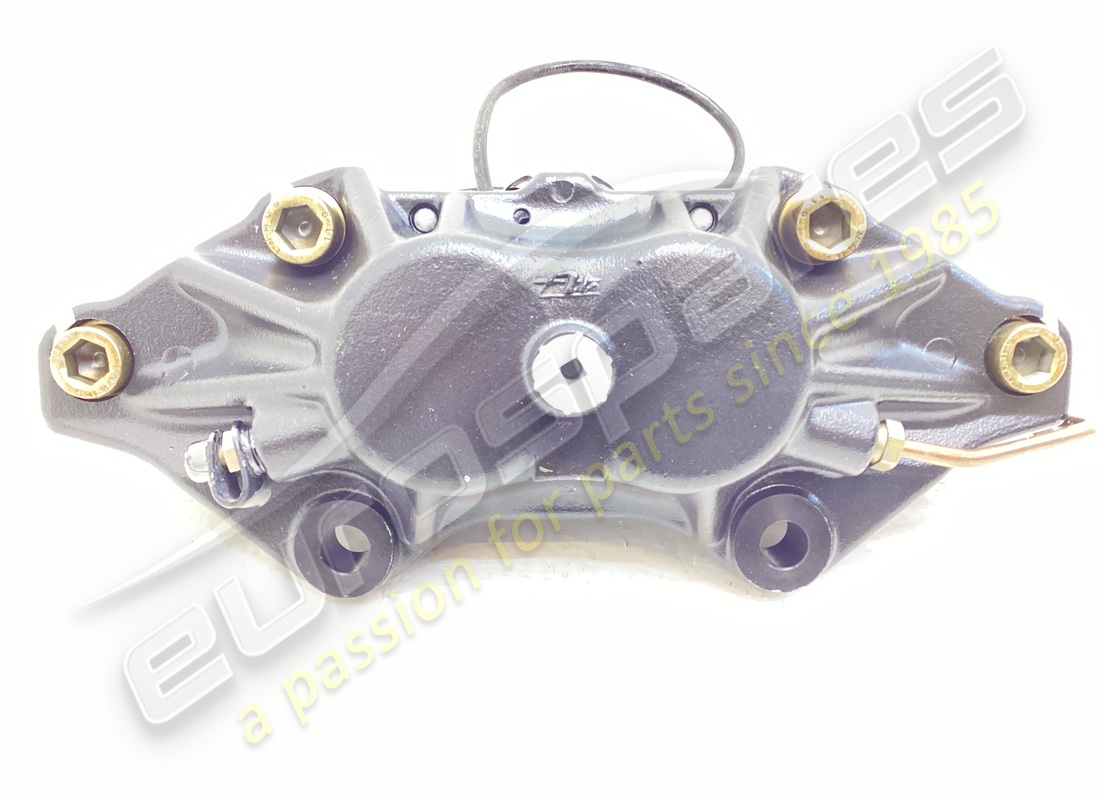

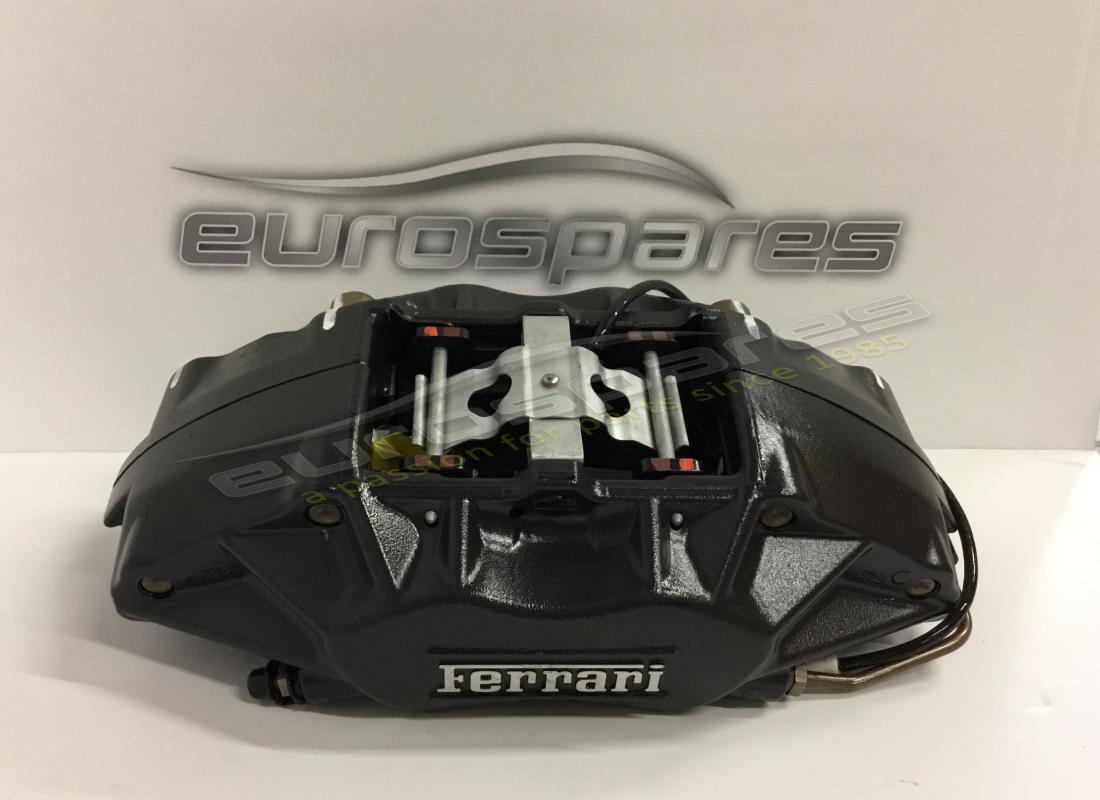

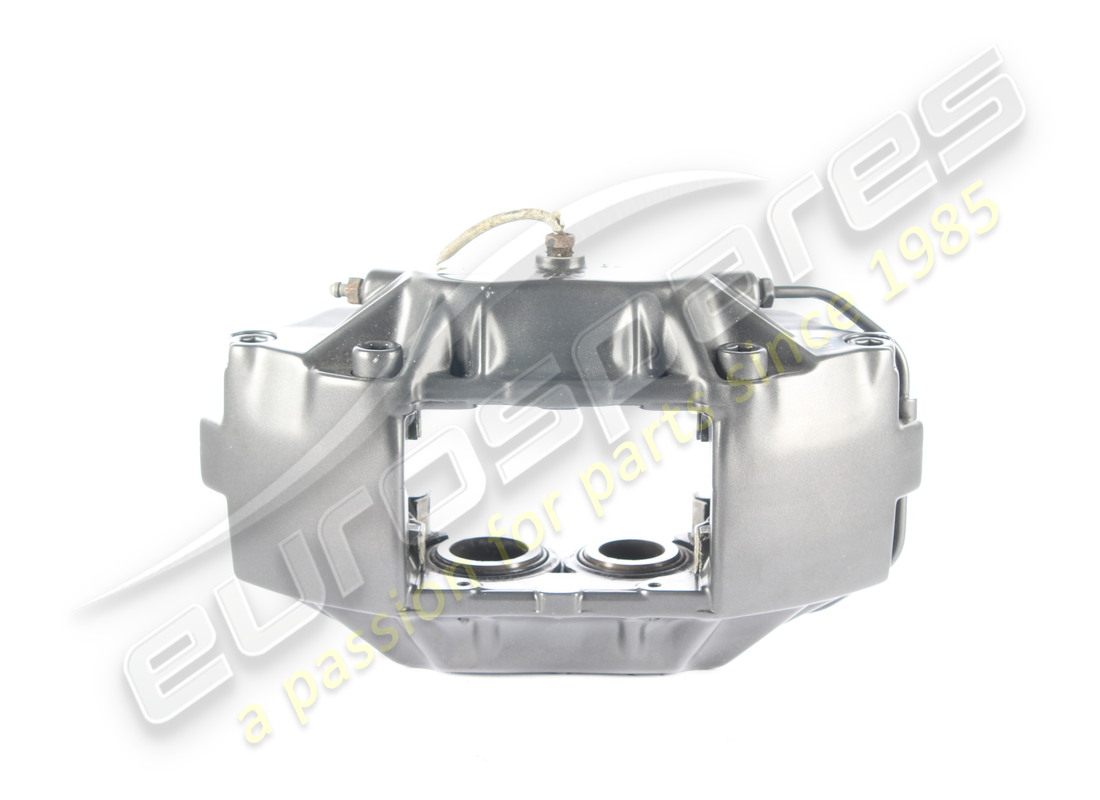

                          # 001
                          MPN: 142478
                          LH FRONT CALIPER WITH PADS (TEVES)
                          from £658.41
                          from £658.41
                          # 001
                          MPN: 142479
                          RH FRONT CALIPER WITH PADS (TEVES)
                          from £627.06
                          from £627.06
                          # 001
                          MPN: 151901
                          RH FRONT CALIPER WITH PADS (BREMBO)
                          from £513.17
                          from £513.17
                          # 001
                          MPN: 151902
                          LH FRONT CALIPER WITH PADS (BREMBO)
                          from £513.17
                          from £513.17
                          # 002
                          MPN: 106616
                          WASHER
                          from £0.96
                          from £0.96
                          # 003
                          MPN: 10615874
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                          # 004
                          MPN: 132213
                          SCREW
                          from £3.68
                          from £3.68
                          # 005
                          MPN: 151962
                          CONNECTION HOSE (CALIPER TEVES)
                          from £65.04
                          from £65.04
                          # 005
                          MPN: 172868
                          CONNECTION HOSE (CALIPER BREMBO)
                          from £32.30
                          from £32.30
                          # 006
                          MPN: 147136
                          CAP (CALIPER TEVES)
                          from £45.79
                          from £45.79
                          # 006
                          MPN: 152955
                          CAP (CALIPER BREMBO)
                          from £3.06
                          from £3.06
                          # 007
                          MPN: 147135
                          SCREW (CALIPER TEVES)
                          from £8.76
                          from £8.76
                          # 007
                          MPN: 152954
                          SCREW (CALIPER BREMBO)
                          from £3.30
                          from £3.30
                          # 008
                          MPN: 151963
                          PADS SPRING (CALIPER TEVES)
                          from £21.69
                          from £21.69
                          # 008
                          MPN: 172348
                          PADS SPRING (CALIPER BREMBO)
                          from £18.79
                          from £18.79
                          # 009
                          MPN: 70000802
                          SET OF FRONT PADS WITH SPRING AND PIN (TEVES)
                          from £207.90
                          from £207.90
                          This part replaces part number 155701 which we have in stock - and 3 more. Click to view details
                          # 009
                          MPN: 70000924
                          SET OF FRONT PADS WITH SPRING AND PIN (BREMBO)
                          from £349.84
                          from £349.84
                          This part replaces part number 70000881
                          # 010
                          MPN: 156260
                          WASHER 0,2 MM THICKNESS
                          - Possible mounting
                          from £0.87
                          from £0.87
                          This part replaces part number 108918
                          # 010
                          MPN: 156261
                          WASHER 0,3 MM THICKNESS
                          - Possible mounting
                          from £2.97
                          from £2.97
                          This part replaces part number 108919
                          # 010
                          MPN: 156262
                          WASHER 0,5 MM THICKNESS
                          - Possible mounting
                          from £0.87
                          from £0.87
                          This part replaces part number 108920
                          # 010
                          MPN: 156263
                          WASHER 0,6 MM THICKNESS
                          - Possible mounting
                          from £0.90
                          from £0.90
                          This part replaces part number 108921
                          # 010
                          MPN: 156264
                          WASHER 0,7 MM THICKNESS
                          - Possible mounting
                          from £0.67
                          from £0.67
                          This part replaces part number 108922
                          # 010
                          MPN: 156265
                          WASHER 0,8 MM THICKNESS
                          - Possible mounting
                          from £1.56
                          from £1.56
                          This part replaces part number 108923
                          # 010
                          MPN: 156266
                          WASHER 1,0 MM THICKNESS
                          - Possible mounting
                          from £0.87
                          from £0.87
                          This part replaces part number 108924
                          # 011
                          MPN: 147974
                          PIPE FROM HOSE TO RH FRONT CALIPER (ATE)
                          Supersession
                          Supersession
                          # 011
                          MPN: 147975
                          PIPE FROM HOSE TO LH FRONT CALIPER (ATE)
                          from £6.07
                          from £6.07
                          # 011
                          MPN: 152049
                          PIPE FROM HOSE TO RH FRONT CALIPER (BREMBO)
                          from £13.73
                          from £13.73
                          # 011
                          MPN: 152050
                          PIPE FROM HOSE TO LH FRONT CALIPER (BREMBO)
                          from £13.73
                          from £13.73
                          # 012
                          MPN: 10396380
                          CABLE GROMMET
                          from £0.51
                          from £0.51
                          # 013
                          MPN: 116374
                          SPRING
                          from £1.16
                          from £1.16
