ferrari 512 m front suspension - wishbones parts diagram

046 - Front Suspension - Wishbones

Ferrari 512 M Front Suspension - Wishbones Parts Diagram

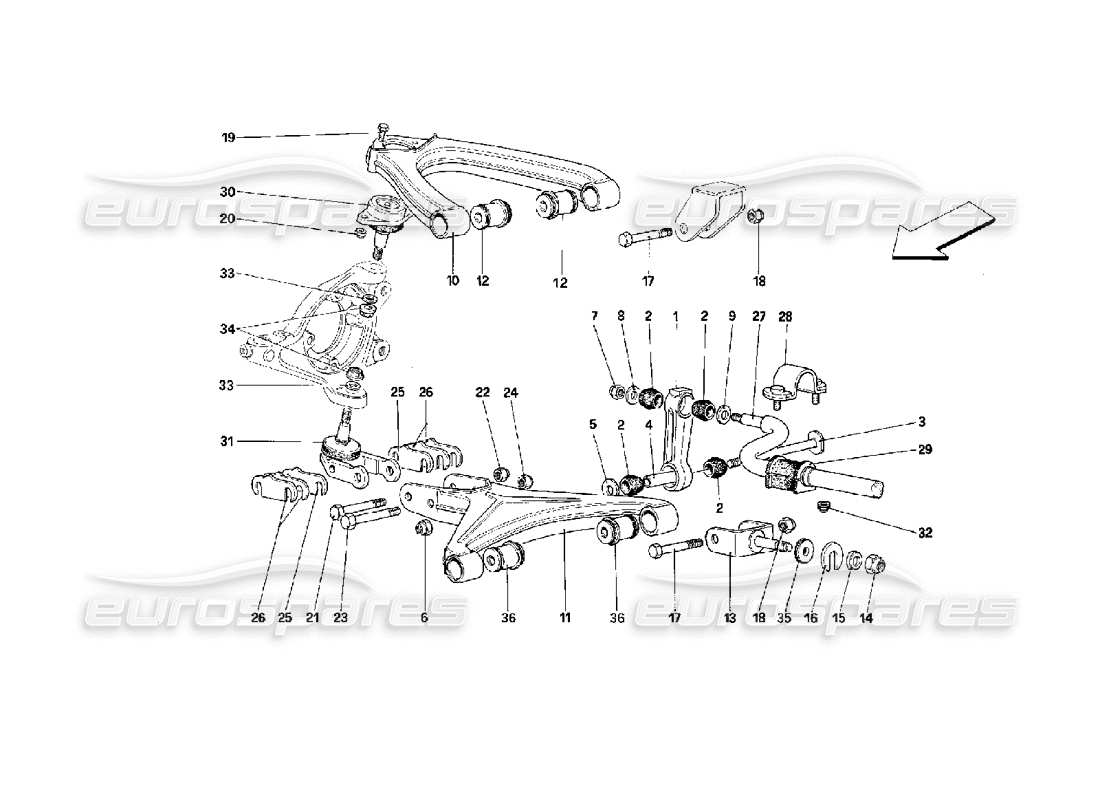

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 114691
                                                                BAR LINK
                                                                from £322.83
                                                                from £322.83
                                                                # 002
                                                                MPN: 100984
                                                                PAD
                                                                from £6.48
                                                                from £6.48
                                                                This part replaces part number 126097 - and 1 more. Click to view details
                                                                # 003
                                                                MPN: 132665
                                                                PIN
                                                                from £22.94
                                                                from £22.94
                                                                # 004
                                                                MPN: 100985
                                                                SPACER
                                                                from £21.06
                                                                from £21.06
                                                                This part replaces part number 64431
                                                                # 005
                                                                MPN: 105334
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                # 006
                                                                MPN: 148020
                                                                NUT
                                                                from £2.53
                                                                from £2.53
                                                                This part replaces part number 102825 - and 3 more. Click to view details
                                                                # 007
                                                                MPN: 102742
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12557621 - and 2 more. Click to view details
                                                                # 008
                                                                MPN: 112874
                                                                WASHER
                                                                from £10.91
                                                                from £10.91
                                                                # 009
                                                                MPN: 10520224
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10520221 which we have in stock
                                                                # 010
                                                                MPN: 133094
                                                                UPPER LEVER
                                                                from £856.54
                                                                from £856.54
                                                                # 011
                                                                MPN: 159154
                                                                LOWER LEVER
                                                                from £819.52
                                                                from £819.52
                                                                # 012
                                                                MPN: 154537
                                                                FLAMBLOCK FOR UPPER LEVER
                                                                USE : 163038/154536
                                                                from £26.71
                                                                from £26.71
                                                                This part replaces part number 104398 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 146462
                                                                LOWER FORK
                                                                from £76.68
                                                                from £76.68
                                                                # 014
                                                                MPN: 150238
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12575821 - and 2 more. Click to view details
                                                                # 015
                                                                MPN: 101041
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10730821
                                                                # 016
                                                                MPN: 101039
                                                                WASHER THICK. 1 MM
                                                                - Possible mounting
                                                                from £1.78
                                                                from £1.78
                                                                This part replaces part number 107025 - and 1 more. Click to view details
                                                                # 016
                                                                MPN: 107338
                                                                WASHER THICK. 1,5 MM
                                                                - Possible mounting
                                                                from £13.00
                                                                from £13.00
                                                                This part replaces part number 107418
                                                                # 016
                                                                MPN: 107339
                                                                WASHER THICK. 2 MM
                                                                - Possible mounting
                                                                from £1.18
                                                                from £1.18
                                                                This part replaces part number 107419
                                                                # 016
                                                                MPN: 107340
                                                                WASHER THICK. 2,5 MM
                                                                - Possible mounting
                                                                from £1.11
                                                                from £1.11
                                                                This part replaces part number 107420
                                                                # 016
                                                                MPN: 107341
                                                                WASHER THICK. 3 MM
                                                                - Possible mounting
                                                                from £2.84
                                                                from £2.84
                                                                This part replaces part number 107421
                                                                # 016
                                                                MPN: 107342
                                                                WASHER THICK. 3,25 MM
                                                                - Possible mounting
                                                                from £0.48
                                                                from £0.48
                                                                This part replaces part number 107422
                                                                # 017
                                                                MPN: 106419
                                                                SCREW
                                                                from £10.86
                                                                from £10.86
                                                                This part replaces part number 100808 - and 11 more. Click to view details
                                                                # 018
                                                                MPN: 102825
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 95900617
                                                                # 019
                                                                MPN: 16043721
                                                                SCREW
                                                                from £1.08
                                                                from £1.08
                                                                # 020
                                                                MPN: 104030
                                                                SELF LOCKING NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 16104125
                                                                # 021
                                                                MPN: 15971734
                                                                SCREW
                                                                from £25.41
                                                                from £25.41
                                                                This part replaces part number 151308
                                                                # 022
                                                                MPN: 102742
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12557621 - and 2 more. Click to view details
                                                                # 023
                                                                MPN: 132667
                                                                SCREW
                                                                from £20.99
                                                                from £20.99
                                                                # 024
                                                                MPN: 102825
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 95900617
                                                                # 025
                                                                MPN: 101022
                                                                INCIDENCE ADJUST. PLATE
                                                                - Possible mounting
                                                                from £1.22
                                                                from £1.22
                                                                This part replaces part number 153963
                                                                # 026
                                                                MPN: 115073
                                                                INCIDENCE ADJUST. PLATE
                                                                - Possible mounting
                                                                from £0.79
                                                                from £0.79
                                                                This part replaces part number 153964
                                                                # 027
                                                                MPN: 149565
                                                                STABILIZER BAR
                                                                from £208.08
                                                                from £208.08
                                                                # 028
                                                                MPN: 138389
                                                                CRAMP TO RET. BAR
                                                                from £68.86
                                                                from £68.86
                                                                This part replaces part number 133227
                                                                # 029
                                                                MPN: 149566
                                                                PAD
                                                                from £54.44
                                                                from £54.44
                                                                # 030
                                                                MPN: 132776
                                                                UPPER BALL JOINT
                                                                from £51.47
                                                                from £51.47
                                                                # 031
                                                                MPN: 133944
                                                                LOWER BALL JOINT
                                                                from £50.00
                                                                from £50.00
                                                                This part replaces part number 114462 - and 13 more. Click to view details
                                                                # 032
                                                                MPN: 14058511
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 033
                                                                MPN: 122237
                                                                WASHER
                                                                from £2.25
                                                                from £2.25
                                                                # 034
                                                                MPN: 149807
                                                                NUT
                                                                from £0.61
                                                                from £0.61
                                                                # 035
                                                                MPN: 159406
                                                                WASHER
                                                                from £11.61
                                                                from £11.61
                                                                # 036
                                                                MPN: 154537
                                                                FLAMBLOCK FOR LOWER LEVER
                                                                USE : 163038/154536
                                                                from £26.71
                                                                from £26.71
                                                                This part replaces part number 104398 - and 1 more. Click to view details
