ferrari 512 m rear suspension - brake disc parts diagram

047 - Rear Suspension - Brake Disc

Ferrari 512 M Rear Suspension - Brake Disc Parts Diagram

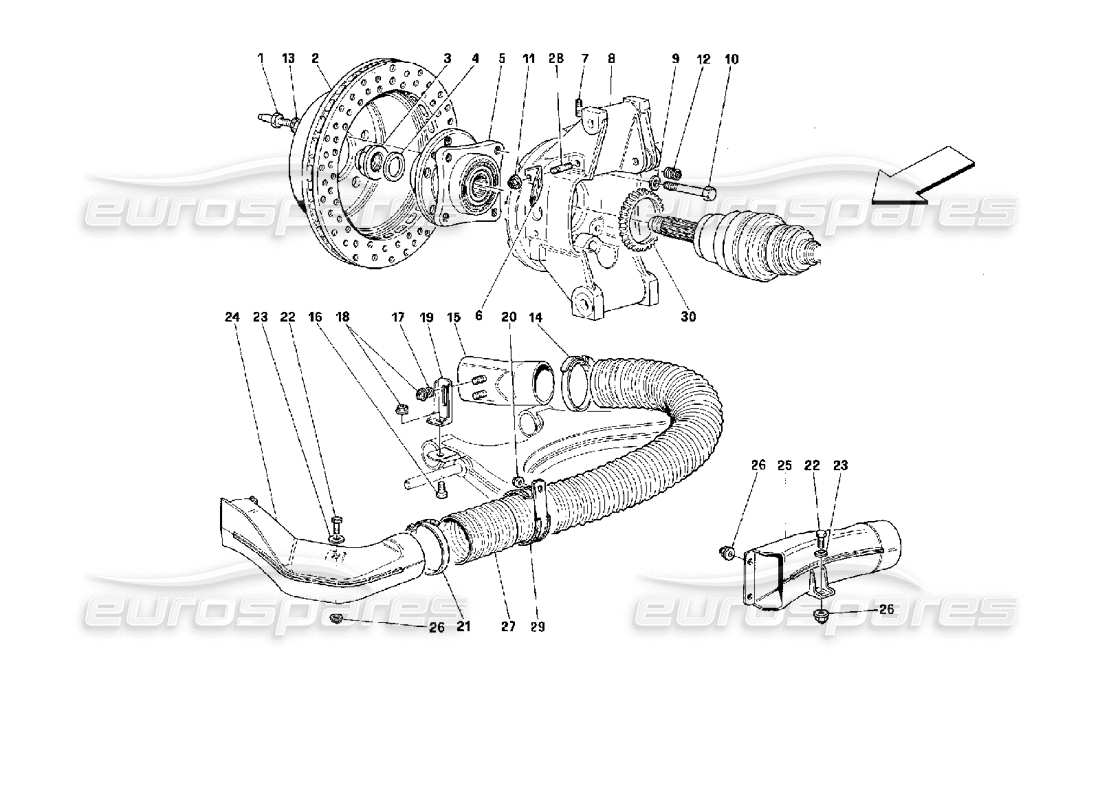

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 104370
                                                          PIN
                                                          - Not as spare parts now - Replaced by 16043424
                                                          from £5.12
                                                          from £5.12
                                                          This part replaces part number 139981
                                                          # 001
                                                          MPN: 16043424
                                                          PIN
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 16043421
                                                          # 002
                                                          MPN: 144782
                                                          REAR BRAKE DISC
                                                          Priced Per Disc (Minimum Order 2x)
                                                          from £557.37
                                                          from £557.37
                                                          # 003
                                                          MPN: 209184
                                                          NUT
                                                          from £25.62
                                                          from £25.62
                                                          This part replaces part number 167259 - and 1 more. Click to view details
                                                          # 003
                                                          MPN: 209184
                                                          NUT
                                                          from £25.62
                                                          from £25.62
                                                          This part replaces part number 167259 - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 143332
                                                          WASHER
                                                          from £38.91
                                                          from £38.91
                                                          # 005
                                                          MPN: 157901
                                                          BEARING WITH HUB
                                                          from £462.70
                                                          from £462.70
                                                          This part replaces part number 137105 - and 3 more. Click to view details
                                                          # 006
                                                          MPN: 148712
                                                          SUPPORT
                                                          from £6.44
                                                          from £6.44
                                                          # 007
                                                          MPN: 11499924
                                                          STUD BOLT
                                                          from £7.85
                                                          from £7.85
                                                          This part replaces part number 11499921 which we have in stock
                                                          # 008
                                                          MPN: 155733
                                                          RH HUB HOLDER COMPLETE
                                                          from £753.22
                                                          from £753.22
                                                          This part replaces part number 155735 which we have in stock
                                                          # 008
                                                          MPN: 155734
                                                          LH HUB HOLDER COMPLETE
                                                          from £777.29
                                                          from £777.29
                                                          This part replaces part number 155736
                                                          # 009
                                                          MPN: 12601579
                                                          WASHER
                                                          from £14.76
                                                          from £14.76
                                                          # 010
                                                          MPN: 14275231
                                                          SCREW
                                                          Supersession
                                                          Supersession
                                                          # 011
                                                          MPN: 14058411
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 012
                                                          MPN: 13525470
                                                          INSERT
                                                          from £0.48
                                                          from £0.48
                                                          This part replaces part number 107333
                                                          # 013
                                                          MPN: 127496
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                          # 014
                                                          MPN: 12177390
                                                          CLAMP
                                                          Supersession
                                                          Supersession
                                                          # 015
                                                          MPN: 149765
                                                          AIR CONVEYOR COMPLETE
                                                          from £48.25
                                                          from £48.25
                                                          # 016
                                                          MPN: 10977524
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 017
                                                          MPN: 12644401
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 018
                                                          MPN: 14058411
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 019
                                                          MPN: 149795
                                                          BRACKET
                                                          from £3.26
                                                          from £3.26
                                                          # 020
                                                          MPN: 14058411
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 021
                                                          MPN: 12177390
                                                          SCREW CLAMP
                                                          Supersession
                                                          Supersession
                                                          # 022
                                                          MPN: 10977524
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 023
                                                          MPN: 12643724
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                          # 024
                                                          MPN: 156664
                                                          RH AIR CONVEYOR
                                                          from £80.49
                                                          from £80.49
                                                          This part replaces part number 148143 - and 1 more. Click to view details
                                                          # 025
                                                          MPN: 148144
                                                          LH AIR CONVEYOR
                                                          from £11.64
                                                          from £11.64
                                                          # 026
                                                          MPN: 14058411
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 027
                                                          MPN: 149796
                                                          BRAKE COOLING PIPE
                                                          from £545.27
                                                          from £545.27
                                                          # 028
                                                          MPN: 11499921
                                                          STUD BOLT
                                                          from £6.43
                                                          from £6.43
                                                          # 029
                                                          MPN: 149797
                                                          BRACKET
                                                          from £4.05
                                                          from £4.05
                                                          # 030
                                                          MPN: 151200
                                                          PHONIC WHEEL FOR ABS
                                                          from £109.45
                                                          from £109.45
