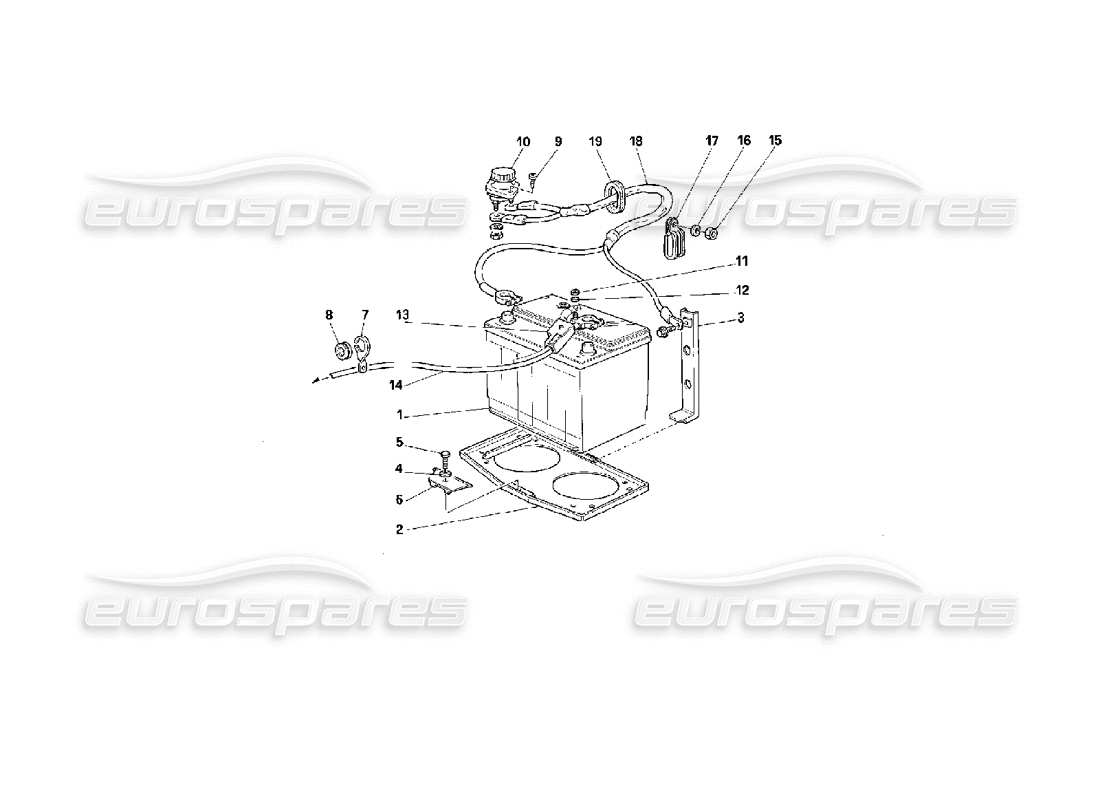

Ferrari 512 M Battery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 157496
                                        Battery
                                        Supersession
                                        Supersession
                                        # 002
                                        MPN: 64675600
                                        PLATE SUPPORT
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 64675700
                                        BATTERY PLATE SUPPORT
                                        from £180.91
                                        from £180.91
                                        # 004
                                        MPN: 127496
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                        # 005
                                        MPN: 16043534
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 16043521 - and 1 more. Click to view details
                                        # 006
                                        MPN: 62573400
                                        BRACKET
                                        from £22.50
                                        from £22.50
                                        # 007
                                        MPN: 105900
                                        CABLE SUPPORT BRACKET
                                        from £8.86
                                        from £8.86
                                        # 008
                                        MPN: 10396580
                                        CABLE GROMMET
                                        from £1.08
                                        from £1.08
                                        This part replaces part number 100286
                                        # 009
                                        MPN: 15688178
                                        SCREW
                                        from £0.93
                                        from £0.93
                                        # 010
                                        MPN: 139607
                                        BATTERY DISCONNECTING SWITCH
                                        Supersession
                                        Supersession
                                        # 012
                                        MPN: 10519624
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                        # 013
                                        MPN: 144727
                                        PROTECTION CAP FOR POSITIVE TERMINAL
                                        Supersession
                                        Supersession
                                        This part replaces part number 123674/T - and 1 more. Click to view details
                                        # 014
                                        MPN: 164416
                                        CABLE FROM BATTERY TO CONNECTION BOX
                                        from £220.44
                                        from £220.44
                                        # 015
                                        MPN: 102948
                                        NUT
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                        # 016
                                        MPN: 12643724
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 109684 - and 4 more. Click to view details
                                        # 017
                                        MPN: 61712500
                                        BRACKET
                                        from £0.88
                                        from £0.88
                                        # 018
                                        MPN: 162911
                                        CABLES FOR DISCONNECTING SWITCH
                                        from £89.29
                                        from £89.29
                                        # 019
                                        MPN: 163164
                                        CABLE GROMMET
                                        from £8.78
                                        from £8.78
