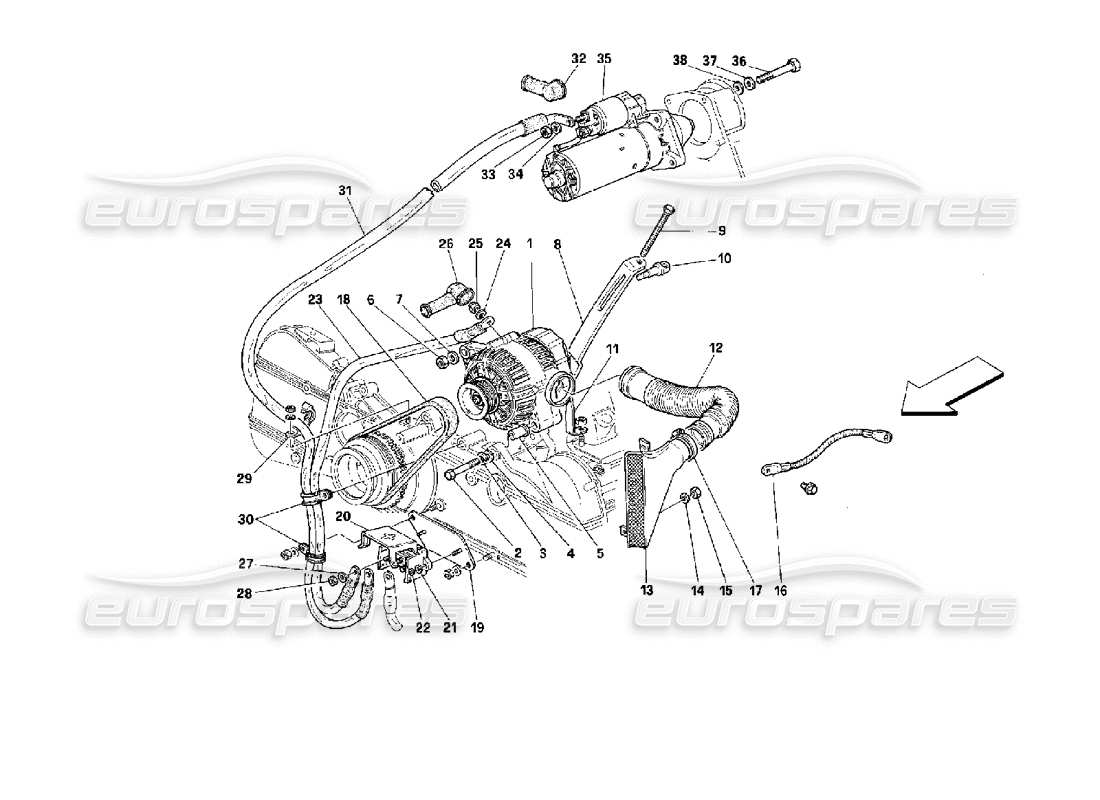

051 - Current Generator

Ferrari 512 M Current Generator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 157080
                                                                        COMPLETE GENERATOR
                                                                        (exchange required)
                                                                        from £557.10
                                                                        from £557.10
                                                                        This part replaces part number 154153
                                                                        # 002
                                                                        MPN: 15971821
                                                                        SCREW
                                                                        from £3.16
                                                                        from £3.16
                                                                        # 003
                                                                        MPN: 127497
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                                        # 004
                                                                        MPN: 12638601
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 20232104
                                                                        # 005
                                                                        MPN: 152496
                                                                        BUSH
                                                                        from £6.51
                                                                        from £6.51
                                                                        # 006
                                                                        MPN: 104030
                                                                        SELF LOCKING NUT
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 16104125
                                                                        # 007
                                                                        MPN: 14496501
                                                                        WASHER
                                                                        from £0.85
                                                                        from £0.85

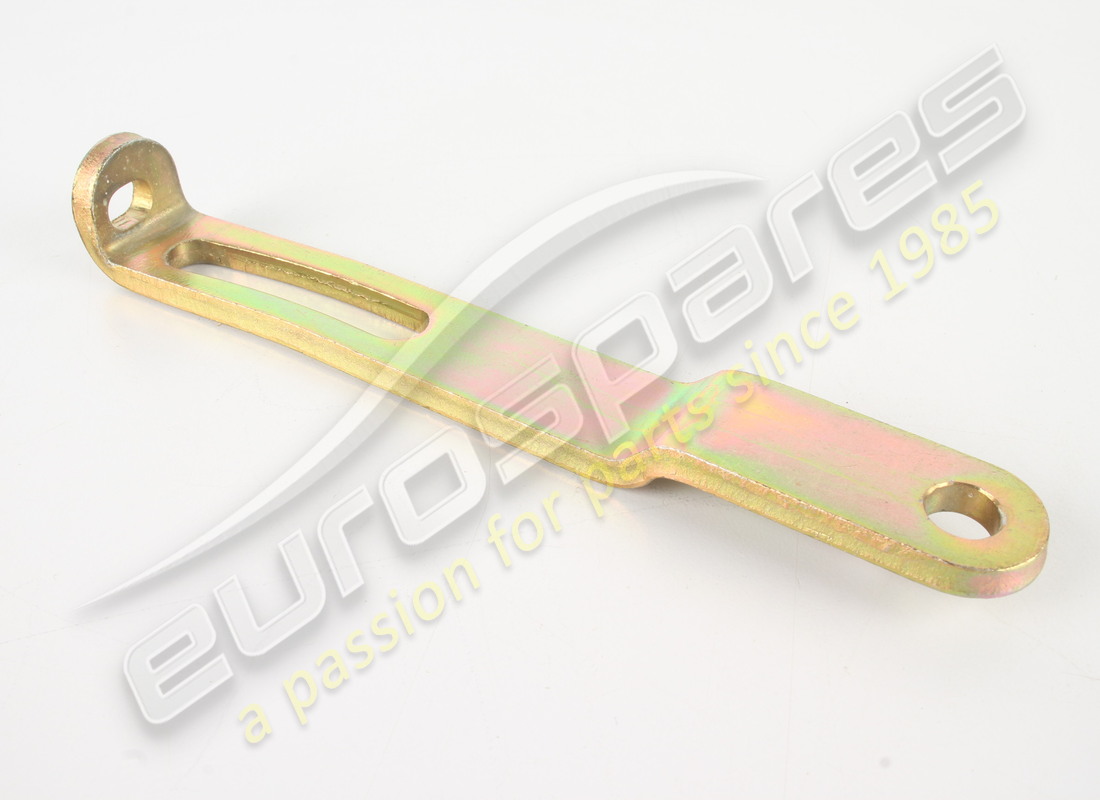

                                                                        # 008
                                                                        MPN: 152509
                                                                        GENERATOR BRACKET
                                                                        from £17.55
                                                                        from £17.55
                                                                        # 009
                                                                        MPN: 125668
                                                                        SCREW
                                                                        from £0.86
                                                                        from £0.86
                                                                        # 010
                                                                        MPN: 152535
                                                                        PIN
                                                                        from £46.43
                                                                        from £46.43
                                                                        # 011
                                                                        MPN: 154911
                                                                        BRACKET
                                                                        from £37.45
                                                                        from £37.45
                                                                        # 012
                                                                        MPN: 149870
                                                                        DELIVERY PIPE
                                                                        from £15.64
                                                                        from £15.64
                                                                        # 013
                                                                        MPN: 149347
                                                                        CONVEYOR
                                                                        from £17.28
                                                                        from £17.28
                                                                        # 014
                                                                        MPN: 160957
                                                                        WASHER
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 10615476
                                                                        # 016
                                                                        MPN: 155073
                                                                        ENGINE GROUND
                                                                        from £7.67
                                                                        from £7.67
                                                                        This part replaces part number 115668
                                                                        # 017
                                                                        MPN: 296782
                                                                        CLAMP
                                                                        from £4.87
                                                                        from £4.87
                                                                        This part replaces part number 12174090
                                                                        # 018
                                                                        MPN: 199826
                                                                        ALTERNATOR BELT
                                                                        Use on Exhaustion of 152542
                                                                        from £9.40
                                                                        from £9.40
                                                                        This part replaces part number 152542
                                                                        # 019
                                                                        MPN: 154055
                                                                        BRACKET
                                                                        from £16.50
                                                                        from £16.50
                                                                        # 020
                                                                        MPN: 170114
                                                                        TERMINAL BOX
                                                                        from £7.66
                                                                        from £7.66
                                                                        This part replaces part number 153357 - and 2 more. Click to view details
                                                                        # 021
                                                                        MPN: 12642877
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 022
                                                                        MPN: 10794011
                                                                        NUT
                                                                        from £0.30
                                                                        from £0.30
                                                                        # 023
                                                                        MPN: 154272
                                                                        CABLE FROM GENERATOR TO TERMINAL BOX
                                                                        from £62.28
                                                                        from £62.28
                                                                        # 024
                                                                        MPN: 10519624
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                        # 025
                                                                        MPN: 147985
                                                                        NUT
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 027
                                                                        MPN: 10519624
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                        # 028
                                                                        MPN: 147985
                                                                        NUT
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 029
                                                                        MPN: 129544
                                                                        SPRING
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 030
                                                                        MPN: 10450690
                                                                        BRACKET
                                                                        from £0.51
                                                                        from £0.51
                                                                        # 031
                                                                        MPN: 154273
                                                                        CABLE FROM TERMINAL BOX TO STARTING MOTOR
                                                                        from £151.39
                                                                        from £151.39
                                                                        # 032
                                                                        MPN: 124683
                                                                        CAP
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 139937
                                                                        # 033
                                                                        MPN: 147985
                                                                        NUT
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 034
                                                                        MPN: 12625221
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 035
                                                                        MPN: 150523
                                                                        Starting Motor
                                                                        (EXCHANGE)
                                                                        Supersession
                                                                        Supersession
                                                                        # 036
                                                                        MPN: 16045621
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        # 037
                                                                        MPN: 11198074
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                        # 038
                                                                        MPN: 10519624
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
