ferrari 512 m body - internal components parts diagram

102 - Body - Internal Components

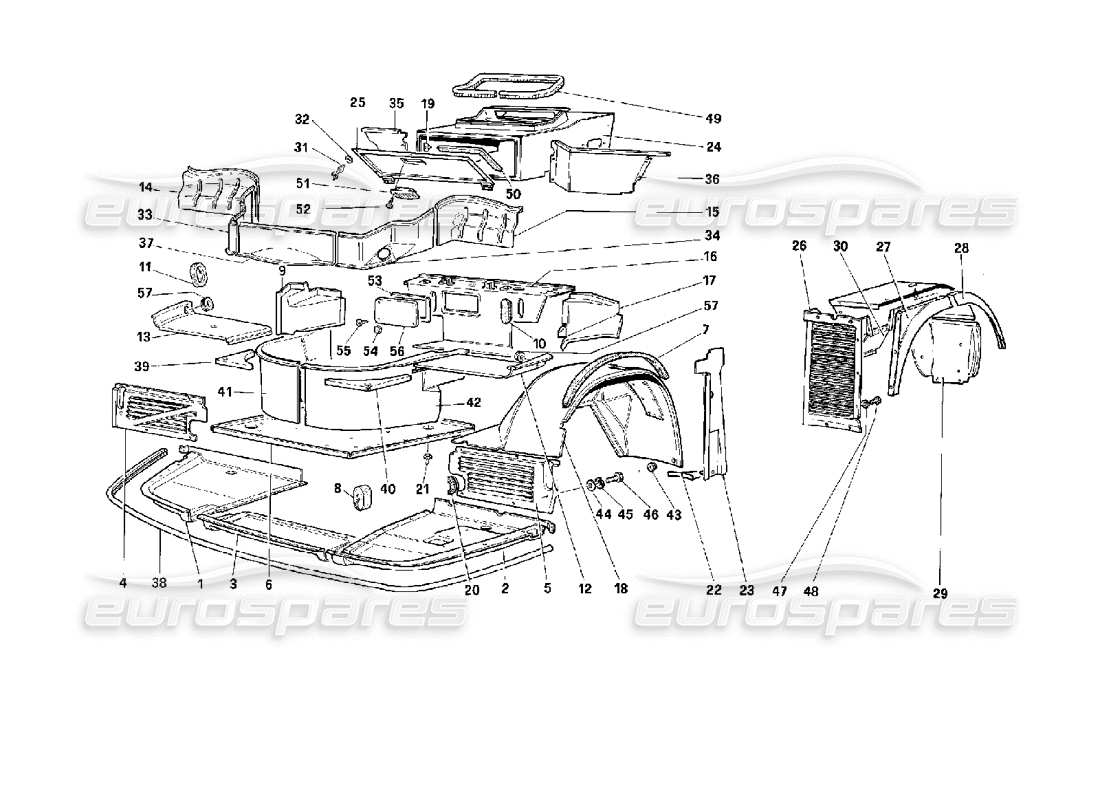

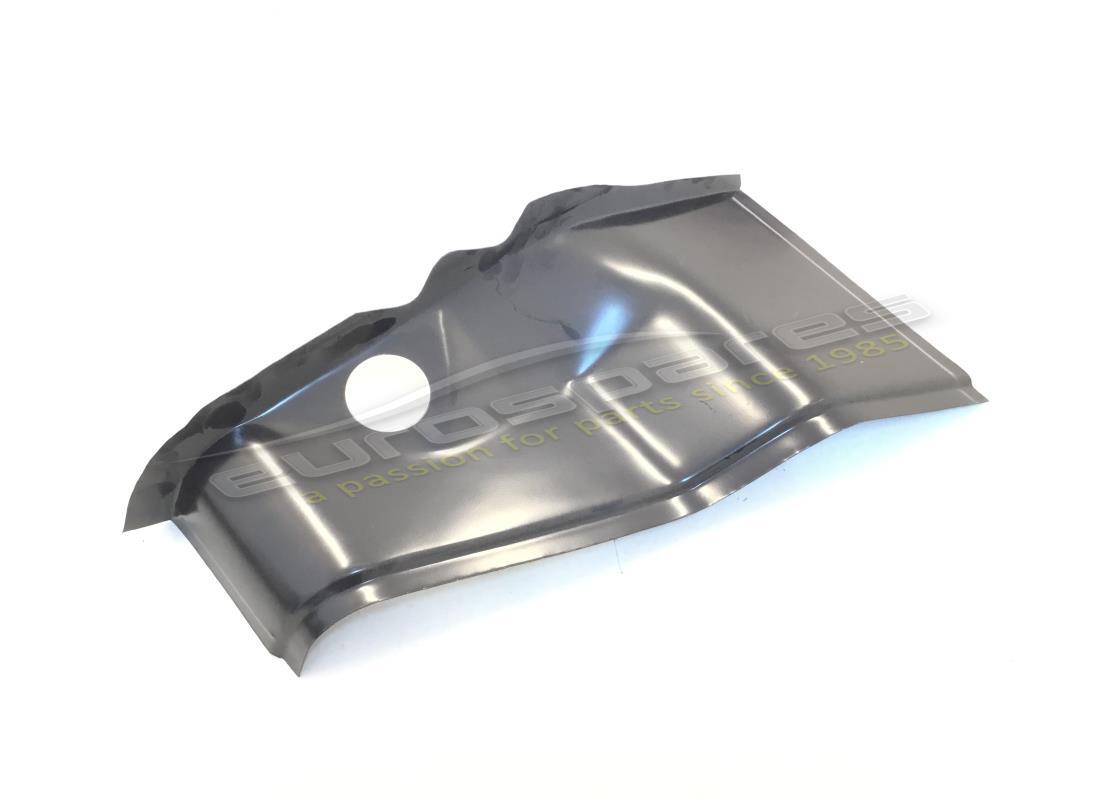

Ferrari 512 M Body - Internal Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 63084600
                                                                                                    RH SIDE GUARD FOR UNDERBODY
                                                                                                    from £200.93
                                                                                                    from £200.93
                                                                                                    # 002
                                                                                                    MPN: 63084500
                                                                                                    LH SIDE GUARD FOR UNDERBODY
                                                                                                    from £200.93
                                                                                                    from £200.93
                                                                                                    # 003
                                                                                                    MPN: 63084200
                                                                                                    RH FRONT CENTRAL GUARD FOR UNDERBODY
                                                                                                    from £17.65
                                                                                                    from £17.65
                                                                                                    # 004
                                                                                                    MPN: 63071000
                                                                                                    RH BATTERY INSPECTION DOOR
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 005
                                                                                                    MPN: 63926800
                                                                                                    LH INSPECTION DOOR
                                                                                                    from £34.59
                                                                                                    from £34.59
                                                                                                    This part replaces part number 63071100
                                                                                                    # 006
                                                                                                    MPN: 63085100
                                                                                                    TRUNK BOTTOM PLATE
                                                                                                    from £87.37
                                                                                                    from £87.37
                                                                                                    # 007
                                                                                                    MPN: 62926100
                                                                                                    WHEELHOUSE GASKET
                                                                                                    from £51.34
                                                                                                    from £51.34
                                                                                                    # 008
                                                                                                    MPN: 63393900
                                                                                                    SEALANT
                                                                                                    from £2.37
                                                                                                    from £2.37
                                                                                                    # 009
                                                                                                    MPN: 61479400
                                                                                                    RH ANGLE PIECE FOR WHEEL HOUSE
                                                                                                    from £203.73
                                                                                                    from £203.73
                                                                                                    # 009
                                                                                                    MPN: 61479500
                                                                                                    LH ANGLE PIECE FOR WHEEL HOUSE
                                                                                                    from £203.73
                                                                                                    from £203.73
                                                                                                    # 010
                                                                                                    MPN: 62845000
                                                                                                    PLUG
                                                                                                    from £1.81
                                                                                                    from £1.81
                                                                                                    # 011
                                                                                                    MPN: 163164
                                                                                                    CABLE GROMMET
                                                                                                    from £6.60
                                                                                                    from £6.60
                                                                                                    # 012
                                                                                                    MPN: 64677200
                                                                                                    LH UPPER COVER
                                                                                                    from £198.53
                                                                                                    from £198.53
                                                                                                    # 013
                                                                                                    MPN: 64677300
                                                                                                    RH UPPER COVER
                                                                                                    from £198.53
                                                                                                    from £198.53
                                                                                                    # 014
                                                                                                    MPN: 64677400
                                                                                                    RH REAR PANEL
                                                                                                    from £169.17
                                                                                                    from £169.17
                                                                                                    # 015
                                                                                                    MPN: 64677500
                                                                                                    LH REAR PANEL
                                                                                                    from £169.15
                                                                                                    from £169.15
                                                                                                    # 016
                                                                                                    MPN: 63117900
                                                                                                    REAR LUGGAGE COMPARTMENT PANEL
                                                                                                    - Not for GD
                                                                                                    from £168.67
                                                                                                    from £168.67
                                                                                                    # 016
                                                                                                    MPN: 63419800
                                                                                                    REAR LUGGAGE COMPARTMENT PANEL
                                                                                                    - Valid for GD
                                                                                                    from £166.02
                                                                                                    from £166.02
                                                                                                    # 017
                                                                                                    MPN: 61480400
                                                                                                    LH FRONT PANEL
                                                                                                    from £54.42
                                                                                                    from £54.42
                                                                                                    # 017
                                                                                                    MPN: 63461700
                                                                                                    RH FRONT PANEL
                                                                                                    - Not for GD
                                                                                                    from £97.20
                                                                                                    from £97.20
                                                                                                    # 017
                                                                                                    MPN: 63462000
                                                                                                    RH FRONT PANEL
                                                                                                    - Valid for GD
                                                                                                    from £98.75
                                                                                                    from £98.75
                                                                                                    # 018
                                                                                                    MPN: 63056100
                                                                                                    RH FRONT WHEELHOUSE ASSEMBLY
                                                                                                    from £204.74
                                                                                                    from £204.74
                                                                                                    # 018
                                                                                                    MPN: 63056200
                                                                                                    LH FRONT WHEELHOUSE ASSEMBLY
                                                                                                    from £204.74
                                                                                                    from £204.74
                                                                                                    # 018
                                                                                                    MPN: 63090000
                                                                                                    RH FRONT WHEELHOUSE ASSEMBLY
                                                                                                    from £165.46
                                                                                                    from £165.46
                                                                                                    # 018
                                                                                                    MPN: 63090100
                                                                                                    LH FRONT WHEELHOUSE ASSEMBLY
                                                                                                    from £354.89
                                                                                                    from £354.89
                                                                                                    # 019
                                                                                                    MPN: 61529200
                                                                                                    CLIP
                                                                                                    from £1.73
                                                                                                    from £1.73
                                                                                                    # 020
                                                                                                    MPN: 62987700
                                                                                                    GASKET
                                                                                                    from £1.71
                                                                                                    from £1.71
                                                                                                    # 021
                                                                                                    MPN: 60731300
                                                                                                    PLUG
                                                                                                    from £6.30
                                                                                                    from £6.30
                                                                                                    # 022
                                                                                                    MPN: 61481200
                                                                                                    RH COVER
                                                                                                    from £6.43
                                                                                                    from £6.43
                                                                                                    # 022
                                                                                                    MPN: 61481300
                                                                                                    LH COVER
                                                                                                    from £6.43
                                                                                                    from £6.43
                                                                                                    # 023
                                                                                                    MPN: 61481400
                                                                                                    RH DOOR INNER PILLAR
                                                                                                    from £25.42
                                                                                                    from £25.42
                                                                                                    # 023
                                                                                                    MPN: 61481500
                                                                                                    LH DOOR INNER PILLAR
                                                                                                    from £25.38
                                                                                                    from £25.38
                                                                                                    # 024
                                                                                                    -
                                                                                                    AIR CONDITION CASE
                                                                                                    - See ref. 18 draw.103
                                                                                                    # 025
                                                                                                    MPN: 61481700
                                                                                                    ELECTRIC BOARD COVER
                                                                                                    - Valid for GD
                                                                                                    from £14.16
                                                                                                    from £14.16
                                                                                                    # 025
                                                                                                    MPN: 63952700
                                                                                                    ELECTRIC BOARD COVER
                                                                                                    - Not for GD
                                                                                                    from £23.80
                                                                                                    from £23.80
                                                                                                    # 026
                                                                                                    MPN: 63090400
                                                                                                    FRONT SECTION OF RH REAR WHEELHOUSE
                                                                                                    from £172.85
                                                                                                    from £172.85
                                                                                                    # 026
                                                                                                    MPN: 63090500
                                                                                                    FRONT SECTION OF LH REAR WHEELHOUSE
                                                                                                    from £553.54
                                                                                                    from £553.54
                                                                                                    # 027
                                                                                                    MPN: 63090600
                                                                                                    FRONT SIDE SECTION OF RH REAR WHEELHOUSE
                                                                                                    from £34.86
                                                                                                    from £34.86
                                                                                                    # 027
                                                                                                    MPN: 63090700
                                                                                                    FRONT SIDE SECTION OF LH REAR WHEELHOUSE
                                                                                                    from £34.56
                                                                                                    from £34.56
                                                                                                    # 028
                                                                                                    MPN: 61482200
                                                                                                    RH REAR WHEEL ARCH REAR SIDE
                                                                                                    from £31.42
                                                                                                    from £31.42
                                                                                                    # 028
                                                                                                    MPN: 61482300
                                                                                                    LH REAR WHEEL ARCH REAR SIDE
                                                                                                    from £31.42
                                                                                                    from £31.42
                                                                                                    # 029
                                                                                                    MPN: 63093600
                                                                                                    REAR SECTION OF RH REAR WHEELHOUSE
                                                                                                    from £36.78
                                                                                                    from £36.78
                                                                                                    # 029
                                                                                                    MPN: 63093700
                                                                                                    REAR SECTION OF LH REAR WHEELHOUSE
                                                                                                    from £59.18
                                                                                                    from £59.18
                                                                                                    # 030
                                                                                                    MPN: 63090200
                                                                                                    UPPER SECTION OF RH REAR WHEELHOUSE
                                                                                                    from £44.62
                                                                                                    from £44.62
                                                                                                    # 030
                                                                                                    MPN: 63090300
                                                                                                    UPPER SECTION OF LH REAR WHEELHOUSE
                                                                                                    from £44.62
                                                                                                    from £44.62
                                                                                                    # 031
                                                                                                    MPN: 61530300
                                                                                                    PIN
                                                                                                    from £9.39
                                                                                                    from £9.39
                                                                                                    # 032
                                                                                                    MPN: 69969500
                                                                                                    GASKET
                                                                                                    - Not for GD
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 61529400
                                                                                                    # 033
                                                                                                    MPN: 64677600
                                                                                                    RH FRONT PANEL
                                                                                                    - Valid for GD
                                                                                                    from £177.99
                                                                                                    from £177.99
                                                                                                    # 034
                                                                                                    MPN: 64677700
                                                                                                    LH FRONT PANEL
                                                                                                    - Not for GD
                                                                                                    from £177.99
                                                                                                    from £177.99
                                                                                                    # 035
                                                                                                    MPN: 61546100
                                                                                                    RH PROTECTION
                                                                                                    - Valid for GD
                                                                                                    from £34.81
                                                                                                    from £34.81
                                                                                                    # 035
                                                                                                    MPN: 63469190
                                                                                                    RH PROTECTION
                                                                                                    from £73.58
                                                                                                    from £73.58
                                                                                                    # 036
                                                                                                    MPN: 61546400
                                                                                                    LH PROTECTION
                                                                                                    from £34.06
                                                                                                    from £34.06
                                                                                                    # 036
                                                                                                    MPN: 63414400
                                                                                                    LH PROTECTION
                                                                                                    from £101.52
                                                                                                    from £101.52
                                                                                                    # 037
                                                                                                    MPN: 64677800
                                                                                                    CENTRAL FIXED PANEL
                                                                                                    from £135.09
                                                                                                    from £135.09
                                                                                                    # 038
                                                                                                    MPN: 63087100
                                                                                                    GASKET
                                                                                                    from £18.99
                                                                                                    from £18.99
                                                                                                    # 039
                                                                                                    MPN: 63084300
                                                                                                    RH UPPER SEAL
                                                                                                    from £16.42
                                                                                                    from £16.42
                                                                                                    # 040
                                                                                                    MPN: 63084400
                                                                                                    LH UPPER SEAL
                                                                                                    from £17.12
                                                                                                    from £17.12
                                                                                                    # 041
                                                                                                    MPN: 63084900
                                                                                                    RH VERTICAL SHIELD
                                                                                                    from £277.15
                                                                                                    from £277.15
                                                                                                    # 042
                                                                                                    MPN: 63085000
                                                                                                    LH VERTICAL SHIELD
                                                                                                    from £266.99
                                                                                                    from £266.99
                                                                                                    # 043
                                                                                                    MPN: 14506787
                                                                                                    PLUG
                                                                                                    from £0.69
                                                                                                    from £0.69
                                                                                                    This part replaces part number 62773100
                                                                                                    # 044
                                                                                                    MPN: 12643777
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                    # 045
                                                                                                    MPN: 106850
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                    # 046
                                                                                                    MPN: 10902387
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10902327 which we have in stock
                                                                                                    # 047
                                                                                                    MPN: 12643770
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 048
                                                                                                    MPN: 10977524
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 049
                                                                                                    MPN: 63449700
                                                                                                    GASKET
                                                                                                    from £4.95
                                                                                                    from £4.95
                                                                                                    # 050
                                                                                                    MPN: 62765800
                                                                                                    SILENT BLOCK
                                                                                                    from £0.86
                                                                                                    from £0.86
                                                                                                    # 051
                                                                                                    MPN: 61647200
                                                                                                    LAMP
                                                                                                    from £17.39
                                                                                                    from £17.39
                                                                                                    This part replaces part number 61496800 - and 1 more. Click to view details
                                                                                                    # 052
                                                                                                    MPN: 15908678
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 15908602
                                                                                                    # 053
                                                                                                    MPN: 62781900
                                                                                                    SILENT BLOCK
                                                                                                    from £0.88
                                                                                                    from £0.88
                                                                                                    # 054
                                                                                                    MPN: 60597000
                                                                                                    CLIP
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 055
                                                                                                    MPN: 15915977
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 64428200
                                                                                                    # 056
                                                                                                    MPN: 63113800
                                                                                                    FRONT INSPECTION COVER
                                                                                                    from £8.20
                                                                                                    from £8.20
                                                                                                    # 057
                                                                                                    MPN: 10396780
                                                                                                    CABLE GROMMET
                                                                                                    from £1.08
                                                                                                    from £1.08
