104 - Rear Frame

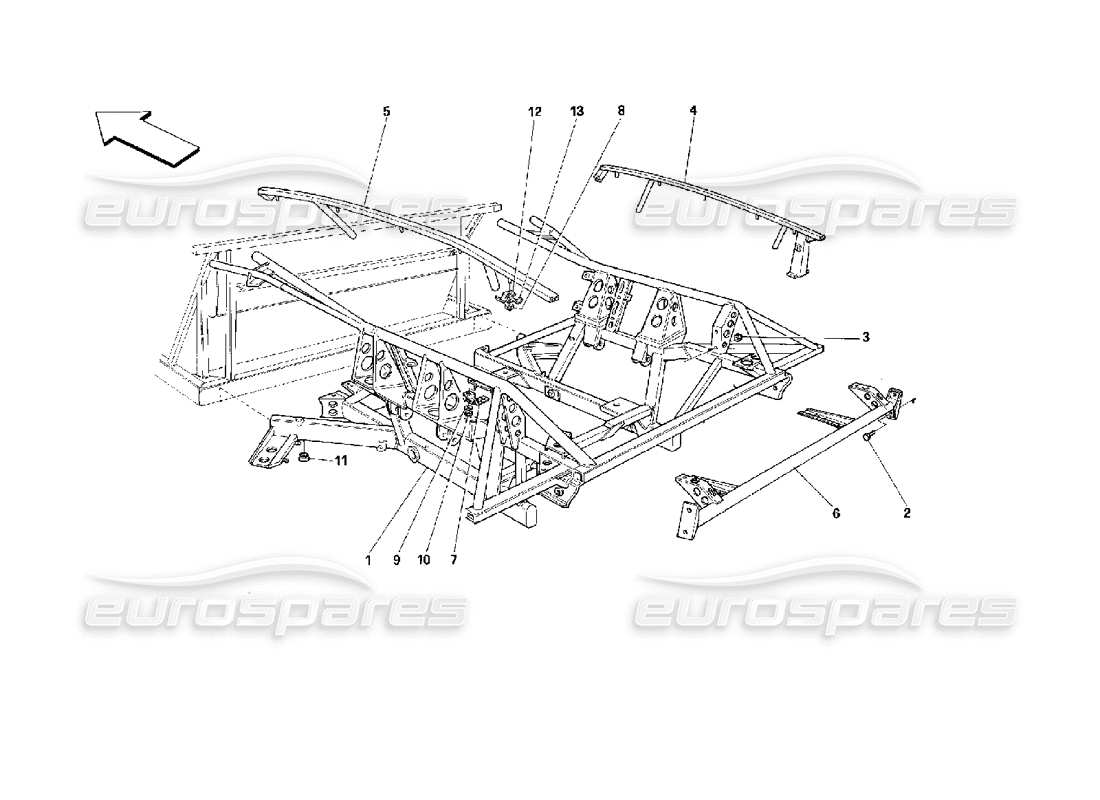

Ferrari 512 M Rear Frame Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 000
                        MPN: 165699
                        REAR FRAME COMPL.
                        - Not for USA, CDN, GB, ZA, AUS, CH, SA, J
                        # 000
                        MPN: 165700
                        REAR FRAME COMPL.
                        - Valid for USA
                        # 000
                        MPN: 165701
                        REAR FRAME COMPL.
                        - Valid for CDN
                        # 000
                        MPN: 165703
                        REAR FRAME COMPL.
                        - Valid for GB and ZA
                        from £3,307.89
                        from £3,307.89
                        # 000
                        MPN: 165704
                        REAR FRAME COMPL.
                        - Valid for AUS
                        # 000
                        MPN: 165705
                        REAR FRAME COMPL.
                        - Valid for CH
                        # 000
                        MPN: 165706
                        REAR FRAME COMPL.
                        - Valid for SA
                        # 000
                        MPN: 165707
                        REAR FRAME COMPL.
                        - Valid for J
                        from £7,155.79
                        from £7,155.79
                        # 001
                        MPN: 63423000
                        CABLES PIPE
                        - Valid for GD
                        from £111.62
                        from £111.62
                        # 002
                        MPN: 14360024
                        SCREW
                        from £0.47
                        from £0.47
                        # 003
                        MPN: 149719
                        NUT
                        Supersession
                        Supersession
                        # 004
                        MPN: 165697
                        RH LATERAL CROSS MEMBER
                        from £227.21
                        from £227.21
                        # 005
                        MPN: 165698
                        LH LATERAL CROSS MEMBER
                        from £191.40
                        from £191.40
                        # 006
                        MPN: 148177
                        REMOVABLE CROSS MEMBER
                        - Not for CH
                        from £1,219.96
                        from £1,219.96
                        # 006
                        MPN: 153054
                        REMOVABLE CROSS MEMBER
                        - Valid for CH
                        from £3,220.25
                        from £3,220.25
                        # 007
                        MPN: 151649
                        BRACKET
                        from £1.13
                        from £1.13
                        # 009
                        MPN: 10519201
                        WASHER
                        from £0.47
                        from £0.47
                        This part replaces part number 10519281
                        # 010
                        MPN: 12574011
                        NUT
                        from £0.53
                        from £0.53
                        # 011
                        MPN: 62765100
                        PLUG
                        from £0.47
                        from £0.47
                        # 012
                        MPN: 151649
                        BRACKET
                        from £1.13
                        from £1.13
                        # 013
                        MPN: 151649
                        BRACKET
                        from £1.13
                        from £1.13
