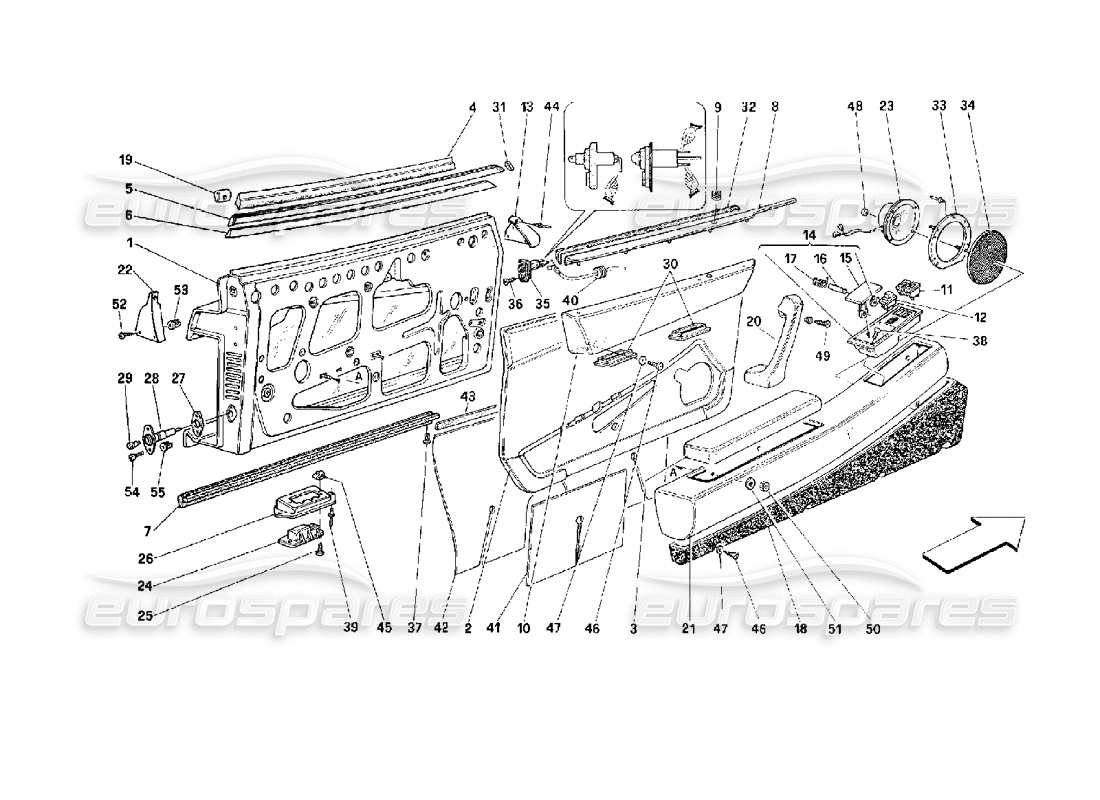

Ferrari 512 M Door - Finishing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 63405400
                                                                                                LINING FOR OUTSIDE DOOR PANEL
                                                                                                from £3.60
                                                                                                from £3.60
                                                                                                # 001
                                                                                                MPN: 63452000
                                                                                                RH DOOR
                                                                                                - Not for USA, CDN, AUS
                                                                                                from £3,164.66
                                                                                                from £3,164.66

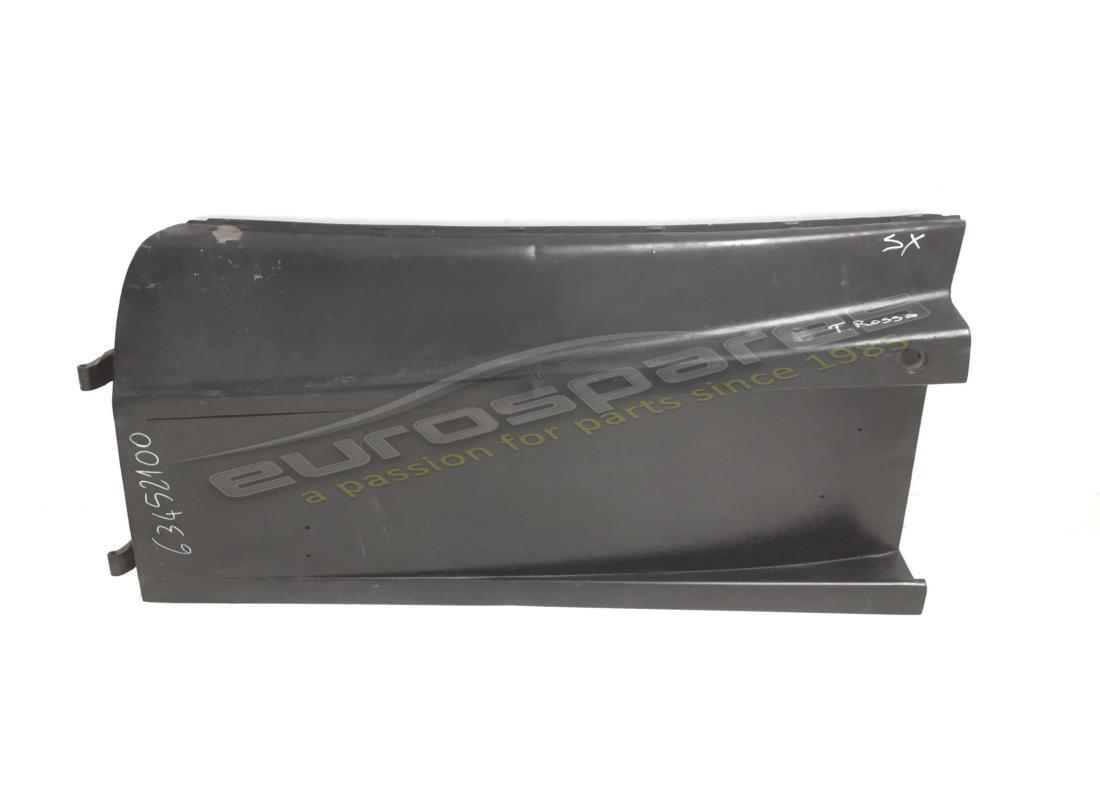

                                                                                                # 001
                                                                                                MPN: 63452100
                                                                                                LH DOOR
                                                                                                - Not for USA, CDN, AUS
                                                                                                from £3,006.43
                                                                                                from £3,006.43
                                                                                                # 001
                                                                                                MPN: 63464800
                                                                                                RH DOOR
                                                                                                - Valid for USA, CDN, AUS
                                                                                                from £6,250.31
                                                                                                from £6,250.31
                                                                                                # 001
                                                                                                MPN: 63464900
                                                                                                LH DOOR
                                                                                                - Valid for USA, CDN, AUS
                                                                                                from £6,250.31
                                                                                                from £6,250.31
                                                                                                # 002
                                                                                                MPN: 634675..
                                                                                                RH PANEL
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 002
                                                                                                MPN: 634676..
                                                                                                LH PANEL
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 003
                                                                                                MPN: 630978..
                                                                                                RH COATING
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 003
                                                                                                MPN: 630979..
                                                                                                LH COATING
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 004
                                                                                                MPN: 61573600
                                                                                                RH GASKET
                                                                                                from £350.48
                                                                                                from £350.48
                                                                                                # 005
                                                                                                MPN: 61539200
                                                                                                LH OUTER MOULDING
                                                                                                from £258.89
                                                                                                from £258.89
                                                                                                This part replaces part number 61502700 - and 1 more. Click to view details
                                                                                                # 005
                                                                                                MPN: 61539300
                                                                                                RH OUTER MOULDING
                                                                                                from £155.90
                                                                                                from £155.90
                                                                                                This part replaces part number 61502600 - and 2 more. Click to view details
                                                                                                # 006
                                                                                                MPN: 61543500
                                                                                                RH RUN CHANNEL
                                                                                                from £208.40
                                                                                                from £208.40
                                                                                                # 006
                                                                                                MPN: 61543600
                                                                                                LH RUN CHANNEL
                                                                                                from £111.09
                                                                                                from £111.09
                                                                                                # 007
                                                                                                MPN: 61539600
                                                                                                UNDERDOOR GASKET
                                                                                                from £28.20
                                                                                                from £28.20
                                                                                                # 008
                                                                                                MPN: 63098212
                                                                                                MOULDING FOR RH BELT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 63098200
                                                                                                # 008
                                                                                                MPN: 63098312
                                                                                                MOULDING FOR LH BELT
                                                                                                from £485.02
                                                                                                from £485.02
                                                                                                This part replaces part number 63098300
                                                                                                # 009
                                                                                                MPN: 61813500
                                                                                                BUSH TO GUIDE ROD
                                                                                                from £0.66
                                                                                                from £0.66
                                                                                                # 010
                                                                                                MPN: 630980..
                                                                                                RH UPPER TRIM
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 010
                                                                                                MPN: 630981..
                                                                                                LH UPPER TRIM
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 011
                                                                                                MPN: 147206
                                                                                                LH SWITCH FOR WINDOW CONTROL
                                                                                                - For GD Q.ty.2
                                                                                                from £46.56
                                                                                                from £46.56
                                                                                                # 011
                                                                                                MPN: 147207
                                                                                                RH SWITCH FOR WINDOW CONTROL
                                                                                                - For GD Q.ty.1
                                                                                                from £45.61
                                                                                                from £45.61
                                                                                                # 012
                                                                                                MPN: 134414
                                                                                                EXTERNAL WIEW MIRROR SWITCH
                                                                                                from £1,375.76
                                                                                                from £1,375.76
                                                                                                # 013
                                                                                                MPN: 61505700
                                                                                                RH GASKET FOR DOOR FRONT SIDE
                                                                                                from £29.90
                                                                                                from £29.90
                                                                                                # 013
                                                                                                MPN: 61505800
                                                                                                LH GASKET FOR DOOR FRONT SIDE
                                                                                                from £29.90
                                                                                                from £29.90
                                                                                                # 014
                                                                                                MPN: 63410400
                                                                                                RH INNER HANDLE COMPLETE
                                                                                                - Valid for GB, ZA
                                                                                                from £90.41
                                                                                                from £90.41
                                                                                                # 014
                                                                                                MPN: 63410500
                                                                                                LH INNER HANDLE COMPLETE
                                                                                                - Valid for GB, ZA
                                                                                                from £85.97
                                                                                                from £85.97
                                                                                                # 014
                                                                                                MPN: 63410600
                                                                                                RH INNER HANDLE COMPLETE
                                                                                                - Not for GB, ZA
                                                                                                from £158.48
                                                                                                from £158.48
                                                                                                # 014
                                                                                                MPN: 63410700
                                                                                                LH INNER HANDLE COMPLETE
                                                                                                - Not for GB, ZA
                                                                                                from £128.03
                                                                                                from £128.03
                                                                                                # 015
                                                                                                MPN: 61504600
                                                                                                RH HANDLE
                                                                                                from £23.40
                                                                                                from £23.40
                                                                                                This part replaces part number 63411200
                                                                                                # 015
                                                                                                MPN: 61504700
                                                                                                LEFT HANDLE
                                                                                                from £11.73
                                                                                                from £11.73
                                                                                                This part replaces part number 63411300
                                                                                                # 016
                                                                                                MPN: 63411000
                                                                                                PIN
                                                                                                from £2.00
                                                                                                from £2.00
                                                                                                # 017
                                                                                                MPN: 63410800
                                                                                                RH SPRING
                                                                                                from £2.11
                                                                                                from £2.11
                                                                                                # 017
                                                                                                MPN: 63410900
                                                                                                LH SPRING
                                                                                                from £1.69
                                                                                                from £1.69
                                                                                                # 018
                                                                                                MPN: 630974..
                                                                                                RH LOWER COVERING FOR DOOR PANEL
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 018
                                                                                                MPN: 630975..
                                                                                                LH LOWER COVERING FOR DOOR PANEL
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 019
                                                                                                MPN: 63117300
                                                                                                SPRING
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 020
                                                                                                MPN: 630976..
                                                                                                RH INNER HANDLE
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 020
                                                                                                MPN: 630977..
                                                                                                LH INNER HANDLE
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 021
                                                                                                MPN: 630971..
                                                                                                RH ARMREST
                                                                                                from £262.50
                                                                                                from £262.50

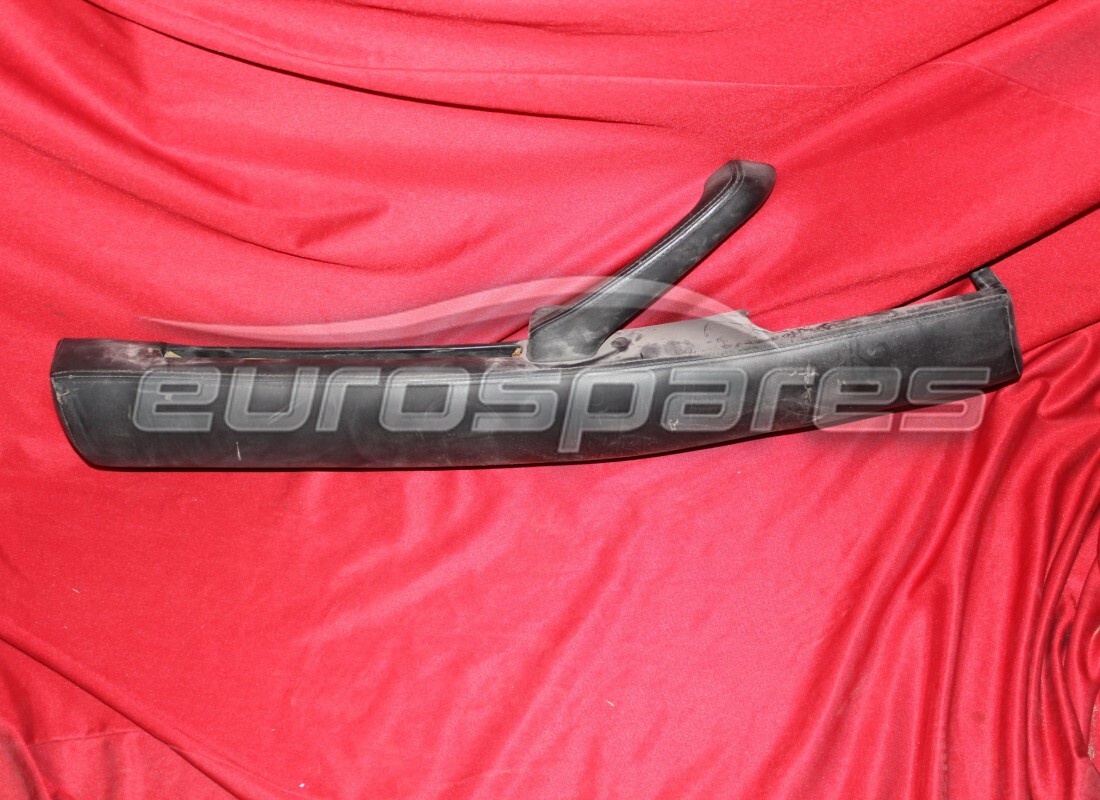

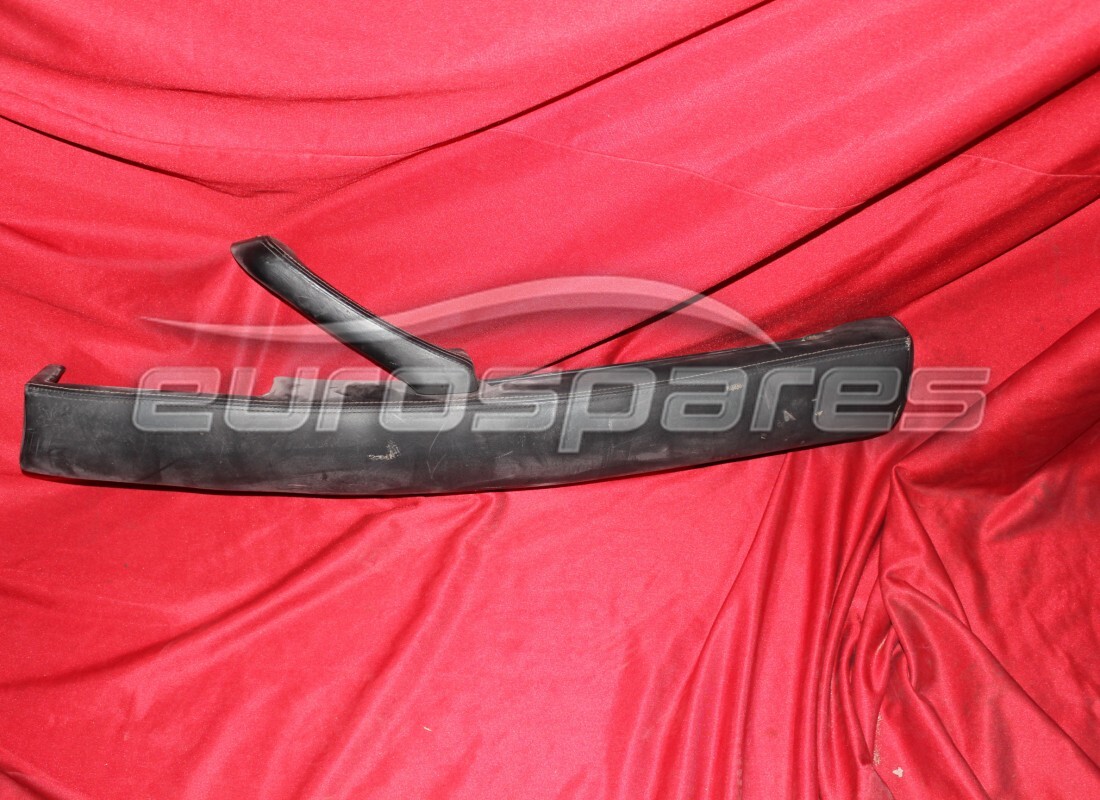

                                                                                                # 021
                                                                                                MPN: 630972..
                                                                                                LH ARMREST
                                                                                                from £262.50
                                                                                                from £262.50
                                                                                                # 022
                                                                                                MPN: 63089800
                                                                                                RH FRAME FOR DOOR REAR SIDE
                                                                                                from £18.34
                                                                                                from £18.34
                                                                                                This part replaces part number 61505900 - and 2 more. Click to view details
                                                                                                # 022
                                                                                                MPN: 63089900
                                                                                                LH FRAME FOR DOOR REAR SIDE
                                                                                                from £18.95
                                                                                                from £18.95
                                                                                                This part replaces part number 61506000 - and 1 more. Click to view details
                                                                                                # 023
                                                                                                MPN: 150626
                                                                                                WOOFER LOUDSPEAKER
                                                                                                from £56.96
                                                                                                from £56.96
                                                                                                # 024
                                                                                                MPN: 65088400
                                                                                                COURTESY LAMP
                                                                                                from £70.62
                                                                                                from £70.62
                                                                                                This part replaces part number 60842100 - and 5 more. Click to view details
                                                                                                # 024
                                                                                                MPN: 65088400
                                                                                                UNDERDOOR LAMP
                                                                                                - Valid after stock exhaustion of 60842100
                                                                                                from £70.62
                                                                                                from £70.62
                                                                                                This part replaces part number 60842100 - and 5 more. Click to view details
                                                                                                # 025
                                                                                                MPN: 13272042
                                                                                                SCREW
                                                                                                from £1.61
                                                                                                from £1.61
                                                                                                This part replaces part number 17668201
                                                                                                # 026
                                                                                                MPN: 60842000
                                                                                                DOOR LAMP BOX
                                                                                                from £2.46
                                                                                                from £2.46
                                                                                                This part replaces part number 63871300 - and 1 more. Click to view details
                                                                                                # 027
                                                                                                MPN: 140576
                                                                                                GASKET
                                                                                                from £8.17
                                                                                                from £8.17
                                                                                                This part replaces part number 61647000
                                                                                                # 028
                                                                                                MPN: 60788100
                                                                                                OPEN DOOR LIGHT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 029
                                                                                                MPN: 101525
                                                                                                BULB
                                                                                                from £2.12
                                                                                                from £2.12
                                                                                                This part replaces part number 101528
                                                                                                # 030
                                                                                                MPN: 61533100
                                                                                                COVER
                                                                                                from £21.00
                                                                                                from £21.00
                                                                                                # 031
                                                                                                MPN: 63058600
                                                                                                FRONT BUTT FOR RH MOULDING
                                                                                                from £14.98
                                                                                                from £14.98
                                                                                                This part replaces part number 61502800
                                                                                                # 031
                                                                                                MPN: 63058700
                                                                                                FRONT BUTT FOR LH MOULDING
                                                                                                from £15.58
                                                                                                from £15.58
                                                                                                This part replaces part number 61502900
                                                                                                # 032
                                                                                                MPN: 61557800
                                                                                                INNER GASKET
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 033
                                                                                                MPN: 63409700
                                                                                                LOUDSPEAKER SUPPORT RING
                                                                                                from £91.88
                                                                                                from £91.88
                                                                                                # 034
                                                                                                MPN: 62801000
                                                                                                PROTECTION
                                                                                                from £8.06
                                                                                                from £8.06
                                                                                                # 035
                                                                                                MPN: 153069
                                                                                                SWITCH
                                                                                                - 2 terminals type - For USA, CDN, Q.ty 4
                                                                                                from £2.11
                                                                                                from £2.11
                                                                                                # 036
                                                                                                MPN: 15915977
                                                                                                SCREW
                                                                                                - For USA, CDN, SA, J, Q.ty 4
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                This part replaces part number 64428200
                                                                                                # 037
                                                                                                MPN: 62764000
                                                                                                ROUND HEAD RIVET
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 038
                                                                                                MPN: 145998
                                                                                                SCREW
                                                                                                from £1.59
                                                                                                from £1.59
                                                                                                This part replaces part number 14440782
                                                                                                # 039
                                                                                                MPN: 60643400
                                                                                                RIVET
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 040
                                                                                                MPN: 10396380
                                                                                                CABLE GROMMET
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 041
                                                                                                MPN: 63405600
                                                                                                LINING FOR DOOR PANEL
                                                                                                from £33.40
                                                                                                from £33.40
                                                                                                # 042
                                                                                                MPN: 63405300
                                                                                                LINING FOR INNER DOOR PANEL
                                                                                                from £32.46
                                                                                                from £32.46
                                                                                                # 043
                                                                                                MPN: 62387000
                                                                                                BAND
                                                                                                from £10.25
                                                                                                from £10.25
                                                                                                # 044
                                                                                                MPN: 60310703
                                                                                                RIVET
                                                                                                from £1.18
                                                                                                from £1.18
                                                                                                # 045
                                                                                                MPN: 60841900
                                                                                                SPRING
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 046
                                                                                                MPN: 15692670
                                                                                                SCREW
                                                                                                - Valid for light covering
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 046
                                                                                                MPN: 15692677
                                                                                                SCREW
                                                                                                - Valid for dark covering
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 047
                                                                                                MPN: 62765300
                                                                                                WASHER
                                                                                                - Valid for dark covering
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 047
                                                                                                MPN: 62768300
                                                                                                WASHER
                                                                                                - Valid for light covering
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 048
                                                                                                MPN: 14084011
                                                                                                NUT
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                # 049
                                                                                                MPN: 62781600
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 050
                                                                                                MPN: 102948
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                # 051
                                                                                                MPN: 12640624
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                # 052
                                                                                                MPN: 15690778
                                                                                                SCREW
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 053
                                                                                                MPN: 62765000
                                                                                                NUT SCREW
                                                                                                from £1.16
                                                                                                from £1.16
                                                                                                # 054
                                                                                                MPN: 15901470
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 15901401
                                                                                                # 055
                                                                                                MPN: 14115580
                                                                                                NUT SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
