115 - Passive Safety Belts System -Valid for USA-

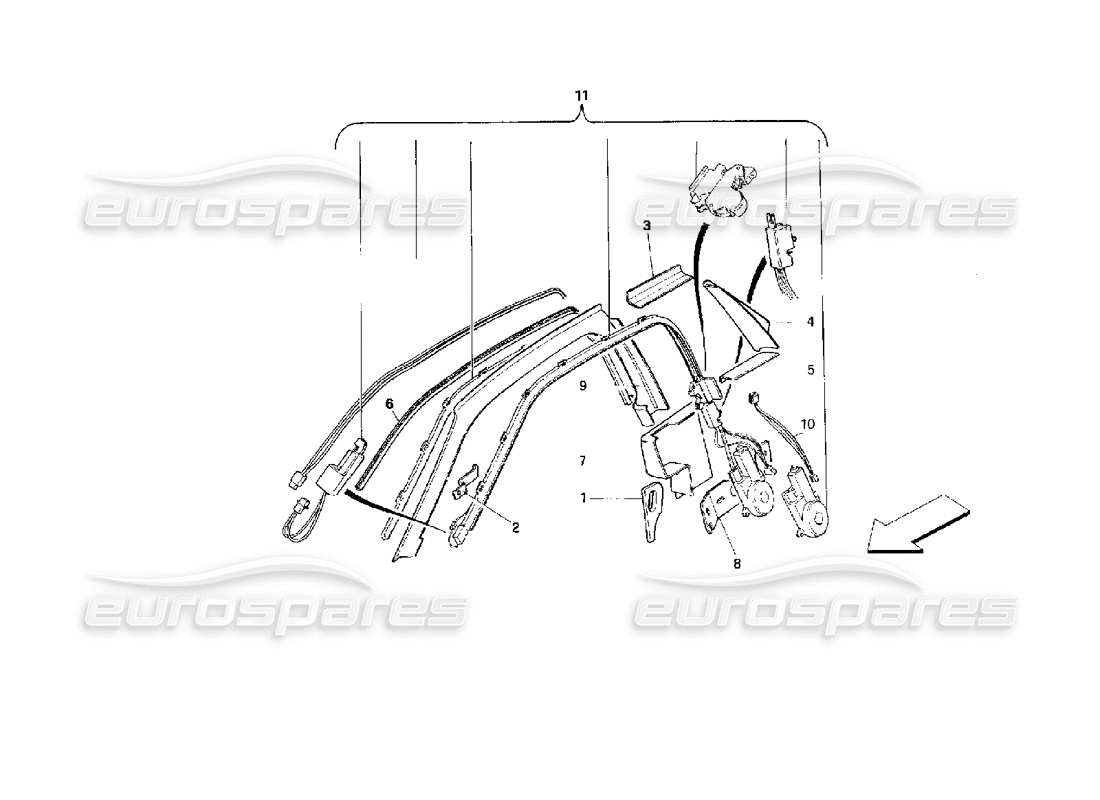

Ferrari 512 M Passive Safety Belts System -Valid for USA- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 1000841
CARPETS COMPLETE SERIES
- Valid for GD - Beaver
# 000
MPN: 1000842
CARPETS COMPLETE SERIES
- Valid for GD - Dark Brown
# 000
MPN: 1000843
CARPETS COMPLETE SERIES
- Valid for GD - Red
# 000
MPN: 1000844
CARPETS COMPLETE SERIES
- Valid for GD - Blue
# 000
MPN: 63114000
PASSIVE BELTS, ASSY
Supersession
Supersession
This part replaces part number 61569000
# 000
MPN: 636968..
SET OF CARPETS COMPL.
- Not for GD
Supersession
Supersession
# 001
MPN: 615586..
RH REAR SIDE PANEL
Supersession
Supersession
# 001
MPN: 615587..
LH REAR SIDE PANEL
Supersession
Supersession
# 002
MPN: 61571100
RH CLIP
from £12.60
from £12.60
# 002
MPN: 61571200
LH CLIP
from £12.60
from £12.60
# 003
MPN: 615563..
RH REAR SIDE TRIM
Supersession
Supersession
# 003
MPN: 615564..
LH REAR SIDE TRIM
Supersession
Supersession
# 004
MPN: 615516..
REAR TRIM RH FENDER
Supersession
Supersession
# 004
MPN: 615517..
REAR TRIM LH FENDER
Supersession
Supersession
# 005
MPN: 615510..
RH REAR SIDE TRIM
Supersession
Supersession
# 005
MPN: 615511..
LH REAR SIDE TRIM
Supersession
Supersession
# 006
MPN: 61561100
UPPER GASKET
from £27.81
from £27.81
# 006
MPN: 61561200
LOWER GASKET
from £27.56
from £27.56
# 007
MPN: 615508..
RH SIDE REAR PANEL
Supersession
Supersession
# 007
MPN: 632400..
LH SIDE REAR PANEL
Supersession
Supersession
# 008
MPN: 61557000
RH BRACKET
from £9.02
from £9.02
# 008
MPN: 61557100
LH BRACKET
from £9.02
from £9.02
# 009
MPN: 634012..
SIDE TRIM FOR RH FENDER
Supersession
Supersession
# 009
MPN: 634013..
SIDE TRIM FOR LH FENDER
Supersession
Supersession
# 010
MPN: 61562900
CABLES FOR MOTOR
# 011
MPN: 61560300
RH SYSTEM GUIDE COMPLETE
Supersession
Supersession
This part replaces part number 61555100
# 011
MPN: 61560400
LH SYSTEM GUIDE COMPLETE
Supersession
Supersession
This part replaces part number 61555200
