116 - Carpets

Ferrari 512 M Carpets Parts Diagram

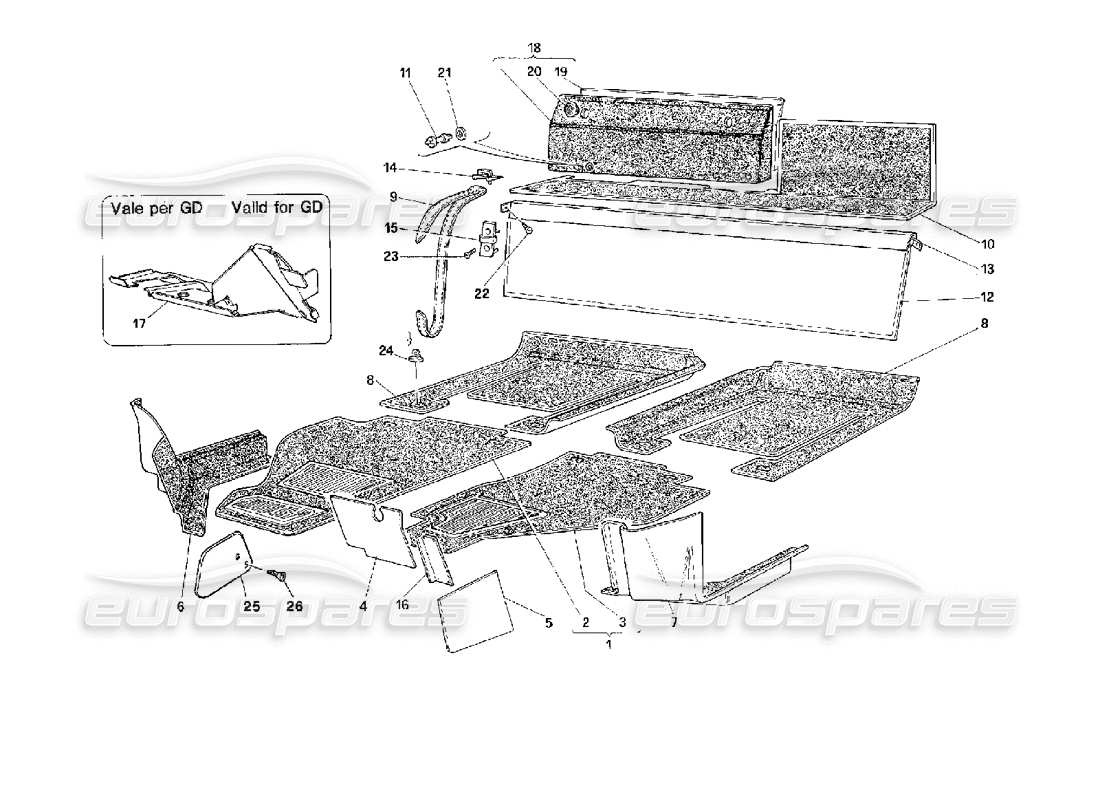

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 000
                                MPN: 1000845
                                CARPETS COMPLETE SERIES
                                - Valid for GD - BLACK
                                # 001
                                MPN: 646050..
                                PILOT/PASSENGER MOVABLE CARPETS SET
                                - Not for GD
                                Supersession
                                Supersession
                                # 001
                                MPN: 646051..
                                PILOT/PASSENGER MOVABLE CARPETS SET
                                - Valid for GD
                                Supersession
                                Supersession
                                # 002
                                -
                                RH FRONT CARPET
                                - Not as spare part - With movable carpets set and the set of carpets compl.
                                # 003
                                -
                                LH FRONT CARPET
                                - Not as spare part - With movable carpets set and the set of carpets compl.
                                # 004
                                -
                                VERTICAL FRONT CARPET
                                - Not as spare part - With set of carpets compl.
                                # 005
                                -
                                LH SIDE FRONT CARPET
                                - Not as spare part - With set of carpets compl. - Not for GD
                                # 006
                                -
                                RH SIDE FRONT CARPET
                                - Not as spare part - With set of carpets compl.
                                # 006
                                -
                                LH SIDE FRONT CARPET
                                - Not as spare part - With set of carpets compl.
                                # 007
                                -
                                RH FRAMEWORK CARPET
                                - Not as spare part - With set of carpets compl.
                                # 007
                                -
                                LH FRAMEWORK CARPET
                                - Not as spare part - With set of carpets compl.
                                # 008
                                -
                                RH REAR CARPET
                                - Not as spare part - With set of carpets compl.
                                # 008
                                -
                                LH REAR CARPET
                                - Not as spare part - With set of carpets compl.
                                # 009
                                MPN: 634006..
                                LUGGAGE, BELT FIXING
                                Supersession
                                Supersession
                                # 010
                                MPN: 631196..
                                SHIELDPANEL CARPET
                                Supersession
                                Supersession
                                # 011
                                MPN: 61530300
                                PIN
                                from £9.39
                                from £9.39
                                # 012
                                MPN: 615201..
                                LOWER COVERING
                                Supersession
                                Supersession
                                # 013
                                MPN: 615345..
                                TRIM FOR LOWER COVERING
                                Supersession
                                Supersession
                                # 014
                                MPN: 615179..
                                BELT FIXING SUPPORT COMPL.
                                Supersession
                                Supersession
                                # 015
                                MPN: 634008..
                                LUGGAGE BELT STOP
                                Supersession
                                Supersession
                                # 016
                                MPN: 61538100
                                FOOT REST FOR DRIVER
                                - Not for GD
                                from £115.97
                                from £115.97
                                # 017
                                MPN: 634574..
                                FOOT REST FOR DRIVER WITH CARPET
                                - Valid for GD
                                Supersession
                                Supersession
                                # 018
                                MPN: 630276..
                                INJECTION UNIT COVERING BOX
                                Supersession
                                Supersession
                                # 019
                                MPN: 63086500
                                SOUND INSULATION
                                - Not as spare parts - With assembly 63027600
                                # 020
                                MPN: 63032800
                                GRILL
                                from £10.21
                                from £10.21
                                # 021
                                MPN: 69969500
                                GASKET
                                from £0.47
                                from £0.47
                                This part replaces part number 61529400
                                # 022
                                MPN: 15908478
                                SCREW
                                from £0.47
                                from £0.47
                                # 023
                                MPN: 15692178
                                SCREW
                                from £0.47
                                from £0.47
                                # 024
                                MPN: 63698100
                                CARPET FIXING RETAINER
                                Supersession
                                Supersession
                                This part replaces part number 63698200 - and 1 more. Click to view details
                                # 025
                                MPN: 63479300
                                ACCELERATOR PEDAL SHIELD
                                from £58.37
                                from £58.37
                                # 026
                                MPN: 15690770
                                SCREW
                                from £0.47
                                from £0.47
