ferrari 512 m central tunnel -not for usa- parts diagram

121 - Central Tunnel -Not for USA-

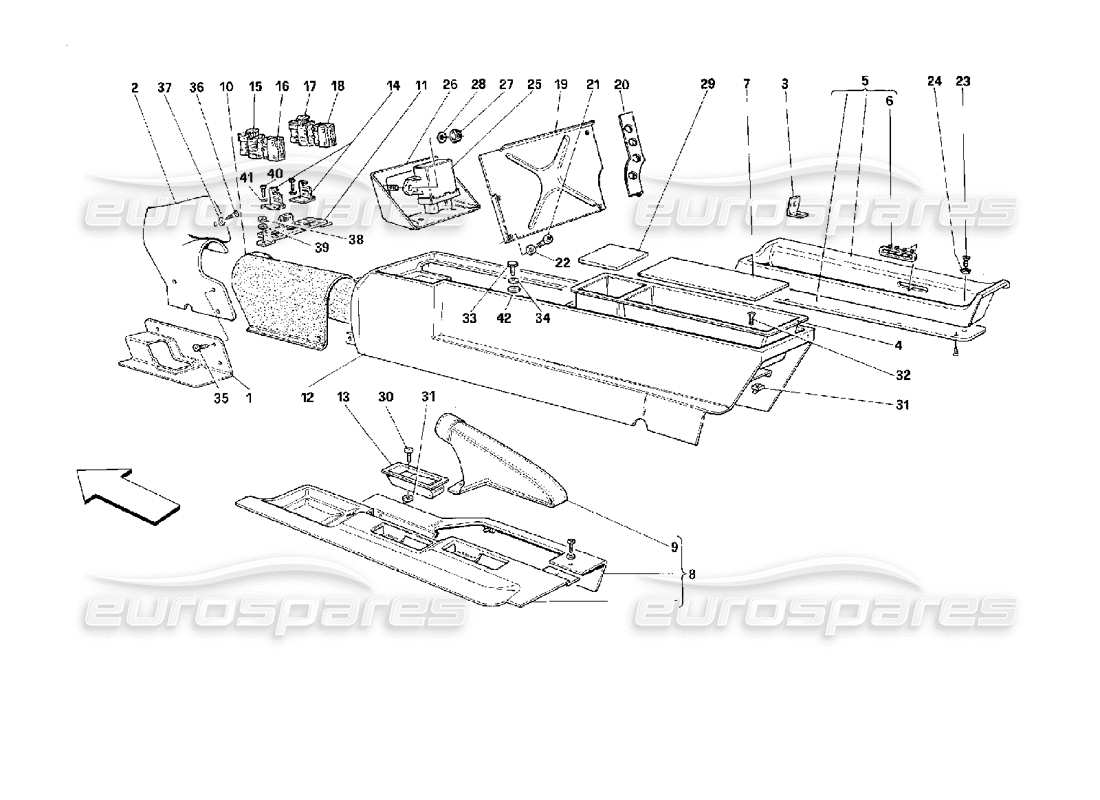

Ferrari 512 M Central Tunnel -Not for USA- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 63092400
                                                        ACCELERATOR PEDAL COVER
                                                        - Not for GD
                                                        from £108.48
                                                        from £108.48
                                                        # 002
                                                        MPN: 630923..
                                                        FRONT PART OF TUNNEL
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 003
                                                        MPN: 64545700
                                                        BRACKET
                                                        from £1.00
                                                        from £1.00
                                                        # 004
                                                        MPN: 63954600
                                                        GLOVE BOX
                                                        from £60.42
                                                        from £60.42
                                                        This part replaces part number 63092100
                                                        # 005
                                                        MPN: 645399..
                                                        GLOVE BOX PASSENGER SIDE COMPLETE
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 005
                                                        MPN: 645453..
                                                        GLOVE BOX PASSENGER SIDE COMPLETE
                                                        - Valid for GD
                                                        Supersession
                                                        Supersession
                                                        # 006
                                                        MPN: 61512200
                                                        PLATE
                                                        from £21.82
                                                        from £21.82
                                                        # 007
                                                        MPN: 63623700
                                                        GROUND FOR REAR BOX
                                                        from £169.85
                                                        from £169.85
                                                        # 008
                                                        MPN: 645401..
                                                        HANDBRAKE CONSOLE COMPLETE
                                                        - Not for GD - Not as spare parts now - Replaced by 646753..
                                                        Supersession
                                                        Supersession
                                                        # 008
                                                        MPN: 645455..
                                                        HANDBRAKE CONSOLE COMPLETE
                                                        - Valid for GD
                                                        Supersession
                                                        Supersession
                                                        # 008
                                                        MPN: 646753..
                                                        HANDBRAKE CONSOLE COMPLETE
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 009
                                                        MPN: 634207..
                                                        HANDBRAKE LEVER COWLING
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 009
                                                        MPN: 63477800
                                                        HANDBRAKE LEVER COWLING
                                                        - Valid for GD
                                                        from £185.43
                                                        from £185.43
                                                        # 010
                                                        MPN: 636959..
                                                        CENTRAL PART OF TUNNEL COVER
                                                        - Not for GD
                                                        Supersession
                                                        Supersession
                                                        # 010
                                                        MPN: 642352..
                                                        CENTRAL PART OF TUNNEL COVER
                                                        - Valid for GD
                                                        Supersession
                                                        Supersession
                                                        # 011
                                                        MPN: 149506
                                                        PLATE
                                                        from £51.12
                                                        from £51.12
                                                        # 012
                                                        MPN: 63091804
                                                        CENTRAL CONSOLE FOR TUNNEL IN CREAM
                                                        from £1,693.98
                                                        from £1,693.98
                                                        # 014
                                                        MPN: 148682
                                                        BRACKET
                                                        # 015
                                                        MPN: 146042
                                                        PM CONNECTOR (BLACK)
                                                        from £16.20
                                                        from £16.20
                                                        # 016
                                                        MPN: 146043
                                                        PF CONNECTOR (BLACK)
                                                        from £8.99
                                                        from £8.99
                                                        # 017
                                                        MPN: 146074
                                                        PM CONNECTOR (WHITE)
                                                        from £33.98
                                                        from £33.98
                                                        # 018
                                                        MPN: 146073
                                                        PF CONNECTOR (WHITE)
                                                        from £5.94
                                                        from £5.94
                                                        # 019
                                                        MPN: 63100300
                                                        FOOT REST PLATE PASSENGER SIDE
                                                        - Not for GD
                                                        from £124.11
                                                        from £124.11
                                                        # 019
                                                        MPN: 63447200
                                                        FOOT REST PLATE PASSENGER SIDE
                                                        - Valid for GD
                                                        from £37.20
                                                        from £37.20
                                                        # 020
                                                        MPN: 63447700
                                                        FOOT REST FIX. BRACKET
                                                        - Valid for GD
                                                        # 020
                                                        MPN: 63447800
                                                        FOOT REST FIX. BRACKET
                                                        - Not for GD
                                                        from £27.29
                                                        from £27.29
                                                        # 021
                                                        MPN: 62926700
                                                        SCREW
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 12644401
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 023
                                                        MPN: 15692670
                                                        SCREW
                                                        - Valid for light leather
                                                        from £0.47
                                                        from £0.47
                                                        # 023
                                                        MPN: 15692677
                                                        SCREW
                                                        - Valid for dark leather
                                                        from £0.47
                                                        from £0.47
                                                        # 024
                                                        MPN: 62765300
                                                        WASHER
                                                        - Valid for dark leather
                                                        Supersession
                                                        Supersession
                                                        # 024
                                                        MPN: 62768300
                                                        WASHER
                                                        - Valid for light leather
                                                        from £0.47
                                                        from £0.47
                                                        # 025
                                                        MPN: 129537
                                                        TACHOMETER SWITCH WITH BUZZER
                                                        - Valid for SA
                                                        from £129.06
                                                        from £129.06
                                                        # 026
                                                        MPN: 153035
                                                        BRACKET
                                                        - Valid for SA
                                                        from £39.53
                                                        from £39.53
                                                        # 027
                                                        MPN: 14084211
                                                        NUT
                                                        - Valid for SA
                                                        from £0.71
                                                        from £0.71
                                                        # 028
                                                        MPN: 12643724
                                                        WASHER
                                                        - Valid for SA
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                        # 029
                                                        MPN: 63926900
                                                        BOX BOTTOM
                                                        from £56.90
                                                        from £56.90
                                                        # 030
                                                        MPN: 13313270
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 031
                                                        MPN: 60758600
                                                        NUT
                                                        from £0.52
                                                        from £0.52
                                                        # 032
                                                        MPN: 14441582
                                                        SCREW
                                                        from £1.63
                                                        from £1.63
                                                        This part replaces part number 13310811
                                                        # 033
                                                        MPN: 10902221
                                                        SCREW
                                                        from £0.52
                                                        from £0.52
                                                        # 034
                                                        MPN: 127494
                                                        WASHER
                                                        (minimum order quantity = 20)
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                                        # 035
                                                        MPN: 20286209
                                                        SCREW
                                                        from £5.40
                                                        from £5.40
                                                        # 036
                                                        MPN: 15909478
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 037
                                                        MPN: 62765300
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 039
                                                        MPN: 12643724
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                        # 040
                                                        MPN: 10444521
                                                        SCREW
                                                        from £0.71
                                                        from £0.71
                                                        # 041
                                                        MPN: 10615274
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10615270 - and 2 more. Click to view details
                                                        # 042
                                                        MPN: 12543701
                                                        WASHER
