ferrari 512 tr left cylinder head parts diagram

004 - left cylinder head

Ferrari 512 TR Left Cylinder Head Parts Diagram

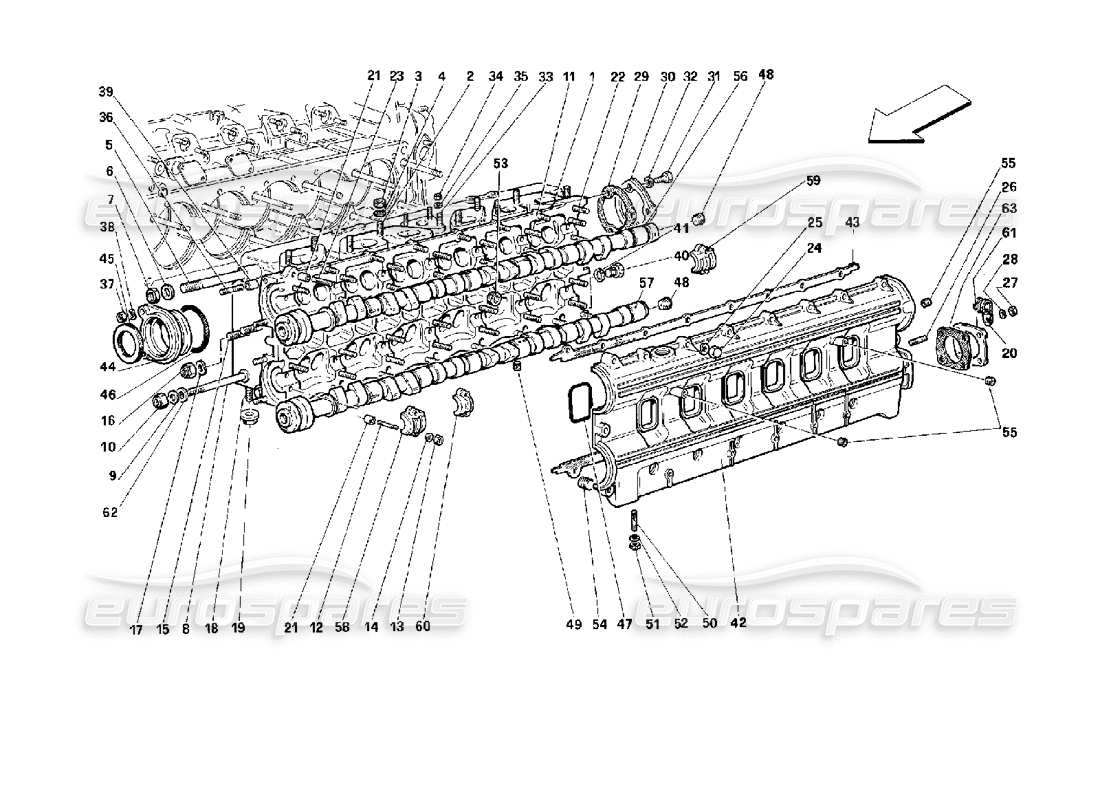

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Key
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 137717
                                                                                                                    LEFT CYLINDER HEAD, COMPLETE
                                                                                                                    from £7,122.43
                                                                                                                    from £7,122.43
                                                                                                                    This part replaces part number 139960 - and 1 more. Click to view details
                                                                                                                    LH CYLINDER HEAD COMPLETE Genuine Ferrari Part - New (to order)
                                                                                                                    # 001
                                                                                                                    MPN: 139960
                                                                                                                    left cylinder head
                                                                                                                    - Not as spare parts - With complete cylinder head 137717]
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 002
                                                                                                                    MPN: 12354524
                                                                                                                    STUD
                                                                                                                    from £16.02
                                                                                                                    from £16.02
                                                                                                                    This part replaces part number 12354521
                                                                                                                    STUD Genuine Ferrari Part - New In stock
                                                                                                                    # 003
                                                                                                                    MPN: 16100824
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                                    NUT Genuine Maserati Part - New In stock
                                                                                                                    # 004
                                                                                                                    MPN: 11194079
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 0043
                                                                                                                    MPN: FCCG014/A
                                                                                                                    CAM COVER GASKET SET & O RINGS
                                                                                                                    Cam cover Gasket set & O ring set includes 1x 150196, 1x 150195, 1x 150075, 1x 150074, x12 127649, & x4 117036.
                                                                                                                    Ferrari Testarossa (1987) Cam Cover Gasket Set & Genuine Ferrari Part - New (to order)
                                                                                                                    # 005
                                                                                                                    MPN: 13953124
                                                                                                                    STUD
                                                                                                                    from £5.30
                                                                                                                    from £5.30
                                                                                                                    This part replaces part number 13953121
                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                    # 006
                                                                                                                    MPN: 12601474
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 102901 which we have in stock - and 3 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 007
                                                                                                                    MPN: 12575625
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12575611 - and 1 more. Click to view details
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 008
                                                                                                                    MPN: 13970321
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 009
                                                                                                                    MPN: 12604479
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    # 010
                                                                                                                    MPN: 16104411
                                                                                                                    NUT
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                                    NYLON STOP HEX. NUT M8X8.5 Genuine Maserati Part - New In stock
                                                                                                                    # 011
                                                                                                                    MPN: 102735
                                                                                                                    STUD (INNER CAPS)
                                                                                                                    from £16.61
                                                                                                                    from £16.61
                                                                                                                    This part replaces part number 4146561
                                                                                                                    STUD Genuine Ferrari Part - New In stock
                                                                                                                    # 012
                                                                                                                    MPN: 102754
                                                                                                                    STUD (OUTER CAPS)
                                                                                                                    from £5.00
                                                                                                                    from £5.00
                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                    # 013
                                                                                                                    MPN: 15896211
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 15896210 which we have in stock
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    # 014
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 015
                                                                                                                    MPN: 13543421
                                                                                                                    STUD (BELT STRETCHER)
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 016
                                                                                                                    MPN: 101139
                                                                                                                    NUT
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 16104425
                                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                                    NYLON STOP HEX.NUT M8X8X Genuine Maserati Part - New (to order)
                                                                                                                    # 017
                                                                                                                    MPN: 12601374
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 018
                                                                                                                    MPN: 13543524
                                                                                                                    STUD
                                                                                                                    from £2.16
                                                                                                                    from £2.16
                                                                                                                    This part replaces part number 13543521
                                                                                                                    STUD Genuine Ferrari Part - New In stock
                                                                                                                    THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                    # 019
                                                                                                                    MPN: 114748
                                                                                                                    NUT
                                                                                                                    from £9.27
                                                                                                                    from £9.27
                                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                                    # 020
                                                                                                                    MPN: 10441790
                                                                                                                    BRACKET
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    BRACKET Genuine Ferrari Part - New In stock
                                                                                                                    BRACKET WITH SHEATH Genuine Maserati Part - New (to order)
                                                                                                                    # 021
                                                                                                                    MPN: 102725
                                                                                                                    DOWEL
                                                                                                                    from £0.61
                                                                                                                    from £0.61
                                                                                                                    DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                                    CENTRING DOWEL D.8X8 Genuine Maserati Part - New (to order)
                                                                                                                    # 022
                                                                                                                    MPN: 13541324
                                                                                                                    STUD FOR COVERS
                                                                                                                    from £1.03
                                                                                                                    from £1.03
                                                                                                                    This part replaces part number 13541321
                                                                                                                    STUD BOLT Genuine Ferrari Part - New (to order)
                                                                                                                    # 023
                                                                                                                    MPN: 13541421
                                                                                                                    STUD ON DOWEL
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 024
                                                                                                                    MPN: 100044
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 151230
                                                                                                                    DOME NUT 6x12 Genuine Ferrari Part - New (to order)
                                                                                                                    # 025
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.48
                                                                                                                    from £0.48
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 026
                                                                                                                    MPN: 13541021
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 027
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                    NUT Genuine Maserati Part - New In stock
                                                                                                                    # 028
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 029
                                                                                                                    MPN: 150074
                                                                                                                    GASKET
                                                                                                                    from £5.43
                                                                                                                    from £5.43
                                                                                                                    This part replaces part number 133744
                                                                                                                    END PLATE GASKET Genuine Ferrari Part - New (to order)
                                                                                                                    END PLATE GASKET Original Equipment - New In stock
                                                                                                                    # 030
                                                                                                                    MPN: 140102
                                                                                                                    REAR COVER
                                                                                                                    from £28.52
                                                                                                                    from £28.52
                                                                                                                    COVER Genuine Ferrari Part - New In stock
                                                                                                                    COVER Genuine Ferrari Part - Used In stock
                                                                                                                    # 031
                                                                                                                    MPN: 10902324
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    SCREW FOR CONV. TOP HINGE Genuine Maserati Part - New (to order)
                                                                                                                    # 032
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 033
                                                                                                                    MPN: 13541021
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 034
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.52
                                                                                                                    from £0.52
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                    NUT Genuine Maserati Part - New In stock
                                                                                                                    # 035
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 036
                                                                                                                    MPN: 13541124
                                                                                                                    STUD
                                                                                                                    from £12.54
                                                                                                                    from £12.54
                                                                                                                    This part replaces part number 13541121
                                                                                                                    STUD Genuine Ferrari Part - New In stock
                                                                                                                    # 037
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                    NUT Genuine Maserati Part - New In stock
                                                                                                                    # 038
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 039
                                                                                                                    MPN: 102725
                                                                                                                    DOWEL
                                                                                                                    from £0.66
                                                                                                                    from £0.66
                                                                                                                    DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                                    CENTRING DOWEL D.8X8 Genuine Maserati Part - New (to order)
                                                                                                                    # 040
                                                                                                                    MPN: 10300740
                                                                                                                    WATER DRAIN PLUG
                                                                                                                    from £18.15
                                                                                                                    from £18.15
                                                                                                                    DRAIN PLUG Genuine Ferrari Part - New (to order)
                                                                                                                    # 041
                                                                                                                    MPN: 10257060
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    GASKET Original Equipment - New In stock
                                                                                                                    # 042
                                                                                                                    MPN: 148785
                                                                                                                    LEFT CYLINDER HEAD COVER
                                                                                                                    - Not as spare parts - With complete cylinder head 137717
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    # 043
                                                                                                                    MPN: 150195
                                                                                                                    GASKET
                                                                                                                    from £61.83
                                                                                                                    from £61.83
                                                                                                                    This part replaces part number 134949 - and 1 more. Click to view details
                                                                                                                    CAM COVER GASKET Genuine Ferrari Part - New (to order)
                                                                                                                    CAM COVER GASKET Original Equipment - New In stock
                                                                                                                    CAM COVER GASKET Genuine Ferrari Part - New (other) In stock
                                                                                                                    New old stock
                                                                                                                    # 043
                                                                                                                    MPN: 600014950
                                                                                                                    O'RINGS SET
                                                                                                                    O'RINGS SET Genuine Ferrari Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: FCCG014
                                                                                                                    CAM COVER GASKET SET
                                                                                                                    includes 1x 150196, 1x 150195, 1x 150075 and 1x 150074
                                                                                                                    from £74.02
                                                                                                                    from £74.02
                                                                                                                    CAM COVER SET Genuine Ferrari Part - New (to order)
                                                                                                                    CAM COVER SET Original Equipment - New In stock
                                                                                                                    # 044
                                                                                                                    MPN: 121116
                                                                                                                    FRONT COVER
                                                                                                                    from £119.38
                                                                                                                    from £119.38
                                                                                                                    FRONT COVER Genuine Ferrari Part - New (to order)
                                                                                                                    # 045
                                                                                                                    MPN: 133628
                                                                                                                    OIL SEAL
                                                                                                                    from £21.31
                                                                                                                    from £21.31
                                                                                                                    This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                                    GASKET / SEALING RING Genuine Ferrari Part - New In stock
                                                                                                                    OIL SEAL Eurospares Approved Part - New In stock
                                                                                                                    Alternative (#133628/A) RH OIL SEAL Genuine Ferrari Part - New (to order)
                                                                                                                    # 046
                                                                                                                    MPN: 117036
                                                                                                                    SEALING RING
                                                                                                                    from £5.39
                                                                                                                    from £5.39
                                                                                                                    SEAL RING Genuine Ferrari Part - New In stock
                                                                                                                    # 047
                                                                                                                    MPN: 127649
                                                                                                                    SEALING RING
                                                                                                                    from £5.83
                                                                                                                    from £5.83
                                                                                                                    SEAL RING Genuine Ferrari Part - New In stock
                                                                                                                    # 048
                                                                                                                    MPN: 10269750
                                                                                                                    PLUG
                                                                                                                    from £1.02
                                                                                                                    from £1.02
                                                                                                                    This part replaces part number 95184
                                                                                                                    THREAD CAP. WITH. M 18X 11 Genuine Ferrari Part - New In stock
                                                                                                                    # 049
                                                                                                                    MPN: 14326150
                                                                                                                    PLUG
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 12326150
                                                                                                                    PLUG Genuine Ferrari Part - New In stock
                                                                                                                    TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                                    # 050
                                                                                                                    MPN: 11500124
                                                                                                                    STUD
                                                                                                                    from £0.74
                                                                                                                    from £0.74
                                                                                                                    This part replaces part number 11500121
                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                    PART Genuine Maserati Part - New (to order)
                                                                                                                    # 051
                                                                                                                    MPN: 15896211
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 15896210 which we have in stock
                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    # 052
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                    WASHER Genuine Maserati Part - New In stock
                                                                                                                    # 053
                                                                                                                    MPN: 127635
                                                                                                                    PLUG
                                                                                                                    from £1.51
                                                                                                                    from £1.51
                                                                                                                    This part replaces part number 183447
                                                                                                                    PLUG Genuine Ferrari Part - New (to order)
                                                                                                                    M18 X 11 X 1.5
                                                                                                                    THREADED PLUG Genuine Maserati Part - New (to order)
                                                                                                                    # 054
                                                                                                                    MPN: 10269750
                                                                                                                    PLUG
                                                                                                                    from £1.01
                                                                                                                    from £1.01
                                                                                                                    This part replaces part number 95184
                                                                                                                    THREAD CAP. WITH. M 18X 11 Genuine Ferrari Part - New In stock
                                                                                                                    # 055
                                                                                                                    MPN: 13525470
                                                                                                                    HELI COIL
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 107333
                                                                                                                    HELI COIL Genuine Ferrari Part - New In stock
                                                                                                                    # 056
                                                                                                                    MPN: 145600
                                                                                                                    LEFT INTAKE CAMSHAFT, COMPLETE
                                                                                                                    from £759.25
                                                                                                                    from £759.25
                                                                                                                    CAMSHAFT LEFT INLET Genuine Ferrari Part - New (to order)
                                                                                                                    # 057
                                                                                                                    MPN: 141425
                                                                                                                    LEFT EXHAUST CAMSHAFT, COMPLETE
                                                                                                                    from £1,288.48
                                                                                                                    from £1,288.48
                                                                                                                    CAMSHAFT LEFT EXHAUST Genuine Ferrari Part - New (to order)
                                                                                                                    # 058
                                                                                                                    MPN: 114499
                                                                                                                    FRONT CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137717
                                                                                                                    FRONT CAMSHAFT CAP Genuine Ferrari Part - New (to order)
                                                                                                                    # 059
                                                                                                                    MPN: 114497
                                                                                                                    REAR CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137717
                                                                                                                    REAR CAMSHAFT CAP Genuine Ferrari Part - New (to order)
                                                                                                                    # 060
                                                                                                                    MPN: 126811
                                                                                                                    INTERMEDIATE CAP
                                                                                                                    - Not as spare parts - With complete cylinder head 137717
                                                                                                                    REAR CAM CAP Genuine Ferrari Part - New (to order)
                                                                                                                    # 061
                                                                                                                    MPN: 146928
                                                                                                                    REAR COVER
                                                                                                                    from £231.00
                                                                                                                    from £231.00
                                                                                                                    COVER Genuine Ferrari Part - New In stock
                                                                                                                    # 062
                                                                                                                    MPN: 128010
                                                                                                                    WASHER
                                                                                                                    from £2.16
                                                                                                                    from £2.16
                                                                                                                    STAINLESS STEEL WASHER Genuine Ferrari Part - New (to order)
                                                                                                                    STAINLESS STEEL WASHER Eurospares Approved Part - New (to order)
                                                                                                                    # 063
                                                                                                                    MPN: 150194
                                                                                                                    GASKET
                                                                                                                    from £17.85
                                                                                                                    from £17.85
                                                                                                                    This part replaces part number 134954 - and 1 more. Click to view details
                                                                                                                    GASKET Genuine Ferrari Part - New (to order)
                                                                                                                    GASKET Genuine Ferrari Part - New (other) In stock
                                                                                                                    New old stock
