119 - DASHBOARD

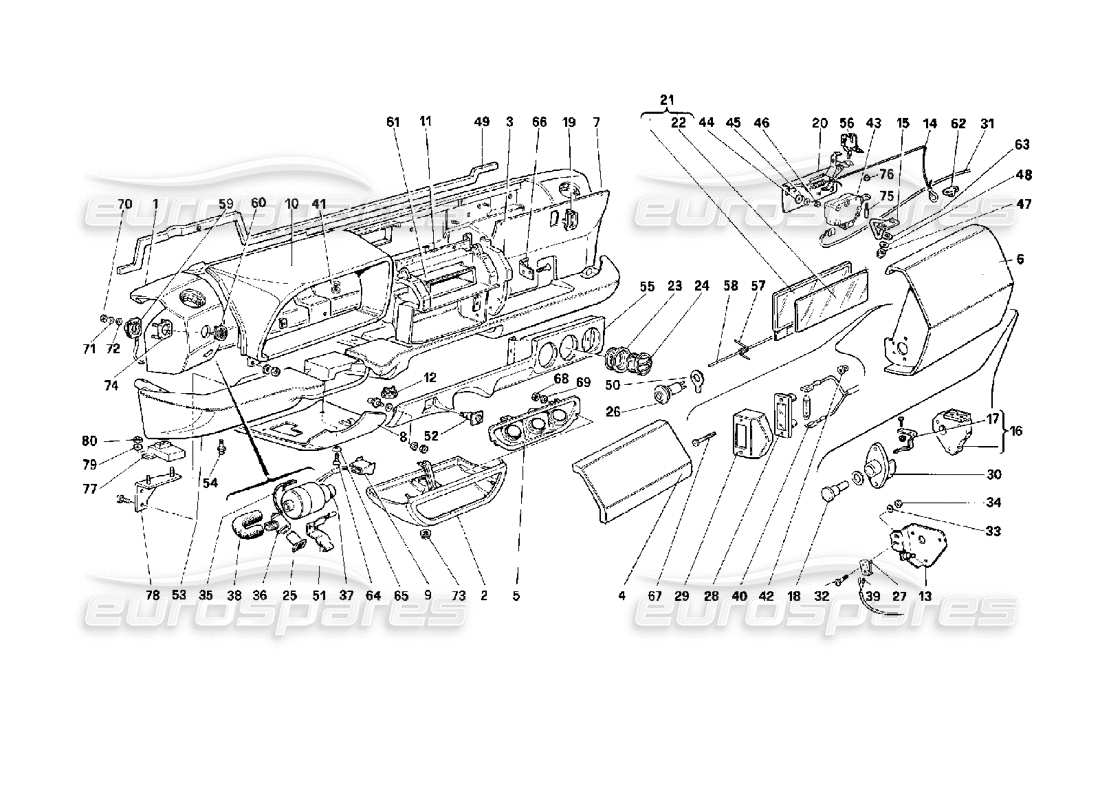

Ferrari 512 TR Dashboard Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 630791..

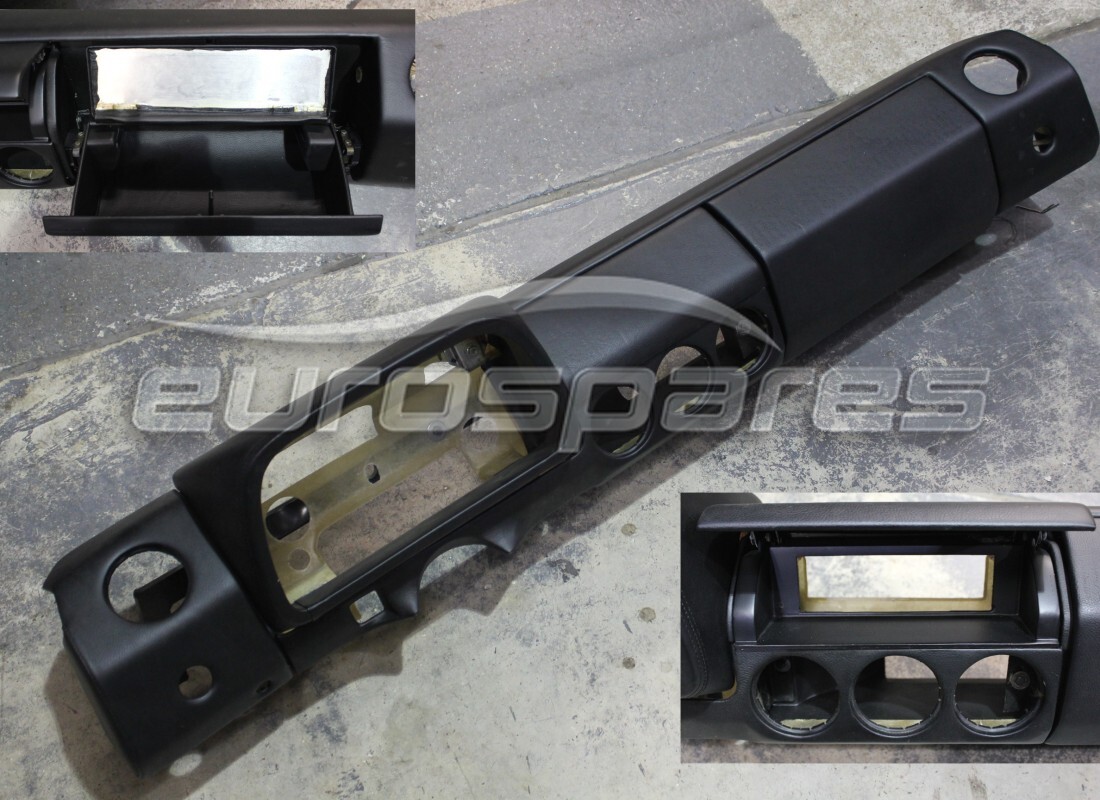

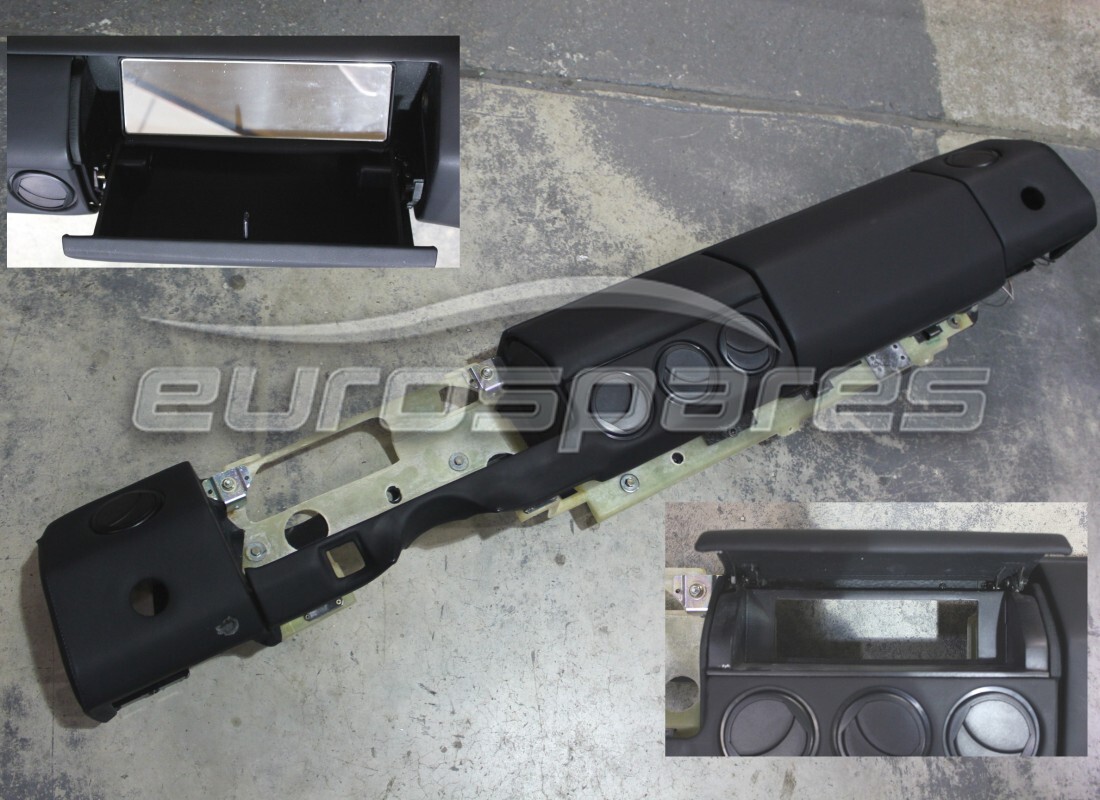

DASH BOARD FRAME
-Not for GD-
Supersession
Supersession
# 001
MPN: 631089..
DASH BOARD FRAME
-Vale for GD-
Supersession
Supersession
# 001
MPN: 63458400
DASH BOARD ASSEMBLY
-Not for GD-
from £4,194.75
from £4,194.75
This part replaces part number 63452308 - and 1 more. Click to view details
# 001
MPN: 63458500
DASH BOARD UNIT
-Not for GD-
from £3,879.75
from £3,879.75
This part replaces part number 63458512
# 001
MPN: 634655..
DASH BOARD ASSEMBLY (WITH INSTRUMENT SEAT)
-Valid for GD-
Supersession
Supersession
# 001
MPN: 654798..
DASH BOARD ASSEMBLY (WITHOUT INSTRUMENT SEAT)
-Valid for GD-
# 002
MPN: 634546..
Instruments Panel
-Valid Till Car Ass. Nr. 14459
Supersession
Supersession
# 002
MPN: 636996..
Instruments Panel
-Valid From Car Ass. Nr. 14460
Supersession
Supersession
# 003
MPN: 630853..
RH SIDE PANEL
-Not for GD-
Supersession
Supersession
# 003
MPN: 631070..
LH SIDE PANEL
-Valid for GD-
Supersession
Supersession
# 004
MPN: 630787..
RADIO BOX PANEL
-Not for GD-
Supersession
Supersession
# 004
MPN: 631071..
RADIO BOX PANEL
-Valid for GD-
Supersession
Supersession
# 005
MPN: 63116300
INSTRUMENTS PLATE
-Valid till car Ass. Nr. 14459 -Not for GD
from £20.96
from £20.96
# 005
MPN: 63462700
INSTRUMENTS PLATE
-Valid for GD-
from £19.17
from £19.17
# 005
MPN: 63924100
INSTRUMENTS PLATE
-Valid from car Ass. Nr. 14460 - Not for GD
from £20.61
from £20.61
# 006
MPN: 634552..
GLOVE BOX
from £428.40
from £428.40
# 007
MPN: 634548..
REAR COVER FOR GLOVE BOX
Supersession
Supersession
# 008
MPN: 634103..
STEERING COLUMN COVER
-Valid for USA-
Supersession
Supersession
# 008
MPN: 634130..
STEERING COLUMN COVER
-Valid till car Ass. Nr. 14459 - Not for USA
Supersession
Supersession
# 008
MPN: 639247..
STEERING COLUMN COVER
-Valid from car Ass. Nr. 14460 - Not for USA
Supersession
Supersession
# 009
MPN: 119430
SENSOR CABLE FOR INTERNAL TEMPERATURE
from £5.19
from £5.19
# 010
MPN: 630793..
HOUSING INSTRUMENTS
Supersession
Supersession
# 011
MPN: 63079200
AIR VENT FRAME WORK
-Not for GD-
from £826.10
from £826.10
# 011
MPN: 63106700
AIR VENT FRAME WORK
-Vale for GD-
from £826.10
from £826.10
# 012
MPN: 61503600
Frame
-For GD Q.ty 1 - Not for GD
from £0.47
from £0.47
This part replaces part number 61528400
# 013
MPN: 61534600
BRACKET
-Valid for GD
from £2.28
from £2.28
# 013
MPN: 61554500
BRACKET
from £9.44
from £9.44
# 014
MPN: 61554400
SAFETY CABLE
from £7.58
from £7.58
# 015
MPN: 61554600
LOCK STRIKER
from £65.34
from £65.34
# 016
MPN: 61522400
RH DASHBOARD BOX HINGE
from £6.06
from £6.06
# 016
MPN: 61522500
LH DASHBOARD BOX HINGE
Supersession
Supersession
# 017
MPN: 61522000
SPRING
from £0.96
from £0.96
# 018
MPN: 61522800
PIN
from £7.91
from £7.91
# 019
MPN: 61554700
Frame
from £9.69
from £9.69
# 020
MPN: 61545700
LOCK BRAKET
-Valid for GD-
from £55.18
from £55.18
# 020
MPN: 61545800
LOCK BRAKET
-Not for GD-
from £43.69
from £43.69
# 021
MPN: 615774..
MIRROR, COMPLETE
Supersession
Supersession
# 022
MPN: 61523200
COURTESY MIRROR
from £15.78
from £15.78
# 023
MPN: 61528500
AIR SEAT
from £3.30
from £3.30
# 024
MPN: 61528600
AIR VENT
from £20.18
from £20.18
# 025
MPN: 61079100
SENSOR FOR INTERNAL TEMPERATURE
from £467.50
from £467.50
# 026
MPN: 61523600
SOCKET
from £9.45
from £9.45
# 027
MPN: 61523700
SWITCH
from £101.61
from £101.61
# 028
MPN: 61647200
DASH BOARD BOX LAMP
from £17.39
from £17.39
This part replaces part number 61496800 - and 1 more. Click to view details
# 029
MPN: 61523800
DASH BOARD BOX LAMP FRAME
from £15.02
from £15.02
# 030
MPN: 61522600
RH MOBILE HINGE
from £1.67
from £1.67
# 030
MPN: 63403500
LH MOBILE HINGE
from £63.56
from £63.56
# 031
MPN: 124410
SOCKET CABLES
from £5.60
from £5.60
# 032
MPN: 61524100
SCREW
from £1.64
from £1.64
# 033
MPN: 61524200
WASHER
from £0.47
from £0.47
# 034
MPN: 61524300
NUT
from £0.47
from £0.47
# 035
MPN: 120065
O-RING
from £0.76
from £0.76
# 036
MPN: 61079200
BOX SENSOR
from £2.21
from £2.21
# 037
MPN: 61079300
SUCTION FAN FOR SENSOR
Supersession
Supersession
# 038
MPN: 124039
PIPE FROM SUCTION FAN TO SENSOR
from £10.16
from £10.16
# 039
MPN: 124409
SWITCH CABLES
from £14.32
from £14.32
# 040
MPN: 124411
LAMP CABLES
from £11.88
from £11.88
# 041
MPN: 14084111
NUT
from £0.47
from £0.47
This part replaces part number 14084100
# 042
MPN: 14115680
NUT SCREW
from £0.47
from £0.47
# 043
MPN: 61523100
LOCK MAGNET
from £601.80
from £601.80
# 044
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 045
MPN: 10519401
WASHER
from £0.71
from £0.71
# 046
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 047
MPN: 14051849
NUT
from £0.62
from £0.62
# 048
MPN: 12605176
WASHER
Supersession
Supersession
# 049
MPN: 61554300
DASHBOARD SUPPORT STRUCTURE
-Not for GD-
from £229.55
from £229.55
# 049
MPN: 63108600
DASHBOARD SUPPORT STRUCTURE
-Valid for GD-
# 050
MPN: 60701400
NEGATIVE TERMINAL
from £4.85
from £4.85
# 051
MPN: 61089500
BRACKET
from £1.90
from £1.90
# 052
MPN: 149763
PARKING LIGHTS SWITCH
-Not for cars with ABS-
from £159.64
from £159.64
# 052
MPN: 153041

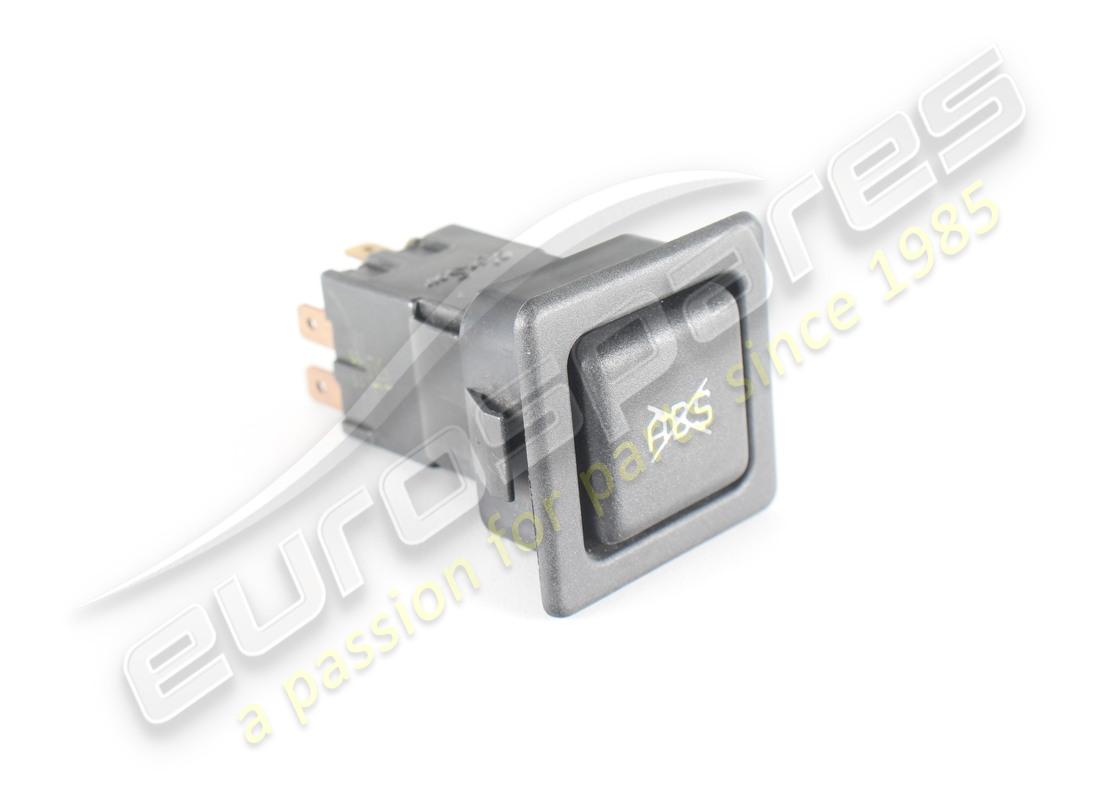

ABS CUT OUT PUSH
-Not for USA, CDN and AUS-
from £18.22
from £18.22
# 053
MPN: 634102..
KNEE PROTECTION
-Valid for USA-
Supersession
Supersession
# 053
MPN: 634127..
KNEE PROTECTION
-Valid for GD-
Supersession
Supersession
# 053
MPN: 634525..
KNEE PROTECTION
-Valid till car Ass. Nr. 14459 - Not for USA and GD
Supersession
Supersession
# 053
MPN: 636998..
KNEE PROTECTION
-Valid from car Ass. Nr. 14460 - Not for USA and GD
Supersession
Supersession
# 054
MPN: 60084407
button
from £3.17
from £3.17
# 055
MPN: 630790..
LOWER COVER
-Not for cars with ABS- -Not for GD-
Supersession
Supersession
# 055
MPN: 631068..
LOWER COVER
-Not for cars with ABS- -Valid for GD-
Supersession
Supersession
# 055
MPN: 634603..
LOWER COVER
-Valid for cars with ABS- -Not for USA and CDN- -Not for GD-
Supersession
Supersession
# 055
MPN: 634604..
LOWER COVER
-Valid for USA and CDN-
Supersession
Supersession
# 055
MPN: 634605..
LOWER COVER
-Valid for GD with ABS- -Not for AUS-
Supersession
Supersession
# 055
MPN: 634606..
LOWER COVER
-Valid for AUS with ABS-
Supersession
Supersession
# 056
MPN: 61545600
GLOVE BOX LOCK
# 057
MPN: 61577500
CLIP
from £0.60
from £0.60
# 058
MPN: 61577600
PIN
from £0.47
from £0.47
# 059
MPN: 146216
TWEETER LOUDSPEAKER
from £41.84
from £41.84
# 060
MPN: 63032800
TWEETER GRILL PROTECTION
from £10.21
from £10.21
# 061
MPN: 61541600
RADIO HOLDER
from £367.50
from £367.50
# 062
MPN: 63435000
HOOK
from £1.64
from £1.64
# 063
MPN: 12642807
WASHER
from £0.47
from £0.47
# 064
MPN: 15690778
SCREW
from £0.47
from £0.47
# 065
MPN: 62765300
WASHER
Supersession
Supersession
# 066
MPN: 63422600
BRACKET ARRESTER BOX
from £6.78
from £6.78
# 067
MPN: 15908678
SCREW
from £0.47
from £0.47
This part replaces part number 15908602
# 068
MPN: 14084111
NUT
from £0.47
from £0.47
This part replaces part number 14084100
# 069
MPN: 12624101
WASHER
from £0.47
from £0.47
# 070
MPN: 16101711
NUT
from £0.47
from £0.47
This part replaces part number 16101715
# 071
MPN: 10615170
WASHER
Supersession
Supersession
# 072
MPN: 12639401
WASHER
from £0.47
from £0.47
# 073
MPN: 14039714
NUT
from £0.47
from £0.47
# 074
MPN: 63422700
PLATE
from £21.88
from £21.88
# 075
MPN: 63422500
PIN
from £2.11
from £2.11
# 076
MPN: 14084011
NUT
from £0.47
from £0.47
# 077
MPN: 156086
ABS CUT OUT CENTRAL UNIT
from £226.68
from £226.68
# 078
MPN: 153983
BRACKET
from £12.13
from £12.13
# 079
MPN: 14496277
WASHER
from £0.47
from £0.47
# 080
MPN: 10794011
NUT
from £0.26
from £0.26
