021 - Exhaust System

Ferrari 550 Barchetta Exhaust System Parts Diagram

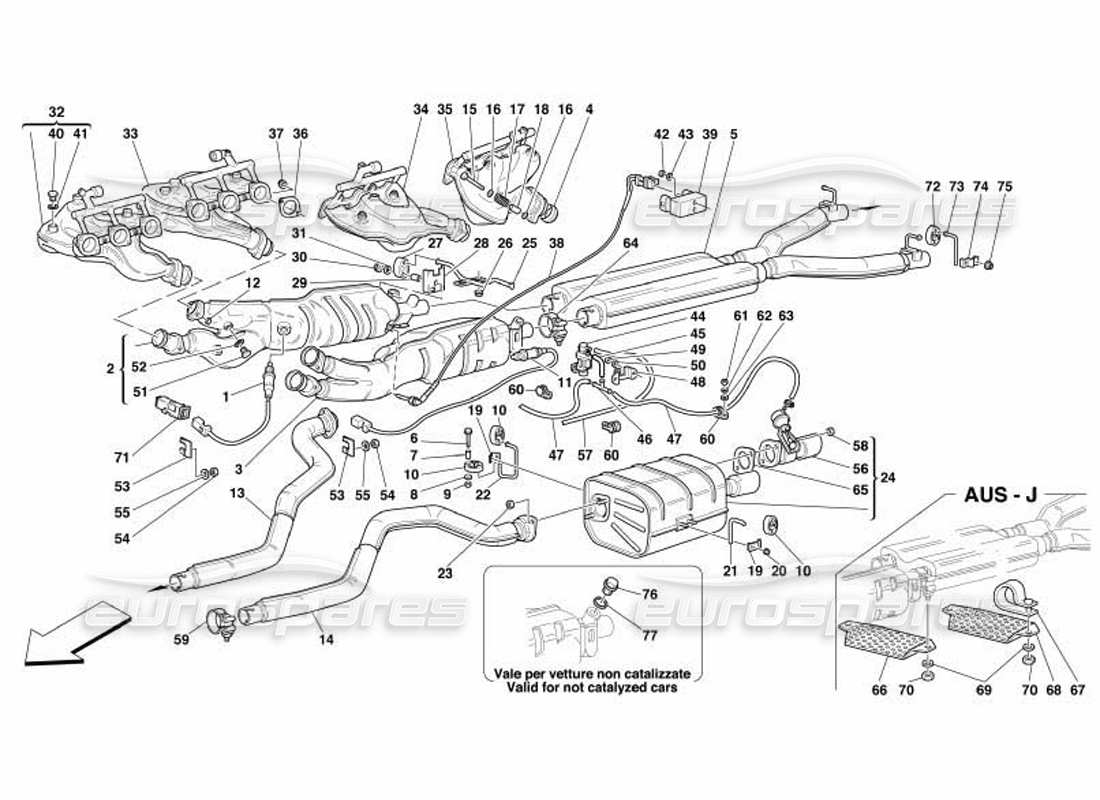

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 162462
                                                                                                                      RH FRONT LAMBDA FEELER
                                                                                                                      Not for not catalyzed cars-
                                                                                                                      from £225.45
                                                                                                                      from £225.45
                                                                                                                      # 001
                                                                                                                      MPN: 165170
                                                                                                                      RH FRONT LAMBDA FEELER
                                                                                                                      - Valid for catalyzed cars
                                                                                                                      from £60.00
                                                                                                                      from £60.00
                                                                                                                      # 001
                                                                                                                      MPN: 168928
                                                                                                                      LH FRONT LAMBDA FEELER
                                                                                                                      Valid for not catalyzed cars
                                                                                                                      from £90.62
                                                                                                                      from £90.62
                                                                                                                      # 001
                                                                                                                      MPN: 169953
                                                                                                                      LH FRONT LAMBDA FEELER
                                                                                                                      Not for not catalyzed cars (can use part number: 383700107)
                                                                                                                      from £89.80
                                                                                                                      from £89.80
                                                                                                                      # 002
                                                                                                                      MPN: 168566
                                                                                                                      RH CATALYST
                                                                                                                      Valid for USA and CDN
                                                                                                                      from £3,784.99
                                                                                                                      from £3,784.99
                                                                                                                      # 002
                                                                                                                      MPN: 168566
                                                                                                                      RH CATALYST
                                                                                                                      Not for not catalyzed cars - Not for USA and CDN
                                                                                                                      from £3,784.99
                                                                                                                      from £3,784.99
                                                                                                                      # 002
                                                                                                                      MPN: 174077
                                                                                                                      RH CATALYST
                                                                                                                      Not for USA, CDN and AUS
                                                                                                                      from £1,854.34
                                                                                                                      from £1,854.34
                                                                                                                      # 003
                                                                                                                      MPN: 168567
                                                                                                                      LH CATALYST
                                                                                                                      Valid for USA and CDN
                                                                                                                      from £3,710.77
                                                                                                                      from £3,710.77
                                                                                                                      # 003
                                                                                                                      MPN: 168567
                                                                                                                      LH CATALYST
                                                                                                                      Not for not catalyzed cars - Not for USA and CDN
                                                                                                                      from £3,710.77
                                                                                                                      from £3,710.77
                                                                                                                      # 003
                                                                                                                      MPN: 174078
                                                                                                                      LH CATALYST
                                                                                                                      Not for USA, CDN and AUS
                                                                                                                      from £1,854.34
                                                                                                                      from £1,854.34
                                                                                                                      # 004
                                                                                                                      MPN: 154981
                                                                                                                      GASKET
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 125917 - and 1 more. Click to view details

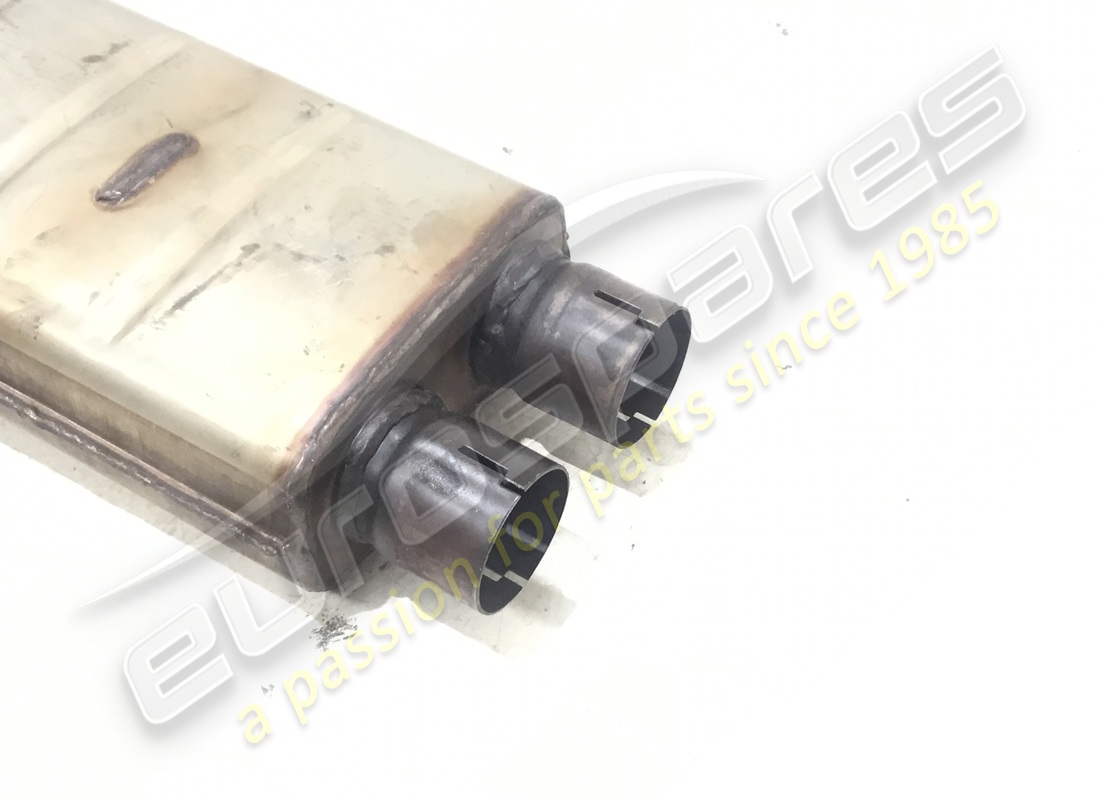

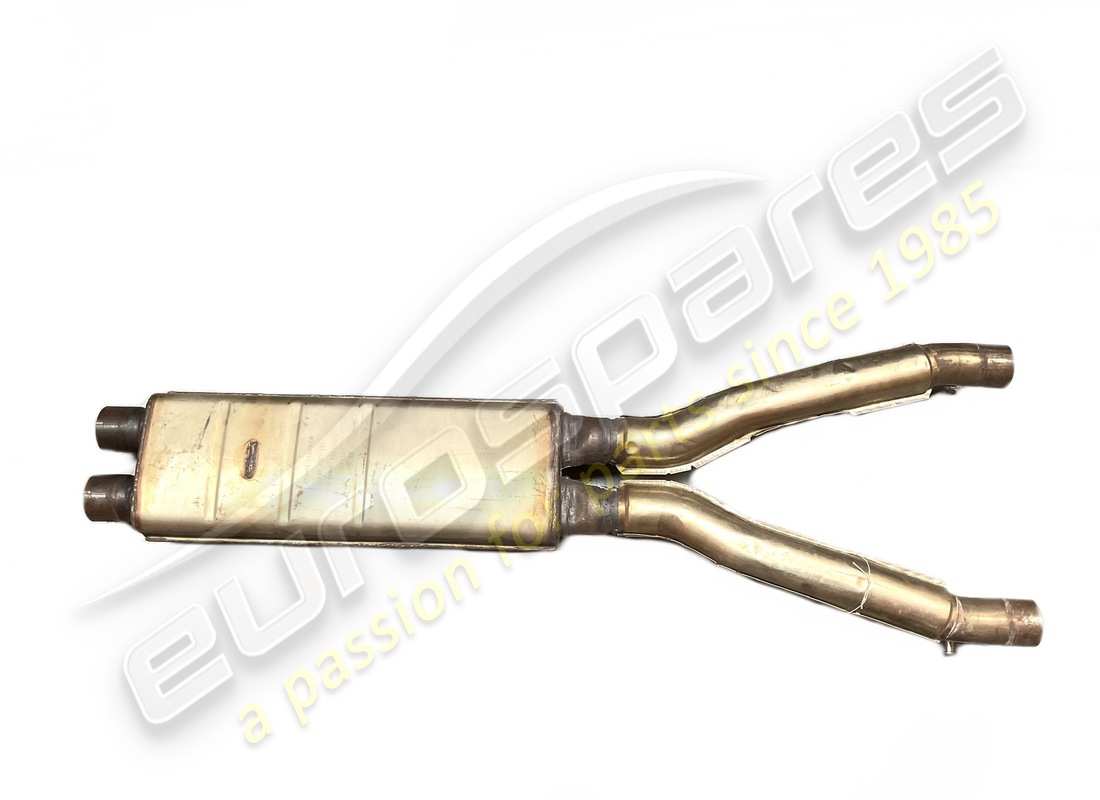

                                                                                                                      # 005
                                                                                                                      MPN: 167995
                                                                                                                      CENTRAL MUFFLER
                                                                                                                      from £921.73
                                                                                                                      from £921.73
                                                                                                                      # 006
                                                                                                                      MPN: 16287524
                                                                                                                      SCREW
                                                                                                                      from £0.74
                                                                                                                      from £0.74
                                                                                                                      This part replaces part number 16287521
                                                                                                                      # 007
                                                                                                                      MPN: 154016
                                                                                                                      SPACER
                                                                                                                      from £8.95
                                                                                                                      from £8.95
                                                                                                                      # 008
                                                                                                                      MPN: 12642078
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 12642006
                                                                                                                      # 009
                                                                                                                      MPN: 14058519
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 010
                                                                                                                      MPN: 156968
                                                                                                                      PAD
                                                                                                                      from £36.59
                                                                                                                      from £36.59
                                                                                                                      # 011
                                                                                                                      MPN: 165170
                                                                                                                      REAR LAMBDA FEELER
                                                                                                                      - Valid for catalyzed cars
                                                                                                                      from £60.00
                                                                                                                      from £60.00
                                                                                                                      # 012
                                                                                                                      MPN: 114748
                                                                                                                      NUT
                                                                                                                      from £8.97
                                                                                                                      from £8.97

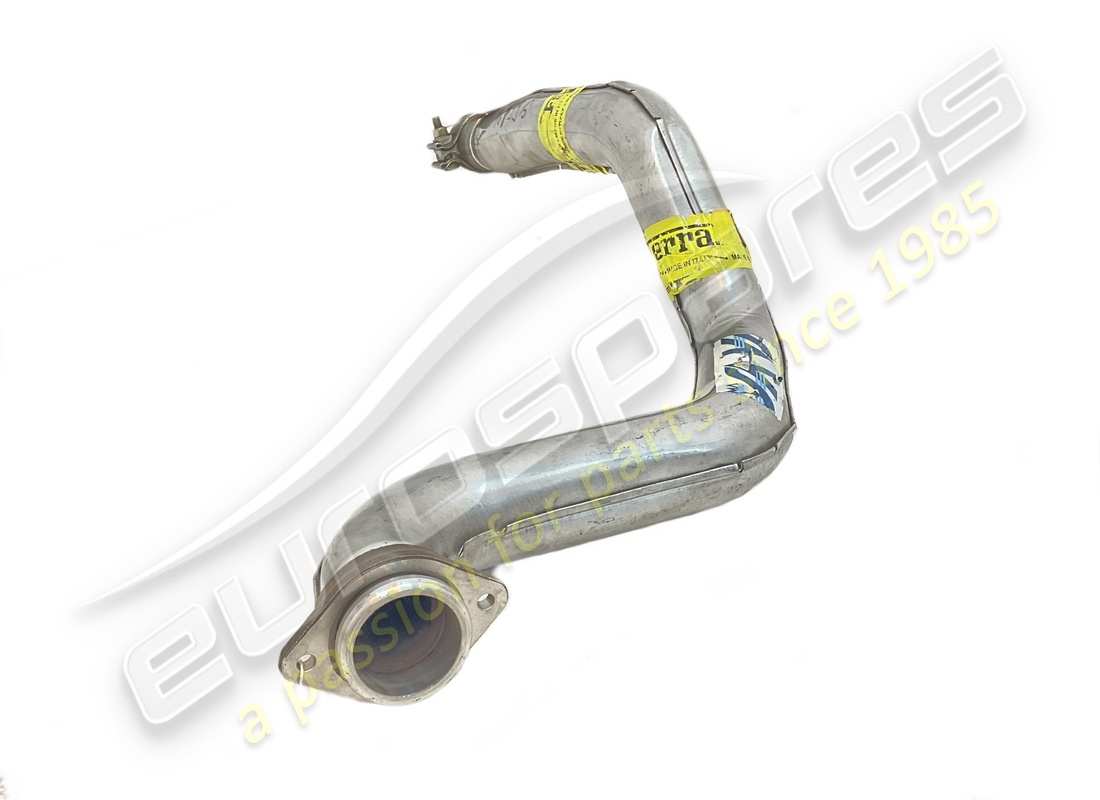

                                                                                                                      # 013
                                                                                                                      MPN: 167996
                                                                                                                      RH EXHAUST EXTENSION
                                                                                                                      from £1,234.64
                                                                                                                      from £1,234.64

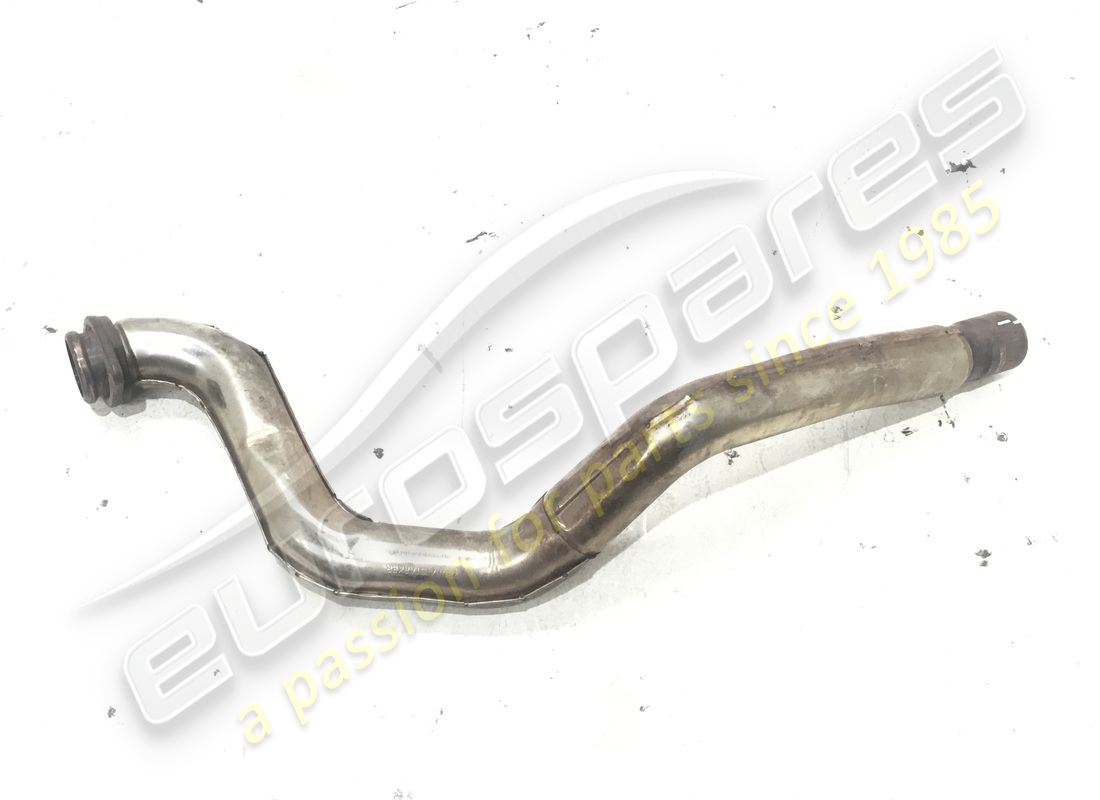

                                                                                                                      # 014
                                                                                                                      MPN: 167997
                                                                                                                      LH EXHAUST EXTENSION
                                                                                                                      from £1,234.64
                                                                                                                      from £1,234.64
                                                                                                                      # 015
                                                                                                                      MPN: 16045024
                                                                                                                      SCREW
                                                                                                                      (minimum order quantity = 10)
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 125924 - and 1 more. Click to view details
                                                                                                                      # 016
                                                                                                                      MPN: 128010
                                                                                                                      WASHER
                                                                                                                      from £2.16
                                                                                                                      from £2.16
                                                                                                                      # 017
                                                                                                                      MPN: 111743
                                                                                                                      SPRING
                                                                                                                      from £6.91
                                                                                                                      from £6.91
                                                                                                                      # 018
                                                                                                                      MPN: 114749
                                                                                                                      SPACER
                                                                                                                      from £1.24
                                                                                                                      from £1.24
                                                                                                                      # 019
                                                                                                                      MPN: 154116
                                                                                                                      BRACKET
                                                                                                                      from £5.69
                                                                                                                      from £5.69
                                                                                                                      # 020
                                                                                                                      MPN: 14058519
                                                                                                                      NUT
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      # 021
                                                                                                                      MPN: 154110
                                                                                                                      OUTER SUPPORT
                                                                                                                      from £42.91
                                                                                                                      from £42.91
                                                                                                                      # 022
                                                                                                                      MPN: 161548
                                                                                                                      LH INNER SUPPORT
                                                                                                                      from £71.23
                                                                                                                      from £71.23
                                                                                                                      This part replaces part number 156840
                                                                                                                      # 022
                                                                                                                      MPN: 161549
                                                                                                                      RH INNER SUPPORT
                                                                                                                      from £135.87
                                                                                                                      from £135.87
                                                                                                                      This part replaces part number 156849
                                                                                                                      # 023
                                                                                                                      MPN: 114748
                                                                                                                      NUT
                                                                                                                      from £9.07
                                                                                                                      from £9.07

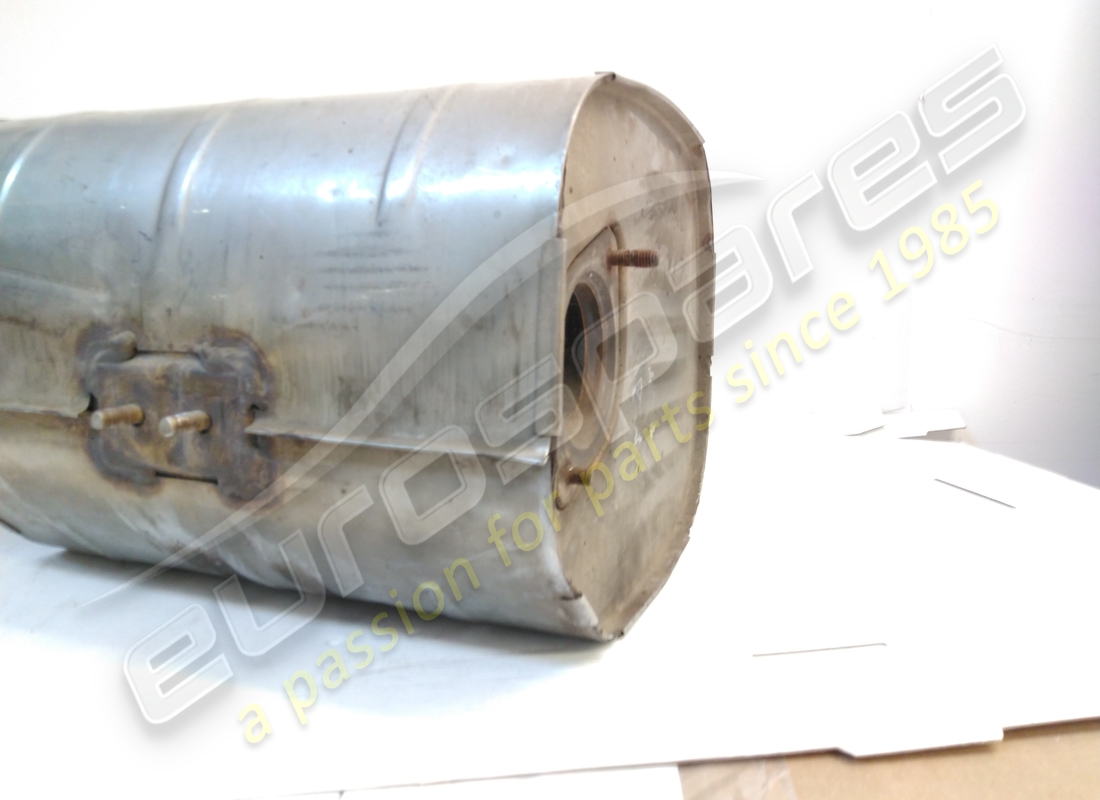

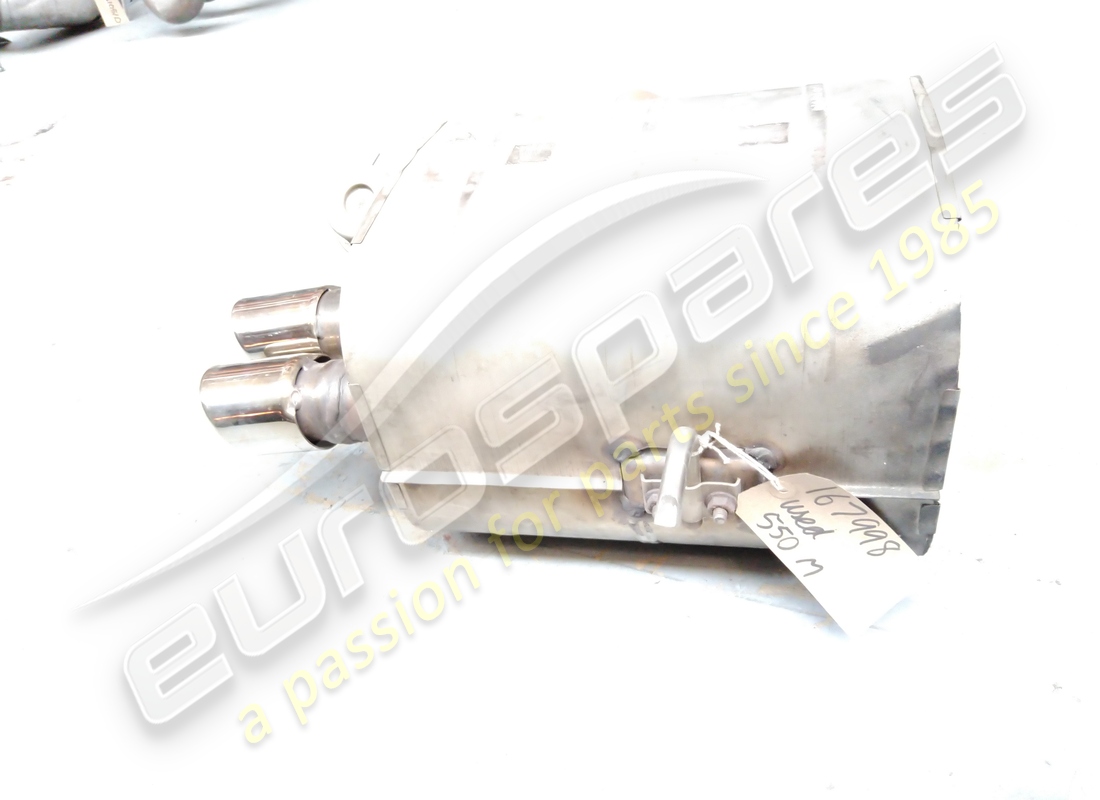

                                                                                                                      # 024
                                                                                                                      MPN: 167998
                                                                                                                      RH REAR SILENCER
                                                                                                                      from £1,415.76
                                                                                                                      from £1,415.76

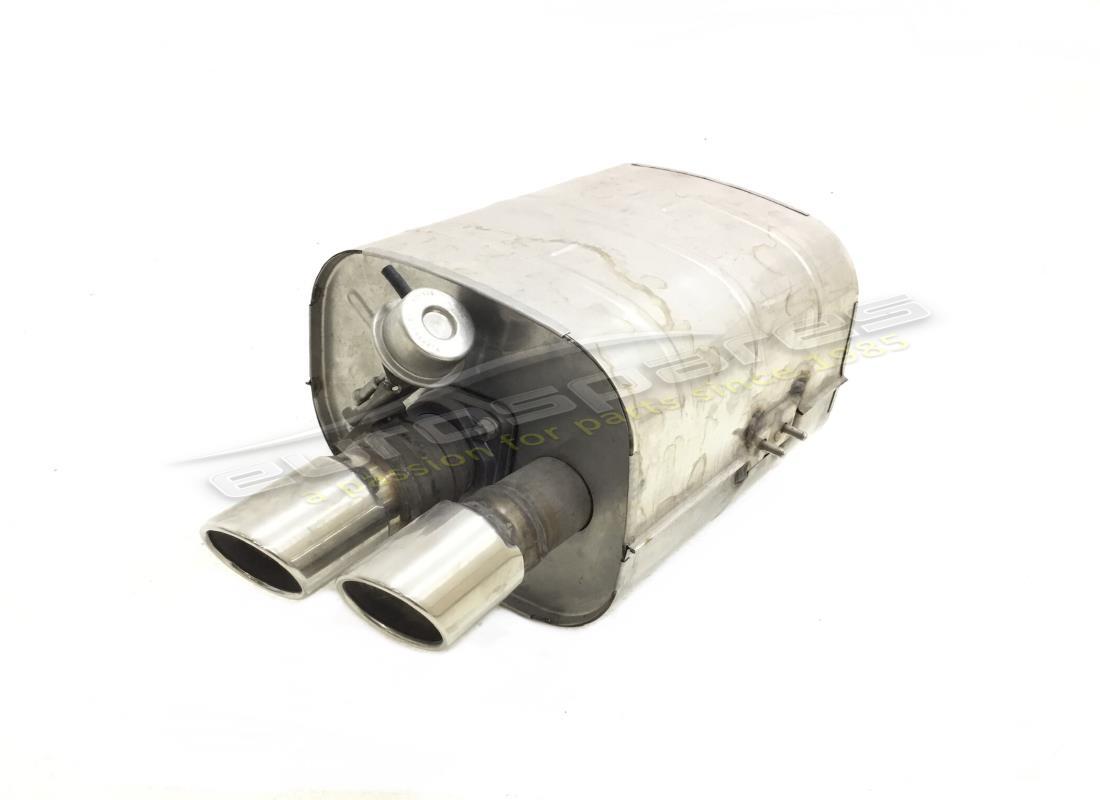

                                                                                                                      # 024
                                                                                                                      MPN: 167999
                                                                                                                      LH REAR SILENCER
                                                                                                                      from £2,429.25
                                                                                                                      from £2,429.25
                                                                                                                      # 025
                                                                                                                      MPN: 168149
                                                                                                                      SHIELD SUPPORTING MUFFLER
                                                                                                                      from £17.02
                                                                                                                      from £17.02
                                                                                                                      # 026
                                                                                                                      MPN: 14058519
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 027
                                                                                                                      MPN: 154564
                                                                                                                      PAD
                                                                                                                      from £77.13
                                                                                                                      from £77.13
                                                                                                                      # 028
                                                                                                                      MPN: 170023
                                                                                                                      R. H. PAD PROTECTION
                                                                                                                      from £4.91
                                                                                                                      from £4.91
                                                                                                                      # 028
                                                                                                                      MPN: 170024
                                                                                                                      L. H. PAD PROTECTION
                                                                                                                      from £4.91
                                                                                                                      from £4.91
                                                                                                                      # 029
                                                                                                                      MPN: 154016
                                                                                                                      SPACER
                                                                                                                      from £8.95
                                                                                                                      from £8.95
                                                                                                                      # 030
                                                                                                                      MPN: 14058519
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 031
                                                                                                                      MPN: 12642078
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 12642006
                                                                                                                      # 032
                                                                                                                      MPN: 154364
                                                                                                                      RH FRONT EXHAUST MANIFOLD
                                                                                                                      Not for GD
                                                                                                                      from £1,656.79
                                                                                                                      from £1,656.79
                                                                                                                      This part replaces part number 169337 - and 2 more. Click to view details
                                                                                                                      # 032
                                                                                                                      MPN: 157758
                                                                                                                      RH FRONT EXHAUST MANIFOLD
                                                                                                                      Valid for GD
                                                                                                                      from £723.74
                                                                                                                      from £723.74
                                                                                                                      # 033
                                                                                                                      MPN: 154365
                                                                                                                      RH REAR EXHAUST MANIFOLD
                                                                                                                      Not for GD
                                                                                                                      from £741.03
                                                                                                                      from £741.03
                                                                                                                      This part replaces part number 169339 - and 2 more. Click to view details
                                                                                                                      # 033
                                                                                                                      MPN: 157759
                                                                                                                      RH REAR EXHAUST MANIFOLD
                                                                                                                      Valid for GD
                                                                                                                      from £738.55
                                                                                                                      from £738.55
                                                                                                                      # 034
                                                                                                                      MPN: 154366
                                                                                                                      LH FRONT EXHAUST MANIFOLD
                                                                                                                      from £1,394.58
                                                                                                                      from £1,394.58
                                                                                                                      This part replaces part number 169338 - and 3 more. Click to view details
                                                                                                                      # 035
                                                                                                                      MPN: 154367
                                                                                                                      LH REAR EXHAUST MANIFOLD
                                                                                                                      from £1,250.13
                                                                                                                      from £1,250.13
                                                                                                                      This part replaces part number 169340 - and 4 more. Click to view details
                                                                                                                      # 036
                                                                                                                      MPN: 143408
                                                                                                                      GASKET
                                                                                                                      (minimum order quantity = 12)
                                                                                                                      from £10.49
                                                                                                                      from £10.49
                                                                                                                      # 037
                                                                                                                      MPN: 138392
                                                                                                                      NUT
                                                                                                                      (minimum order quantity = 25)
                                                                                                                      from £0.58
                                                                                                                      from £0.58
                                                                                                                      # 038
                                                                                                                      MPN: 174674
                                                                                                                      THERMOCOUPLE
                                                                                                                      from £127.56
                                                                                                                      from £127.56
                                                                                                                      This part replaces part number 168661
                                                                                                                      # 039
                                                                                                                      MPN: 179278
                                                                                                                      CONTROL STATION
                                                                                                                      from £174.08
                                                                                                                      from £174.08
                                                                                                                      This part replaces part number 173533 - and 1 more. Click to view details
                                                                                                                      # 040
                                                                                                                      MPN: 110860
                                                                                                                      THREADED PLUG
                                                                                                                      from £7.65
                                                                                                                      from £7.65
                                                                                                                      This part replaces part number 11903240
                                                                                                                      # 041
                                                                                                                      MPN: 10298460
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 93353
                                                                                                                      # 042
                                                                                                                      MPN: 10794014
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10794034
                                                                                                                      # 043
                                                                                                                      MPN: 14496204
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 14496201
                                                                                                                      # 044
                                                                                                                      MPN: 159177
                                                                                                                      SOLENOID VALVE
                                                                                                                      from £103.88
                                                                                                                      from £103.88
                                                                                                                      This part replaces part number 154384 which we have in stock
                                                                                                                      # 046
                                                                                                                      MPN: 121793
                                                                                                                      3-WAY UNION
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 047
                                                                                                                      MPN: 171171
                                                                                                                      RUBBER PIPE
                                                                                                                      from £67.22
                                                                                                                      from £67.22
                                                                                                                      # 048
                                                                                                                      MPN: 145472
                                                                                                                      SMALL PLATE
                                                                                                                      from £2.25
                                                                                                                      from £2.25
                                                                                                                      # 049
                                                                                                                      MPN: 169180
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574121
                                                                                                                      # 050
                                                                                                                      MPN: 14496324
                                                                                                                      WASHER
                                                                                                                      from £1.39
                                                                                                                      from £1.39
                                                                                                                      This part replaces part number 14496301
                                                                                                                      # 051
                                                                                                                      MPN: 110860
                                                                                                                      PLUG
                                                                                                                      from £7.65
                                                                                                                      from £7.65
                                                                                                                      This part replaces part number 11903240
                                                                                                                      # 052
                                                                                                                      MPN: 10298460
                                                                                                                      GASKET
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 93353
                                                                                                                      # 053
                                                                                                                      MPN: 155751
                                                                                                                      CLIP
                                                                                                                      from £2.29
                                                                                                                      from £2.29
                                                                                                                      # 054
                                                                                                                      MPN: 62790300
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                      # 055
                                                                                                                      MPN: 12642877
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 056
                                                                                                                      MPN: 170028
                                                                                                                      COMPLETE RH BY-PASS VALVE
                                                                                                                      from £1,084.56
                                                                                                                      from £1,084.56
                                                                                                                      # 056
                                                                                                                      MPN: 170029
                                                                                                                      COMPLETE LH BY-PASS VALVE
                                                                                                                      from £669.84
                                                                                                                      from £669.84
                                                                                                                      # 057
                                                                                                                      MPN: 124032
                                                                                                                      RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                                                      Valid for GD
                                                                                                                      from £25.06
                                                                                                                      from £25.06
                                                                                                                      # 057
                                                                                                                      MPN: 168432
                                                                                                                      RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                                                      Not for GD
                                                                                                                      from £23.66
                                                                                                                      from £23.66
                                                                                                                      # 058
                                                                                                                      MPN: 114748
                                                                                                                      NUT
                                                                                                                      from £9.07
                                                                                                                      from £9.07
                                                                                                                      # 059
                                                                                                                      MPN: 170541
                                                                                                                      CLAMP
                                                                                                                      from £10.39
                                                                                                                      from £10.39
                                                                                                                      # 060
                                                                                                                      MPN: 10441490
                                                                                                                      CLAMP
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 061
                                                                                                                      MPN: 15896214
                                                                                                                      NUT
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 15896211
                                                                                                                      # 062
                                                                                                                      MPN: 127494
                                                                                                                      WASHER
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                      # 063
                                                                                                                      MPN: 10519424
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                      # 064
                                                                                                                      MPN: 170541
                                                                                                                      CLAMP
                                                                                                                      from £10.39
                                                                                                                      from £10.39
                                                                                                                      # 065
                                                                                                                      MPN: 170041
                                                                                                                      GASKET
                                                                                                                      from £30.53
                                                                                                                      from £30.53
                                                                                                                      # 066
                                                                                                                      MPN: 174314
                                                                                                                      FRONT HEAT PROTECTION SHIELD
                                                                                                                      Valid for AUS and J
                                                                                                                      from £26.12
                                                                                                                      from £26.12
                                                                                                                      # 067
                                                                                                                      MPN: 174316
                                                                                                                      CLAMP
                                                                                                                      Valid for AUS and J
                                                                                                                      from £2.90
                                                                                                                      from £2.90
                                                                                                                      # 068
                                                                                                                      MPN: 174315
                                                                                                                      REAR HEAT PROTECTION SHIELD
                                                                                                                      Valid for AUS and J
                                                                                                                      from £29.54
                                                                                                                      from £29.54
                                                                                                                      # 069
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      Valid for AUS and J
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 070
                                                                                                                      MPN: 14048327
                                                                                                                      NUT
                                                                                                                      Valid for AUS and J
                                                                                                                      from £0.50
                                                                                                                      from £0.50
                                                                                                                      # 071
                                                                                                                      MPN: 171685
                                                                                                                      BLOCK
                                                                                                                      Valid for not catalyzed cars
                                                                                                                      from £2.25
                                                                                                                      from £2.25
                                                                                                                      # 072
                                                                                                                      MPN: 156967
                                                                                                                      MUFFLER BUFFER FOR SUPPORT
                                                                                                                      from £16.72
                                                                                                                      from £16.72
                                                                                                                      This part replaces part number 187804 - and 1 more. Click to view details
                                                                                                                      # 073
                                                                                                                      MPN: 170693
                                                                                                                      REAR SUPPORT
                                                                                                                      from £19.69
                                                                                                                      from £19.69
                                                                                                                      # 074
                                                                                                                      MPN: 154116
                                                                                                                      BRACKET
                                                                                                                      from £5.69
                                                                                                                      from £5.69
                                                                                                                      # 075
                                                                                                                      MPN: 14058519
                                                                                                                      NUT
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 076
                                                                                                                      MPN: 182998
                                                                                                                      THREADED PLUG
                                                                                                                      Valid for not catalyzed cars
                                                                                                                      from £64.32
                                                                                                                      from £64.32
                                                                                                                      # 077
                                                                                                                      MPN: 10278660
                                                                                                                      GASKET
                                                                                                                      Valid for not catalyzed cars
                                                                                                                      from £0.77
                                                                                                                      from £0.77
