025 - Lubrication - Oil Sumps and Filters

Ferrari 550 Barchetta Lubrication - Oil Sumps and Filters Parts Diagram

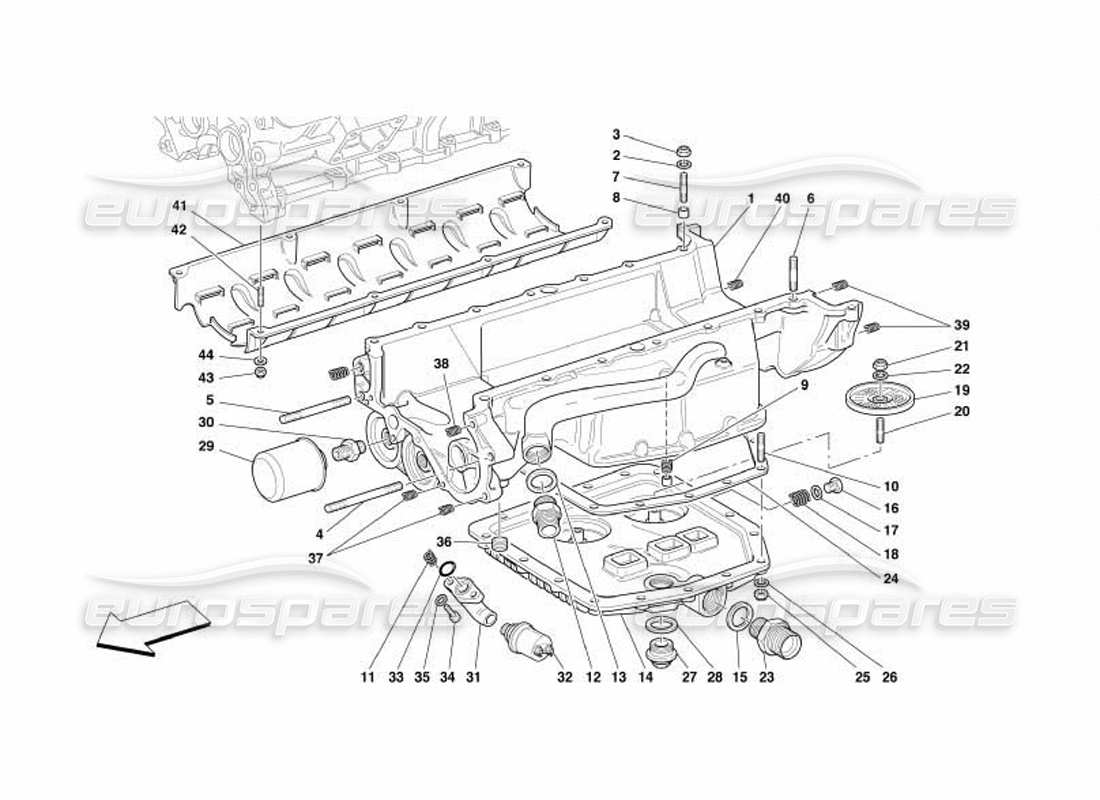

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 000
                                                                                        MPN: 172465
                                                                                        COMPLETE OIL SUMP
                                                                                        from £876.27
                                                                                        from £876.27
                                                                                        # 001
                                                                                        MPN: 165757
                                                                                        oil sump
                                                                                        With complete oil sump
                                                                                        from £1,495.00
                                                                                        from £1,495.00
                                                                                        # 002
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 003
                                                                                        MPN: 101139
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16104425
                                                                                        # 004
                                                                                        MPN: 13971134
                                                                                        STUD
                                                                                        from £1.40
                                                                                        from £1.40
                                                                                        # 005
                                                                                        MPN: 153423
                                                                                        STUD
                                                                                        from £4.86
                                                                                        from £4.86
                                                                                        # 006
                                                                                        MPN: 13543424
                                                                                        STUD
                                                                                        from £1.03
                                                                                        from £1.03
                                                                                        This part replaces part number 13543421
                                                                                        # 007
                                                                                        MPN: 13543624
                                                                                        STUD
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 13543621
                                                                                        # 008
                                                                                        MPN: 100041
                                                                                        CENTERING DOWEL
                                                                                        from £3.82
                                                                                        from £3.82
                                                                                        # 009
                                                                                        MPN: 13525770
                                                                                        THREADED INSERT
                                                                                        from £1.57
                                                                                        from £1.57
                                                                                        This part replaces part number 103830
                                                                                        # 010
                                                                                        MPN: 13541224
                                                                                        STUD
                                                                                        from £35.68
                                                                                        from £35.68
                                                                                        This part replaces part number 13541221
                                                                                        # 011
                                                                                        MPN: 13525470
                                                                                        THREADED INSERT
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 107333
                                                                                        # 012
                                                                                        MPN: 145085
                                                                                        UNION
                                                                                        from £5.78
                                                                                        from £5.78
                                                                                        # 014
                                                                                        MPN: 154602
                                                                                        SUMP COVER
                                                                                        from £764.03
                                                                                        from £764.03
                                                                                        # 016
                                                                                        MPN: 153903
                                                                                        OIL OUTLET PLUG
                                                                                        from £7.27
                                                                                        from £7.27
                                                                                        # 017
                                                                                        MPN: 10280060
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 100501 - and 3 more. Click to view details
                                                                                        # 018
                                                                                        MPN: 13526570
                                                                                        THREADED INSERT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 019
                                                                                        MPN: 125308
                                                                                        OIL SUCTION FILTER
                                                                                        from £215.23
                                                                                        from £215.23
                                                                                        # 020
                                                                                        MPN: 13540724
                                                                                        STUD
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 13540721
                                                                                        # 021
                                                                                        MPN: 15896214
                                                                                        NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 15896211
                                                                                        # 022
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                        # 023
                                                                                        MPN: 138149
                                                                                        UNION
                                                                                        from £17.42
                                                                                        from £17.42
                                                                                        # 024
                                                                                        MPN: 141960
                                                                                        GASKET
                                                                                        from £28.62
                                                                                        from £28.62
                                                                                        # 025
                                                                                        MPN: 102741
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                        # 026
                                                                                        MPN: 12601274
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 027
                                                                                        MPN: 156144
                                                                                        THREADED PLUG
                                                                                        from £39.76
                                                                                        from £39.76
                                                                                        # 028
                                                                                        MPN: 10303460
                                                                                        GASKET
                                                                                        from £0.92
                                                                                        from £0.92
                                                                                        # 029
                                                                                        MPN: 206166
                                                                                        OIL FILTER CARTRIDGE
                                                                                        As an alternative
                                                                                        from £19.95
                                                                                        from £19.95
                                                                                        This part replaces part number 151323
                                                                                        # 030
                                                                                        MPN: 141707
                                                                                        UNION
                                                                                        from £7.44
                                                                                        from £7.44
                                                                                        # 031
                                                                                        MPN: 143866
                                                                                        SUPPORT
                                                                                        from £56.94
                                                                                        from £56.94
                                                                                        # 033
                                                                                        MPN: 132248
                                                                                        O.R. GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 034
                                                                                        MPN: 14305324
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 14305321
                                                                                        # 035
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                        # 036
                                                                                        MPN: 10269850
                                                                                        THREADED PLUG
                                                                                        from £0.94
                                                                                        from £0.94
                                                                                        # 037
                                                                                        MPN: 13525870
                                                                                        THREADED INSERT
                                                                                        from £1.96
                                                                                        from £1.96
                                                                                        This part replaces part number 105510
                                                                                        # 038
                                                                                        MPN: 13525570
                                                                                        THREADED INSERT
                                                                                        from £3.26
                                                                                        from £3.26
                                                                                        This part replaces part number 109668
                                                                                        # 039
                                                                                        MPN: 13525870
                                                                                        THREADED INSERT
                                                                                        from £1.96
                                                                                        from £1.96
                                                                                        This part replaces part number 105510
                                                                                        # 040
                                                                                        MPN: 13525570
                                                                                        THREADED INSERT
                                                                                        from £3.26
                                                                                        from £3.26
                                                                                        This part replaces part number 109668
                                                                                        # 041
                                                                                        MPN: 167016
                                                                                        ANTI-SHAKING OIL PANEL
                                                                                        from £7.87
                                                                                        from £7.87
                                                                                        # 042
                                                                                        MPN: 13540824
                                                                                        STUD
                                                                                        from £14.21
                                                                                        from £14.21
                                                                                        This part replaces part number 13540821
                                                                                        # 043
                                                                                        MPN: 14048115
                                                                                        NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 14048611 - and 1 more. Click to view details
                                                                                        # 044
                                                                                        MPN: 14496424
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 14496401 - and 3 more. Click to view details
