ferrari 550 barchetta differential carrier and clutch cooling radiator parts diagram

030 - Differential Carrier and Clutch Cooling Radiator

Ferrari 550 Barchetta Differential Carrier and Clutch Cooling Radiator Parts Diagram

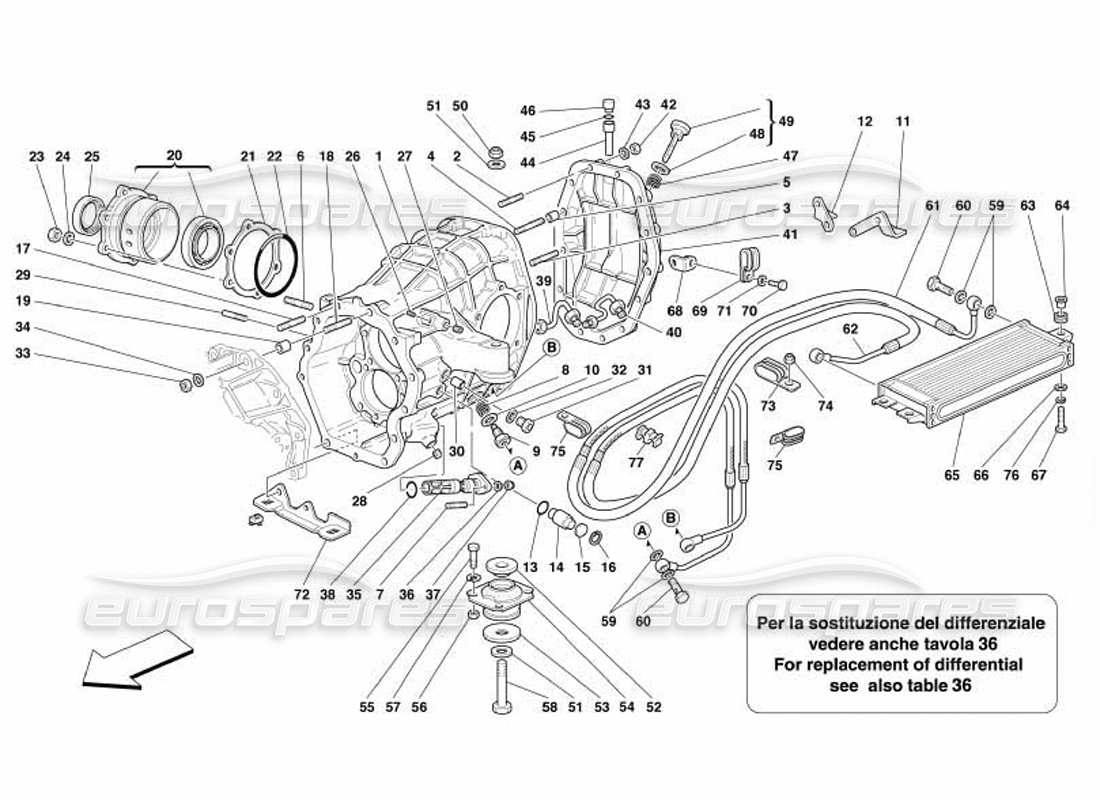

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                      #
                                                                                                                                                      Part number
                                                                                                                                                      Description
                                                                                                                                                      Price
                                                                                                                                                      # 000
                                                                                                                                                      MPN: 172617
                                                                                                                                                      GEARBOX CASING
                                                                                                                                                      from £1,815.15
                                                                                                                                                      from £1,815.15
                                                                                                                                                      # 001
                                                                                                                                                      MPN: 161980
                                                                                                                                                      GEAR BOX 4TH ELEMENT
                                                                                                                                                      With complete gear box-
                                                                                                                                                      # 002
                                                                                                                                                      MPN: 13543624
                                                                                                                                                      STUD
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 13543621
                                                                                                                                                      # 003
                                                                                                                                                      MPN: 13543724
                                                                                                                                                      STUD
                                                                                                                                                      from £0.87
                                                                                                                                                      from £0.87
                                                                                                                                                      This part replaces part number 13543721
                                                                                                                                                      # 004
                                                                                                                                                      MPN: 13543824
                                                                                                                                                      STUD
                                                                                                                                                      from £1.66
                                                                                                                                                      from £1.66
                                                                                                                                                      This part replaces part number 13543821
                                                                                                                                                      # 005
                                                                                                                                                      MPN: 102704
                                                                                                                                                      CENTERING DOWEL
                                                                                                                                                      from £1.59
                                                                                                                                                      from £1.59
                                                                                                                                                      This part replaces part number 500805
                                                                                                                                                      # 006
                                                                                                                                                      MPN: 13546224
                                                                                                                                                      STUD
                                                                                                                                                      from £7.83
                                                                                                                                                      from £7.83
                                                                                                                                                      This part replaces part number 13546124 which we have in stock - and 1 more. Click to view details
                                                                                                                                                      # 007
                                                                                                                                                      MPN: 11001024
                                                                                                                                                      STUD
                                                                                                                                                      (minimum order quantity = 5)
                                                                                                                                                      from £1.44
                                                                                                                                                      from £1.44
                                                                                                                                                      This part replaces part number 11001011 - and 1 more. Click to view details
                                                                                                                                                      # 008
                                                                                                                                                      MPN: 112254
                                                                                                                                                      THREADED INSERT
                                                                                                                                                      from £2.27
                                                                                                                                                      from £2.27
                                                                                                                                                      # 009
                                                                                                                                                      MPN: 150853
                                                                                                                                                      UNION
                                                                                                                                                      from £6.98
                                                                                                                                                      from £6.98
                                                                                                                                                      # 010
                                                                                                                                                      MPN: 10263460
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 95119
                                                                                                                                                      # 011
                                                                                                                                                      MPN: 169466
                                                                                                                                                      LH BRACKET
                                                                                                                                                      from £9.35
                                                                                                                                                      from £9.35
                                                                                                                                                      # 012
                                                                                                                                                      MPN: 169465
                                                                                                                                                      RH BRACKET
                                                                                                                                                      from £9.35
                                                                                                                                                      from £9.35
                                                                                                                                                      # 013
                                                                                                                                                      MPN: 134232
                                                                                                                                                      O.R. GASKET
                                                                                                                                                      from £0.67
                                                                                                                                                      from £0.67
                                                                                                                                                      This part replaces part number 153718 which we have in stock
                                                                                                                                                      # 014
                                                                                                                                                      MPN: 153719
                                                                                                                                                      PIN
                                                                                                                                                      from £16.05
                                                                                                                                                      from £16.05
                                                                                                                                                      # 015
                                                                                                                                                      MPN: 154698
                                                                                                                                                      PAD
                                                                                                                                                      from £1.97
                                                                                                                                                      from £1.97
                                                                                                                                                      This part replaces part number 153709
                                                                                                                                                      # 016
                                                                                                                                                      MPN: 11057476
                                                                                                                                                      STOP RING
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      # 017
                                                                                                                                                      MPN: 13543524
                                                                                                                                                      STUD
                                                                                                                                                      from £2.05
                                                                                                                                                      from £2.05
                                                                                                                                                      This part replaces part number 13543521
                                                                                                                                                      # 018
                                                                                                                                                      MPN: 13543624
                                                                                                                                                      STUD
                                                                                                                                                      from £0.51
                                                                                                                                                      from £0.51
                                                                                                                                                      This part replaces part number 13543621
                                                                                                                                                      # 019
                                                                                                                                                      MPN: 102704
                                                                                                                                                      CENTERING DOWEL
                                                                                                                                                      from £1.59
                                                                                                                                                      from £1.59
                                                                                                                                                      This part replaces part number 500805
                                                                                                                                                      # 020
                                                                                                                                                      MPN: 177438
                                                                                                                                                      DIFFERENTIAL COVER WITH BEARING
                                                                                                                                                      from £349.29
                                                                                                                                                      from £349.29
                                                                                                                                                      This part replaces part number 145531
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150099
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1,3
                                                                                                                                                      from £66.90
                                                                                                                                                      from £66.90
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150100
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.4
                                                                                                                                                      from £29.66
                                                                                                                                                      from £29.66
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150101
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.5
                                                                                                                                                      from £53.93
                                                                                                                                                      from £53.93
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150102
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.6
                                                                                                                                                      from £53.93
                                                                                                                                                      from £53.93
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150103
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.7
                                                                                                                                                      from £63.88
                                                                                                                                                      from £63.88
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150104
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.8
                                                                                                                                                      from £66.90
                                                                                                                                                      from £66.90
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150105
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.9
                                                                                                                                                      from £63.70
                                                                                                                                                      from £63.70
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150106
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.45
                                                                                                                                                      from £58.44
                                                                                                                                                      from £58.44
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150107
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.55
                                                                                                                                                      from £55.66
                                                                                                                                                      from £55.66
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 150108
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.65
                                                                                                                                                      from £53.93
                                                                                                                                                      from £53.93
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 175378
                                                                                                                                                      DIFFERENTIAL COVER THRUST THINCKNESS MM. 1.75
                                                                                                                                                      from £31.59
                                                                                                                                                      from £31.59
                                                                                                                                                      # 022
                                                                                                                                                      MPN: 139453
                                                                                                                                                      O.R. GASKET
                                                                                                                                                      from £4.15
                                                                                                                                                      from £4.15
                                                                                                                                                      # 023
                                                                                                                                                      MPN: 133988
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                                                                      # 024
                                                                                                                                                      MPN: 12601474
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.52
                                                                                                                                                      from £0.52
                                                                                                                                                      This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                                                                                                      # 025
                                                                                                                                                      MPN: 133628
                                                                                                                                                      OIL SEAL
                                                                                                                                                      from £29.85
                                                                                                                                                      from £29.85
                                                                                                                                                      This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                                                                      # 025
                                                                                                                                                      MPN: 141509
                                                                                                                                                      LH GASKET
                                                                                                                                                      from £69.86
                                                                                                                                                      from £69.86
                                                                                                                                                      This part replaces part number 125077
                                                                                                                                                      # 026
                                                                                                                                                      MPN: 65928500
                                                                                                                                                      PLUG
                                                                                                                                                      from £24.36
                                                                                                                                                      from £24.36
                                                                                                                                                      This part replaces part number 10267550
                                                                                                                                                      # 027
                                                                                                                                                      MPN: 14326150
                                                                                                                                                      PLUG
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 12326150
                                                                                                                                                      # 028
                                                                                                                                                      MPN: 14326050
                                                                                                                                                      PLUG
                                                                                                                                                      from £1.01
                                                                                                                                                      from £1.01
                                                                                                                                                      # 029
                                                                                                                                                      MPN: 16183021
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 030
                                                                                                                                                      MPN: 115376
                                                                                                                                                      BUSHING
                                                                                                                                                      from £29.70
                                                                                                                                                      from £29.70
                                                                                                                                                      # 032
                                                                                                                                                      MPN: 10282460
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 033
                                                                                                                                                      MPN: 16100814
                                                                                                                                                      NUT
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                                                                      # 034
                                                                                                                                                      MPN: 12601374
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                                      # 035
                                                                                                                                                      MPN: 143939
                                                                                                                                                      OIL FILTER ON THE GEAR BOX
                                                                                                                                                      from £49.16
                                                                                                                                                      from £49.16
                                                                                                                                                      # 036
                                                                                                                                                      MPN: 14496324
                                                                                                                                                      WASHER
                                                                                                                                                      from £1.43
                                                                                                                                                      from £1.43
                                                                                                                                                      This part replaces part number 14496301
                                                                                                                                                      # 037
                                                                                                                                                      MPN: 169180
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12574121
                                                                                                                                                      # 038
                                                                                                                                                      MPN: 147278
                                                                                                                                                      O.R. GASKET
                                                                                                                                                      from £0.94
                                                                                                                                                      from £0.94
                                                                                                                                                      # 039
                                                                                                                                                      MPN: 162321
                                                                                                                                                      OIL DELIVERY TUBE
                                                                                                                                                      from £36.38
                                                                                                                                                      from £36.38
                                                                                                                                                      # 040
                                                                                                                                                      MPN: 162322
                                                                                                                                                      OIL RETURN TUBE
                                                                                                                                                      from £46.37
                                                                                                                                                      from £46.37
                                                                                                                                                      # 041
                                                                                                                                                      MPN: 168107
                                                                                                                                                      GEARBOX REAR COVER
                                                                                                                                                      from £171.84
                                                                                                                                                      from £171.84
                                                                                                                                                      This part replaces part number 143846 - and 1 more. Click to view details
                                                                                                                                                      # 042
                                                                                                                                                      MPN: 16100814
                                                                                                                                                      NUT
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                                                                      # 043
                                                                                                                                                      MPN: 12601374
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                                      # 044
                                                                                                                                                      MPN: 153500
                                                                                                                                                      EXTENSION FOR OIL EXHAUST
                                                                                                                                                      from £5.99
                                                                                                                                                      from £5.99
                                                                                                                                                      # 045
                                                                                                                                                      MPN: 13415400
                                                                                                                                                      OIL DEFLECTOR DISC FOR VENT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 046
                                                                                                                                                      MPN: 13414691
                                                                                                                                                      OIL BREATHER
                                                                                                                                                      from £5.68
                                                                                                                                                      from £5.68
                                                                                                                                                      # 047
                                                                                                                                                      MPN: 112254
                                                                                                                                                      THREADED INSERT
                                                                                                                                                      from £2.33
                                                                                                                                                      from £2.33
                                                                                                                                                      # 048
                                                                                                                                                      MPN: 10261860
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10279550 - and 1 more. Click to view details
                                                                                                                                                      # 049
                                                                                                                                                      MPN: 172478
                                                                                                                                                      PLUG
                                                                                                                                                      from £29.18
                                                                                                                                                      from £29.18
                                                                                                                                                      # 050
                                                                                                                                                      MPN: 169193
                                                                                                                                                      NUT
                                                                                                                                                      from £0.86
                                                                                                                                                      from £0.86
                                                                                                                                                      # 051
                                                                                                                                                      MPN: 10520224
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 10520221 which we have in stock
                                                                                                                                                      # 052
                                                                                                                                                      MPN: 172935
                                                                                                                                                      UPPER SPACER
                                                                                                                                                      from £5.59
                                                                                                                                                      from £5.59
                                                                                                                                                      # 053
                                                                                                                                                      MPN: 132269
                                                                                                                                                      LOWER SPACER
                                                                                                                                                      from £32.09
                                                                                                                                                      from £32.09
                                                                                                                                                      This part replaces part number 154997
                                                                                                                                                      # 054
                                                                                                                                                      MPN: 169492
                                                                                                                                                      WICK BODY
                                                                                                                                                      from £33.04
                                                                                                                                                      from £33.04
                                                                                                                                                      # 055
                                                                                                                                                      MPN: 15970634
                                                                                                                                                      SCREW
                                                                                                                                                      from £1.58
                                                                                                                                                      from £1.58
                                                                                                                                                      # 056
                                                                                                                                                      MPN: 133988
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                                                                      # 057
                                                                                                                                                      MPN: 127497
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                                      # 058
                                                                                                                                                      MPN: 156458
                                                                                                                                                      SCREW
                                                                                                                                                      from £6.87
                                                                                                                                                      from £6.87
                                                                                                                                                      # 059
                                                                                                                                                      MPN: 10261060
                                                                                                                                                      GASKET
                                                                                                                                                      from £0.48
                                                                                                                                                      from £0.48
                                                                                                                                                      # 060
                                                                                                                                                      MPN: 132559
                                                                                                                                                      UNION
                                                                                                                                                      from £41.20
                                                                                                                                                      from £41.20
                                                                                                                                                      # 061
                                                                                                                                                      MPN: 173862
                                                                                                                                                      OIL DELIVERY TUBE TO RADIATOR
                                                                                                                                                      from £305.33
                                                                                                                                                      from £305.33
                                                                                                                                                      This part replaces part number 172323 - and 1 more. Click to view details
                                                                                                                                                      # 062
                                                                                                                                                      MPN: 173863
                                                                                                                                                      OIL RETURN TUBE FROM RADIATOR
                                                                                                                                                      from £371.13
                                                                                                                                                      from £371.13
                                                                                                                                                      This part replaces part number 172324 - and 1 more. Click to view details
                                                                                                                                                      # 063
                                                                                                                                                      MPN: 103549
                                                                                                                                                      CABLE GROMMET
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      # 064
                                                                                                                                                      MPN: 149707
                                                                                                                                                      SPACER
                                                                                                                                                      from £0.64
                                                                                                                                                      from £0.64
                                                                                                                                                      # 065
                                                                                                                                                      MPN: 168744
                                                                                                                                                      OIL RADIATOR
                                                                                                                                                      from £178.05
                                                                                                                                                      from £178.05
                                                                                                                                                      # 066
                                                                                                                                                      MPN: 12643724
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                                      # 067
                                                                                                                                                      MPN: 10902521
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.71
                                                                                                                                                      from £0.71
                                                                                                                                                      # 068
                                                                                                                                                      MPN: 142060
                                                                                                                                                      BRACKET
                                                                                                                                                      from £3.42
                                                                                                                                                      from £3.42
                                                                                                                                                      # 069
                                                                                                                                                      MPN: 10441290
                                                                                                                                                      BRACKET WITH SHEATH
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      # 070
                                                                                                                                                      MPN: 10902124
                                                                                                                                                      SCREW
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                                                      # 071
                                                                                                                                                      MPN: 127494
                                                                                                                                                      WASHER
                                                                                                                                                      (minimum order quantity = 20)
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                                                      # 072
                                                                                                                                                      MPN: 169464
                                                                                                                                                      FRONT BRACKET
                                                                                                                                                      from £10.09
                                                                                                                                                      from £10.09
                                                                                                                                                      # 073
                                                                                                                                                      MPN: 138478
                                                                                                                                                      CLAMP
                                                                                                                                                      from £2.66
                                                                                                                                                      from £2.66
                                                                                                                                                      # 074
                                                                                                                                                      MPN: 102948
                                                                                                                                                      NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
                                                                                                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 61712500
                                                                                                                                                      BRACKET WITH SHEATH
                                                                                                                                                      from £0.88
                                                                                                                                                      from £0.88
                                                                                                                                                      # 076
                                                                                                                                                      MPN: 127494
                                                                                                                                                      WASHER
                                                                                                                                                      (minimum order quantity = 20)
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                                                      # 077
                                                                                                                                                      MPN: 140728
                                                                                                                                                      FIXING CLIP
                                                                                                                                                      from £0.47
                                                                                                                                                      from £0.47
