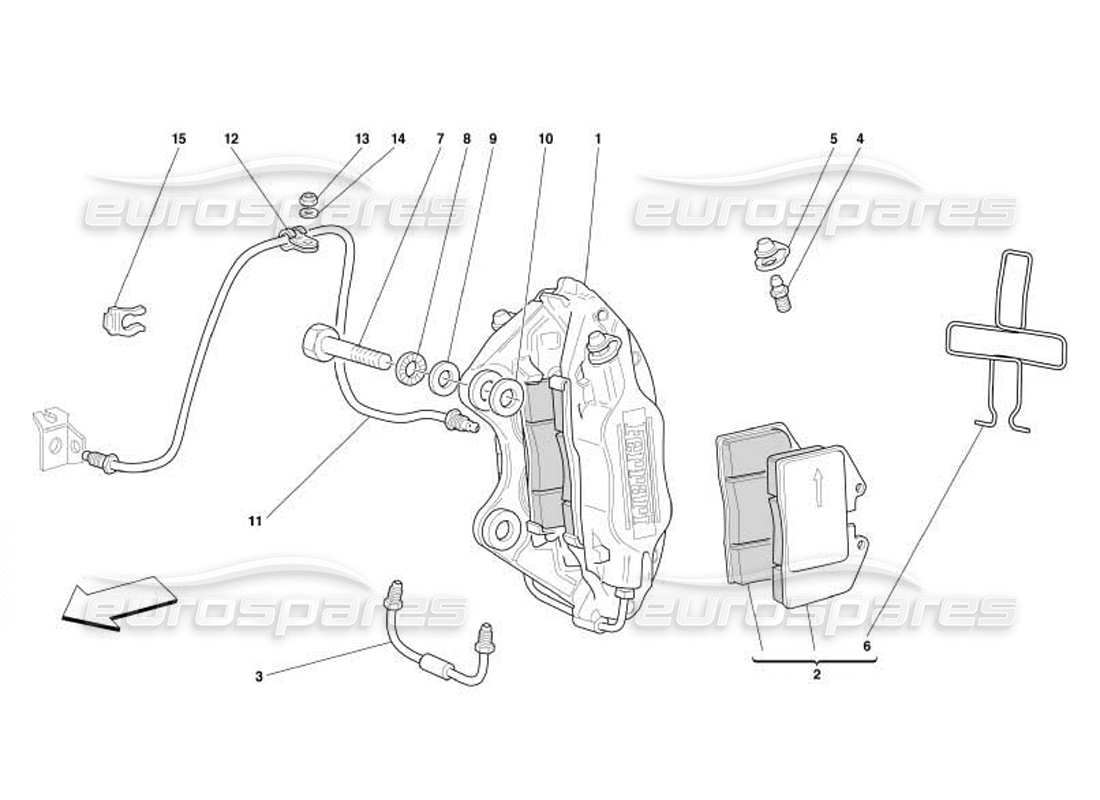

043 - Caliper for Rear Brake
Ferrari 550 Barchetta Caliper for Rear Brake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165708
RH REAR CALIPER UNIT WITH PADS
Not for cars with handling Fiorano equipment
from £492.09
from £492.09
# 001
MPN: 165709
LH REAR CALIPER UNIT WITH PADS
Not for cars with handling Fiorano equipment
from £624.75
from £624.75
# 001
MPN: 175549
RH REAR CALIPER UNIT WITH PADS
Red - Not for cars with handling Fiorano equipment
from £786.83
from £786.83
# 001
MPN: 175550
LH REAR CALIPER UNIT WITH PADS
Red - Not for cars with handling Fiorano equipment
from £1,032.60
from £1,032.60
# 001
MPN: 175553
RH REAR CALIPER UNIT WITH PADS
Gold - Not for cars with handling Fiorano equipment
from £1,163.97
from £1,163.97
# 001
MPN: 175554
LH REAR CALIPER UNIT WITH PADS
Gold - Not for cars with handling Fiorano equipment
from £1,163.97
from £1,163.97
# 001
MPN: 175941
RH REAR CALIPER UNIT WITH PADS
Red - Valid for cars with handling Fiorano equipment - Optional
from £982.40
from £982.40
# 001
MPN: 175942
LH REAR CALIPER UNIT WITH PADS
Red - Valid for cars with handling Fiorano equipment - Optional
from £982.40
from £982.40
# 001
MPN: 176316
RH REAR CALIPER UNIT WITH PADS
Grey - Not for cars with handling Fiorano equipment
from £886.92
from £886.92
# 001
MPN: 176317
LH REAR CALIPER UNIT WITH PADS
Grey - Not for cars with handling Fiorano equipment
from £886.92
from £886.92
# 001
MPN: 186230

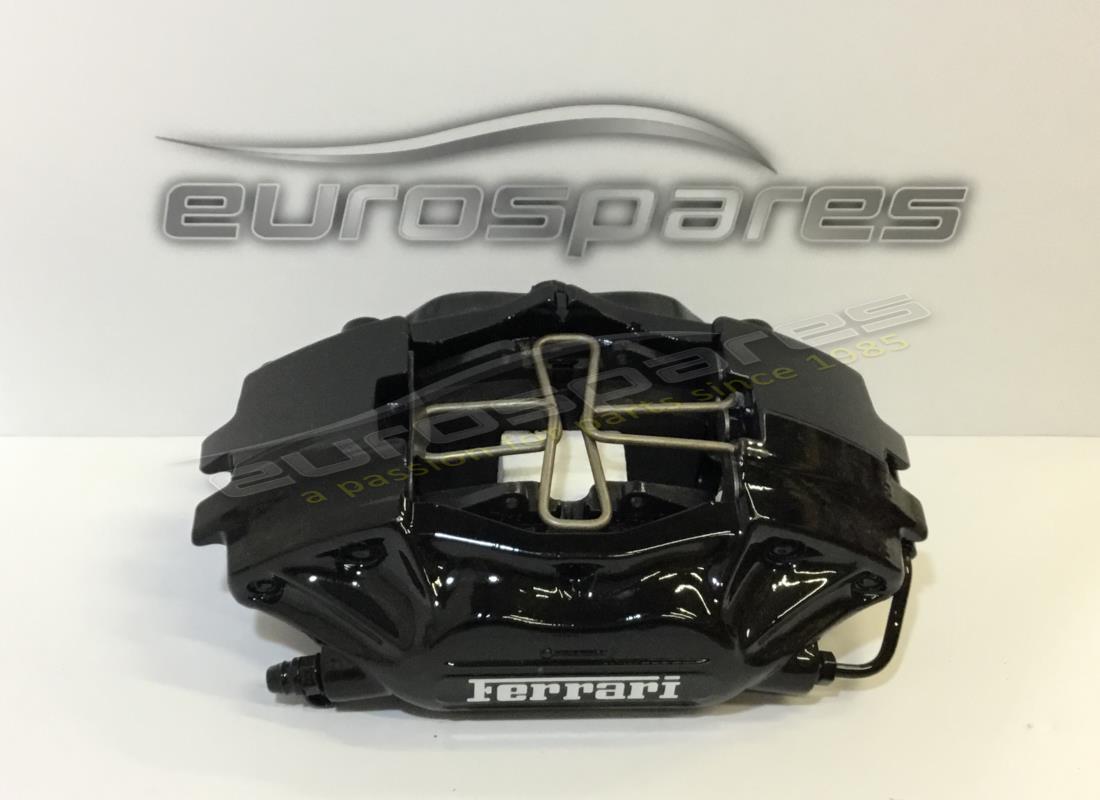

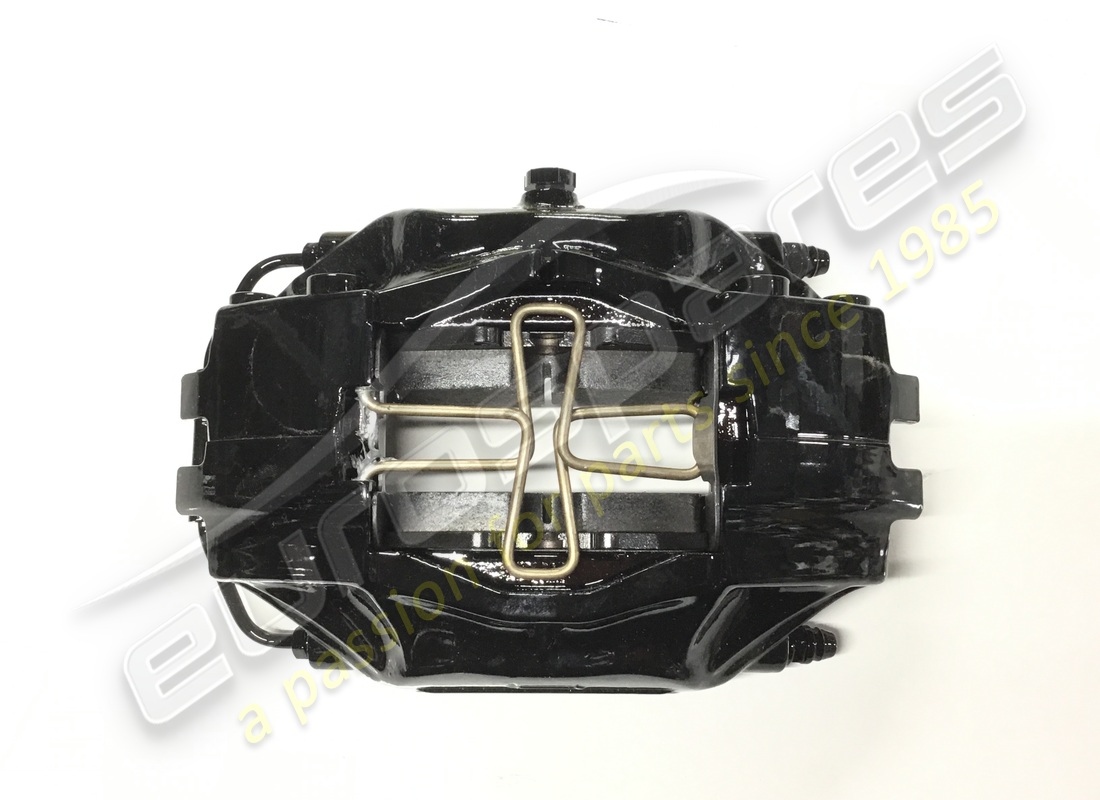

RH REAR CALIPER UNIT WITH PADS
Black - Valid for cars with handling Fiorano equipment - Optional
from £748.58
from £748.58
# 001
MPN: 186231
LH REAR CALIPER UNIT WITH PADS
Black - Valid for cars with handling Fiorano equipment - Optional
from £1,340.96
from £1,340.96
# 001
MPN: 186237
RH REAR CALIPER UNIT WITH PADS
Gold - Valid for cars with handling Fiorano equipment - Optional
# 001
MPN: 186238
LH REAR CALIPER UNIT WITH PADS
Gold - Valid for cars with handling Fiorano equipment - Optional
from £1,324.17
from £1,324.17
# 001
MPN: 186242
RH REAR CALIPER UNIT WITH PADS
Grey - Valid for cars with handling Fiorano equipment - Optional
from £748.58
from £748.58
# 001
MPN: 186243
LH REAR CALIPER UNIT WITH PADS
Grey - Valid for cars with handling Fiorano equipment - Optional
from £748.58
from £748.58
# 002
MPN: 70000886

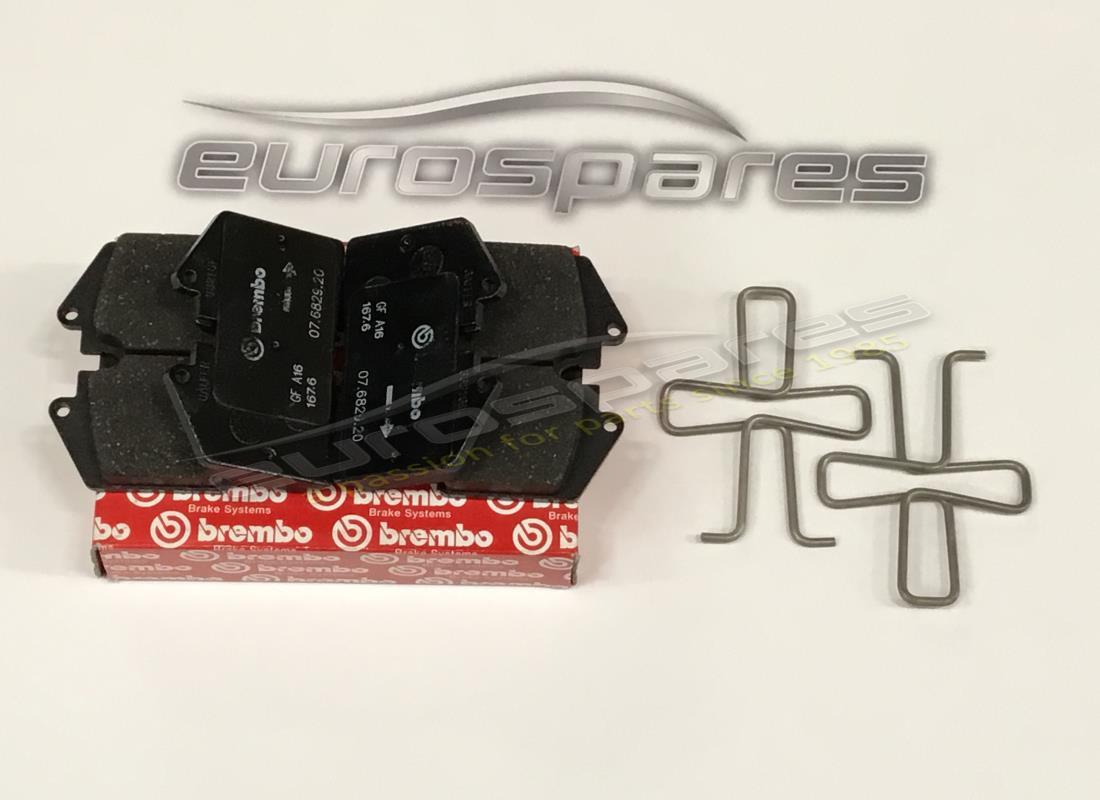

KIT OF REAR PADS WITH SPRING
Not for cars with handling Fiorano equipment
from £176.49
from £176.49
# 002
MPN: 70000925
KIT OF REAR PADS WITH SPRING
Not for cars with handling Fiorano equipment - PAGID type - On request
from £146.80
from £146.80
# 002
MPN: 70000953
KIT OF REAR PADS WITH SPRING
Valid for cars with handling Fiorano equipment - Optional
Supersession
Supersession
# 003
MPN: 152957
CONNECTION PIPE
from £17.65
from £17.65
# 004
MPN: 152954
UNION WITH EXHAUST VALVE
from £3.18
from £3.18
# 005
MPN: 152955
PROTECTION BOOT
from £2.95
from £2.95
# 006
MPN: 152956
SPRING
from £14.80
from £14.80
# 007
MPN: 174214
SCREW
from £1.30
from £1.30
This part replaces part number 132213 which we have in stock - and 3 more. Click to view details
# 008
MPN: 10615874
WASHER
from £0.47
from £0.47
This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
# 009
MPN: 106616
WASHER
Supersession
Supersession
# 010
MPN: 156260
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.2
from £0.73
from £0.73
This part replaces part number 108918
# 010
MPN: 156261
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.3
from £2.97
from £2.97
This part replaces part number 108919
# 010
MPN: 156262
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.5
from £0.64
from £0.64
This part replaces part number 108920
# 010
MPN: 156263
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.6
from £0.65
from £0.65
This part replaces part number 108921
# 010
MPN: 156264
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.7
from £0.68
from £0.68
This part replaces part number 108922
# 010
MPN: 156265
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.8
from £1.56
from £1.56
This part replaces part number 108923
# 010
MPN: 156266
THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 1.0
from £0.64
from £0.64
This part replaces part number 108924
# 011
MPN: 212530
PIPE TO RH REAR CALIPER
from £140.41
from £140.41
This part replaces part number 154048
# 011
MPN: 212531
PIPE TO LH REAR CALIPER
from £140.41
from £140.41
This part replaces part number 154049
# 012
MPN: 10440890
BRACKET WITH SHEATH
from £0.47
from £0.47
# 013
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 014
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 015
MPN: 116374
FIXING CLIP
from £1.17
from £1.17
