ferrari 550 barchetta front suspension - wishbones and stabilizer bar parts diagram

049 - Front Suspension - Wishbones and Stabilizer Bar

Ferrari 550 Barchetta Front Suspension - Wishbones and Stabilizer Bar Parts Diagram

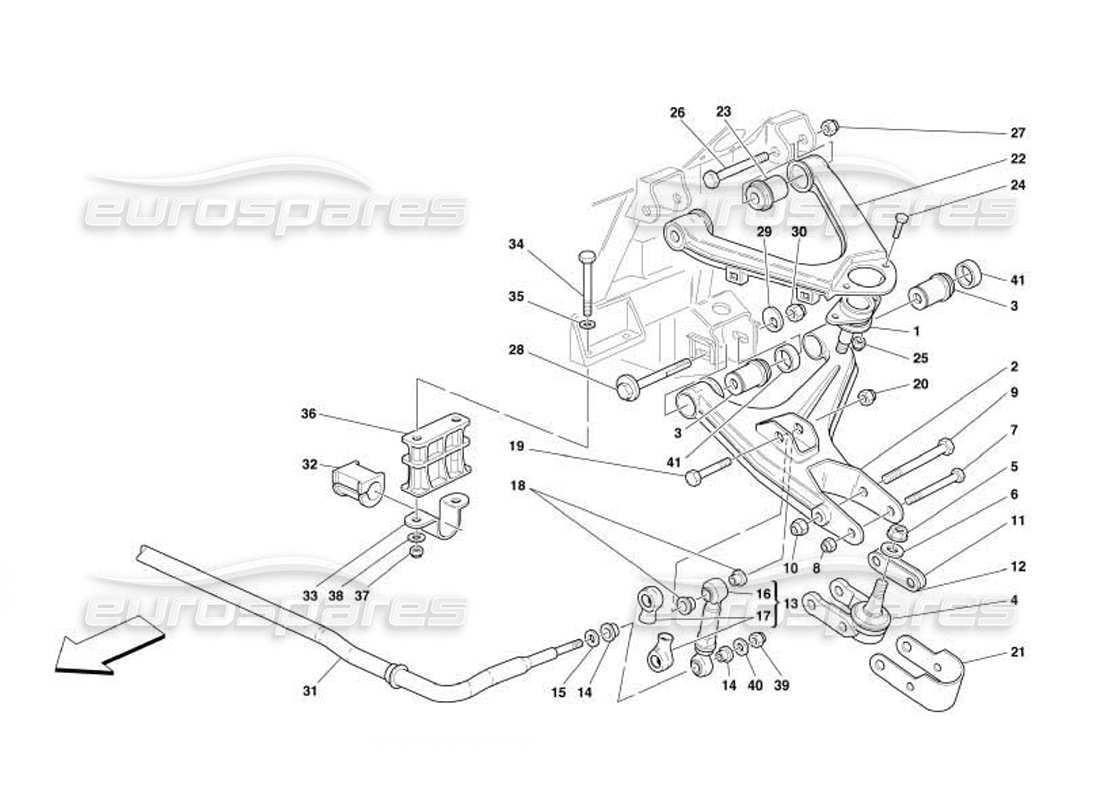

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 132776
                                                                            UPPER BALL JOINT
                                                                            from £53.17
                                                                            from £53.17
                                                                            # 002
                                                                            MPN: 168388
                                                                            RH LOWER LEVER
                                                                            from £210.61
                                                                            from £210.61
                                                                            This part replaces part number 154624 - and 4 more. Click to view details
                                                                            # 002
                                                                            MPN: 168727
                                                                            LH LOWER LEVER
                                                                            from £264.11
                                                                            from £264.11
                                                                            This part replaces part number 154623 - and 4 more. Click to view details
                                                                            # 003
                                                                            MPN: 169326
                                                                            FLAMBLOCK FOR LOWER FORK
                                                                            from £72.03
                                                                            from £72.03
                                                                            # 004
                                                                            MPN: 154396
                                                                            LOWER BALL JOINT
                                                                            from £50.00
                                                                            from £50.00
                                                                            # 005
                                                                            MPN: 149807
                                                                            NUT
                                                                            from £0.56
                                                                            from £0.56
                                                                            # 006
                                                                            MPN: 155002
                                                                            WASHER
                                                                            from £6.73
                                                                            from £6.73
                                                                            # 007
                                                                            MPN: 15971734
                                                                            SCREW
                                                                            from £0.63
                                                                            from £0.63
                                                                            This part replaces part number 151308
                                                                            # 008
                                                                            MPN: 104114
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15503711 - and 1 more. Click to view details
                                                                            # 009
                                                                            MPN: 153504
                                                                            SCREW
                                                                            from £6.26
                                                                            from £6.26
                                                                            # 010
                                                                            MPN: 102825
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95900617
                                                                            # 011
                                                                            MPN: 101022
                                                                            SETTING PLATE
                                                                            from £0.81
                                                                            from £0.81
                                                                            This part replaces part number 153963
                                                                            # 012
                                                                            MPN: 101022
                                                                            SETTING PLATE
                                                                            mm. 1.50 - Possible fitting
                                                                            from £0.81
                                                                            from £0.81
                                                                            This part replaces part number 153963
                                                                            # 012
                                                                            MPN: 115073
                                                                            SETTING PLATE
                                                                            mm. 1.20 - Possible fitting
                                                                            from £0.96
                                                                            from £0.96
                                                                            This part replaces part number 153964
                                                                            # 012
                                                                            MPN: 164484
                                                                            SETTING PLATE
                                                                            mm. 1.00 - Possible fitting
                                                                            from £18.94
                                                                            from £18.94
                                                                            # 012
                                                                            MPN: 164485
                                                                            SETTING PLATE
                                                                            mm. 2.00 - Possible fitting
                                                                            from £1.98
                                                                            from £1.98
                                                                            # 013
                                                                            MPN: 183711
                                                                            RH COMPLETE TIE ROD
                                                                            from £153.95
                                                                            from £153.95
                                                                            # 013
                                                                            MPN: 183712
                                                                            LH COMPLETE TIE ROD
                                                                            from £129.73
                                                                            from £129.73
                                                                            # 014
                                                                            MPN: 148773
                                                                            SPACER BUSHING
                                                                            from £5.33
                                                                            from £5.33
                                                                            # 015
                                                                            MPN: 149063
                                                                            WASHER
                                                                            from £1.09
                                                                            from £1.09
                                                                            # 016
                                                                            MPN: 183831
                                                                            RH BALL JOINT TIE ROD
                                                                            from £101.04
                                                                            from £101.04
                                                                            # 016
                                                                            MPN: 183832
                                                                            LH BALL JOINT TIE ROD
                                                                            from £101.04
                                                                            from £101.04
                                                                            # 017
                                                                            MPN: 148772
                                                                            PROTECTION
                                                                            from £7.73
                                                                            from £7.73
                                                                            # 018
                                                                            MPN: 148773
                                                                            SPACER
                                                                            from £5.33
                                                                            from £5.33
                                                                            # 019
                                                                            MPN: 15540921
                                                                            SCREW
                                                                            from £0.70
                                                                            from £0.70
                                                                            # 020
                                                                            MPN: 102825
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95900617
                                                                            # 021
                                                                            MPN: 157812
                                                                            BALL JOINT PROTECTION
                                                                            from £44.09
                                                                            from £44.09
                                                                            # 022
                                                                            MPN: 175800
                                                                            RH UPPER LEVER
                                                                            from £227.75
                                                                            from £227.75
                                                                            # 022
                                                                            MPN: 175801
                                                                            LH UPPER LEVER
                                                                            from £227.75
                                                                            from £227.75
                                                                            # 023
                                                                            MPN: 163038
                                                                            BUSHES
                                                                            from £38.54
                                                                            from £38.54
                                                                            This part replaces part number 157701
                                                                            # 024
                                                                            MPN: 16043624
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 106526 - and 1 more. Click to view details
                                                                            # 025
                                                                            MPN: 104030
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16104125
                                                                            # 026
                                                                            MPN: 106419
                                                                            SCREW
                                                                            from £10.77
                                                                            from £10.77
                                                                            This part replaces part number 100808 - and 9 more. Click to view details
                                                                            # 027
                                                                            MPN: 102825
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95900617
                                                                            # 028
                                                                            MPN: 150789
                                                                            ECCENTRIC SCREW
                                                                            from £14.79
                                                                            from £14.79
                                                                            # 029
                                                                            MPN: 175077
                                                                            ECCENTRIC WASHER
                                                                            from £7.33
                                                                            from £7.33
                                                                            This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                                                            # 030
                                                                            MPN: 150238
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12575821 - and 2 more. Click to view details
                                                                            # 031
                                                                            MPN: 163204
                                                                            FRONT ANTI-ROLL BAR -Ø 27
                                                                            from £556.99
                                                                            from £556.99
                                                                            # 032
                                                                            MPN: 208324
                                                                            BAR BUFFER
                                                                            Ø 27
                                                                            from £20.45
                                                                            from £20.45
                                                                            This part replaces part number 163212
                                                                            # 034
                                                                            MPN: 16045024
                                                                            SCREW
                                                                            (minimum order quantity = 10)
                                                                            from £0.48
                                                                            from £0.48
                                                                            This part replaces part number 125924 - and 1 more. Click to view details
                                                                            # 035
                                                                            MPN: 14496524
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 14496525 - and 1 more. Click to view details
                                                                            # 036
                                                                            MPN: 158048
                                                                            COMPLETE SPACER
                                                                            Valid till stock exhaustion
                                                                            from £47.56
                                                                            from £47.56
                                                                            This part replaces part number 157526 - and 3 more. Click to view details
                                                                            # 036
                                                                            MPN: 190282
                                                                            COMPLETE SPACER
                                                                            Valid after stock exhaustion of 158048
                                                                            from £9.62
                                                                            from £9.62
                                                                            This part replaces part number 158048 which we have in stock
                                                                            # 037
                                                                            MPN: 104030
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16104125
                                                                            # 038
                                                                            MPN: 14496524
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 14496525 - and 1 more. Click to view details
                                                                            # 039
                                                                            MPN: 102825
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95900617
                                                                            # 040
                                                                            MPN: 152249
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 041
                                                                            MPN: 187013
                                                                            SPACER
                                                                            from £2.55
                                                                            from £2.55
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
