ferrari 550 barchetta tools equipment and fixings parts diagram

057 - Tools Equipment and Fixings

Ferrari 550 Barchetta Tools Equipment and Fixings Parts Diagram

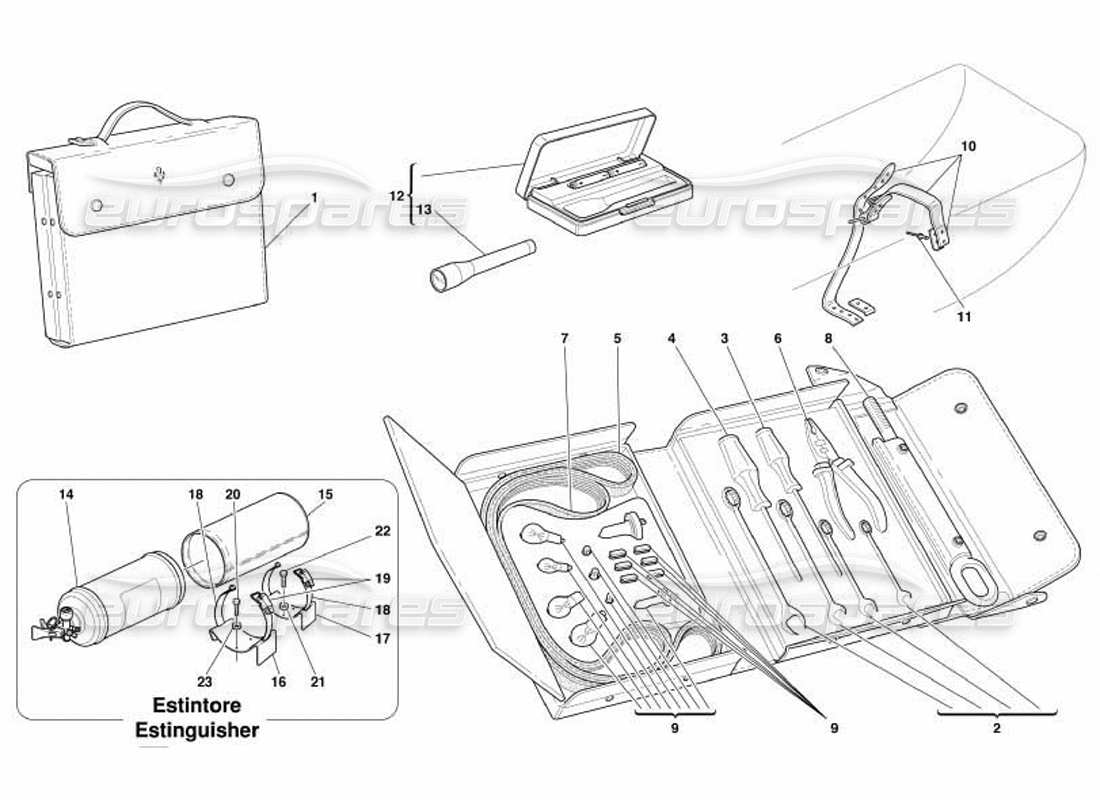

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 000
            MPN: 182313

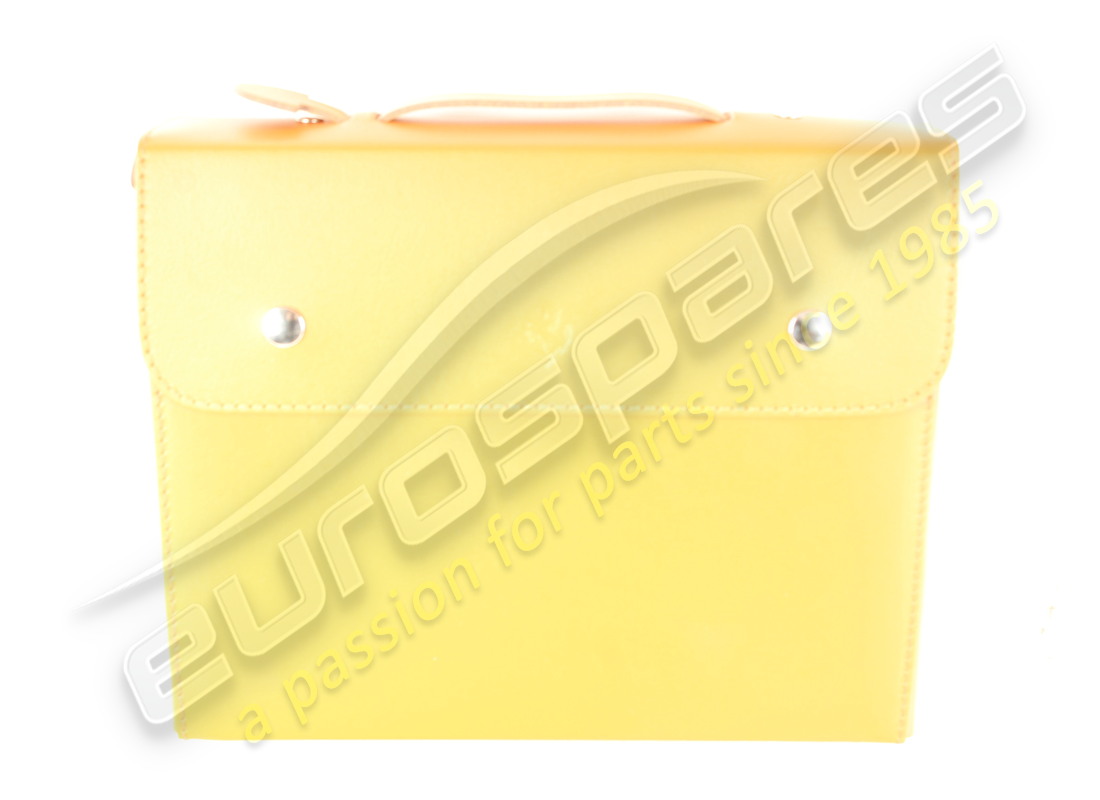

            COMPLETE TOOL KIT BAG
            from £491.33
            from £491.33
            # 000
            MPN: 182314
            COMPLETE TOOL KIT BAG
            Valid for USA and CDN
            from £538.78
            from £538.78
            # 000
            MPN: 190610
            COMPLETE TOOL KIT BAG
            Not for USA and CDN - As an alternative - See S.A.T. Technical Information
            from £241.89
            from £241.89
            # 002
            -
            WRENCH SET 8/17
            # 003
            -
            MM. 125 SCREWDRIVER FOR SLOT SCREW
            # 004
            -
            MM. 100 SCREWDRIVER FOR CROSS SLOT SCREW
            # 005
            MPN: 201444

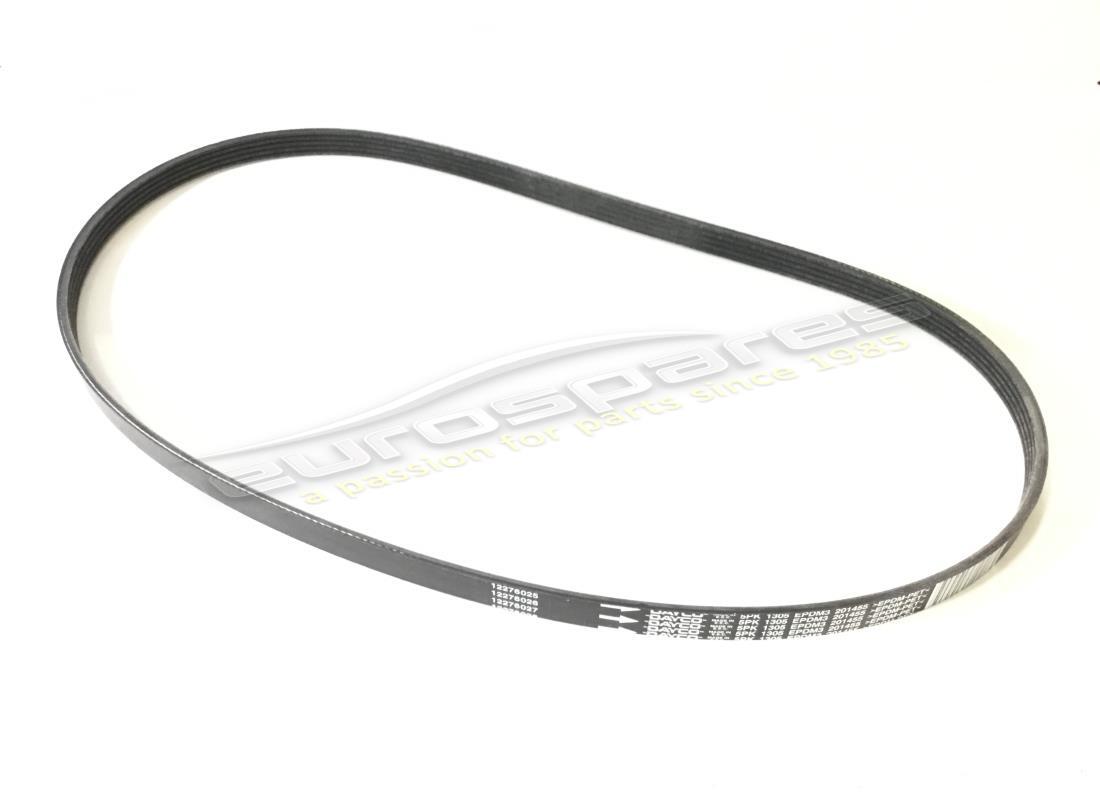

            BELT FOR ALTERNATOR AND COMPRESSOR
            See Tab. 54 Pos. 34
            from £11.58
            from £11.58
            This part replaces part number 171092
            # 006
            -
            MM. 160 CUTTING PLIERS
            # 007
            MPN: 177510
            BELT FOR HYDRAULIC SERVO-CONTROL PUMP
            See Tab. 47 Pos. 21
            Supersession
            Supersession
            # 007
            MPN: 201455
            POWER STEERING BELT
            Use on Exhaustion of 177510
            from £19.49
            from £19.49
            This part replaces part number 177510
            # 007
            MPN: 201456
            BELT FOR HYDRAULIC SERVO
            from £18.94
            from £18.94
            This part replaces part number 177511
            # 008
            MPN: 169395
            TOW HOOK
            from £108.28
            from £108.28
            # 009
            MPN: 101525
            BULB
            from £2.12
            from £2.12
            This part replaces part number 101528
            # 009
            MPN: 10857790
            BULB 12V-5W
            from £1.14
            from £1.14
            This part replaces part number 101524
            # 009
            MPN: 125240
            FUSE 7,5 AMP.
            from £0.47
            from £0.47
            This part replaces part number 11054890 - and 1 more. Click to view details
            # 009
            MPN: 125241
            FUSE 10 AMP.
            from £0.47
            from £0.47
            This part replaces part number 11054990 - and 1 more. Click to view details
            # 009
            MPN: 125242
            FUSE 15 AMP.
            from £0.47
            from £0.47
            This part replaces part number 11055090 - and 1 more. Click to view details
            # 009
            MPN: 125243
            FUSE 20 AMP.
            from £0.47
            from £0.47
            This part replaces part number 11055190 - and 1 more. Click to view details
            # 009
            MPN: 126031
            FUSE 25 AMP.
            from £0.47
            from £0.47
            This part replaces part number MC3742/5
            # 009
            MPN: 131941
            FUSE 30 AMP.
            from £0.47
            from £0.47
            This part replaces part number MC3742/6
            # 009
            MPN: 14142390
            BULB 12V-4W
            Not for USA and CDN
            from £1.05
            from £1.05
            # 009
            MPN: 14144190
            PARKING LIGHT 12V-5W BULB
            from £0.50
            from £0.50
            # 009
            MPN: 14144690
            BULB 12V-5/21W
            from £2.41
            from £2.41
            # 009
            MPN: 14145890
            BULB 12V FOR SIDE-MARKER
            Valid for USA and CDN
            from £0.47
            from £0.47
            # 009
            MPN: 14148190
            BULB 12V-21W
            from £2.03
            from £2.03
            # 009
            MPN: 14151095
            H1 12V-55W BULB
            from £8.03
            from £8.03
            # 009
            MPN: 152567
            ORANGE 12V -21W BULB
            Not for USA and CDN
            from £2.04
            from £2.04
            # 009
            MPN: 152568
            BIPOLAR ORANGE BULB
            Valid for USA and CDN
            from £1.36
            from £1.36
            # 009
            MPN: 169374
            H7 12V-55W BULB
            from £11.60
            from £11.60
            This part replaces part number 169407
            # 010
            MPN: 65123200
            BELT FOR TOOL BAG
            from £27.12
            from £27.12
            This part replaces part number 65122100
            # 011
            MPN: 61741600
            RIVET
            from £0.53
            from £0.53
            # 012
            MPN: 182261
            BOX COMPLETE EMERGENCY LIGHT
            from £72.60
            from £72.60
            This part replaces part number 142397
            # 013
            MPN: 180720
            EMERGENCY LIGHT
            from £1,372.50
            from £1,372.50
            # 014
            MPN: 65644700
            EXTINGUISHER
            optional
            from £452.90
            from £452.90
            # 015
            MPN: 656448..
            EXTINGUISHER BAG
            optional
            Supersession
            Supersession
            # 016
            MPN: 656536..
            FRONT COVERED BRACKET
            optional
            Supersession
            Supersession
            # 017
            MPN: 656537..
            REAR COVERED BRACKET
            optional
            Supersession
            Supersession
            # 018
            MPN: 659793..
            EXTINGUISHER FASTENER
            optional
            Supersession
            Supersession
            # 019
            MPN: 65930000
            HOOK
            optional
            from £37.38
            from £37.38
            # 020
            MPN: 15210624
            SCREW
            optional
            from £1.40
            from £1.40
            # 021
            MPN: 10519224
            WASHER
            optional
            from £0.47
            from £0.47
            This part replaces part number 10519201
            # 022
            MPN: 15211024
            SCREW
            optional
            from £1.49
            from £1.49
            # 023
            MPN: 10519224
            WASHER
            optional
            from £0.47
            from £0.47
            This part replaces part number 10519201
