101 - Frame and Stuctures

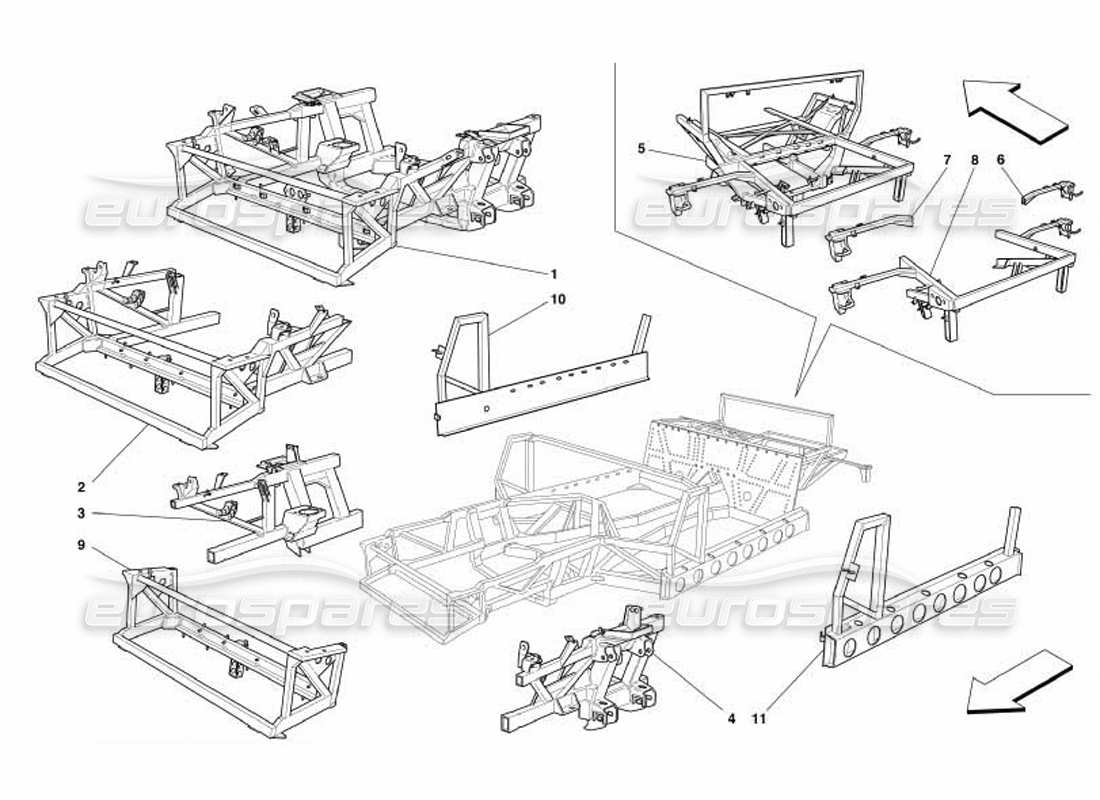

Ferrari 550 Barchetta Frame and Stuctures Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 70000151
                COMPLETE FRONT FRAME
                Not for GD
                # 001
                MPN: 70000153
                COMPLETE FRONT FRAME
                Valid for GD
                # 002
                MPN: 70000152
                COMPLETE FRONT HALF FRAME
                Not for GD
                from £6,181.82
                from £6,181.82
                # 002
                MPN: 70000154
                COMPLETE FRONT HALF FRAME
                Valid for GD
                # 003
                MPN: 70000161
                COMPLETE RH FRONT SIDE FRAME
                from £3,450.75
                from £3,450.75
                # 004
                MPN: 70000159
                COMPLETE LH FRONT SIDE FRAME
                from £3,150.15
                from £3,150.15
                # 005
                MPN: 70000165
                COMPLETE REAR FRAME
                Not for GD
                # 005
                MPN: 70000166
                COMPLETE REAR FRAME
                Valid for GD
                # 006
                MPN: 70000163
                RH CROSS MEMBER
                from £803.72
                from £803.72
                # 007
                MPN: 70000164
                LH CROSS MEMBER
                from £803.72
                from £803.72
                # 008
                MPN: 70000141
                Rear Frame
                from £773.22
                from £773.22
                # 009
                MPN: 70000174
                FRONT FRAME
                Not for GD
                from £2,808.74
                from £2,808.74
                # 009
                MPN: 70000175
                FRONT FRAME
                Valid for GD
