106 - REAR BUMPER

Ferrari 550 Barchetta Rear Bumper Parts Diagram

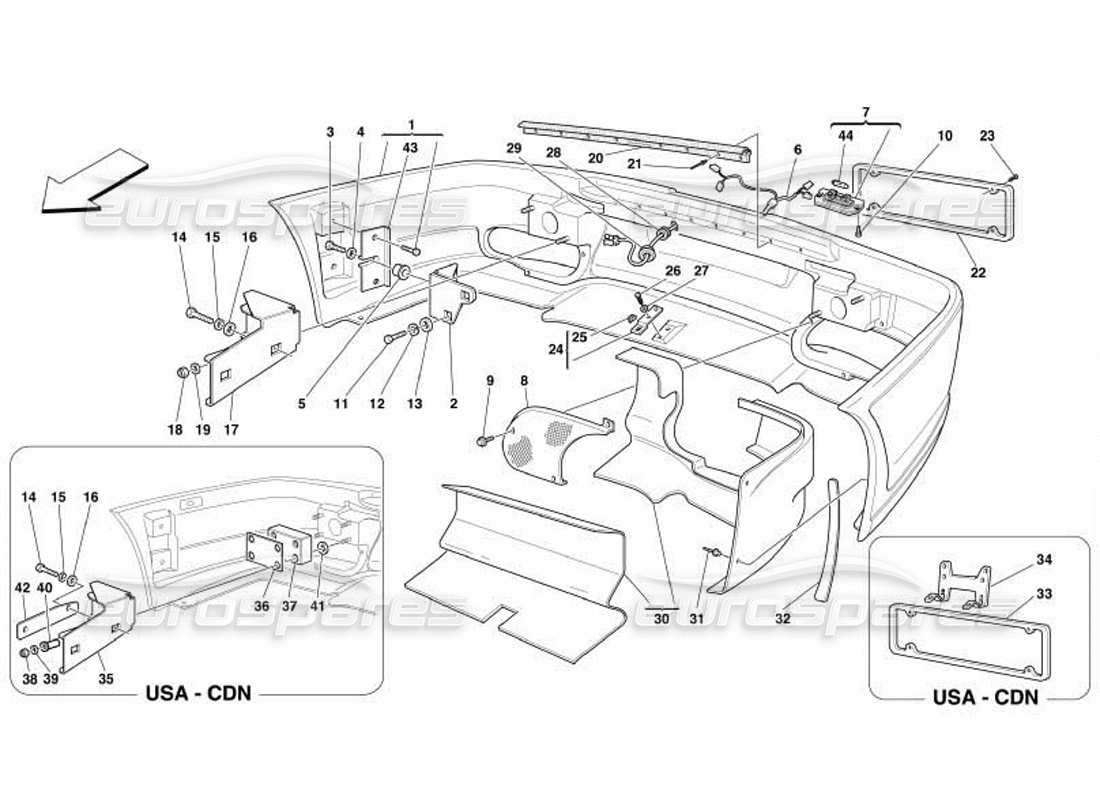

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 65027210
                                                      COMPLETE REAR BUMPER
                                                      Not for USA and CDN
                                                      from £4,590.75
                                                      from £4,590.75
                                                      # 001
                                                      MPN: 65185510
                                                      COMPLETE REAR BUMPER
                                                      Valid for USA
                                                      from £1,600.00
                                                      from £1,600.00
                                                      # 001
                                                      MPN: 65378310
                                                      COMPLETE REAR BUMPER
                                                      Valid for CDN
                                                      from £3,466.05
                                                      from £3,466.05
                                                      # 002
                                                      MPN: 65236000
                                                      LH BRACKET
                                                      from £19.94
                                                      from £19.94
                                                      # 002
                                                      MPN: 65236300
                                                      RH BRACKET
                                                      from £19.94
                                                      from £19.94
                                                      # 003
                                                      MPN: 65228800
                                                      PIN
                                                      from £4.09
                                                      from £4.09
                                                      # 004
                                                      MPN: 65406400
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 005
                                                      MPN: 65228700
                                                      BUSHING
                                                      from £3.48
                                                      from £3.48
                                                      # 008
                                                      MPN: 64717400
                                                      REAR BUMPER RH GRILL
                                                      from £62.07
                                                      from £62.07
                                                      # 008
                                                      MPN: 64717500
                                                      REAR BUMPER LH GRILL
                                                      from £62.07
                                                      from £62.07
                                                      # 009
                                                      MPN: 16285127
                                                      SCREW
                                                      (minimum order quantity = 10)
                                                      from £0.47
                                                      from £0.47
                                                      # 010
                                                      MPN: 15644175
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 15644178
                                                      # 011
                                                      MPN: 10902224
                                                      SCREW
                                                      from £0.51
                                                      from £0.51
                                                      # 012
                                                      MPN: 12601274
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                      # 013
                                                      MPN: 12643724
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                      # 014
                                                      MPN: 15540224
                                                      SCREW
                                                      from £0.71
                                                      from £0.71
                                                      # 015
                                                      MPN: 10615874
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                                                      # 016
                                                      MPN: 12646901
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 017
                                                      MPN: 65045300
                                                      RH BRACKET
                                                      Not for USA and CDN
                                                      from £75.45
                                                      from £75.45
                                                      # 017
                                                      MPN: 65045400
                                                      LH BRACKET
                                                      Not for USA and CDN
                                                      from £75.45
                                                      from £75.45
                                                      # 018
                                                      MPN: 104114
                                                      NUT
                                                      Not for USA and CDN
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 15503711 - and 1 more. Click to view details
                                                      # 019
                                                      MPN: 12646821
                                                      WASHER
                                                      Not for USA and CDN - (minimum order quantity = 30)
                                                      from £0.47
                                                      from £0.47
                                                      # 020
                                                      MPN: 65109300
                                                      BUMPER GASKET
                                                      from £14.77
                                                      from £14.77
                                                      # 021
                                                      MPN: 62556300
                                                      RIVET
                                                      from £0.71
                                                      from £0.71
                                                      # 022
                                                      MPN: 65252700
                                                      REAR NUMBER PLATE RIM
                                                      Not for USA and CDN
                                                      from £23.51
                                                      from £23.51
                                                      # 023
                                                      MPN: 15688075
                                                      SCREW
                                                      Not for USA and CDN
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                      # 024
                                                      MPN: 65118700
                                                      BRACKET
                                                      from £2.35
                                                      from £2.35
                                                      # 025
                                                      MPN: 60659100
                                                      NUT WITH CAGE
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                      # 026
                                                      MPN: 15687870
                                                      SCREW
                                                      from £1.18
                                                      from £1.18
                                                      This part replaces part number 15687801
                                                      # 027
                                                      MPN: 12637824
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12637801 - and 1 more. Click to view details
                                                      # 028
                                                      MPN: 10397480
                                                      CABLE GROMMET
                                                      from £1.86
                                                      from £1.86
                                                      # 029
                                                      MPN: 163163
                                                      CABLE BUSHING
                                                      from £1.68
                                                      from £1.68
                                                      # 030
                                                      MPN: 65366500
                                                      HEAT PROTECTION SERIES
                                                      Not for USA and CDN
                                                      from £1,106.45
                                                      from £1,106.45
                                                      # 030
                                                      MPN: 65366600
                                                      HEAT PROTECTION SERIES
                                                      Valid for USA and CDN
                                                      from £608.55
                                                      from £608.55
                                                      # 031
                                                      MPN: 14296196
                                                      RIVET
                                                      from £0.47
                                                      from £0.47
                                                      # 032
                                                      MPN: 65513800
                                                      LH PROTECTION
                                                      from £13.43
                                                      from £13.43
                                                      This part replaces part number 65363800
                                                      # 032
                                                      MPN: 65513900
                                                      RH PROTECTION
                                                      from £13.43
                                                      from £13.43
                                                      This part replaces part number 65363700
                                                      # 033
                                                      MPN: 60987900
                                                      REAR NUMBER PLATE RIM
                                                      Valid for USA and CDN
                                                      from £38.94
                                                      from £38.94
                                                      # 034
                                                      MPN: 64839300
                                                      REAR PLATE FRAME
                                                      Valid for USA and CDN
                                                      from £87.62
                                                      from £87.62
                                                      # 035
                                                      MPN: 64565000
                                                      RH BRACKET
                                                      Valid for USA and CDN
                                                      from £46.15
                                                      from £46.15
                                                      # 035
                                                      MPN: 64717600
                                                      LH BRACKET
                                                      Valid for USA and CDN
                                                      from £65.45
                                                      from £65.45
                                                      # 036
                                                      MPN: 63738800
                                                      PLATE
                                                      Valid for USA and CDN
                                                      from £1.11
                                                      from £1.11
                                                      # 037
                                                      MPN: 63214100
                                                      PAD
                                                      Valid for USA and CDN
                                                      from £14.48
                                                      from £14.48
                                                      # 038
                                                      MPN: 104114
                                                      NUT
                                                      Valid for USA and CDN
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 15503711 - and 1 more. Click to view details
                                                      # 039
                                                      MPN: 12646821
                                                      WASHER
                                                      Valid for USA and CDN - (minimum order quantity = 30)
                                                      from £0.47
                                                      from £0.47
                                                      # 040
                                                      MPN: 65372900
                                                      BUSHING
                                                      Valid for USA and CDN
                                                      from £1.96
                                                      from £1.96
                                                      # 041
                                                      MPN: 12646821
                                                      WASHER
                                                      Valid for USA and CDN - (minimum order quantity = 30)
                                                      from £0.47
                                                      from £0.47
                                                      # 042
                                                      MPN: 65280500
                                                      BUMPER FIXING PLATE
                                                      Valid for USA and CDN
                                                      from £9.60
                                                      from £9.60
                                                      # 043
                                                      MPN: 65270200
                                                      SLIDING SIDE BRACKET
                                                      from £125.26
                                                      from £125.26
                                                      # 044
                                                      MPN: 10857790
                                                      12V-5W BULB
                                                      from £1.14
                                                      from £1.14
                                                      This part replaces part number 101524
