109 - Passengers Compartment Insulations -Not for GD-

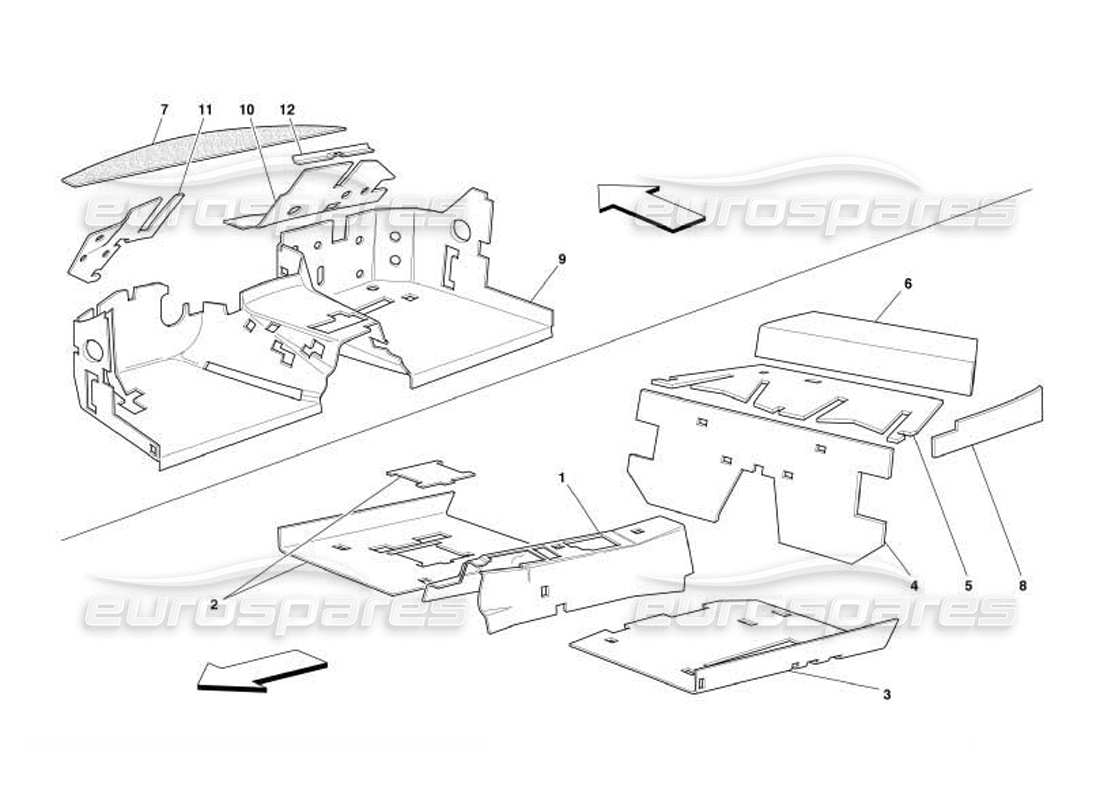

Ferrari 550 Barchetta Passengers Compartment Insulations -Not for GD- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
Part in stock
Available in a part set
Part supersession in stock
Available in a part set to order (subject to availability)
Part available to order (subject to availability)
Available in a part kit
                          Part number
                          # 001
                          MPN: 66489700
                          REAR INSULATION FOR TUNNEL
                          from £33.07
                          from £33.07
                          # 002
                          MPN: 64825400
                          RH REAR INSULATION FOR PLATFORM
                          from £70.48
                          from £70.48
                          # 003
                          MPN: 65197400
                          LH REAR INSULATION FOR PLATFORM
                          from £108.84
                          from £108.84
                          # 004
                          MPN: 66624700
                          INSULATION FOR BACK SEAT
                          from £160.36
                          from £160.36
                          # 005
                          MPN: 66355100
                          EMERGENCY ROOF LOWER INSULATION
                          from £114.00
                          from £114.00
                          # 006
                          MPN: 66355000
                          EMERGENCY ROOF UPPER INSULATION
                          from £99.37
                          from £99.37
                          # 007
                          MPN: 62765800
                          from £0.69
                          from £0.69
                          # 008
                          MPN: 66341100
                          from £121.88
                          from £121.88
                          # 009
                          MPN: 66076500
                          PLATFORM FRONT INSULATION
                          from £466.68
                          from £466.68
                          # 010
                          MPN: 64824900
                          UPPER RH INSULATION
                          from £48.12
                          from £48.12
                          # 011
                          MPN: 64825000
                          UPPER LH INSULATION
                          from £43.03
                          from £43.03
                          # 012
                          MPN: 65366000
                          ANGLE PIECE FOR INSULATION
                          from £8.89
                          from £8.89
