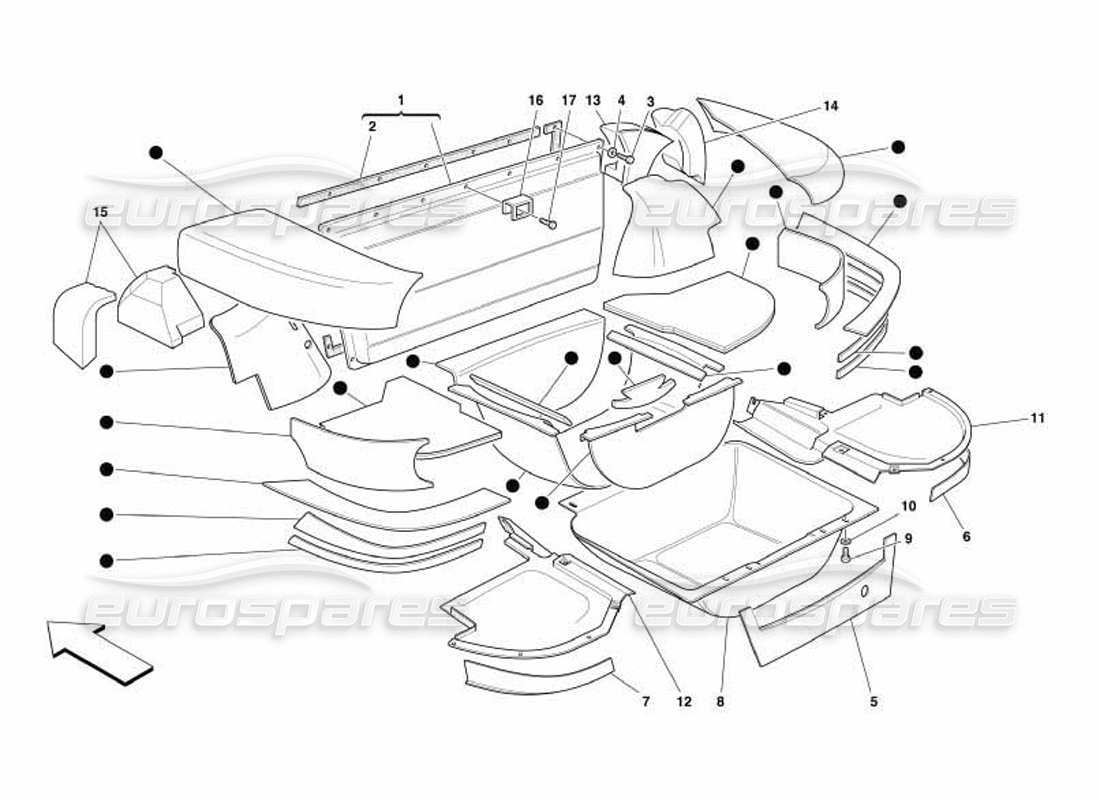

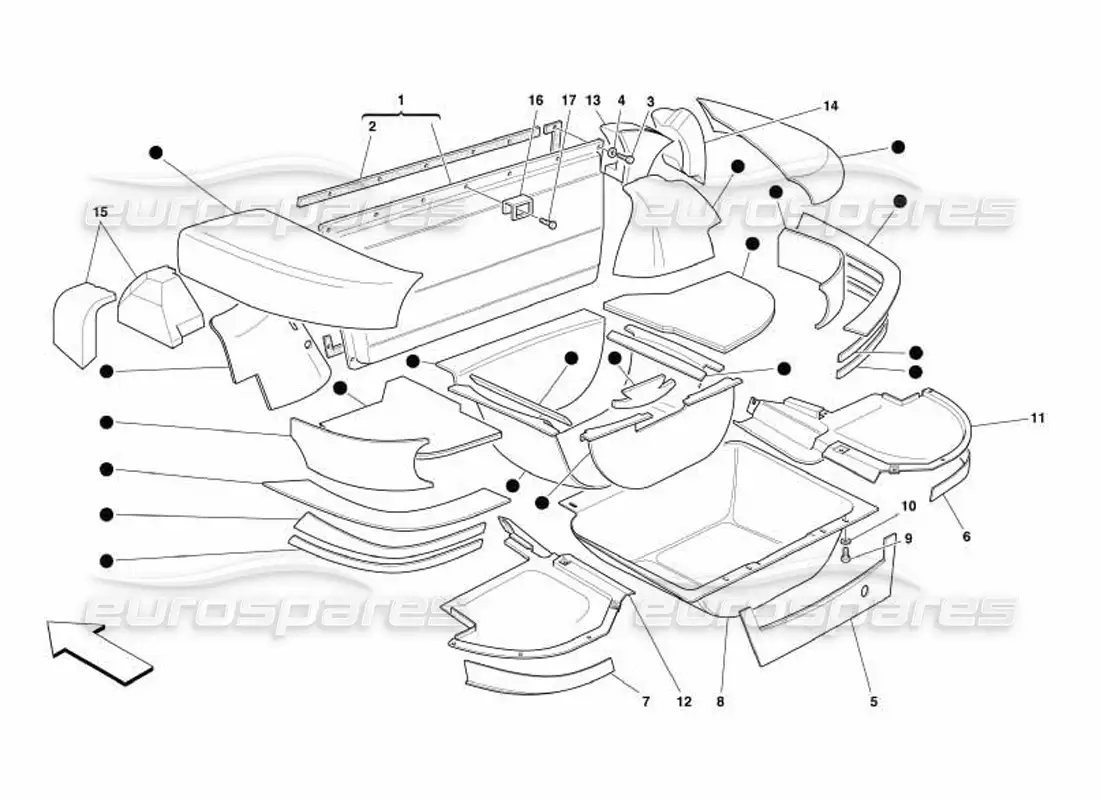

111 - Boot Insulation

Ferrari 550 Barchetta Boot Insulation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

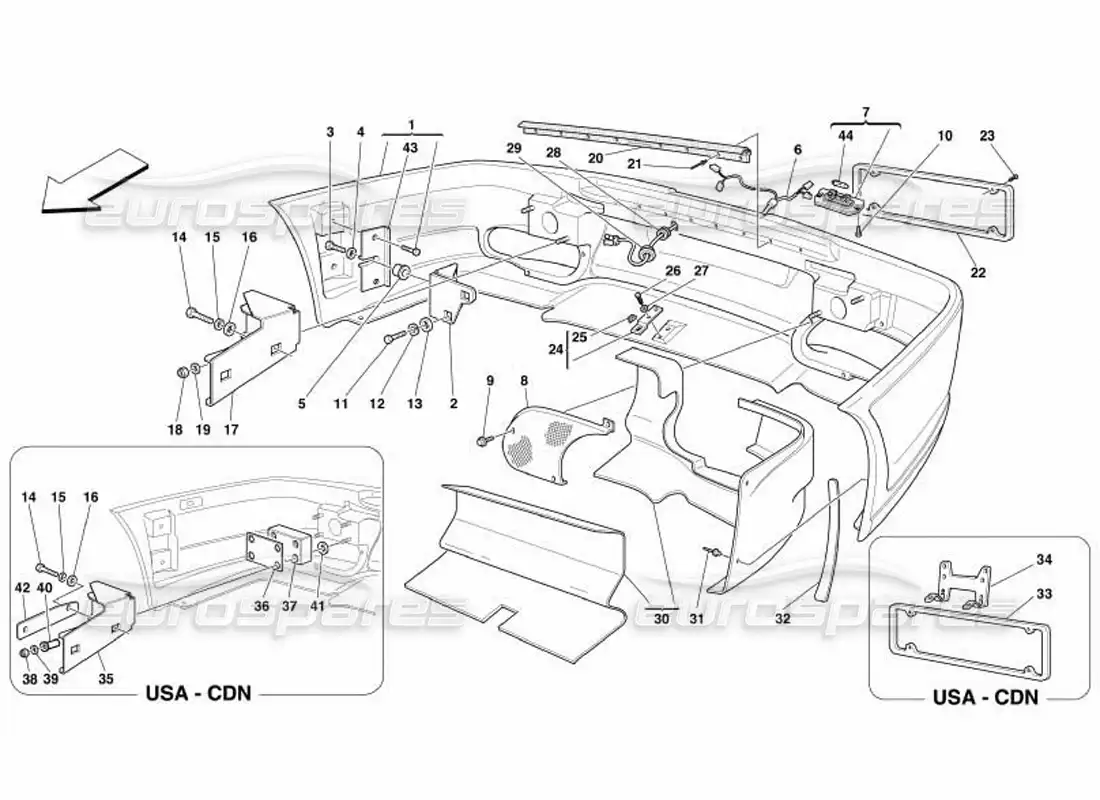

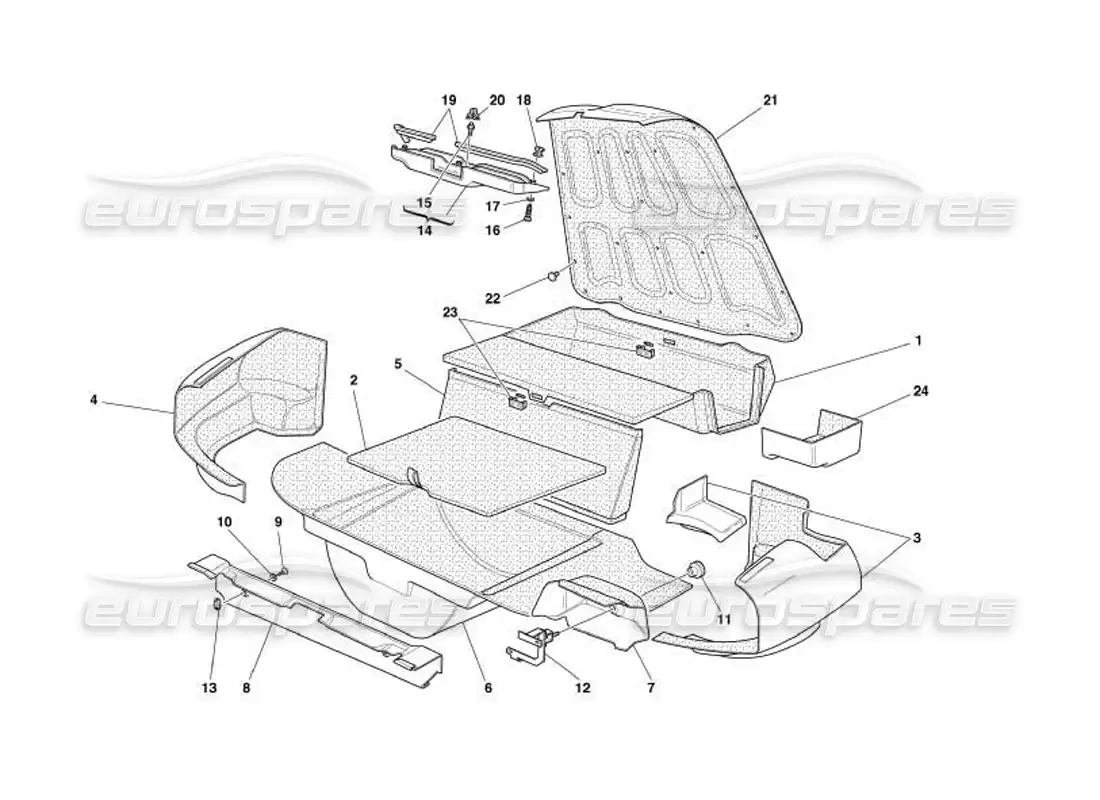

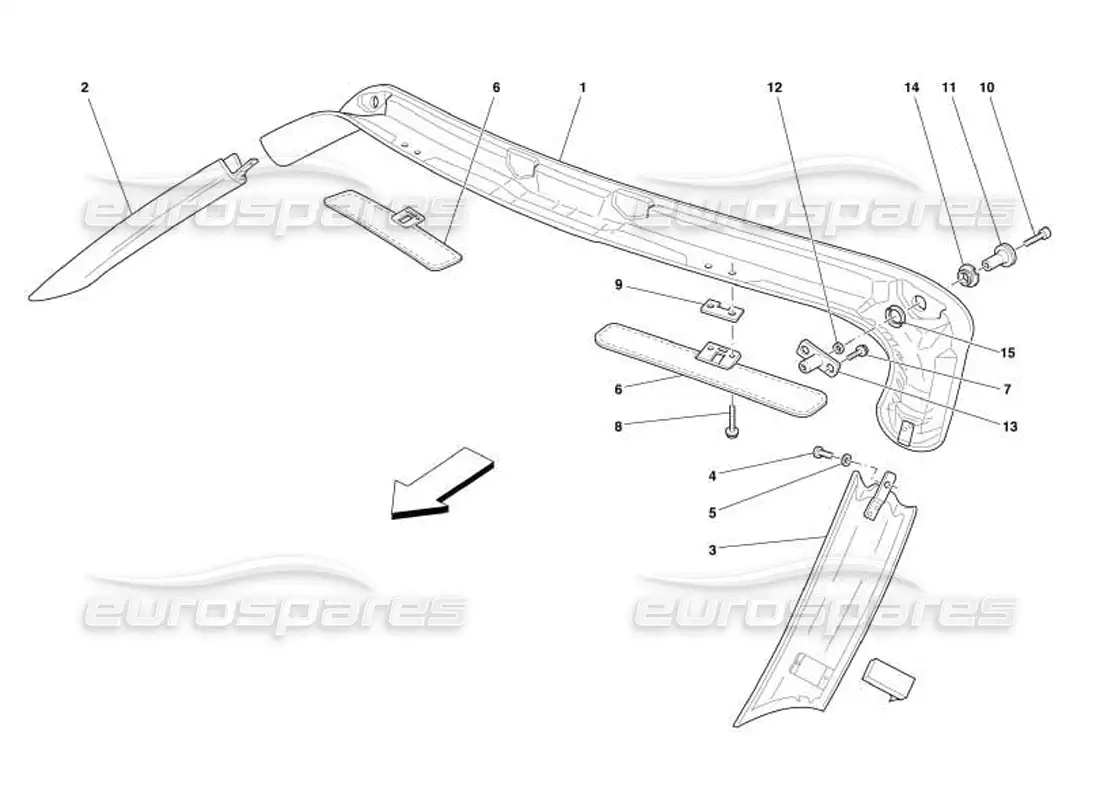

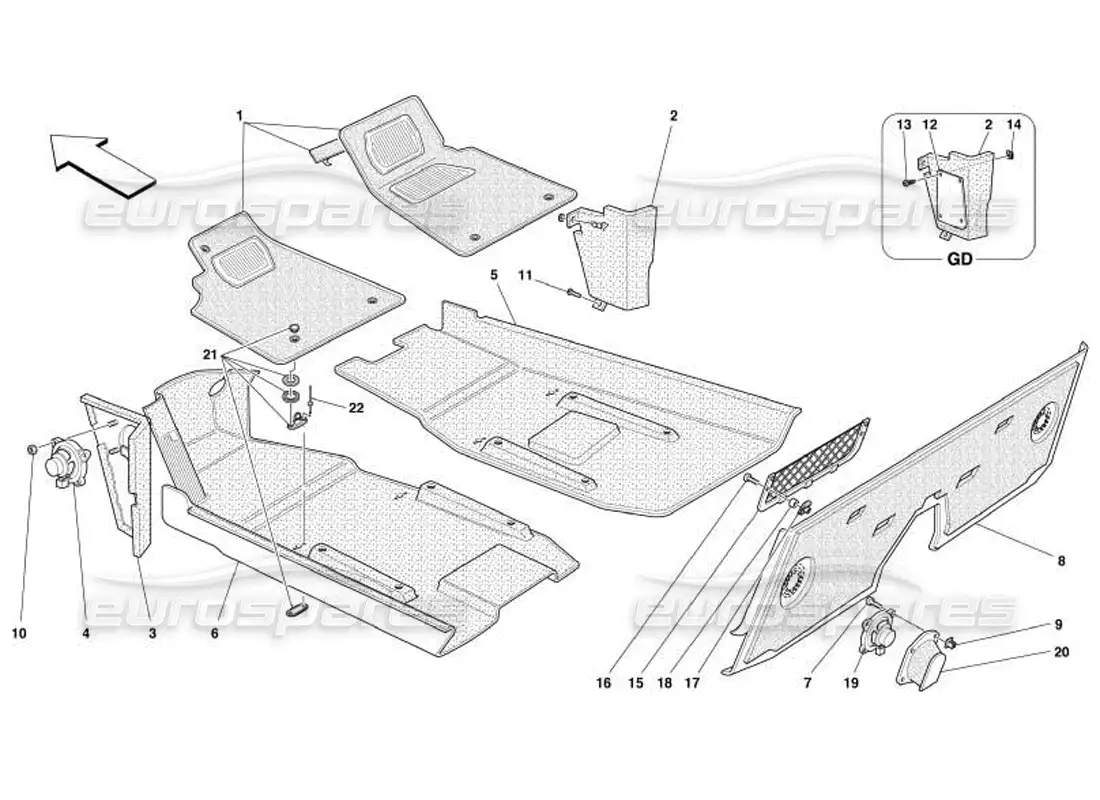

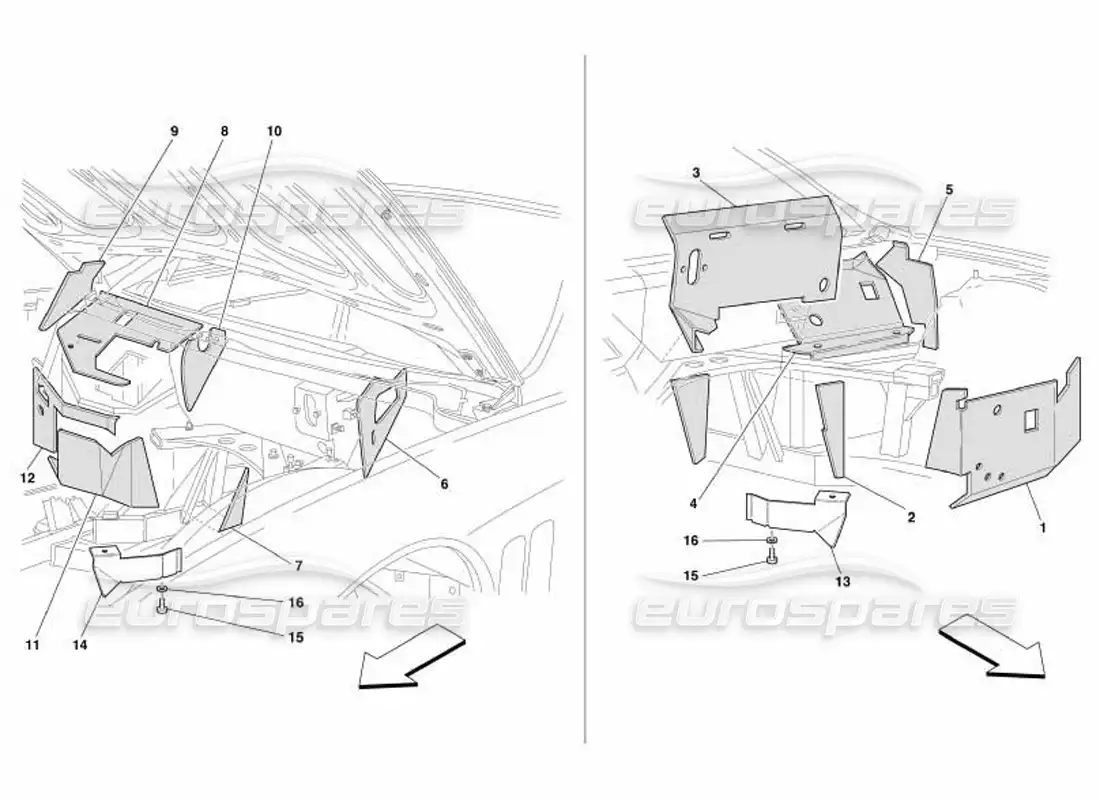

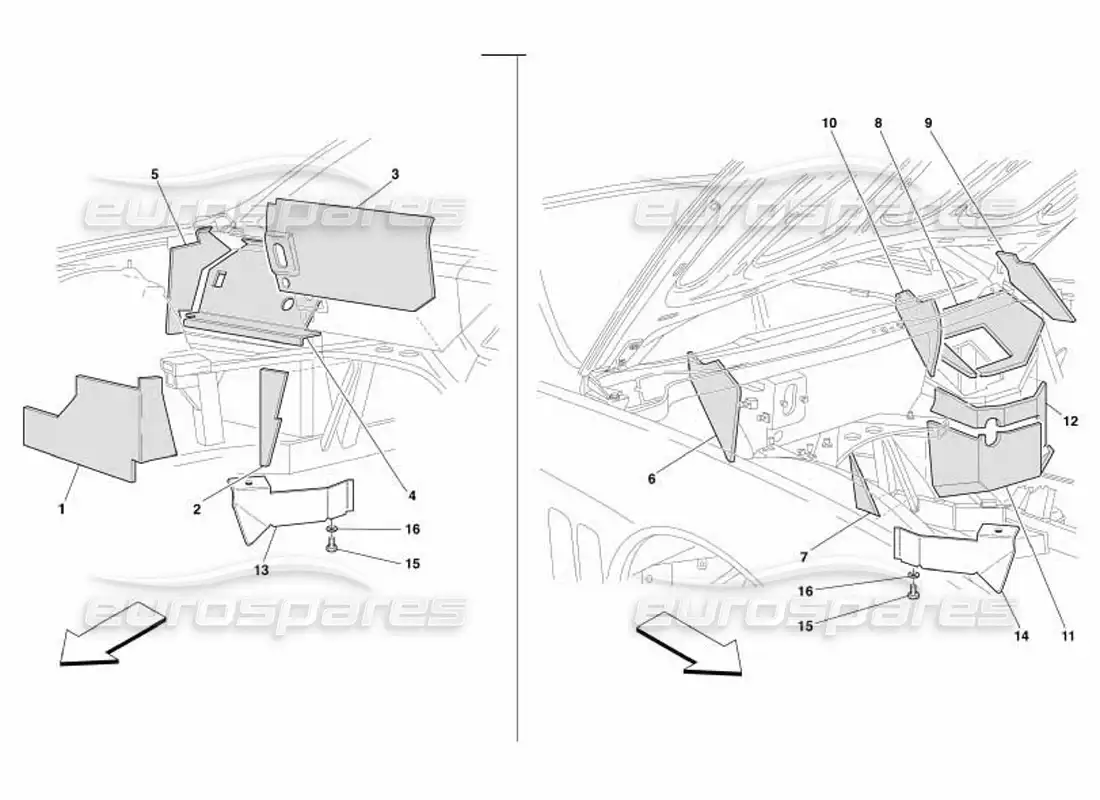

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 000
                                    MPN: 1001361
                                    INSULATIONS SERIES FOR TRUNK COMPARTMENT
                                    Not for USA and CDN
                                    from £596.94
                                    from £596.94
                                    # 000
                                    MPN: 1001614
                                    INSULATIONS SERIES FOR TRUNK COMPARTMENT
                                    Valid for USA and CDN
                                    # 001
                                    MPN: 64554800
                                    COMPLETE TANK SHIELD
                                    from £98.94
                                    from £98.94
                                    # 002
                                    MPN: 64569700
                                    GASKET
                                    from £36.83
                                    from £36.83
                                    # 003
                                    MPN: 10902611
                                    SCREW
                                    Supersession
                                    Supersession
                                    # 004
                                    MPN: 12647624
                                    WASHER
                                    from £0.49
                                    from £0.49
                                    This part replaces part number 12647611
                                    # 005
                                    MPN: 65089700
                                    REAR CENTRAL INSULATION
                                    from £299.31
                                    from £299.31
                                    # 006
                                    MPN: 65089900
                                    RH REAR INSULATION
                                    from £142.88
                                    from £142.88
                                    # 007
                                    MPN: 65089800
                                    LH REAR INSULATION
                                    from £462.47
                                    from £462.47
                                    # 008
                                    MPN: 64991100
                                    HEAT SHIELD FOR SPARE WHEEL COMPARTMENT
                                    from £493.81
                                    from £493.81
                                    # 009
                                    MPN: 10902224
                                    SCREW
                                    from £0.48
                                    from £0.48
                                    # 010
                                    MPN: 12035674
                                    WASHER
                                    from £0.71
                                    from £0.71
                                    # 011
                                    MPN: 64916400
                                    RH HEAT SHIELD
                                    from £263.80
                                    from £263.80
                                    # 012
                                    MPN: 64916600
                                    LH HEAT SHIELD
                                    from £185.94
                                    from £185.94
                                    # 013
                                    MPN: 65771000
                                    RH WHEELHOUSE INNER INSULATION
                                    from £11.16
                                    from £11.16
                                    # 014
                                    MPN: 65771100
                                    RH WHEELHOUSE OUTER INSULATION
                                    from £10.62
                                    from £10.62
                                    # 015
                                    MPN: 65771200
                                    LH WHEELHOUSE INSULATION
                                    from £15.86
                                    from £15.86
                                    # 016
                                    MPN: 66713600
                                    BRACKET FOR ROOF LIGHT
                                    from £7.72
                                    from £7.72
                                    # 017
                                    MPN: 10902611
                                    SCREW
                                    Supersession
                                    Supersession
