116 - Boot Door and Petrol Cover

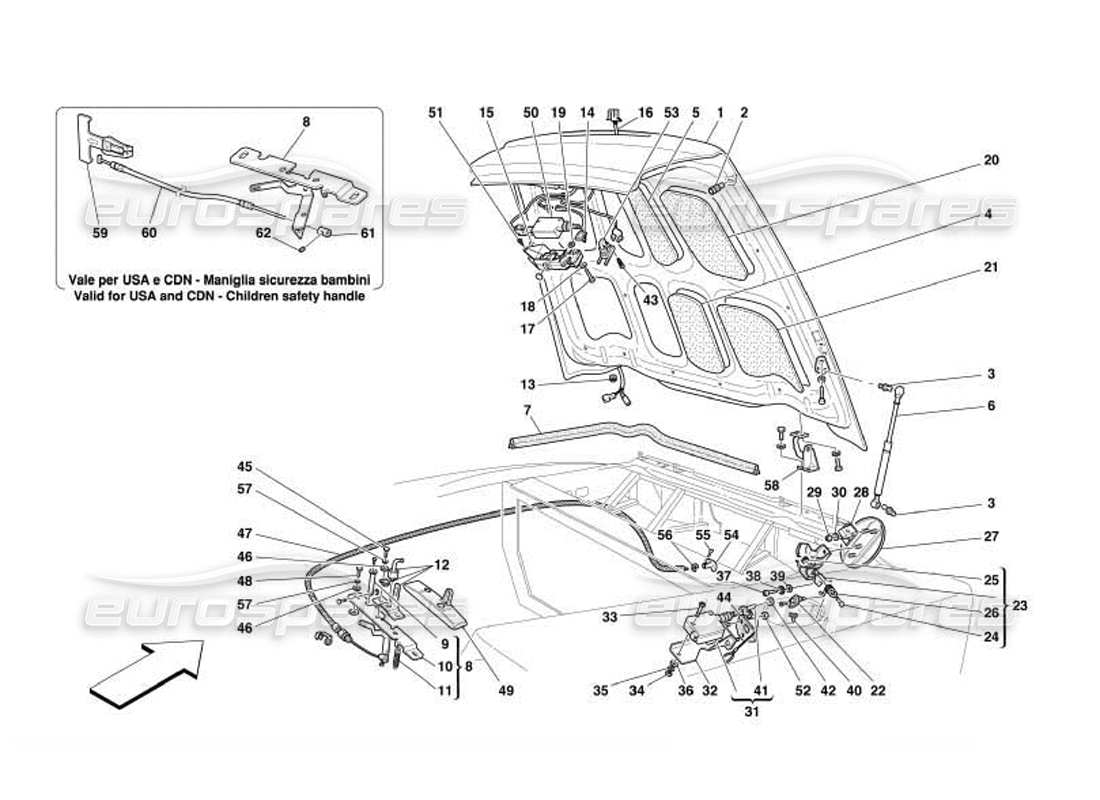

Ferrari 550 Barchetta Boot Door and Petrol Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66358000

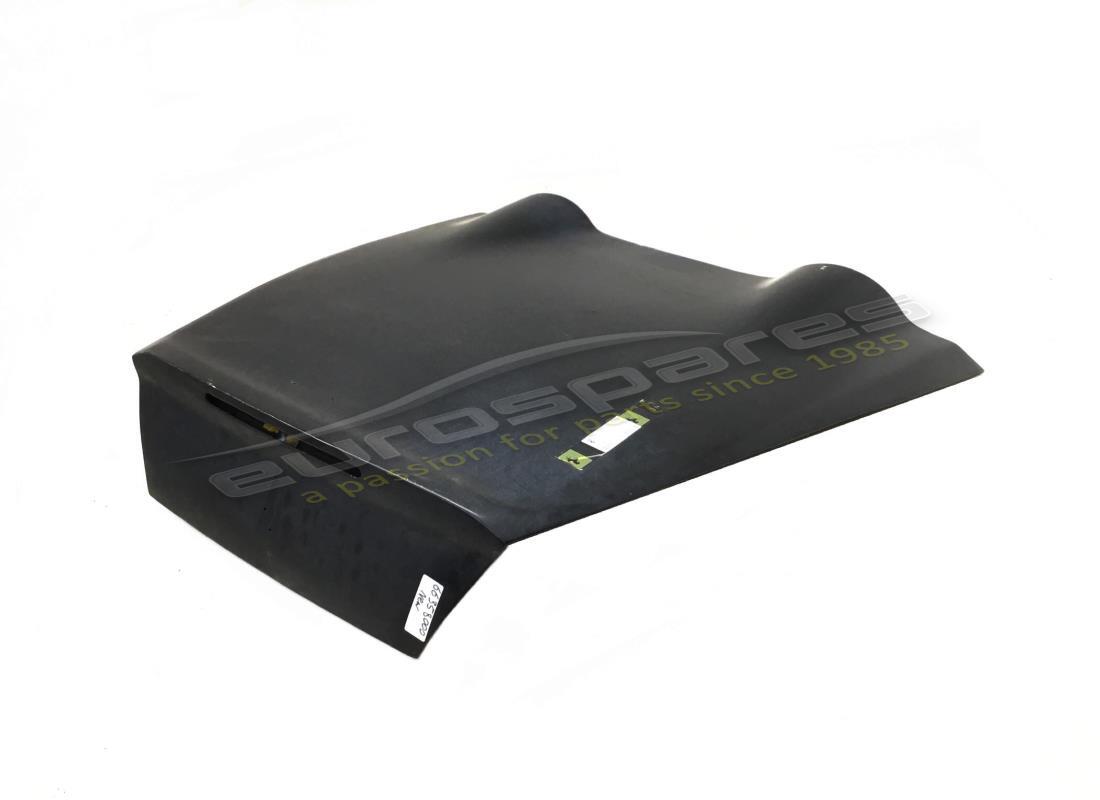

REAR HOOD BONNET
from £4,329.23
from £4,329.23
# 002
MPN: 62167600
PIN
from £2.26
from £2.26
# 003
MPN: 63402800
PIN
from £0.84
from £0.84
This part replaces part number 64577200 - and 3 more. Click to view details
# 004
MPN: 66340700
RH CENTRAL OUTER INSULATION
from £125.95
from £125.95
# 004
MPN: 66706400
LH CENTRAL OUTER INSULATION
from £85.58
from £85.58
# 005
MPN: 66353700
RH CENTRAL UPPER INSULATION
from £85.58
from £85.58
# 005
MPN: 66706600
LH CENTRAL UPPER INSULATION
from £85.58
from £85.58
# 006
MPN: 66343100
SHOCK ABSORBER FOR HOOD SUPPORT
from £22.12
from £22.12
# 007
MPN: 66349900
BONNET GASKET
from £251.63
from £251.63
# 008
MPN: 63872300
COMPLETE TRUNK LOCK DEVICE
Not for cars USA and CDN Withchildren safety handle
from £8.94
from £8.94
# 008
MPN: 66466000
COMPLETE TRUNK LOCK DEVICE
Valid for cars USA and CDN Withchildren safety handle
from £18.77
from £18.77
This part replaces part number 63872300 which we have in stock
# 009
MPN: 63709300
ROLL
from £13.41
from £13.41
# 010
MPN: 63709100
PLATE
from £6.51
from £6.51
# 011
MPN: 63709500
SPRING
from £1.20
from £1.20
# 012
MPN: 63143600
STRIKER
from £20.76
from £20.76
# 013
MPN: 10396180
CABLE GROMMET
from £1.09
from £1.09
This part replaces part number 10459687
# 014
MPN: 173977
MICRO-SWITCH
from £35.27
from £35.27
# 015
MPN: 63143300
BONNET LOCK
from £66.87
from £66.87
This part replaces part number 63891100 which we have in stock - and 1 more. Click to view details
# 016
MPN: 186550
REAR HOOD OPENING CONNECTING CABLES
from £31.69
from £31.69
# 017
MPN: 10903224
SCREW
from £0.47
from £0.47
This part replaces part number 10903221
# 018
MPN: 10615474
WASHER
Supersession
Supersession
This part replaces part number 10615470 - and 3 more. Click to view details
# 019
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 020
MPN: 66339600
RH OUTER UPPER INSULATION
from £125.95
from £125.95
# 020
MPN: 66706700
LH OUTER UPPER INSULATION
from £85.58
from £85.58
# 021
MPN: 66353600
RH OUTER LOWER INSULATION
from £85.58
from £85.58
# 021
MPN: 66706500
LH OUTER LOWER INSULATION
from £85.58
from £85.58
# 022
MPN: 153069
SWITCH
from £2.11
from £2.11
# 023
MPN: 66645900
COMPLETE LID HINGE
from £39.83
from £39.83
# 024
MPN: 66646200
PIN
from £6.82
from £6.82
# 025
MPN: 11087676
FLEXIBLE RING
from £0.47
from £0.47
This part replaces part number 11087675
# 026
MPN: 63196500
SPRING
from £53.02
from £53.02
# 027
MPN: 66349600
FUEL INLET LID
from £215.72
from £215.72
# 028
MPN: 66616500
PLATE
from £14.06
from £14.06
# 029
MPN: 14084111
NUT
from £0.47
from £0.47
This part replaces part number 14084100
# 030
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 031
MPN: 65841600
LID ACTUATOR
from £131.31
from £131.31
This part replaces part number 63713800 which we have in stock - and 1 more. Click to view details
# 032
MPN: 64575600
BRACKET
from £38.90
from £38.90
# 033
MPN: 13273014
SCREW
from £0.47
from £0.47
# 034
MPN: 10794014
NUT
from £0.47
from £0.47
This part replaces part number 10794034
# 035
MPN: 127492
WASHER
from £0.59
from £0.59
This part replaces part number 106848
# 036
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
# 037
MPN: 14304124
SCREW
from £0.53
from £0.53
# 038
MPN: 12637878
WASHER
from £0.47
from £0.47
This part replaces part number 12637806
# 039
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 040
MPN: 63879900
RUBBER PAD
from £9.06
from £9.06
# 041
MPN: 63716300
PIN FOR DOOR
from £5.30
from £5.30
# 042
MPN: 10396280
CABLE GROMMET
from £1.73
from £1.73
# 043
MPN: 15688275
SCREW
from £1.32
from £1.32
This part replaces part number 15688208 which we have in stock - and 1 more. Click to view details
# 044
MPN: 64575700
GASKET FOR BRACKET
from £4.46
from £4.46
# 045
MPN: 10902087
SCREW
Not as spare part now - Replaced by 10902024
from £0.53
from £0.53
# 045
MPN: 10977524
SCREW
from £0.53
from £0.53
# 046
MPN: 12647624
WASHER
from £0.51
from £0.51
This part replaces part number 12647611
# 047
MPN: 65853300
EMERGENCY CABLE
from £85.40
from £85.40
# 048
MPN: 10977524
SCREW
from £0.53
from £0.53
# 049
MPN: 63861700
STRIKER PLATE OVERLAP
from £36.82
from £36.82
# 050
MPN: 63191100
ACTUATOR
from £81.75
from £81.75
# 051
MPN: 15903870
SCREW
from £0.47
from £0.47
This part replaces part number 15903801
# 052
MPN: 168698
NUT
from £0.93
from £0.93
This part replaces part number 14054048 which we have in stock
# 053
MPN: 167955
SWITCH
from £7.35
from £7.35
# 054
MPN: 60710900
EMERGENCY HANDLE
from £5.21
from £5.21
# 055
MPN: 60711000
CLIP
from £0.53
from £0.53
# 056
MPN: 11087676
FLEXIBLE RING
from £0.47
from £0.47
This part replaces part number 11087675
# 057
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 058
MPN: 66337600
REAR HOOD BONNET HINGE
# 059
MPN: 66403900
CHILDREN SAFETY HANDLE
Valid for cars USA and CDN Withchildren safety handle
from £24.85
from £24.85
# 060
MPN: 186500
CABLE FOR HANDLE
Valid for cars USA and CDN Withchildren safety handle
from £19.07
from £19.07
# 061
MPN: 60276607
CONNECTION
Valid for cars USA and CDN Withchildren safety handle
from £11.92
from £11.92
This part replaces part number 60276707 - and 4 more. Click to view details
# 062
MPN: 60276805
DOWEL
Valid for cars USA and CDN With children safety handle
from £0.71
from £0.71
