ferrari 550 barchetta doors - frameworks and coverings parts diagram

117 - Doors - Frameworks and Coverings

Ferrari 550 Barchetta Doors - Frameworks and Coverings Parts Diagram

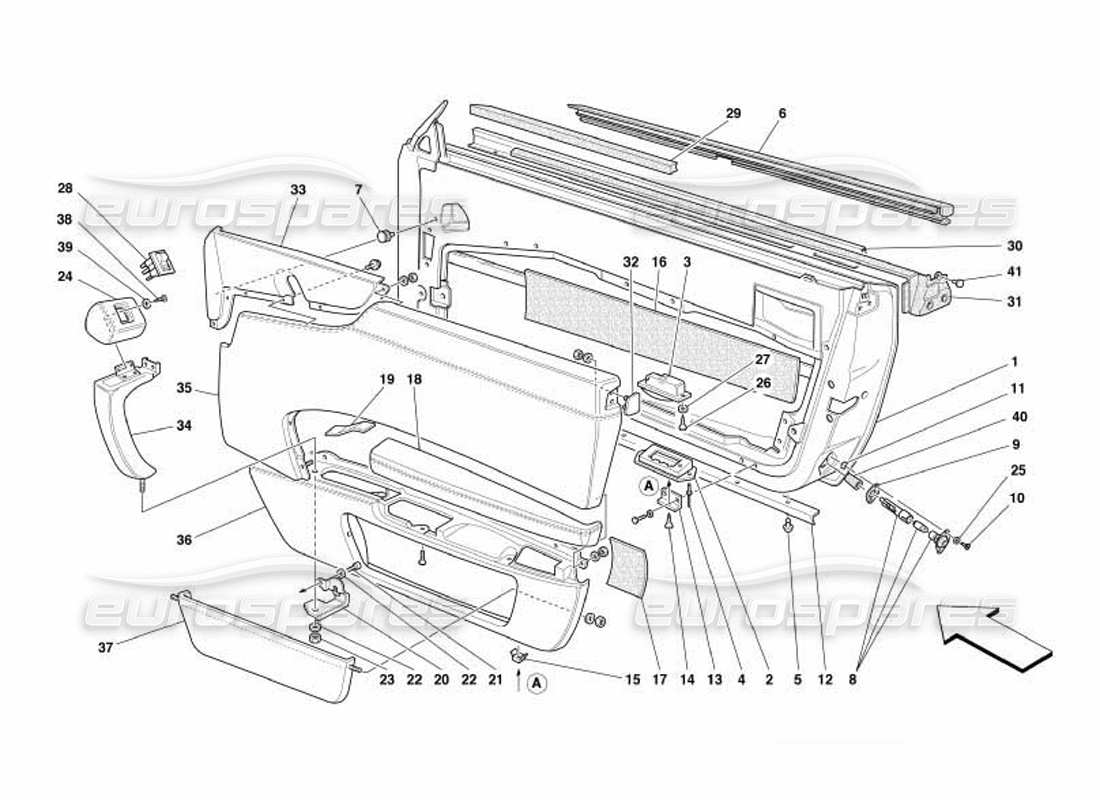

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 66357600

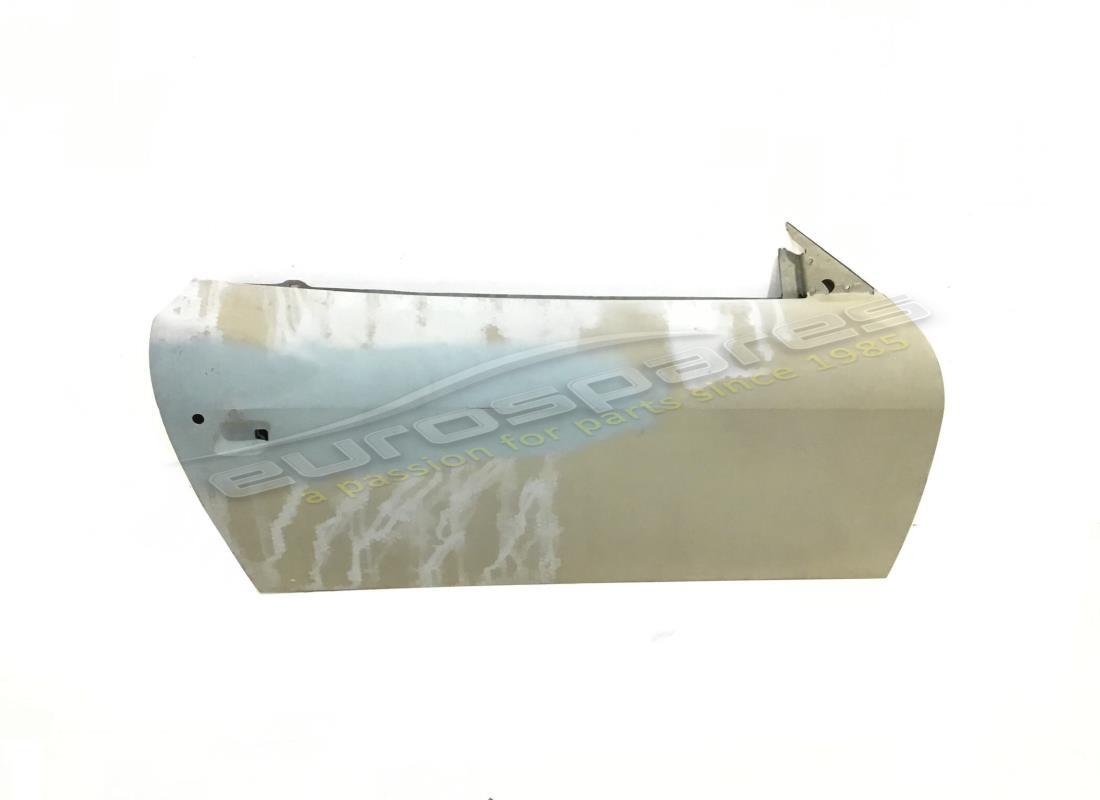

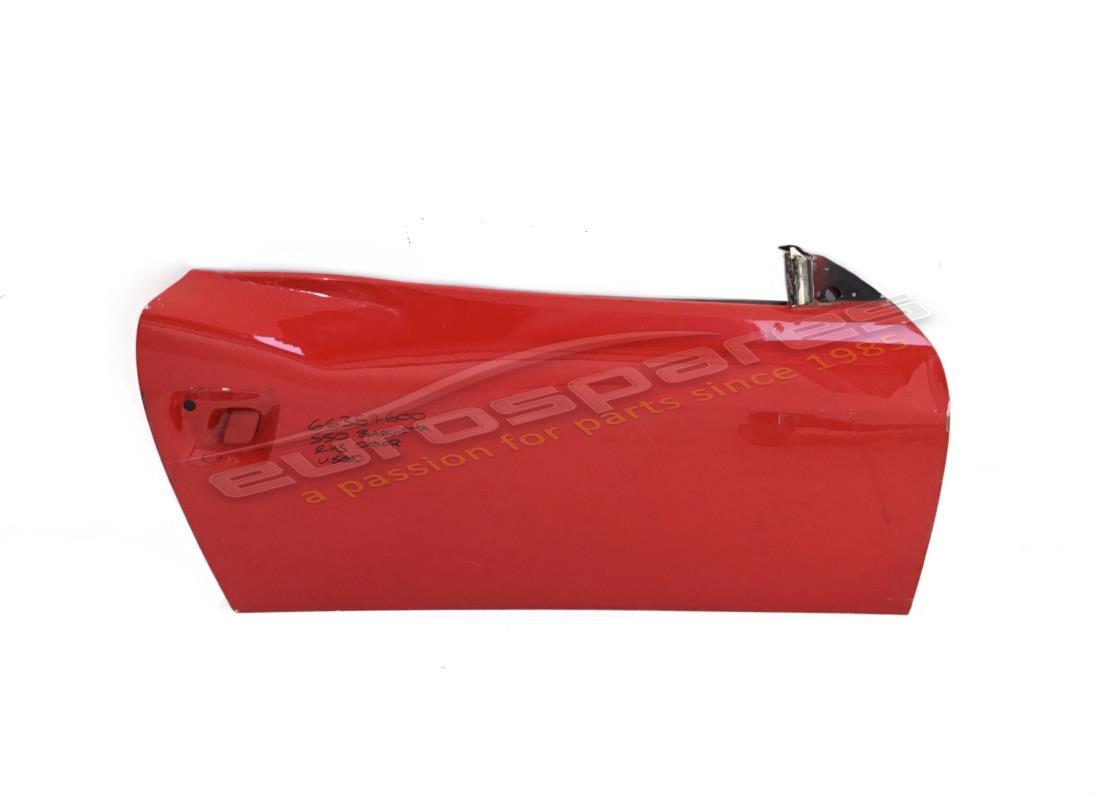

                                                                                RH DOOR FRAME
                                                                                from £1,354.57
                                                                                from £1,354.57
                                                                                # 001
                                                                                MPN: 66357700

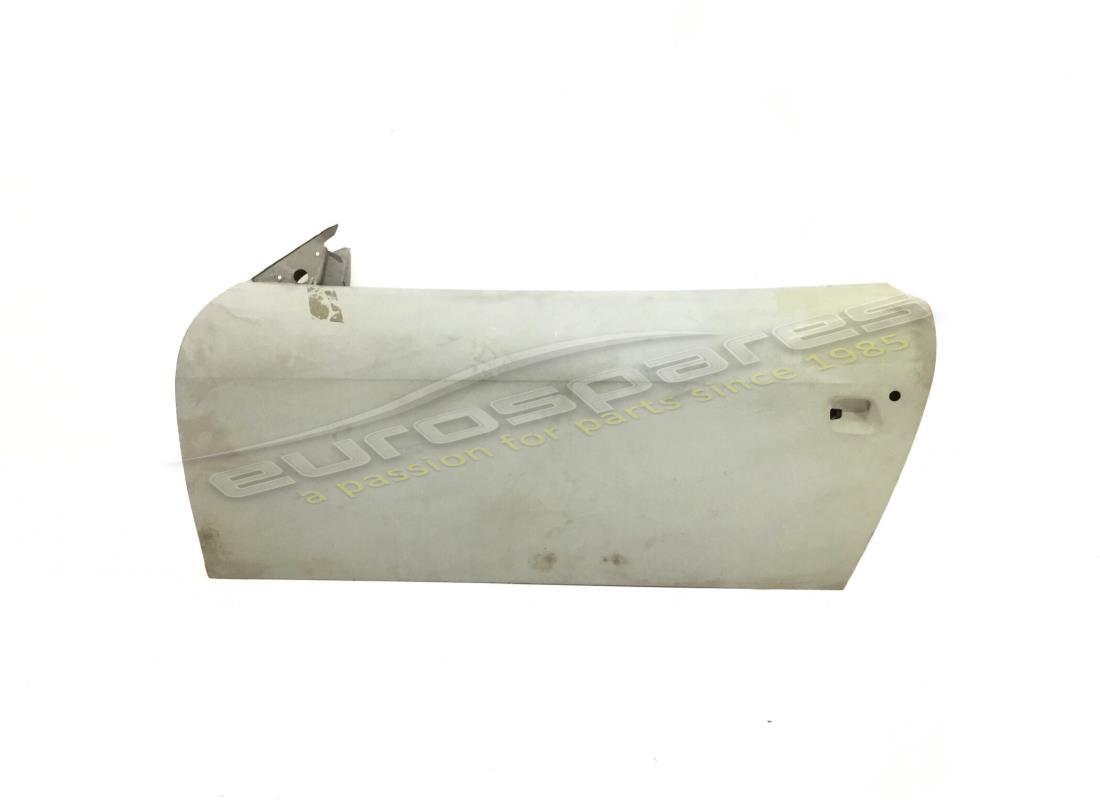

                                                                                LH DOOR FRAME
                                                                                Not for USA and CDN
                                                                                from £2,462.86
                                                                                from £2,462.86
                                                                                # 001
                                                                                MPN: 66615800
                                                                                LH DOOR FRAME
                                                                                Valid for USA and CDN
                                                                                from £2,409.26
                                                                                from £2,409.26
                                                                                # 002
                                                                                MPN: 60842000
                                                                                DOOR LAMP BOX
                                                                                from £2.46
                                                                                from £2.46
                                                                                This part replaces part number 63871300 - and 1 more. Click to view details
                                                                                # 003
                                                                                MPN: 65088400
                                                                                UNDER DOOR LAMP
                                                                                from £70.62
                                                                                from £70.62
                                                                                This part replaces part number 60842100 - and 5 more. Click to view details
                                                                                # 004
                                                                                MPN: 60310703
                                                                                RIVET
                                                                                from £1.18
                                                                                from £1.18
                                                                                # 005
                                                                                MPN: 62764000
                                                                                SPHERIC HEAD RIVET
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 006
                                                                                MPN: 64715800
                                                                                RH OUTER GLASS SCRAPER
                                                                                from £55.34
                                                                                from £55.34
                                                                                # 006
                                                                                MPN: 64715900
                                                                                LH OUTER GLASS SCRAPER
                                                                                from £132.05
                                                                                from £132.05
                                                                                # 007
                                                                                MPN: 64580400
                                                                                BLOCK
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 64300600
                                                                                # 008
                                                                                MPN: 184786
                                                                                OPENING DOOR LAMP WITH BULB
                                                                                from £32.75
                                                                                from £32.75
                                                                                This part replaces part number 178262 which we have in stock - and 2 more. Click to view details
                                                                                # 009
                                                                                MPN: 140576
                                                                                GASKET
                                                                                from £8.17
                                                                                from £8.17
                                                                                This part replaces part number 61647000
                                                                                # 010
                                                                                MPN: 15901475
                                                                                SCREW
                                                                                from £1.18
                                                                                from £1.18
                                                                                This part replaces part number 15641175 which we have in stock
                                                                                # 011
                                                                                MPN: 14115580
                                                                                BLOCK
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 012
                                                                                MPN: 63488300
                                                                                LH OUTER LOWER GASKET
                                                                                from £12.73
                                                                                from £12.73
                                                                                # 012
                                                                                MPN: 63758200
                                                                                RH OUTER LOWER GASKET
                                                                                from £13.02
                                                                                from £13.02
                                                                                # 013
                                                                                MPN: 64592600
                                                                                BRACKET
                                                                                from £3.51
                                                                                from £3.51
                                                                                # 014
                                                                                MPN: 15688075
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                                                # 015
                                                                                MPN: 14115885
                                                                                BLOCK
                                                                                from £0.52
                                                                                from £0.52
                                                                                This part replaces part number 14202686 - and 1 more. Click to view details
                                                                                # 016
                                                                                MPN: 65059400
                                                                                WATER PROTECTION CLOTH FOR FRAME
                                                                                from £3.29
                                                                                from £3.29
                                                                                # 017
                                                                                MPN: 65059500
                                                                                WATER PROTECTION CLOTH FOR SWITCH
                                                                                from £1.25
                                                                                from £1.25
                                                                                # 018
                                                                                MPN: 663426..
                                                                                RH DOOR ARM-REST
                                                                                from £325.50
                                                                                from £325.50
                                                                                # 018
                                                                                MPN: 663427..
                                                                                LH DOOR ARM-REST
                                                                                Supersession
                                                                                Supersession
                                                                                # 019
                                                                                MPN: 64585800
                                                                                MOULDING
                                                                                from £41.09
                                                                                from £41.09
                                                                                # 020
                                                                                MPN: 64591600
                                                                                LH BRACKET
                                                                                from £7.54
                                                                                from £7.54
                                                                                # 020
                                                                                MPN: 64591900
                                                                                RH BRACKET
                                                                                from £7.54
                                                                                from £7.54
                                                                                # 021
                                                                                MPN: 10902124
                                                                                SCREW
                                                                                from £0.50
                                                                                from £0.50
                                                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                # 022
                                                                                MPN: 12646601
                                                                                WASHER
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 023
                                                                                MPN: 14058411
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 024
                                                                                MPN: 645848..
                                                                                LH UPPER HANDLE
                                                                                Not for GD
                                                                                Supersession
                                                                                Supersession
                                                                                # 024
                                                                                MPN: 64584800
                                                                                LH UPPER HANDLE
                                                                                Not for GD - BLACK LEATHER
                                                                                from £104.27
                                                                                from £104.27
                                                                                This part replaces part number 645848.. - and 1 more. Click to view details
                                                                                # 024
                                                                                MPN: 645925..
                                                                                RH UPPER HANDLE
                                                                                Not for GD
                                                                                from £81.36
                                                                                from £81.36
                                                                                # 024
                                                                                MPN: 651051..
                                                                                RH UPPER HANDLE
                                                                                Valid for GD
                                                                                Supersession
                                                                                Supersession
                                                                                # 024
                                                                                MPN: 651052..
                                                                                LH UPPER HANDLE
                                                                                Valid for GD
                                                                                Supersession
                                                                                Supersession
                                                                                # 025
                                                                                MPN: 10519304
                                                                                WASHER
                                                                                from £0.87
                                                                                from £0.87
                                                                                This part replaces part number 10519301
                                                                                # 026
                                                                                MPN: 15901575
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 15901570
                                                                                # 027
                                                                                MPN: 12639477
                                                                                WASHER
                                                                                from £1.62
                                                                                from £1.62
                                                                                # 028
                                                                                MPN: 164642
                                                                                LH SWITCH FOR GLASS LIFT
                                                                                from £56.03
                                                                                from £56.03
                                                                                # 028
                                                                                MPN: 164643
                                                                                RH SWITCH FOR GLASS LIFT
                                                                                from £63.70
                                                                                from £63.70
                                                                                # 029
                                                                                MPN: 65196100
                                                                                RH GASKET
                                                                                from £3.96
                                                                                from £3.96
                                                                                # 029
                                                                                MPN: 65196200
                                                                                LH GASKET
                                                                                from £3.77
                                                                                from £3.77
                                                                                # 030
                                                                                MPN: 64594800
                                                                                RH GLASS SCRAPER
                                                                                from £68.47
                                                                                from £68.47
                                                                                # 030
                                                                                MPN: 64594900
                                                                                LH GLASS SCRAPER
                                                                                from £68.47
                                                                                from £68.47
                                                                                # 031
                                                                                MPN: 64905000
                                                                                RH GASKET
                                                                                from £59.65
                                                                                from £59.65
                                                                                # 031
                                                                                MPN: 64905100
                                                                                LH GASKET
                                                                                from £123.92
                                                                                from £123.92
                                                                                # 032
                                                                                MPN: 645911..
                                                                                LH PANEL SEAL
                                                                                Supersession
                                                                                Supersession
                                                                                # 032
                                                                                MPN: 645912..
                                                                                RH PANEL SEAL
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 645847..
                                                                                LH UPPER PANEL
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 645924..
                                                                                RH UPPER PANEL
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 647440..
                                                                                RH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 647450..
                                                                                LH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 034
                                                                                MPN: 645850..
                                                                                LH LOWER HANDLE
                                                                                Supersession
                                                                                Supersession
                                                                                # 034
                                                                                MPN: 645947..
                                                                                RH LOWER HANDLE
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 645846..
                                                                                LH CENTRAL PANEL
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 645923..
                                                                                RH CENTRAL PANEL
                                                                                from £367.50
                                                                                from £367.50
                                                                                # 035
                                                                                MPN: 647455..
                                                                                RH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 647456..
                                                                                LH LINING
                                                                                from £498.75
                                                                                from £498.75
                                                                                # 036
                                                                                MPN: 645844..
                                                                                LH POCKET
                                                                                from £630.00
                                                                                from £630.00
                                                                                # 036
                                                                                MPN: 645921..
                                                                                RH POCKET
                                                                                Supersession
                                                                                Supersession
                                                                                # 036
                                                                                MPN: 647465..
                                                                                RH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 036
                                                                                MPN: 647466..
                                                                                LH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 037
                                                                                MPN: 645810..
                                                                                LH POCKET SEAL
                                                                                Supersession
                                                                                Supersession
                                                                                # 037
                                                                                MPN: 645811..
                                                                                RH POCKET SEAL
                                                                                Supersession
                                                                                Supersession
                                                                                # 037
                                                                                MPN: 647471..
                                                                                RH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 037
                                                                                MPN: 647472..
                                                                                LH LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 038
                                                                                MPN: 15901475
                                                                                SCREW
                                                                                from £1.18
                                                                                from £1.18
                                                                                This part replaces part number 15641175 which we have in stock
                                                                                # 039
                                                                                MPN: 12639978
                                                                                WASHER
                                                                                from £0.79
                                                                                from £0.79
                                                                                # 040
                                                                                MPN: 65910600
                                                                                BOOT
                                                                                Supersession
                                                                                Supersession
                                                                                # 041
                                                                                MPN: 14592587
                                                                                FIXING BUTTON
                                                                                from £0.53
                                                                                from £0.53
                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
