ferrari 550 barchetta tunnel - inner trims parts diagram

122 - Tunnel - Inner Trims

Ferrari 550 Barchetta Tunnel - Inner Trims Parts Diagram

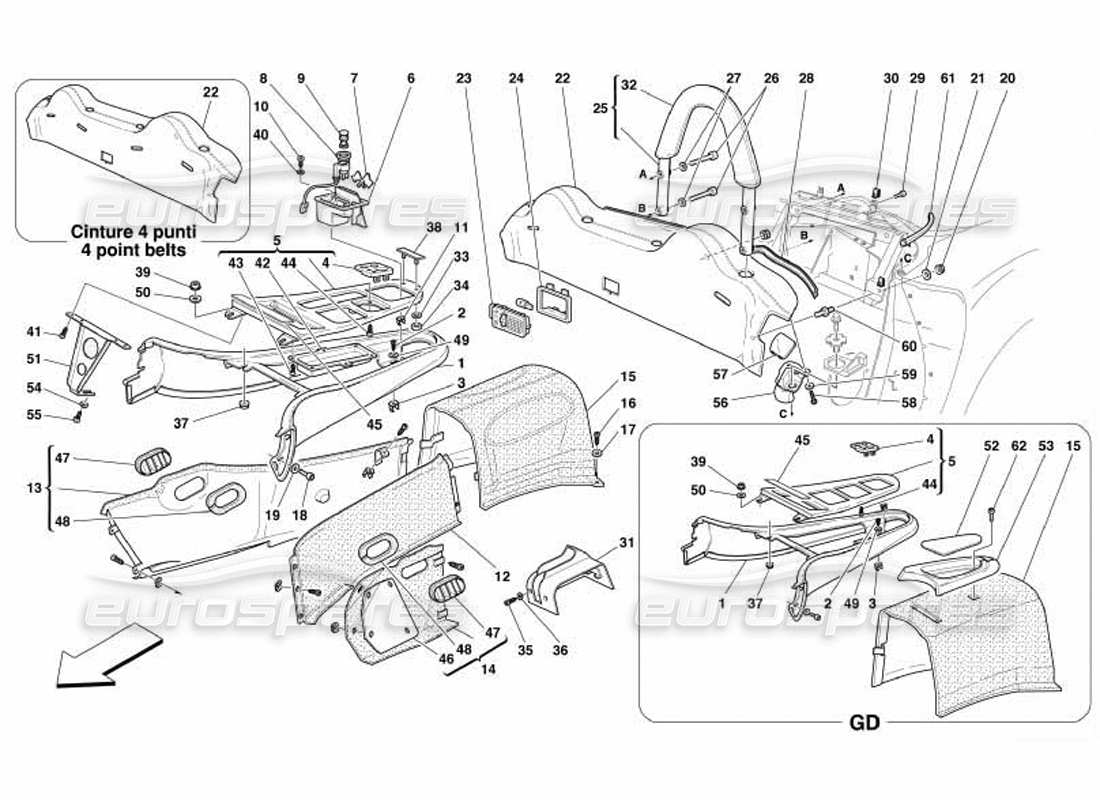

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 647035..

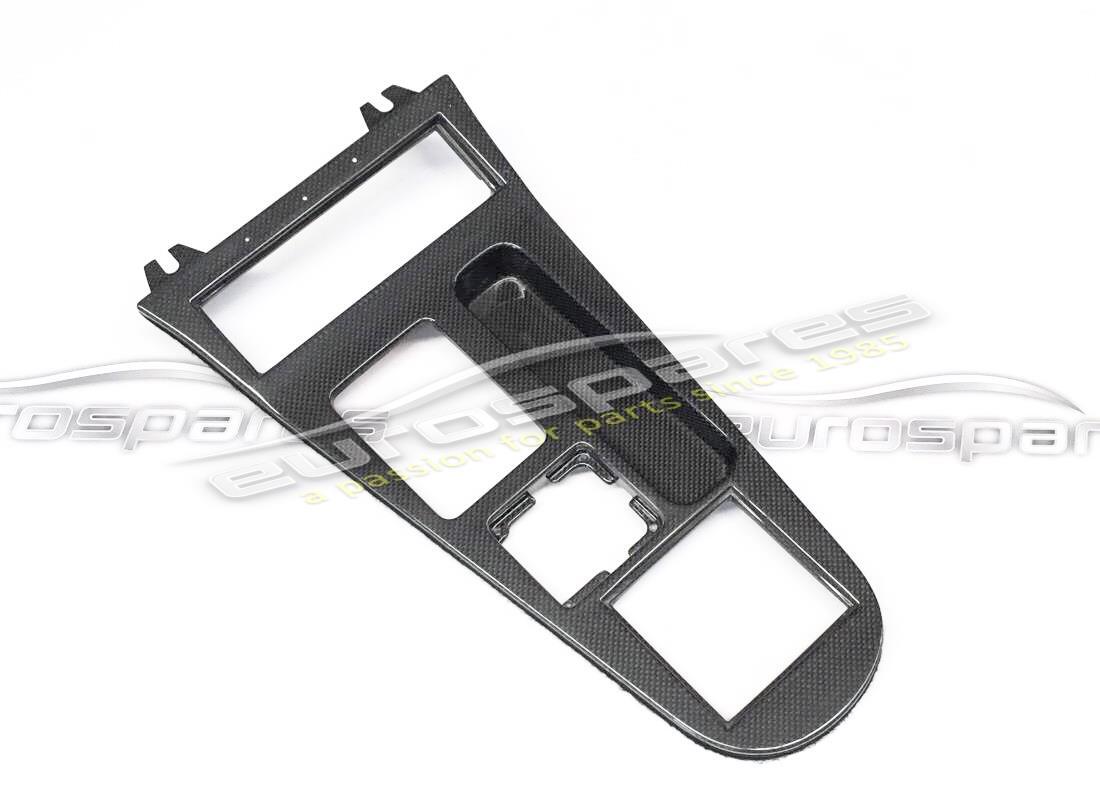

                                                                                              TUNNEL COVER CONSOLE
                                                                                              Not for GD
                                                                                              from £236.25
                                                                                              from £236.25
                                                                                              # 001
                                                                                              MPN: 647053..
                                                                                              LINING
                                                                                              Not for GD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 001
                                                                                              MPN: 651146..
                                                                                              TUNNEL COVER CONSOLE
                                                                                              Valid for GD
                                                                                              from £535.50
                                                                                              from £535.50
                                                                                              # 001
                                                                                              MPN: 651666..
                                                                                              LINING
                                                                                              Valid for GD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 002
                                                                                              MPN: 15687375
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 15687370 - and 1 more. Click to view details
                                                                                              # 003
                                                                                              MPN: 14115580
                                                                                              BLOCK
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 004
                                                                                              MPN: 65992100
                                                                                              PLATE
                                                                                              from £34.23
                                                                                              from £34.23
                                                                                              # 005
                                                                                              MPN: 65968800
                                                                                              COMPLETE UPPER PANEL FOR CONSOLE
                                                                                              Valid for GD
                                                                                              from £3,236.80
                                                                                              from £3,236.80
                                                                                              # 005
                                                                                              MPN: 66752100
                                                                                              COMPLETE UPPER PANEL FOR CONSOLE
                                                                                              Not for GD
                                                                                              from £2,534.91
                                                                                              from £2,534.91
                                                                                              # 006
                                                                                              MPN: 67505800
                                                                                              ASH TRAY IN BLACK
                                                                                              from £87.98
                                                                                              from £87.98
                                                                                              This part replaces part number 64735500 - and 1 more. Click to view details
                                                                                              # 007
                                                                                              MPN: 64460400
                                                                                              Ferrari-PININFARINA MARK
                                                                                              from £56.51
                                                                                              from £56.51
                                                                                              # 008
                                                                                              MPN: 226941
                                                                                              CIGAR LIGHTER BODY
                                                                                              not as spare part - use part number: 226941
                                                                                              from £16.73
                                                                                              from £16.73
                                                                                              This part replaces part number 61107600 - and 2 more. Click to view details
                                                                                              # 009
                                                                                              MPN: 226942
                                                                                              CIGAR LIGHTER
                                                                                              not as spare part - use part number: 226942
                                                                                              from £11.31
                                                                                              from £11.31
                                                                                              This part replaces part number 61107500
                                                                                              # 010
                                                                                              MPN: 15688375
                                                                                              SCREW
                                                                                              (minimum order quantity = 30)
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 15688306 which we have in stock
                                                                                              # 011
                                                                                              MPN: 14202782
                                                                                              BLOCK
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 012
                                                                                              MPN: 66788200
                                                                                              LH CENTRAL LATERAL COVER
                                                                                              Valid for GD
                                                                                              from £401.25
                                                                                              from £401.25
                                                                                              # 012
                                                                                              MPN: 66797100
                                                                                              LH CENTRAL LATERAL COVER
                                                                                              Not for GD
                                                                                              from £256.57
                                                                                              from £256.57
                                                                                              # 013
                                                                                              MPN: 66788300
                                                                                              RH LATERAL COVER
                                                                                              Valid for GD
                                                                                              from £180.68
                                                                                              from £180.68
                                                                                              # 013
                                                                                              MPN: 66791100
                                                                                              RH LATERAL COVER
                                                                                              Not for GD
                                                                                              from £183.18
                                                                                              from £183.18
                                                                                              # 014
                                                                                              MPN: 66788400
                                                                                              COMPLETE LH FRONT LATERAL COVER
                                                                                              Valid for GD
                                                                                              from £364.14
                                                                                              from £364.14
                                                                                              # 014
                                                                                              MPN: 66840700
                                                                                              COMPLETE LH FRONT LATERAL COVER
                                                                                              Not for GD
                                                                                              # 015
                                                                                              MPN: 66340400
                                                                                              TUNNEL REAR COVER
                                                                                              Not for GD
                                                                                              # 015
                                                                                              MPN: 66654300
                                                                                              TUNNEL REAR COVER
                                                                                              Valid for GD
                                                                                              # 016
                                                                                              MPN: 15687270
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 15642670
                                                                                              # 017
                                                                                              MPN: 10519304
                                                                                              WASHER
                                                                                              from £0.87
                                                                                              from £0.87
                                                                                              This part replaces part number 10519301
                                                                                              # 018
                                                                                              MPN: 16297024
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 019
                                                                                              MPN: 10519278
                                                                                              WASHER
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                              # 020
                                                                                              MPN: 14084111
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 14084100
                                                                                              # 021
                                                                                              MPN: 13577701
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 022
                                                                                              MPN: 663446..
                                                                                              MIRROR MOULDING
                                                                                              Not for 4 point belts cars
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 022
                                                                                              MPN: 663897..
                                                                                              MIRROR MOULDING
                                                                                              Valid for 4 point belts cars
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 023
                                                                                              MPN: 184098
                                                                                              REAR ROOF LIGHT
                                                                                              from £110.25
                                                                                              from £110.25
                                                                                              This part replaces part number 66617000 - and 1 more. Click to view details
                                                                                              # 024
                                                                                              MPN: 66383700
                                                                                              FRAME FOR ROOF LIGHT
                                                                                              from £8.04
                                                                                              from £8.04
                                                                                              # 025
                                                                                              MPN: 663438..
                                                                                              COMPLETE RH ROLL-BAR
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 025
                                                                                              MPN: 663439..
                                                                                              COMPLETE LH ROLL-BAR
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 026
                                                                                              MPN: 66701800
                                                                                              SCREW
                                                                                              from £0.49
                                                                                              from £0.49
                                                                                              # 027
                                                                                              MPN: 14496678
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 14496677
                                                                                              # 028
                                                                                              MPN: 66340500
                                                                                              GASKET
                                                                                              from £58.88
                                                                                              from £58.88
                                                                                              # 029
                                                                                              MPN: 66091000
                                                                                              SCREW
                                                                                              from £0.94
                                                                                              from £0.94
                                                                                              This part replaces part number 65933600 - and 1 more. Click to view details
                                                                                              # 030
                                                                                              MPN: 62766300
                                                                                              CLIP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 031
                                                                                              MPN: 64684100
                                                                                              MOULDING FOR HAND-BRAKE LEVER
                                                                                              Not for GD
                                                                                              from £97.44
                                                                                              from £97.44
                                                                                              # 031
                                                                                              MPN: 652043..
                                                                                              MOULDING FOR HAND-BRAKE LEVER
                                                                                              Valid for GD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 031
                                                                                              MPN: 65592500
                                                                                              MOULDING FOR HAND BRAKE LEVER
                                                                                              CARBON
                                                                                              from £610.83
                                                                                              from £610.83
                                                                                              # 032
                                                                                              MPN: 663444..
                                                                                              RH ROLL-BAR LINING
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 032
                                                                                              MPN: 663445..
                                                                                              LH ROLL-BAR LINING
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 033
                                                                                              MPN: 20159109
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 034
                                                                                              MPN: 16101711
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 16101715
                                                                                              # 035
                                                                                              MPN: 15691377
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 036
                                                                                              MPN: 13337407
                                                                                              WASHER
                                                                                              from £0.96
                                                                                              from £0.96
                                                                                              # 037
                                                                                              MPN: 159601
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12578121
                                                                                              # 038
                                                                                              MPN: 66694600
                                                                                              CUSTOMER PLATE
                                                                                              from £1,033.38
                                                                                              from £1,033.38
                                                                                              # 039
                                                                                              MPN: 159601
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12578121
                                                                                              # 040
                                                                                              MPN: 12638178
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                              # 041
                                                                                              MPN: 15688875
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 15688814
                                                                                              # 042
                                                                                              MPN: 64706900
                                                                                              UTILITY CONTAINER
                                                                                              Not for GD
                                                                                              from £58.29
                                                                                              from £58.29
                                                                                              # 043
                                                                                              MPN: 15686170
                                                                                              SCREW
                                                                                              # 044
                                                                                              MPN: 15901570
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 045
                                                                                              MPN: 66501800
                                                                                              550BARCHETTA PININFARINA EMBLEM
                                                                                              from £126.78
                                                                                              from £126.78
                                                                                              # 046
                                                                                              MPN: 63784900
                                                                                              PROTECTION PLATE
                                                                                              Not for GD
                                                                                              from £13.72
                                                                                              from £13.72
                                                                                              # 047
                                                                                              MPN: 63783700
                                                                                              AIR OPENING
                                                                                              from £33.09
                                                                                              from £33.09
                                                                                              # 048
                                                                                              MPN: 63783800
                                                                                              GASKET
                                                                                              from £8.76
                                                                                              from £8.76
                                                                                              # 049
                                                                                              MPN: 12642821
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 050
                                                                                              MPN: 12642821
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 051
                                                                                              MPN: 66076600
                                                                                              BRACKET
                                                                                              from £7.66
                                                                                              from £7.66
                                                                                              # 052
                                                                                              MPN: 66654500
                                                                                              COVERED END PLATE
                                                                                              Valid for GD
                                                                                              # 053
                                                                                              MPN: 66654400
                                                                                              GLOVE COMPARTMENT
                                                                                              Valid for GD
                                                                                              # 054
                                                                                              MPN: 12638124
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                              # 055
                                                                                              MPN: 11022511
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 056
                                                                                              MPN: 66387600
                                                                                              RH PAN
                                                                                              from £68.01
                                                                                              from £68.01
                                                                                              # 056
                                                                                              MPN: 66387700
                                                                                              LH PAN
                                                                                              from £61.68
                                                                                              from £61.68
                                                                                              # 057
                                                                                              MPN: 66383800
                                                                                              RH SIDE DOOR
                                                                                              from £1,041.23
                                                                                              from £1,041.23
                                                                                              # 057
                                                                                              MPN: 66383900
                                                                                              LH SIDE DOOR
                                                                                              from £1,041.23
                                                                                              from £1,041.23
                                                                                              # 058
                                                                                              MPN: 66387800
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 059
                                                                                              MPN: 10519224
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10519201
                                                                                              # 060
                                                                                              MPN: 66788000
                                                                                              SPACER
                                                                                              8 mm.
                                                                                              from £1.79
                                                                                              from £1.79
                                                                                              # 060
                                                                                              MPN: 66788100
                                                                                              SPACER
                                                                                              6 mm.
                                                                                              from £17.90
                                                                                              from £17.90
                                                                                              # 060
                                                                                              MPN: 66800000
                                                                                              SPACER
                                                                                              3 mm.
                                                                                              # 061
                                                                                              MPN: 66382400
                                                                                              GASKET
                                                                                              from £63.82
                                                                                              from £63.82
                                                                                              # 062
                                                                                              MPN: 65212000
                                                                                              SCREW
                                                                                              from £0.56
                                                                                              from £0.56
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
