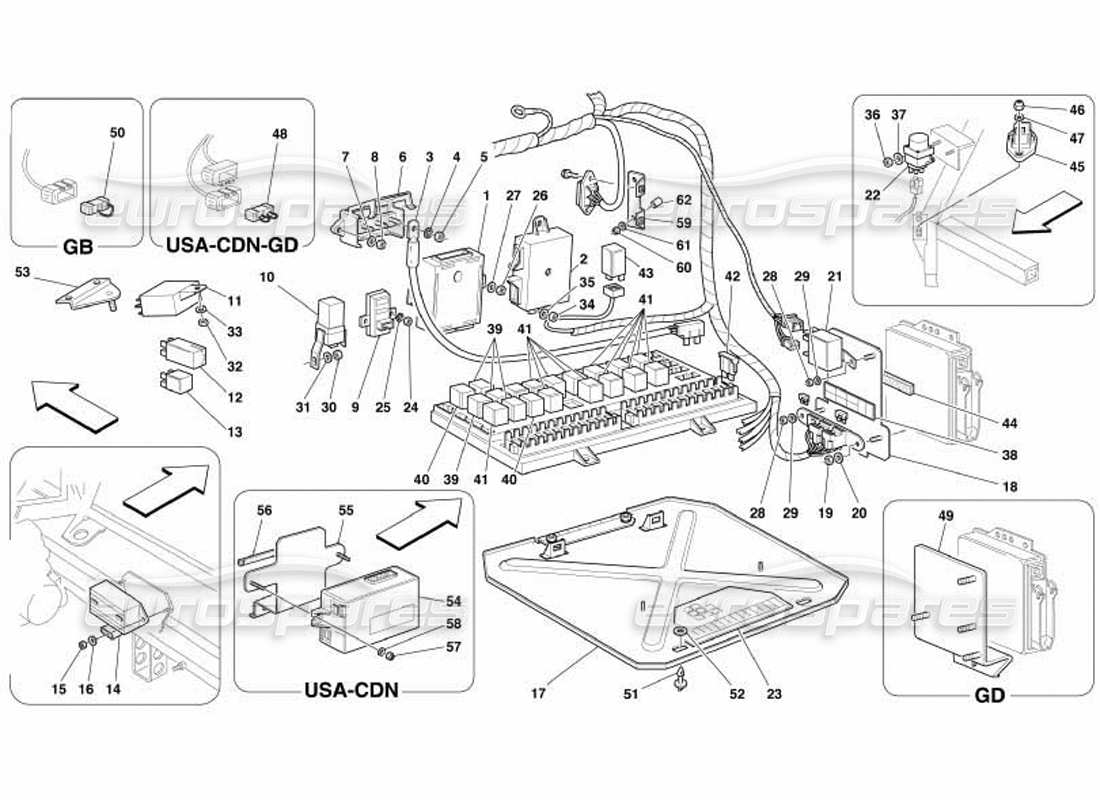

Ferrari 550 Barchetta Electrical Boards Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 164673
ELECTRIC CONTROL STATION
(req. relay 157802)
from £4,079.48
from £4,079.48
# 001
MPN: 166850
GLASS LIFTING CONTROL ELECTRIC UNIT
Not for USA, CDN and AUS
from £1,522.63
from £1,522.63
# 001
MPN: 173606
GLASS LIFTING CONTROL ELECTRIC UNIT
Valid for USA, CDN and AUS
from £433.23
from £433.23
# 002
MPN: 164646
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
Not for cars with handling Fiorano equipment
from £1,326.35
from £1,326.35
# 002
MPN: 175949
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
Valid for cars with handling Fiorano equipment - Optional
from £1,263.40
from £1,263.40
# 003
MPN: 170528
CABLE FROM TERMINAL BOX TO CONTROL UNIT
from £12.19
from £12.19
# 004
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 005
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 006
MPN: 170114
TERMINAL BOX
from £7.02
from £7.02
This part replaces part number 153357 - and 2 more. Click to view details
# 007
MPN: 12642877
WASHER
from £0.47
from £0.47
# 008
MPN: 62790300
NUT
from £0.47
from £0.47
This part replaces part number 12574011 - and 1 more. Click to view details
# 009
MPN: 179418
ASR ESCLUSION CONTROL STATION
from £136.14
from £136.14
This part replaces part number 168228
# 010
MPN: 168034
POWER-STEERING CONTROL STATION
Not for cars with handling Fiorano equipment
from £74.41
from £74.41
# 010
MPN: 175891
POWER-STEERING CONTROL STATION
Valid for cars with handling Fiorano equipment - Optional
from £315.99
from £315.99
# 011
MPN: 253060
WINDSHIELD WIPER INTERMITTER
from £53.03
from £53.03
This part replaces part number 180199 which we have in stock
# 012
MPN: 170762
DIRECTION-EMERGENCY LIGHT RELAY
Not for USA and CDN
from £116.39
from £116.39
This part replaces part number 153120 which we have in stock - and 2 more. Click to view details
# 012
MPN: 171375
DIRECTION-EMERGENCY LIGHT RELAY
Valid for USA and CDN
from £88.73
from £88.73
This part replaces part number 164368
# 013
MPN: 157991
30 A.SWITCH RELAY
from £22.25
from £22.25
# 014
MPN: 154310
FILTRATE ACCELEROMETER
from £374.83
from £374.83
# 015
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 016
MPN: 12646601
WASHER
from £0.47
from £0.47
# 017
MPN: 168919
PASSENGER FOOT-REST PLATE
Not for GD
from £20.64
from £20.64
# 017
MPN: 172554
PASSENGER FOOT-REST PLATE
Valid for GD
from £364.90
from £364.90
# 018
MPN: 170473
BRACKET
Not for GD
from £10.67
from £10.67
# 018
MPN: 171334
BRACKET
Valid for GD
from £15.48
from £15.48
# 019
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 020
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 021
MPN: 184391
LOCK/UNLOCK DOORS MODULE
from £49.66
from £49.66
This part replaces part number 166851 which we have in stock - and 2 more. Click to view details
# 022
MPN: 179087
INERTIAL SWITCH
from £34.47
from £34.47
This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
# 023
MPN: 177012
RELAYS AND FUSES NAMEPLATE
from £4.74
from £4.74
# 024
MPN: 62790300
NUT
from £0.47
from £0.47
This part replaces part number 12574011 - and 1 more. Click to view details
# 025
MPN: 12642877
WASHER
from £0.47
from £0.47
# 026
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 027
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 028
MPN: 113647
NUT
from £0.47
from £0.47
# 029
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 030
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 031
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 032
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 033
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 034
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 035
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 036
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 037
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 038
MPN: 170691
OUTER FUSES NAMEPLATE
Not for USA and CDN
from £1.73
from £1.73
# 038
MPN: 179839
OUTER FUSES NAMEPLATE
Valid for USA and CDN
from £2.57
from £2.57
# 039
MPN: 175318
RELAY
from £19.26
from £19.26
This part replaces part number 139361
# 040
MPN: 157802
DOUBLE SWITCH RELAY 2X15 A.
from £20.25
from £20.25
# 041
MPN: 157991
SWITCH RELAY 30 A.
from £22.25
from £22.25
# 042
MPN: 125240
FUSE 7,5 A.
from £0.47
from £0.47
This part replaces part number 11054890 - and 1 more. Click to view details
# 042
MPN: 125241
FUSE 10 A.
from £0.47
from £0.47
This part replaces part number 11054990 - and 1 more. Click to view details
# 042
MPN: 125242
FUSE 15 A.
from £0.47
from £0.47
This part replaces part number 11055090 - and 1 more. Click to view details
# 042
MPN: 125243
FUSE 20 A.
from £0.47
from £0.47
This part replaces part number 11055190 - and 1 more. Click to view details
# 042
MPN: 126031
FUSE 25 A.
from £0.47
from £0.47
This part replaces part number MC3742/5
# 042
MPN: 131941
FUSE 30 A.
from £0.47
from £0.47
This part replaces part number MC3742/6
# 043
MPN: 171596
REAR FOG LIGHT CONTROL STATION
Not for USA, CDN e J
from £17.48
from £17.48
# 044
MPN: 170901
ANTI-VIBRATIONS
Not for GD
from £0.47
from £0.47
# 044
MPN: 171822
ANTI-VIBRATIONS
Valid for GD
from £0.61
from £0.61
# 045
MPN: 166784
ACCELERATION SENSOR
Valid for USA, CDN and AUS
from £59.09
from £59.09
# 046
MPN: 102741
NUT
Valid for USA, CDN and AUS
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 047
MPN: 14496424
WASHER
Valid for USA, CDN and AUS
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 048
MPN: 172524
21-WAYS CONNECTOR
Valid for USA, CDN and GD
from £14.72
from £14.72
# 048
MPN: 172525
12-WAYS CONNECTOR
Valid for USA, CDN and GD
from £68.40
from £68.40
# 049
MPN: 171786
BRACKET
Valid for GD
from £27.70
from £27.70
# 050
MPN: 172673
ANTITHEFT CABLE BRIDGE WITHOUT CONTROL STATION
valid for GB
from £4.47
from £4.47
# 051
MPN: 61530300
PIN
from £9.39
from £9.39
# 052
MPN: 69969500
GASKET
from £0.47
from £0.47
This part replaces part number 61529400
# 053
MPN: 181583
BRACKET
from £3.19
from £3.19
# 054
MPN: 180628
ELECTRONIC CONTROL STATION FOR FUEL COOLING
Valid for USA and CDN
from £358.86
from £358.86
# 055
MPN: 179052
BRACKET FOR CONTROL UNIT FIXING
Valid for USA and CDN
from £11.84
from £11.84
# 056
MPN: 170901
ANTI-VIBRATIONS
Valid for USA and CDN
from £0.47
from £0.47
# 057
MPN: 113647
NUT
Valid for USA and CDN
from £0.47
from £0.47
# 058
MPN: 12637824
WASHER
Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 059
MPN: 170174
BRACKET
from £27.81
from £27.81
# 060
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 061
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 062
MPN: 172613
SPACER
from £2.92
from £2.92
