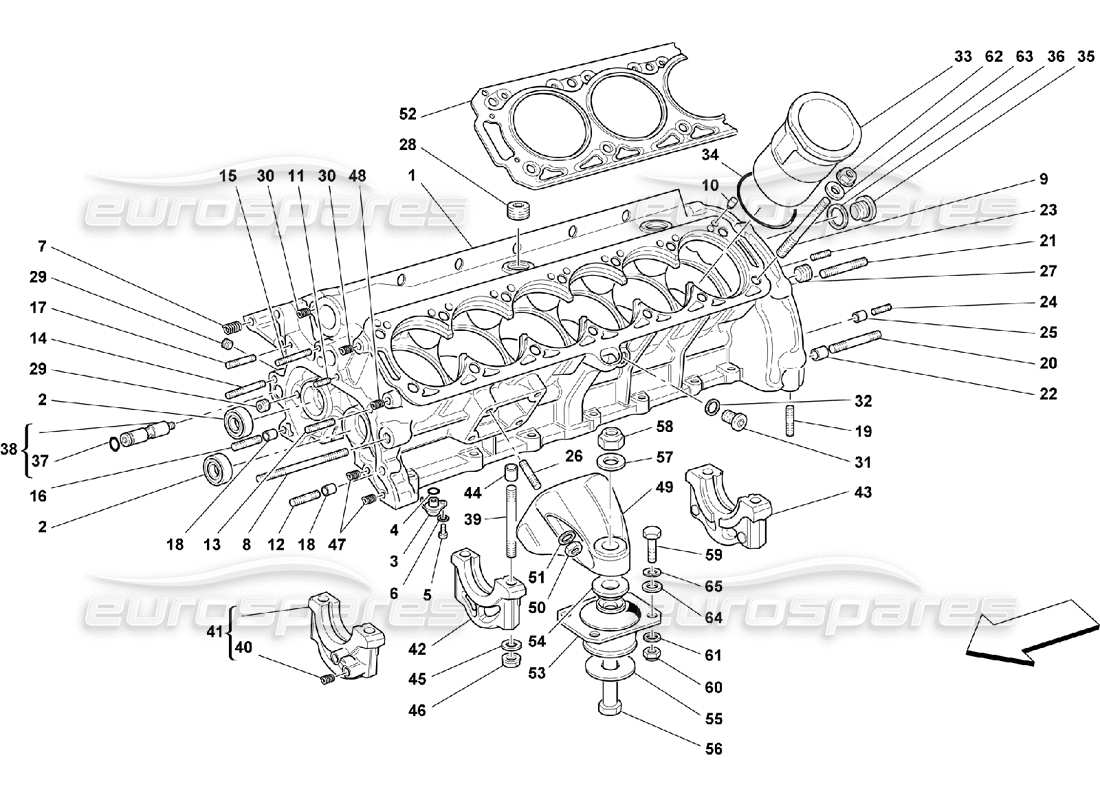

001 - crankcase
Ferrari 550 Maranello Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

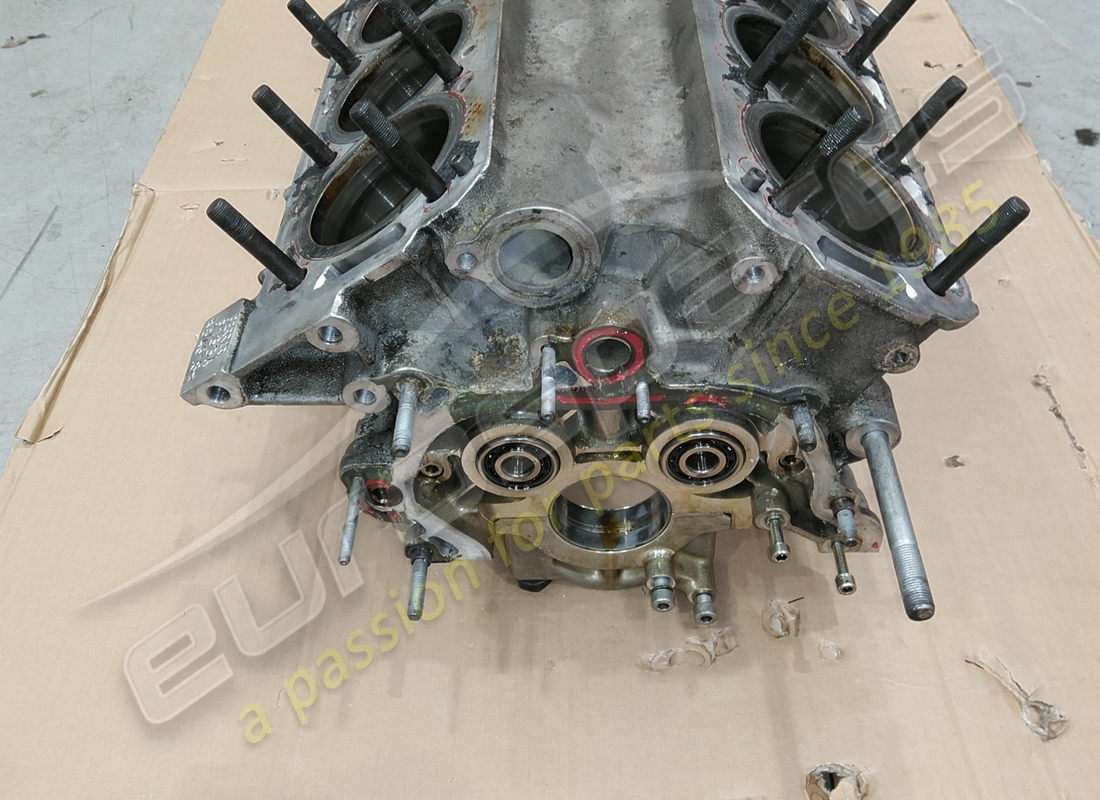

# 000
MPN: 171622
COMPLETE CRANKCASE
from £6,772.50
from £6,772.50
This part replaces part number 164873 - and 1 more. Click to view details

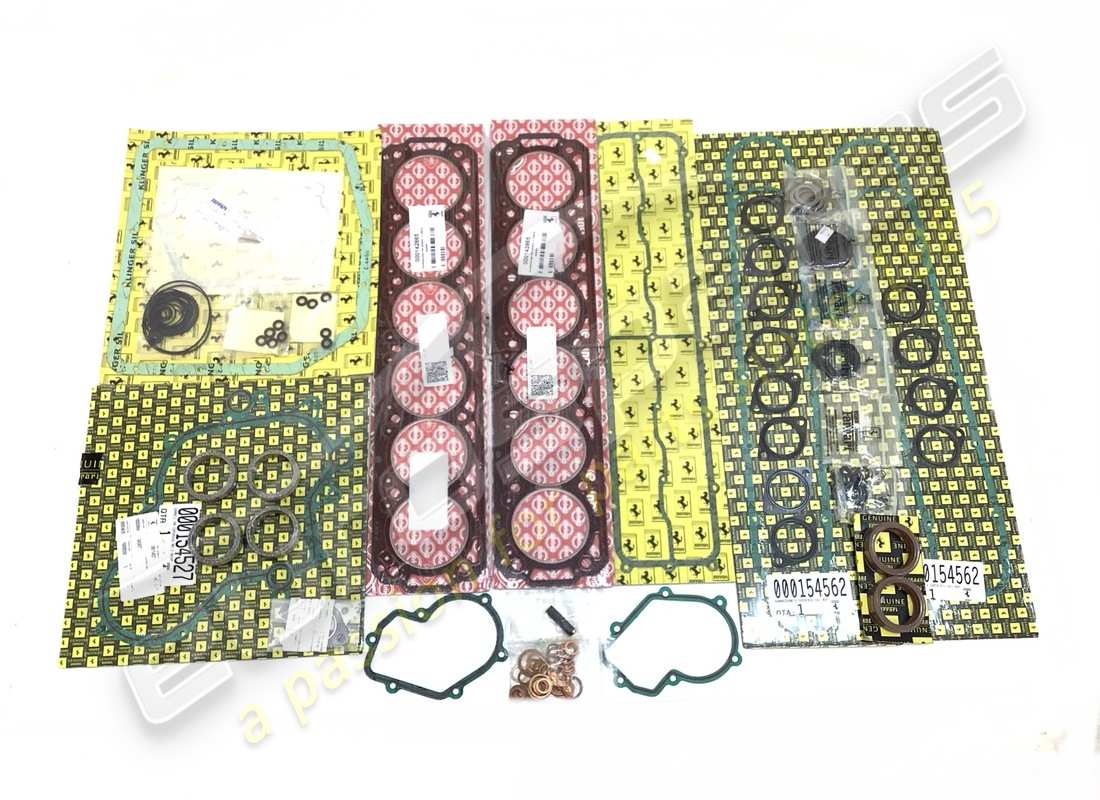

# 000
MPN: 174500
OEM GASKET SET
Supersession
Supersession

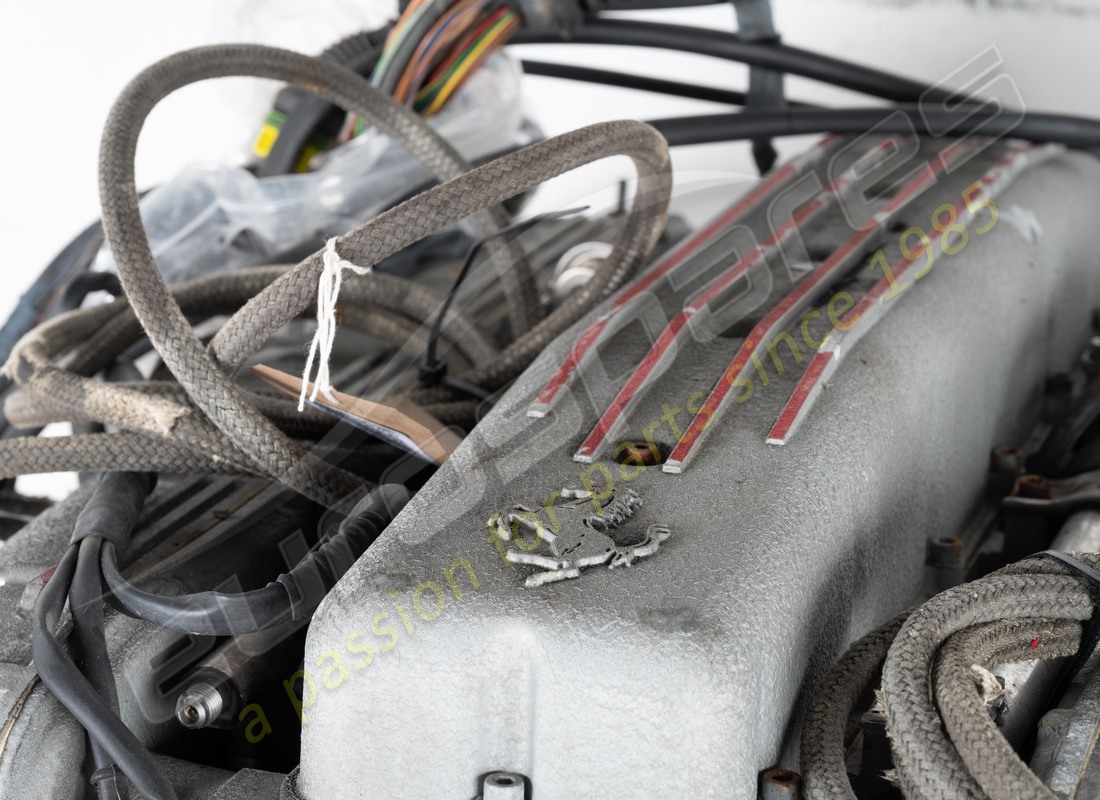

# 000
MPN: 175713
COMPLETE ENGINE
from £50,724.69
from £50,724.69
# 001
MPN: 164873
ENGINE BASE-PLATE
- With the complete crankcase
Supersession
Supersession
# 002
MPN: 171177
BEARING
- Valid till stock exhaustion
from £9.72
from £9.72
This part replaces part number 144713
# 002
MPN: 171177
BEARING
- Valid after stock exhaustion of 144713
from £9.72
from £9.72
This part replaces part number 144713
# 003
MPN: 170749
PISTONS COOLING NOZZLE
Supersession
Supersession
# 004
MPN: 143856
O.R. GASKET
from £0.47
from £0.47
# 005
MPN: 14303024
SCREW
from £0.50
from £0.50
This part replaces part number 14303021 - and 1 more. Click to view details

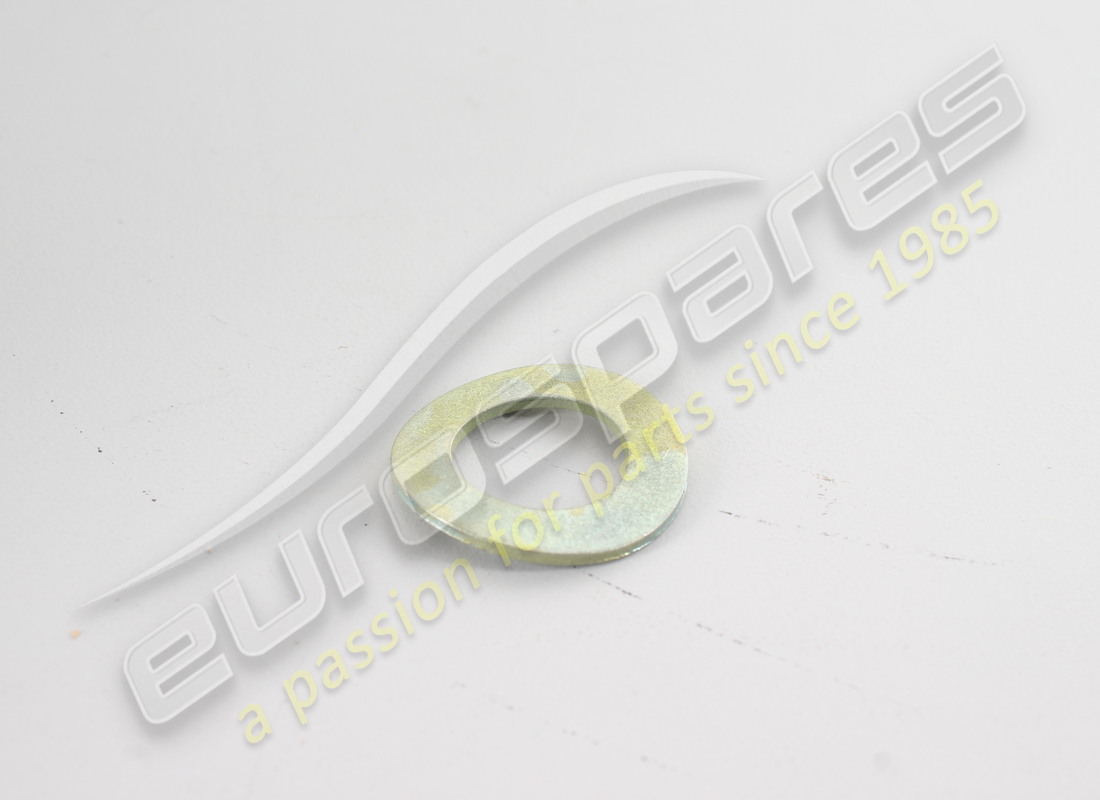

# 006
MPN: 12601074
WASHER
from £0.52
from £0.52
This part replaces part number 12601070 which we have in stock
# 007
MPN: 13526170
THREADED INSERT
from £2.43
from £2.43
This part replaces part number 105197
# 008
MPN: 13972234
STUD
from £2.97
from £2.97
# 009
MPN: 140591
STUD
from £34.48
from £34.48
# 010
MPN: 163121
DOWEL
from £1.92
from £1.92
# 011
MPN: 13541224
STUD
from £35.23
from £35.23
This part replaces part number 13541221
# 012
MPN: 13543924
STUD
from £0.83
from £0.83
This part replaces part number 13543921 which we have in stock
# 013
MPN: 13543524
STUD
from £2.03
from £2.03
This part replaces part number 13543521
# 014
MPN: 13541924
STUD
from £0.83
from £0.83
This part replaces part number 13541921
# 015
MPN: 13541724
STUD
from £1.56
from £1.56
This part replaces part number 13541721
# 016
MPN: 13543424
STUD
from £1.03
from £1.03
This part replaces part number 13543421
# 017
MPN: 13543824
STUD
from £1.66
from £1.66
This part replaces part number 13543821
# 018
MPN: 100041
DOWEL
from £3.82
from £3.82
# 019
MPN: 13517224
STUD
from £2.10
from £2.10
This part replaces part number 13517221
# 020
MPN: 13543924
STUD
from £0.83
from £0.83
This part replaces part number 13543921 which we have in stock
# 021
MPN: 13543824
STUD
from £1.66
from £1.66
This part replaces part number 13543821
# 022
MPN: 102704
DOWEL
from £1.59
from £1.59
This part replaces part number 500805
# 023
MPN: 13541024
STUD
from £0.47
from £0.47
This part replaces part number 13541021
# 024
MPN: 13541224
STUD
from £35.23
from £35.23
This part replaces part number 13541221
# 025
MPN: 103038
DOWEL
from £0.67
from £0.67
# 026
MPN: 13546524
STUD
from £0.68
from £0.68
This part replaces part number 13546521
# 027
MPN: 163528
THREADED PLUG
from £2.11
from £2.11
This part replaces part number 10268450 - and 1 more. Click to view details
# 028
MPN: 14325540
THREADED PLUG
from £4.21
from £4.21
# 029
MPN: 10275550
THREADED PLUG
from £0.79
from £0.79
# 030
MPN: 13525870
THREADED INSERT
from £1.40
from £1.40
This part replaces part number 105510
# 031
MPN: 150731
THREADED PLUG
from £2.01
from £2.01
# 032
MPN: 10280060
GASKET
from £0.47
from £0.47
This part replaces part number 100501 - and 3 more. Click to view details
# 033
MPN: 140316
CYLINDER LINER
from £389.89
from £389.89
# 034
MPN: 140321
GASKET
from £3.64
from £3.64
# 035
MPN: 10304640
THREADED PLUG
from £2.75
from £2.75
# 036
MPN: 10264560
GASKET
from £0.47
from £0.47
# 037
MPN: 134232
O.R. GASKET
from £0.68
from £0.68
This part replaces part number 153718 which we have in stock
# 038
MPN: 151160
OIL PRESSURE RELIEF VALVE
from £140.87
from £140.87
# 039
MPN: 140553
STUD
from £3.96
from £3.96
# 040
MPN: 13525770
THREADED INSERT
from £1.56
from £1.56
This part replaces part number 103830
# 041
MPN: 140545
FRONT CAP
- With complete crankcase
from £117.60
from £117.60
# 042
MPN: 140499
INTERMEDIATE CAP
- With complete crankcase
from £164.66
from £164.66
# 043
MPN: 140565
REAR CAP
- With complete crankcase
from £117.60
from £117.60
# 044
MPN: 145493
DOWEL
from £0.92
from £0.92
# 045
MPN: 142588
WASHER
from £0.56
from £0.56
# 046
MPN: 142590
NUT
from £2.69
from £2.69
# 047
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 048
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 049
MPN: 141892
ENGINE FIXING SUPPORT
from £79.11
from £79.11
# 050
MPN: 15501121
NUT
Supersession
Supersession
# 051
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 052
MPN: 142865
HEAD GASKET
from £295.23
from £295.23
This part replaces part number 153509
# 053

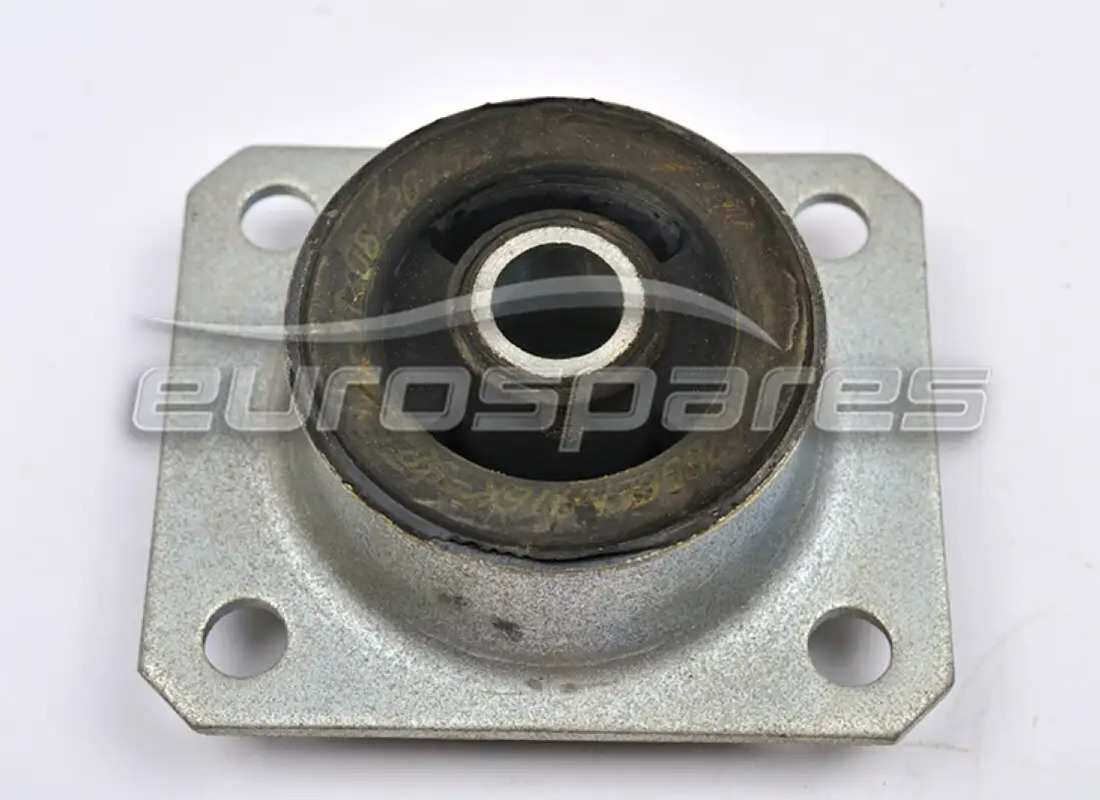

MPN: 168358
Engine Mount
from £68.96
from £68.96
This part replaces part number 177755
# 054
MPN: 172936
SPACER
from £4.26
from £4.26
# 055
MPN: 132269
SPACER
from £32.09
from £32.09
This part replaces part number 154997
# 056
MPN: 11369634
SCREW
from £1.94
from £1.94
This part replaces part number 11369624 - and 1 more. Click to view details
# 057
MPN: 12601774
WASHER
from £0.71
from £0.71
This part replaces part number 12601779
# 058
MPN: 176573
NUT
from £0.99
from £0.99
This part replaces part number 158307
# 059
MPN: 15970634
SCREW
from £1.56
from £1.56
# 060
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 061
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 062
MPN: 140664
NUT
from £32.27
from £32.27
# 063
MPN: 140603
WASHER
from £4.40
from £4.40
# 064
MPN: 14496624
WASHER
from £0.47
from £0.47
This part replaces part number 14496601 - and 2 more. Click to view details
# 065
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
