ferrari 550 maranello timing - valves parts diagram

007 - timing - valves

Ferrari 550 Maranello Timing - Valves Parts Diagram

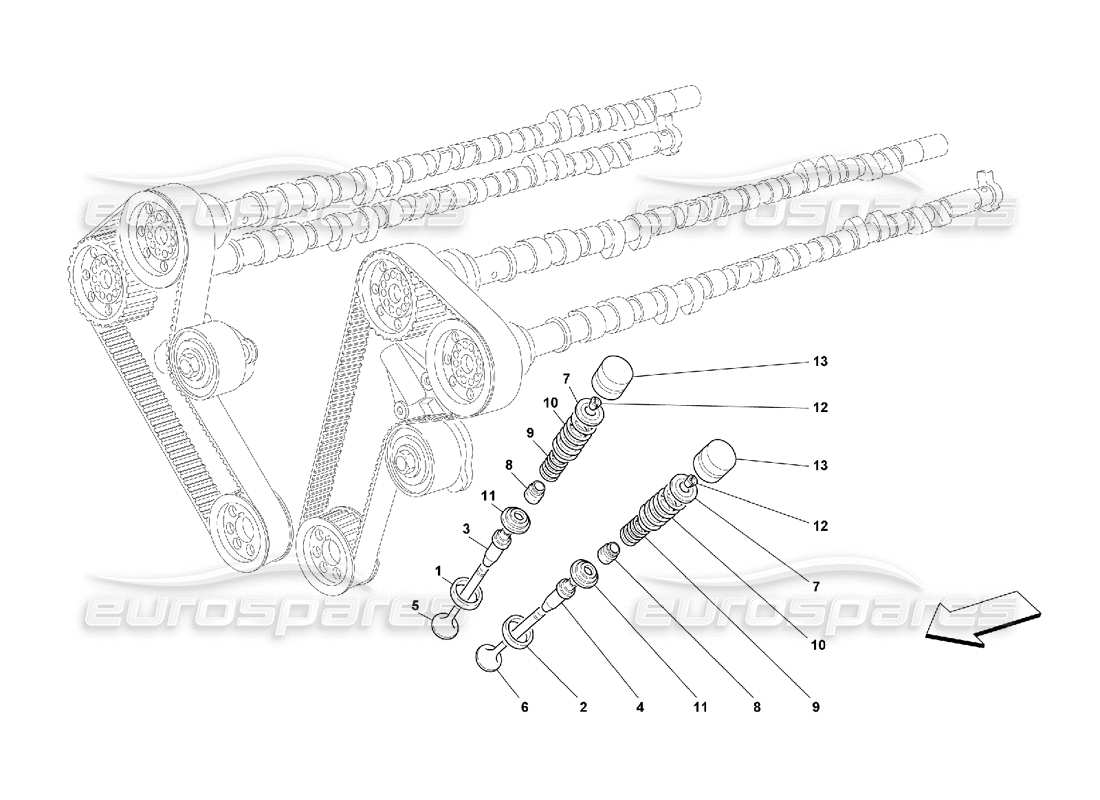

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 6174122
                          INTAKE VALVE SEAT
                          from £6.70
                          from £6.70
                          This part replaces part number 174122
                          # 002
                          MPN: 6174121
                          EXHAUST VALVE SEAT
                          from £7.14
                          from £7.14
                          This part replaces part number 174121
                          # 003
                          MPN: 168903
                          INTAKE VALVE GUIDE
                          from £32.05
                          from £32.05
                          # 003
                          MPN: 183781
                          INTAKE VALVE GUIDE OVERSIZED
                          from £49.32
                          from £49.32
                          This part replaces part number 168904 - and 1 more. Click to view details
                          # 004
                          MPN: 168905
                          EXHAUST VALVE GUIDE
                          from £6.83
                          from £6.83
                          # 004
                          MPN: 168906
                          EXHAUST VALVE GUIDE OVERSIZED
                          Supersession
                          Supersession
                          # 005
                          MPN: 167157
                          INTAKE VALVE
                          from £14.67
                          from £14.67
                          # 006
                          MPN: 167158
                          EXHAUST VALVE
                          from £29.60
                          from £29.60
                          # 007
                          MPN: 167177
                          UPPER SPACER
                          from £33.15
                          from £33.15
                          # 008
                          MPN: 145785
                          OIL RING FOR VALVE GUIDE
                          (rubber material in red)
                          from £4.69
                          from £4.69
                          # 009
                          MPN: 167387
                          INNER SPRING
                          from £3.83
                          from £3.83
                          # 010
                          MPN: 167386
                          OUTER SPRING
                          from £5.79
                          from £5.79
                          # 011
                          MPN: 167378
                          LOWER SPACER
                          from £17.63
                          from £17.63
                          # 012
                          MPN: 167170
                          COTTER FOR VALVE SPRING CUP
                          from £0.32
                          from £0.32
                          # 013
                          MPN: 166572
                          HYDRAULIC TAPPET FOR VALVE CONTROL
                          from £18.98
                          from £18.98
                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
