Ferrari 550 Maranello Engine Covers Parts Diagram

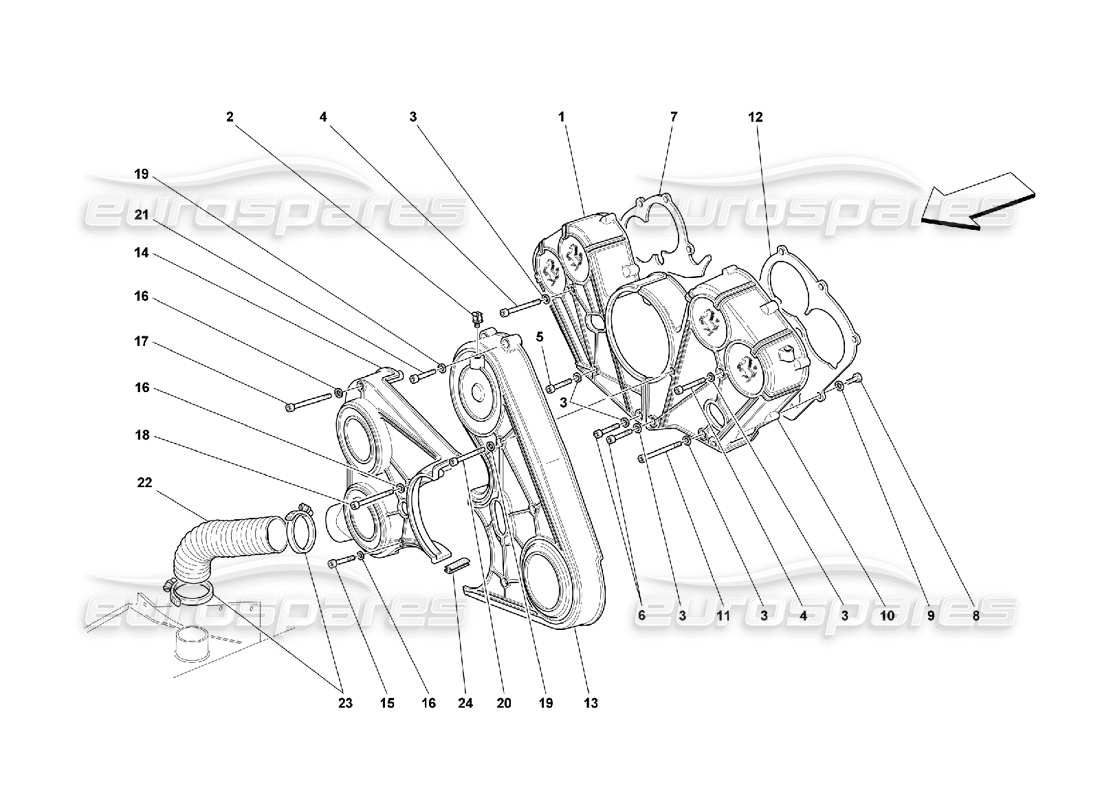

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price

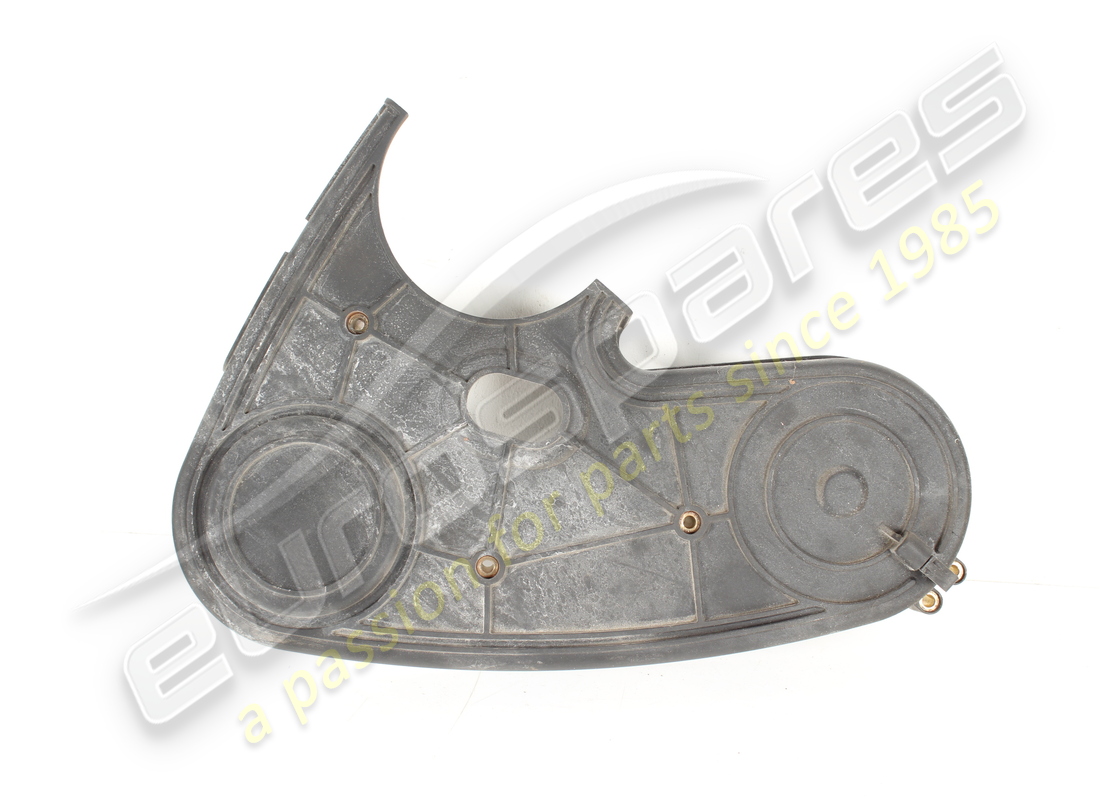

                                                  # 001
                                                  MPN: 155422
                                                  RH COVER
                                                  from £124.05
                                                  from £124.05
                                                  # 002
                                                  MPN: 14573987
                                                  CLIP
                                                  from £0.53
                                                  from £0.53
                                                  # 003
                                                  MPN: 12604274
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                  # 004
                                                  MPN: 175732
                                                  SCREW
                                                  from £4.13
                                                  from £4.13
                                                  This part replaces part number 156829 which we have in stock
                                                  # 005
                                                  MPN: 156828
                                                  SCREW
                                                  from £2.13
                                                  from £2.13
                                                  This part replaces part number 14306024
                                                  # 006
                                                  MPN: 156830
                                                  SCREW
                                                  from £0.57
                                                  from £0.57
                                                  # 007
                                                  MPN: 155819
                                                  RH PROTECTION
                                                  from £22.98
                                                  from £22.98
                                                  # 008
                                                  MPN: 10977724
                                                  SCREW
                                                  from £0.50
                                                  from £0.50
                                                  This part replaces part number 10977711
                                                  # 009
                                                  MPN: 12637824
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                  # 010
                                                  MPN: 155479
                                                  LH COVER
                                                  from £244.49
                                                  from £244.49
                                                  # 011
                                                  MPN: 156839
                                                  SCREW
                                                  from £10.26
                                                  from £10.26
                                                  # 012
                                                  MPN: 155820
                                                  LH PROTECTION
                                                  from £21.07
                                                  from £21.07
                                                  # 013
                                                  MPN: 155576
                                                  GUARD FOR BELT PROTECTION
                                                  from £193.39
                                                  from £193.39
                                                  # 014
                                                  MPN: 166919
                                                  GUARD FOR BELT PROTECTION
                                                  from £144.85
                                                  from £144.85
                                                  This part replaces part number 156331
                                                  # 015
                                                  MPN: 156830
                                                  SCREW
                                                  from £0.57
                                                  from £0.57
                                                  # 016
                                                  MPN: 12604274
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                  # 017
                                                  MPN: 156832
                                                  SCREW
                                                  from £2.86
                                                  from £2.86
                                                  # 018
                                                  MPN: 175732
                                                  SCREW
                                                  from £4.13
                                                  from £4.13
                                                  This part replaces part number 156829 which we have in stock
                                                  # 019
                                                  MPN: 12604274
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                  # 020
                                                  MPN: 156831
                                                  SCREW
                                                  from £1.38
                                                  from £1.38
                                                  # 021
                                                  MPN: 156830
                                                  SCREW
                                                  from £0.57
                                                  from £0.57
                                                  # 022
                                                  MPN: 158233
                                                  CONVEYOR TUBE
                                                  from £84.38
                                                  from £84.38
                                                  # 023
                                                  MPN: 13000890
                                                  SCREW COLLAR
                                                  from £0.63
                                                  from £0.63
                                                  This part replaces part number 12173290 - and 2 more. Click to view details
                                                  # 024
                                                  MPN: 156786
                                                  GASKET
                                                  from £30.12
                                                  from £30.12
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
