ferrari 550 maranello fuel supply system parts diagram

009 - fuel supply system

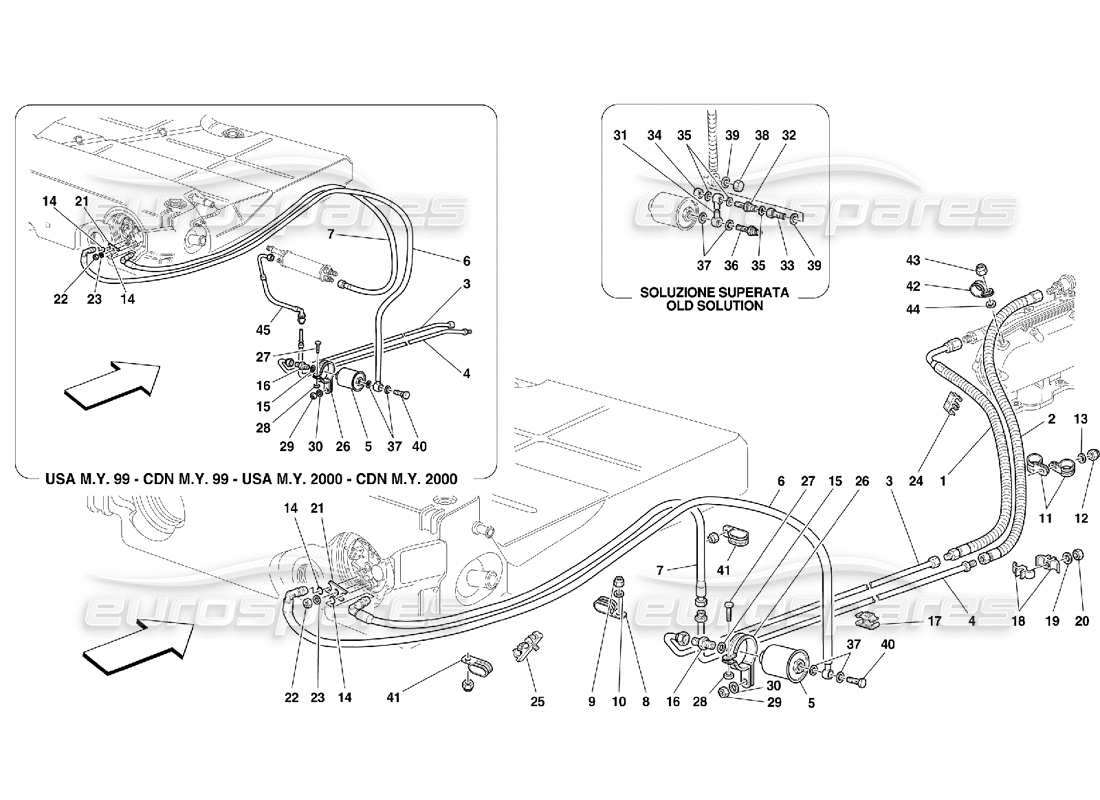

Ferrari 550 Maranello Fuel Supply System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price

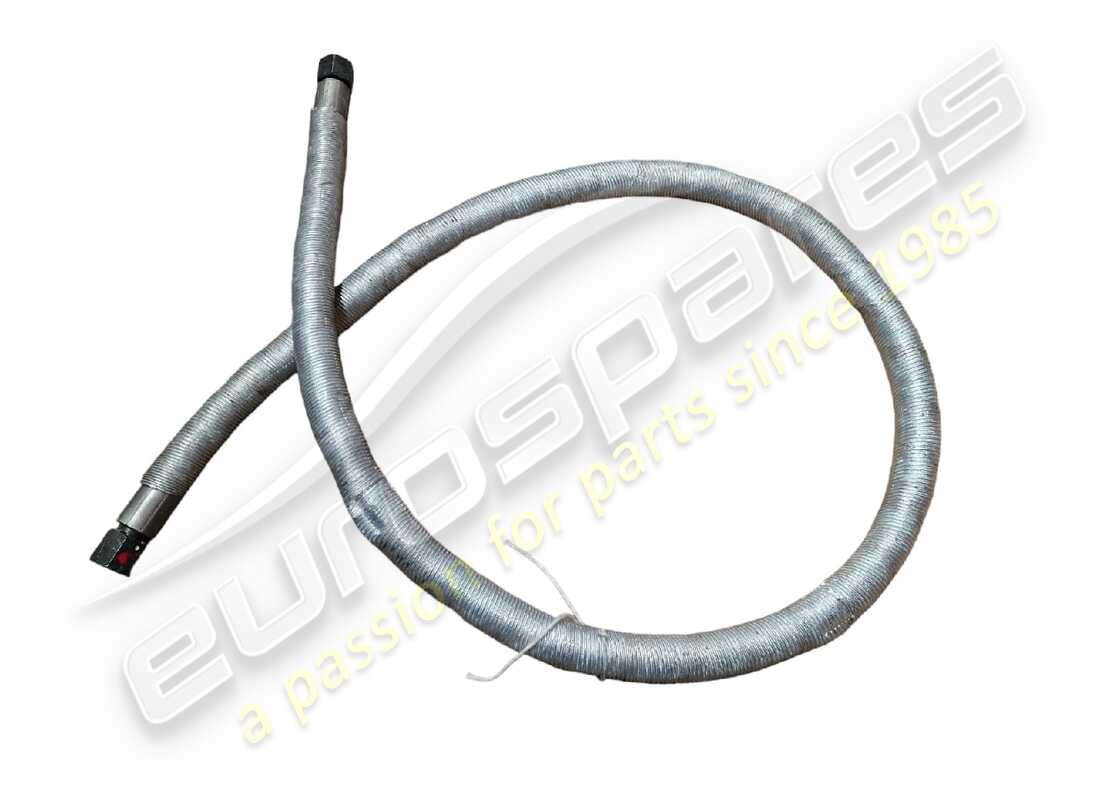

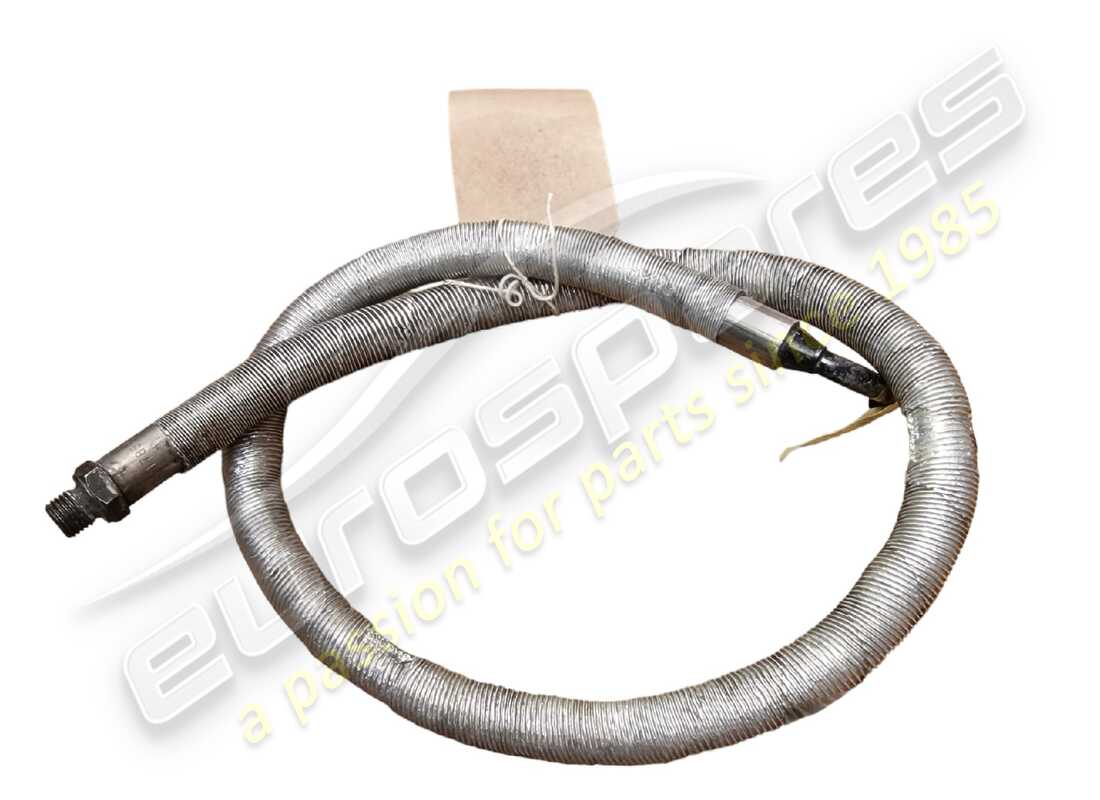

                                                                      # 001
                                                                      MPN: 166741
                                                                      RH DELIVERY PIPE
                                                                      - Not for GD - Not as spare part now - Replaced by 178525
                                                                      Supersession
                                                                      Supersession
                                                                      # 001
                                                                      MPN: 166742
                                                                      LH DELIVERY PIPE
                                                                      - Not for GD - Not as spare part now - Replaced by 178522
                                                                      Supersession
                                                                      Supersession
                                                                      # 001
                                                                      MPN: 173857
                                                                      LH DELIVERY PIPE
                                                                      - Valid for GD - Not as spare part now - Replaced by 178523
                                                                      Supersession
                                                                      Supersession
                                                                      # 001
                                                                      MPN: 173858
                                                                      RH DELIVERY PIPE
                                                                      - Valid for GD - Not as spare part now - Replaced by 178524
                                                                      Supersession
                                                                      Supersession
                                                                      # 001
                                                                      MPN: 178522
                                                                      LH DELIVERY PIPE
                                                                      - Not for GD
                                                                      from £122.46
                                                                      from £122.46
                                                                      This part replaces part number 166742 - and 1 more. Click to view details
                                                                      # 001
                                                                      MPN: 178523
                                                                      LH DELIVERY PIPE
                                                                      - Valid for GD
                                                                      from £202.86
                                                                      from £202.86
                                                                      This part replaces part number 173857
                                                                      # 001
                                                                      MPN: 178524
                                                                      RH DELIVERY PIPE
                                                                      - Valid for GD
                                                                      from £214.11
                                                                      from £214.11
                                                                      This part replaces part number 173858
                                                                      # 001
                                                                      MPN: 178525
                                                                      RH DELIVERY PIPE
                                                                      - Not for GD
                                                                      from £108.33
                                                                      from £108.33
                                                                      This part replaces part number 178304 - and 1 more. Click to view details

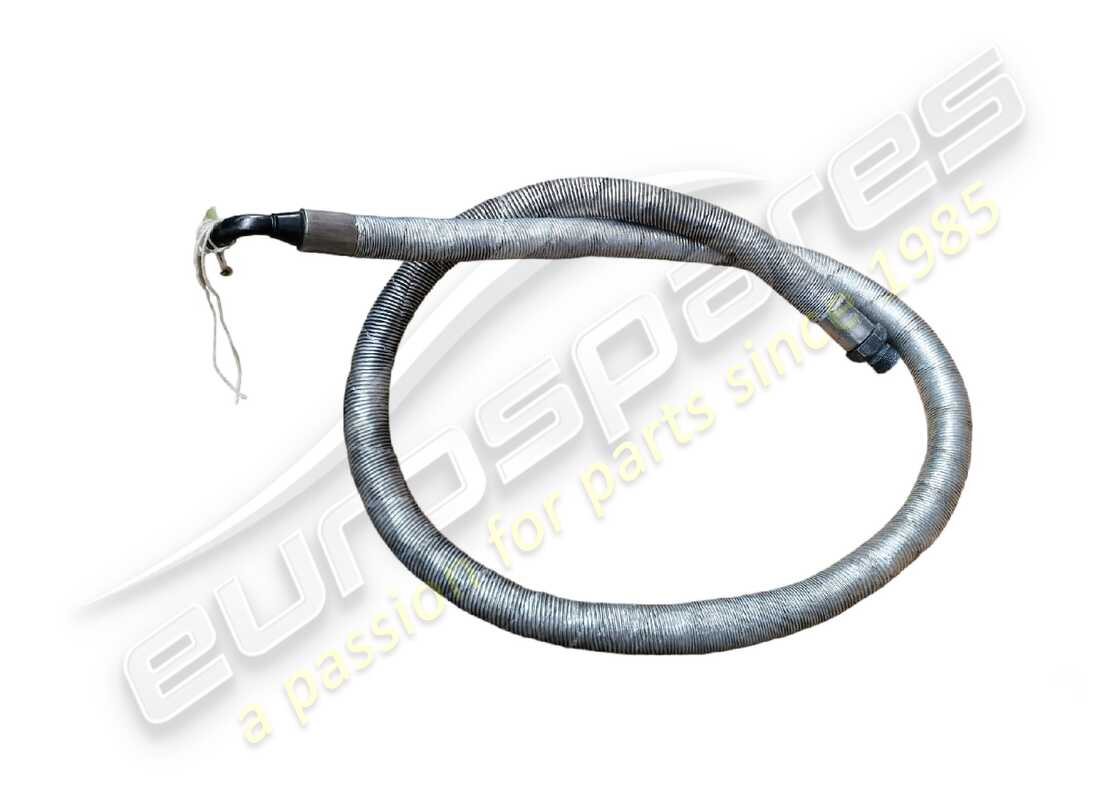

                                                                      # 002
                                                                      MPN: 171452
                                                                      RH RETURN PIPE
                                                                      - Not for GD - Not as spare part now - Replaced by 179164
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 171453
                                                                      LH RETURN PIPE
                                                                      - Not for GD - Not as spare part now - Replaced by 179356
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 173859
                                                                      LH RETURN PIPE
                                                                      - Valid for GD - Not as spare part now - Replaced by 179164
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 173860
                                                                      RH RETURN PIPE
                                                                      - Valid for GD - Not as spare part now - Replaced by 179356
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 179162
                                                                      LH RETURN PIPE
                                                                      - Valid for GD - Valid from car Ass. Nr. 32105
                                                                      from £279.76
                                                                      from £279.76
                                                                      # 002
                                                                      MPN: 179164
                                                                      RH RETURN PIPE
                                                                      - Not for GD
                                                                      from £160.48
                                                                      from £160.48
                                                                      This part replaces part number 178300 which we have in stock - and 3 more. Click to view details
                                                                      # 002
                                                                      MPN: 179164
                                                                      LH RETURN PIPE
                                                                      - Valid for GD - Valid till car Ass. Nr. 32104
                                                                      from £160.48
                                                                      from £160.48
                                                                      This part replaces part number 178300 which we have in stock - and 3 more. Click to view details
                                                                      # 002
                                                                      MPN: 179165
                                                                      RH RETURN PIPE
                                                                      - Valid for GD - Valid from car Ass. Nr. 32105
                                                                      from £302.08
                                                                      from £302.08
                                                                      # 002
                                                                      MPN: 179165
                                                                      LH RETURN PIPE
                                                                      - Not for GD - Valid from car Ass. Nr. 32102 and from car Ass. Nr. 32057 M.Y. 99
                                                                      from £302.08
                                                                      from £302.08
                                                                      # 002
                                                                      MPN: 179356
                                                                      RH RETURN PIPE
                                                                      - Valid for GD - Valid till car Ass. Nr. 32104
                                                                      from £172.75
                                                                      from £172.75
                                                                      This part replaces part number 178303 - and 1 more. Click to view details
                                                                      # 002
                                                                      MPN: 179356
                                                                      LH RETURN PIPE
                                                                      - Not for GD - Valid till car Ass. Nr. 32101 and till car Ass. Nr. 32056 M.Y. 99
                                                                      from £172.75
                                                                      from £172.75
                                                                      This part replaces part number 178303 - and 1 more. Click to view details
                                                                      # 003
                                                                      MPN: 166738
                                                                      RH DELIVERY RIGID PIPE
                                                                      - Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £79.25
                                                                      from £79.25
                                                                      # 003
                                                                      MPN: 166739
                                                                      LH DELIVERY RIGID PIPE
                                                                      from £79.25
                                                                      from £79.25
                                                                      # 003
                                                                      MPN: 179366
                                                                      RH DELIVERY RIGID PIPE
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £40.04
                                                                      from £40.04
                                                                      # 004
                                                                      MPN: 166740
                                                                      RH AND LH RETURN RIGID PIPE
                                                                      - Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £29.54
                                                                      from £29.54
                                                                      # 004
                                                                      MPN: 178777
                                                                      LH RETURN RIGID PIPE
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £52.70
                                                                      from £52.70
                                                                      # 004
                                                                      MPN: 179365
                                                                      RH RETURN RIGID PIPE
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £65.33
                                                                      from £65.33
                                                                      # 006
                                                                      MPN: 166736
                                                                      RH AND LH REAR DELIVERY PIPE
                                                                      - Not as spare part now - Replaced by 170432
                                                                      Supersession
                                                                      Supersession
                                                                      # 006
                                                                      MPN: 170432
                                                                      RH AND LH REAR DELIVERY PIPE
                                                                      from £145.36
                                                                      from £145.36
                                                                      This part replaces part number 166736
                                                                      # 007
                                                                      MPN: 166737
                                                                      RH AND LH REAR RETURN PIPE
                                                                      - Not as spare part now - Replaced by 170431
                                                                      Supersession
                                                                      Supersession
                                                                      # 007
                                                                      MPN: 170431
                                                                      RH AND LH REAR RETURN PIPE
                                                                      - Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £67.91
                                                                      from £67.91
                                                                      This part replaces part number 166737
                                                                      # 007
                                                                      MPN: 178778
                                                                      RH AND LH REAR RETURN PIPE
                                                                      - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                      from £445.90
                                                                      from £445.90
                                                                      # 007
                                                                      MPN: 182726
                                                                      RH AND LH REAR RETURN PIPE
                                                                      - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £245.25
                                                                      from £245.25
                                                                      # 008
                                                                      MPN: 138478
                                                                      BRACKET
                                                                      - LH side
                                                                      from £2.66
                                                                      from £2.66
                                                                      # 008
                                                                      MPN: 61712500
                                                                      BRACKET
                                                                      - RH side
                                                                      from £0.88
                                                                      from £0.88
                                                                      # 009
                                                                      MPN: 102948
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                      # 010
                                                                      MPN: 14499324
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14499301 which we have in stock
                                                                      # 011
                                                                      MPN: 10441990
                                                                      BRACKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 012
                                                                      MPN: 102948
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                      # 013
                                                                      MPN: 14499324
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14499301 which we have in stock
                                                                      # 014
                                                                      MPN: 127816
                                                                      O.R. GASKET
                                                                      from £1.41
                                                                      from £1.41
                                                                      # 015
                                                                      MPN: 10261060
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 016
                                                                      MPN: 109797
                                                                      UNION
                                                                      from £10.16
                                                                      from £10.16
                                                                      # 017
                                                                      MPN: 141699
                                                                      CLIP
                                                                      from £0.74
                                                                      from £0.74
                                                                      # 018
                                                                      MPN: 62658800
                                                                      CLIP
                                                                      from £7.86
                                                                      from £7.86
                                                                      # 019
                                                                      MPN: 14499324
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 14499301 which we have in stock
                                                                      # 020
                                                                      MPN: 102948
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                      # 021
                                                                      MPN: 129316
                                                                      PLATE
                                                                      from £3.02
                                                                      from £3.02
                                                                      # 022
                                                                      MPN: 14084211
                                                                      NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 023
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 024
                                                                      MPN: 140730
                                                                      CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 179357 which we have in stock
                                                                      # 025
                                                                      MPN: 156548
                                                                      CLIP
                                                                      from £8.24
                                                                      from £8.24
                                                                      # 026
                                                                      MPN: 152885
                                                                      BRACKET
                                                                      from £4.38
                                                                      from £4.38
                                                                      # 027
                                                                      MPN: 10902324
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                      # 028
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 029
                                                                      MPN: 101139
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 16104425
                                                                      # 030
                                                                      MPN: 12646724
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12601571 - and 3 more. Click to view details
                                                                      # 031
                                                                      MPN: 173034
                                                                      DOUBLE SWINGING UNION
                                                                      from £25.58
                                                                      from £25.58
                                                                      # 032
                                                                      MPN: 120098
                                                                      NONRETURN VALVE
                                                                      from £48.27
                                                                      from £48.27
                                                                      # 033
                                                                      MPN: 173037
                                                                      UNION
                                                                      from £14.18
                                                                      from £14.18
                                                                      # 034
                                                                      MPN: 10183217
                                                                      PLUG FOR UNION
                                                                      Supersession
                                                                      Supersession
                                                                      # 035
                                                                      MPN: 10298460
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 93353
                                                                      # 036
                                                                      MPN: 171996
                                                                      UNION WITH VALVE
                                                                      from £39.97
                                                                      from £39.97
                                                                      # 037
                                                                      MPN: 10280060
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                      # 038
                                                                      MPN: 10182817
                                                                      THREADED PLUG
                                                                      from £1.17
                                                                      from £1.17
                                                                      # 039
                                                                      MPN: 10280060
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                      # 041
                                                                      MPN: 139512
                                                                      BRACKET WITH SHEATH
                                                                      from £1.20
                                                                      from £1.20
                                                                      # 042
                                                                      MPN: 10441790
                                                                      BRACKET WITH SHEATH
                                                                      - Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M.Y. 99
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 043
                                                                      MPN: 102948
                                                                      NUT
                                                                      - Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M.Y. 99
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                      # 044
                                                                      MPN: 14499324
                                                                      WASHER
                                                                      - Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M.Y. 99
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14499301 which we have in stock
                                                                      # 045
                                                                      MPN: 179363
                                                                      RH FUEL TUBE FROM EXCHANGER TO RIGID PIPE
                                                                      - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                      from £26.04
                                                                      from £26.04
                                                                      # 045
                                                                      MPN: 179364
                                                                      LH FUEL TUBE FROM EXCHANGER TO RIGID PIPE
                                                                      - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                      from £26.64
                                                                      from £26.64
                                                                      # 045
                                                                      MPN: 180943
                                                                      FUEL TUBE FROM EXCHANGER TO RIGID PIPE
                                                                      - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £49.17
                                                                      from £49.17
