ferrari 550 maranello fuel pump parts diagram

011 - fuel pump

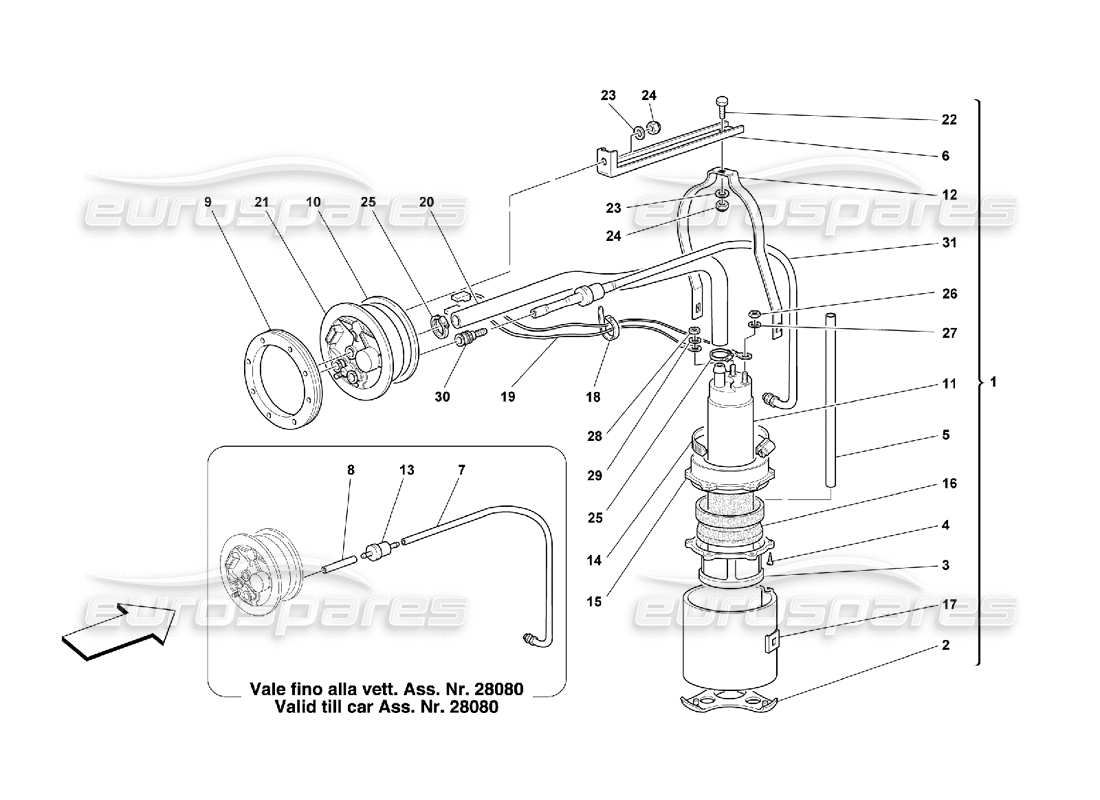

Ferrari 550 Maranello Fuel Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 173894

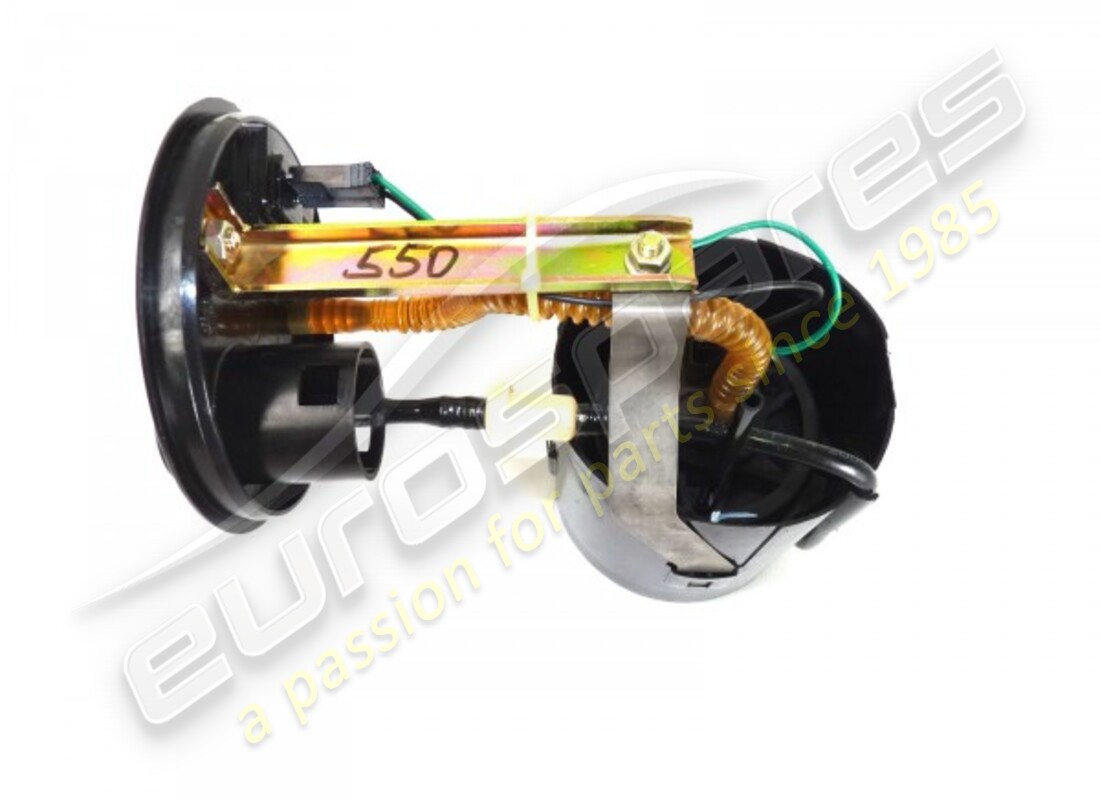

                                          COMPLETE FUEL PUMP
                                          Supersession
                                          Supersession
                                          This part replaces part number 170428
                                          # 002
                                          MPN: 126807
                                          ANTI VIBRATION PAD
                                          from £21.06
                                          from £21.06
                                          # 003
                                          MPN: 126808
                                          FILTER INSIDE CHAMBER
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 15671101
                                          SCREW
                                          from £1.37
                                          from £1.37
                                          # 005
                                          MPN: 166582
                                          PIPE
                                          - Valid for fuel pump 170428
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 173892
                                          PIPE
                                          - Valid for fuel pump 173894
                                          from £6.51
                                          from £6.51
                                          This part replaces part number 166582

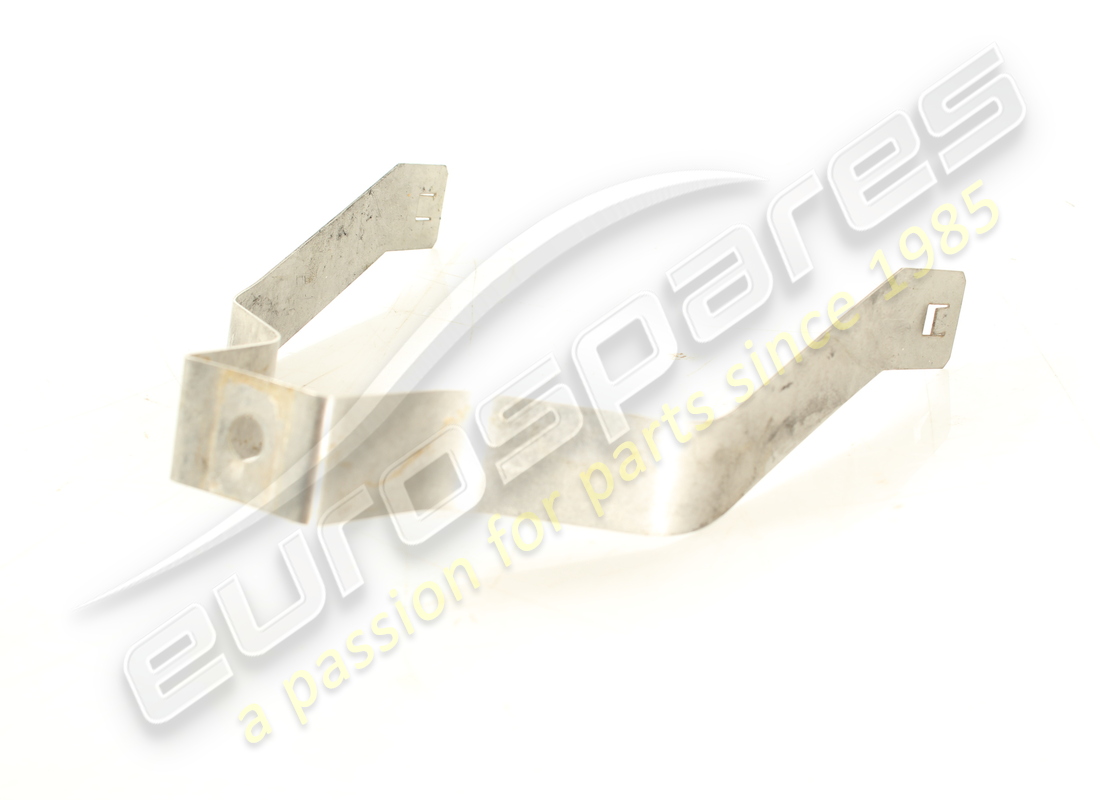

                                          # 006
                                          MPN: 166520
                                          BRACKET
                                          from £48.57
                                          from £48.57
                                          This part replaces part number 162722
                                          # 007
                                          MPN: 169144
                                          FUEL FLOWING BACK PIPE
                                          - Valid till car Ass. Nr. 28080
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 169143
                                          FUEL FLOWING BACK PIPE
                                          - Valid till car Ass. Nr. 28080
                                          Supersession
                                          Supersession
                                          # 009
                                          MPN: 126838
                                          RING NUT
                                          from £47.29
                                          from £47.29
                                          # 010
                                          MPN: 897696
                                          GASKET
                                          alternative 126835
                                          from £47.56
                                          from £47.56
                                          This part replaces part number 126835
                                          # 011
                                          MPN: 173891
                                          fuel pump
                                          from £227.14
                                          from £227.14
                                          This part replaces part number 170427 - and 1 more. Click to view details
                                          # 012
                                          MPN: 166512
                                          ANTI-VIBRATING SPRING
                                          from £70.39
                                          from £70.39
                                          This part replaces part number 162722
                                          # 013
                                          MPN: 166540
                                          NONRETURN VALVE
                                          - Valid till car Ass. Nr. 28080
                                          from £17.11
                                          from £17.11
                                          This part replaces part number 170503
                                          # 014
                                          MPN: 13000890
                                          SCREW COLLAR
                                          from £0.63
                                          from £0.63
                                          This part replaces part number 12173290 - and 2 more. Click to view details
                                          # 015
                                          MPN: 170512
                                          FUEL FILTER COVER
                                          from £12.17
                                          from £12.17
                                          # 016
                                          MPN: 170511
                                          GASKET
                                          from £85.12
                                          from £85.12
                                          # 017
                                          MPN: 153189
                                          PAN
                                          from £56.88
                                          from £56.88
                                          # 018
                                          MPN: 14560480
                                          CLAMP
                                          from £4.62
                                          from £4.62
                                          # 019
                                          MPN: 173678
                                          FUEL PUMP CABLES ASSY
                                          - Valid for fuel pump 170428
                                          from £1,010.25
                                          from £1,010.25
                                          # 019
                                          MPN: 173893
                                          FUEL PUMP CABLES ASSY
                                          - Valid for fuel pump 173894
                                          from £30.84
                                          from £30.84
                                          # 020
                                          MPN: 170513
                                          FEEDING PIPE
                                          - Valid for fuel pump 170428
                                          from £22.87
                                          from £22.87
                                          # 020
                                          MPN: 173493
                                          FEEDING PIPE
                                          - Valid for fuel pump 173894
                                          from £97.34
                                          from £97.34
                                          # 021
                                          MPN: 170510
                                          COMPLETE COVER
                                          - Valid for fuel pump 170428
                                          from £238.33
                                          from £238.33
                                          # 021
                                          MPN: 173890
                                          COMPLETE COVER
                                          - Valid for fuel pump 173894
                                          from £137.47
                                          from £137.47
                                          # 022
                                          MPN: 10902124
                                          SCREW
                                          - Valid till car Ass. Nr. 28080
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10902111 - and 1 more. Click to view details
                                          # 022
                                          MPN: 10977524
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 023
                                          MPN: 10519424
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                          # 024
                                          MPN: 15896214
                                          NUT
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 15896211
                                          # 025
                                          MPN: 13125470
                                          CLAMP
                                          from £0.51
                                          from £0.51
                                          # 026
                                          MPN: 15896411
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 15896401
                                          # 027
                                          MPN: 12605274
                                          WASHER
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 12605270 - and 1 more. Click to view details
                                          # 028
                                          MPN: 10794011
                                          NUT
                                          from £0.26
                                          from £0.26
                                          # 029
                                          MPN: 10615274
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10615270 - and 2 more. Click to view details
                                          # 030
                                          MPN: 177352
                                          UNION
                                          - Valid from car Ass. Nr. 28081
                                          from £25.49
                                          from £25.49
                                          # 031
                                          MPN: 177353
                                          RECOVERY COMPLETE TUBE
                                          - Valid from car Ass. Nr. 28081
                                          from £129.03
                                          from £129.03
                                          This part replaces part number 169143 - and 1 more. Click to view details
