ferrari 550 maranello fuel tank -not for usa m.y. 99, usa m.y. 2000, cdn m.y. 99 and cdn m.y. 2000 parts diagram

012 - Fuel Tank -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

Ferrari 550 Maranello Fuel Tank -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram

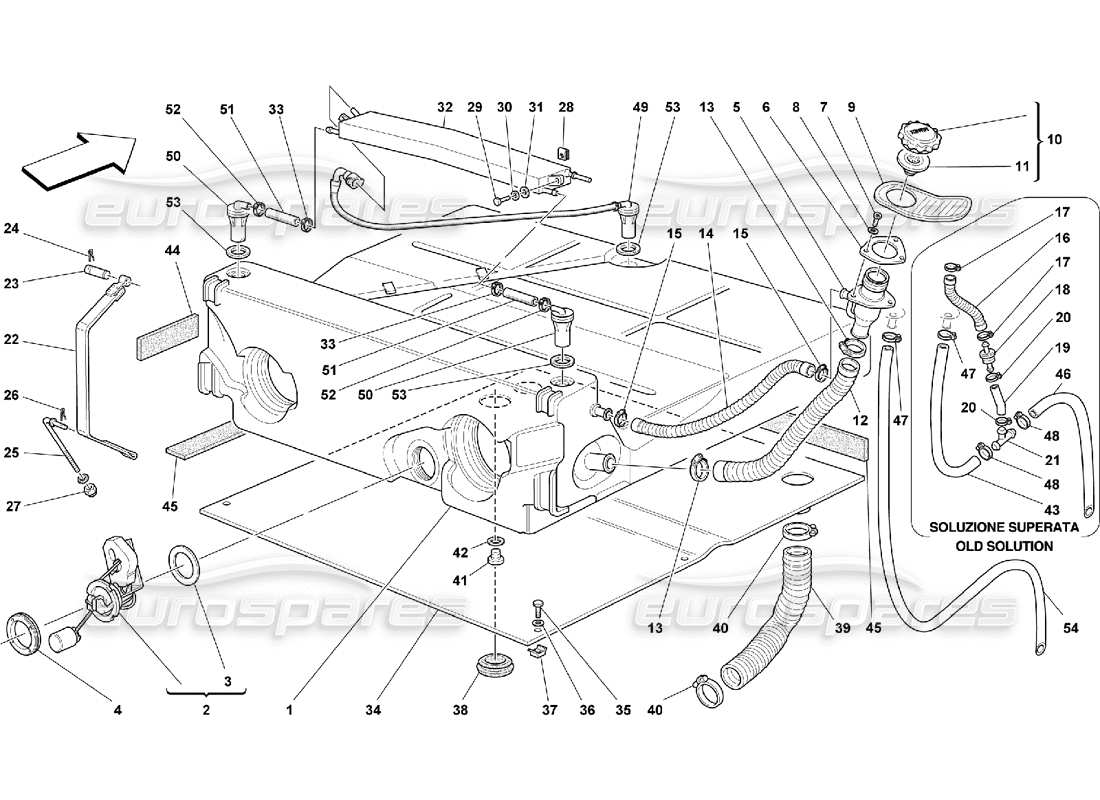

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 165129
                                                                                                    FUEL TANK
                                                                                                    from £882.22
                                                                                                    from £882.22
                                                                                                    # 002
                                                                                                    MPN: 168238
                                                                                                    COMPLETE FUEL LEVEL INDICATOR CONTROL
                                                                                                    from £390.00
                                                                                                    from £390.00
                                                                                                    # 003
                                                                                                    MPN: 154802
                                                                                                    GASKET
                                                                                                    from £17.11
                                                                                                    from £17.11
                                                                                                    This part replaces part number 116792 - and 2 more. Click to view details
                                                                                                    # 004
                                                                                                    MPN: 121435
                                                                                                    RING NUT
                                                                                                    from £44.76
                                                                                                    from £44.76
                                                                                                    This part replaces part number 116012 - and 5 more. Click to view details
                                                                                                    # 005

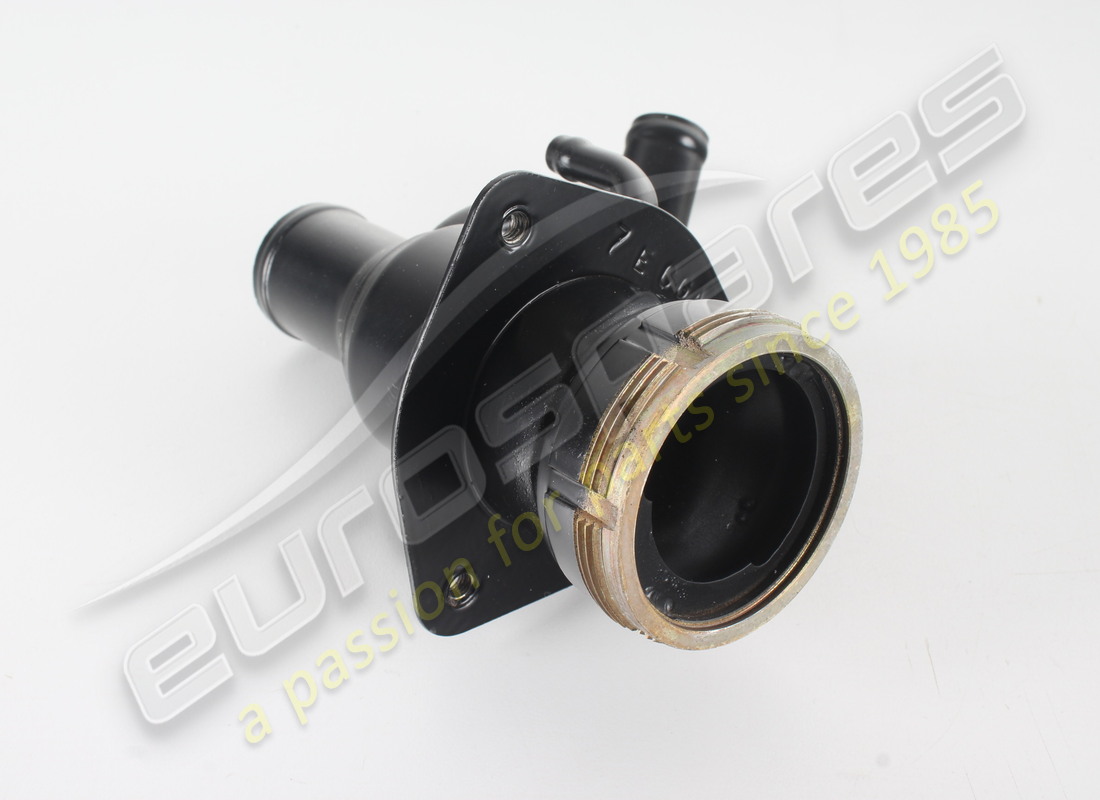

                                                                                                    MPN: 171278
                                                                                                    FILLER
                                                                                                    - Valid from Ass. N° 24857 - Not for not catalyzed cars
                                                                                                    from £79.01
                                                                                                    from £79.01
                                                                                                    # 005
                                                                                                    MPN: 172953
                                                                                                    FILLER
                                                                                                    - Valid till Ass. Nr. 24856 - Not for not catalyzed cars
                                                                                                    from £88.67
                                                                                                    from £88.67
                                                                                                    This part replaces part number 170106 - and 1 more. Click to view details
                                                                                                    # 005
                                                                                                    MPN: 173482
                                                                                                    FILLER
                                                                                                    - Valid for not catalyzed cars
                                                                                                    from £149.57
                                                                                                    from £149.57
                                                                                                    # 006
                                                                                                    MPN: 174095
                                                                                                    GASKET
                                                                                                    from £3.58
                                                                                                    from £3.58
                                                                                                    This part replaces part number 123897
                                                                                                    # 007
                                                                                                    MPN: 62926700
                                                                                                    SCREW
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                                                                                    # 008
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                    # 009
                                                                                                    MPN: 62943200
                                                                                                    RUBBER PROTECTION
                                                                                                    from £14.54
                                                                                                    from £14.54
                                                                                                    This part replaces part number 60134202
                                                                                                    # 010
                                                                                                    MPN: 180320
                                                                                                    FUEL CAP
                                                                                                    from £95.00
                                                                                                    from £95.00
                                                                                                    # 010
                                                                                                    MPN: 180320
                                                                                                    FUEL CAP
                                                                                                    from £95.00
                                                                                                    from £95.00
                                                                                                    # 010
                                                                                                    MPN: 226448
                                                                                                    FUEL CAP
                                                                                                    Replaced by 180321
                                                                                                    from £155.68
                                                                                                    from £155.68
                                                                                                    This part replaces part number 180321
                                                                                                    # 011
                                                                                                    MPN: 142792
                                                                                                    GASKET
                                                                                                    - Valid till Ass. Nr. 24856 - Not as spare part now - Replaced by 175709
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 011
                                                                                                    MPN: 170822
                                                                                                    GASKET
                                                                                                    - Valid from Ass. Nr. 24857 - Not as spare part now - With complete plug 180321
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 011
                                                                                                    MPN: 175709
                                                                                                    GASKET
                                                                                                    from £21.22
                                                                                                    from £21.22
                                                                                                    This part replaces part number 142792
                                                                                                    # 012
                                                                                                    MPN: 167131
                                                                                                    FILLER-TANK CONNECTING PIPE
                                                                                                    from £16.88
                                                                                                    from £16.88
                                                                                                    # 013
                                                                                                    MPN: 170127
                                                                                                    SCREW COLLAR
                                                                                                    from £0.99
                                                                                                    from £0.99
                                                                                                    # 014
                                                                                                    MPN: 165132
                                                                                                    VENT PIPE FROM TANK TO FILLER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 015
                                                                                                    MPN: 164015
                                                                                                    SCREW COLLAR
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 12181290
                                                                                                    # 016
                                                                                                    MPN: 170166
                                                                                                    PIPE FROM FILLER TO VALVE
                                                                                                    from £22.26
                                                                                                    from £22.26
                                                                                                    # 017
                                                                                                    MPN: 13431570
                                                                                                    SCREW COLLAR
                                                                                                    from £0.69
                                                                                                    from £0.69
                                                                                                    # 018
                                                                                                    MPN: 169840
                                                                                                    2-WAY VALVE
                                                                                                    from £18.72
                                                                                                    from £18.72
                                                                                                    # 019
                                                                                                    MPN: 170546
                                                                                                    RUBBER PIPE
                                                                                                    # 020
                                                                                                    MPN: 13431870
                                                                                                    SCREW COLLAR
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 021
                                                                                                    MPN: 170615
                                                                                                    3-WAY UNION
                                                                                                    from £0.92
                                                                                                    from £0.92
                                                                                                    # 022
                                                                                                    MPN: 172340
                                                                                                    FUEL TANK FASTENER
                                                                                                    from £26.36
                                                                                                    from £26.36
                                                                                                    # 023
                                                                                                    MPN: 103447
                                                                                                    PIN
                                                                                                    from £12.86
                                                                                                    from £12.86
                                                                                                    # 024
                                                                                                    MPN: 10796440
                                                                                                    SPLIT PIN
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 264555
                                                                                                    # 025
                                                                                                    MPN: 127529
                                                                                                    THREADED TIE ROD
                                                                                                    from £122.49
                                                                                                    from £122.49
                                                                                                    This part replaces part number 12311271 - and 15 more. Click to view details
                                                                                                    # 026
                                                                                                    MPN: 10796440
                                                                                                    SPLIT PIN
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 264555
                                                                                                    # 027
                                                                                                    MPN: 104030
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 16104125
                                                                                                    # 028
                                                                                                    MPN: 62766300
                                                                                                    CLIP
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 029
                                                                                                    MPN: 10902224
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 030
                                                                                                    MPN: 127494
                                                                                                    WASHER
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                    # 031
                                                                                                    MPN: 10519424
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                    # 032
                                                                                                    MPN: 169583
                                                                                                    DISAREATOR
                                                                                                    - Valid till car Ass. Nr. 30266 - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                    from £74.37
                                                                                                    from £74.37
                                                                                                    # 032
                                                                                                    MPN: 178866
                                                                                                    DISAREATOR
                                                                                                    - Valid from car Ass. Nr. 30267 - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                    from £131.25
                                                                                                    from £131.25
                                                                                                    # 033
                                                                                                    MPN: 13434670
                                                                                                    SCREW COLLAR
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 034
                                                                                                    MPN: 65083800
                                                                                                    UNDER TANK SHIELD
                                                                                                    from £368.12
                                                                                                    from £368.12
                                                                                                    # 035
                                                                                                    MPN: 10902424
                                                                                                    SCREW
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    This part replaces part number 10902324 - and 3 more. Click to view details
                                                                                                    # 036
                                                                                                    MPN: 12643724
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                    # 037
                                                                                                    MPN: 60659100
                                                                                                    NUT WITH CAGE
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                                    # 038
                                                                                                    MPN: 64783600
                                                                                                    RUBBER PLUG
                                                                                                    from £3.00
                                                                                                    from £3.00
                                                                                                    # 039
                                                                                                    MPN: 65084500
                                                                                                    AIR DELIVERY TUBE TO TANK
                                                                                                    from £27.30
                                                                                                    from £27.30
                                                                                                    # 040
                                                                                                    MPN: 12173190
                                                                                                    SCREW COLLAR
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 041
                                                                                                    MPN: 148045
                                                                                                    THREADED PLUG
                                                                                                    from £9.18
                                                                                                    from £9.18
                                                                                                    # 042
                                                                                                    MPN: 123622
                                                                                                    O.R. GASKET
                                                                                                    from £0.79
                                                                                                    from £0.79
                                                                                                    # 043
                                                                                                    MPN: 65197700
                                                                                                    EXHAUST PLASTIC HOSE
                                                                                                    from £3.45
                                                                                                    from £3.45
                                                                                                    # 044
                                                                                                    MPN: 157411
                                                                                                    RUBBER THICKNESS
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 045
                                                                                                    MPN: 167025
                                                                                                    RUBBER THICKNESS
                                                                                                    from £3.19
                                                                                                    from £3.19
                                                                                                    # 046
                                                                                                    MPN: 161032
                                                                                                    EXHAUST PLASTIC HOSE
                                                                                                    from £3.80
                                                                                                    from £3.80
                                                                                                    # 047
                                                                                                    MPN: 13423671
                                                                                                    ELASTIC COLLAR
                                                                                                    from £0.82
                                                                                                    from £0.82
                                                                                                    # 048
                                                                                                    MPN: 161490
                                                                                                    SCREW COLLAR
                                                                                                    from £1.02
                                                                                                    from £1.02
                                                                                                    # 049
                                                                                                    MPN: 169937
                                                                                                    PIPE WITH VALVE
                                                                                                    from £122.33
                                                                                                    from £122.33
                                                                                                    # 050
                                                                                                    MPN: 169839
                                                                                                    VALVE
                                                                                                    from £24.80
                                                                                                    from £24.80
                                                                                                    # 051
                                                                                                    MPN: 116762
                                                                                                    RUBBER HOSE
                                                                                                    from £12.40
                                                                                                    from £12.40
                                                                                                    This part replaces part number 114897
                                                                                                    # 052
                                                                                                    MPN: 13434670
                                                                                                    SCREW COLLAR
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 053
                                                                                                    MPN: 195049
                                                                                                    GASKET
                                                                                                    from £2.40
                                                                                                    from £2.40
                                                                                                    This part replaces part number 169938
                                                                                                    # 054
                                                                                                    MPN: 179851
                                                                                                    RUBBER HOSE
                                                                                                    from £27.05
                                                                                                    from £27.05
                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
