013 - Fuel Tank -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

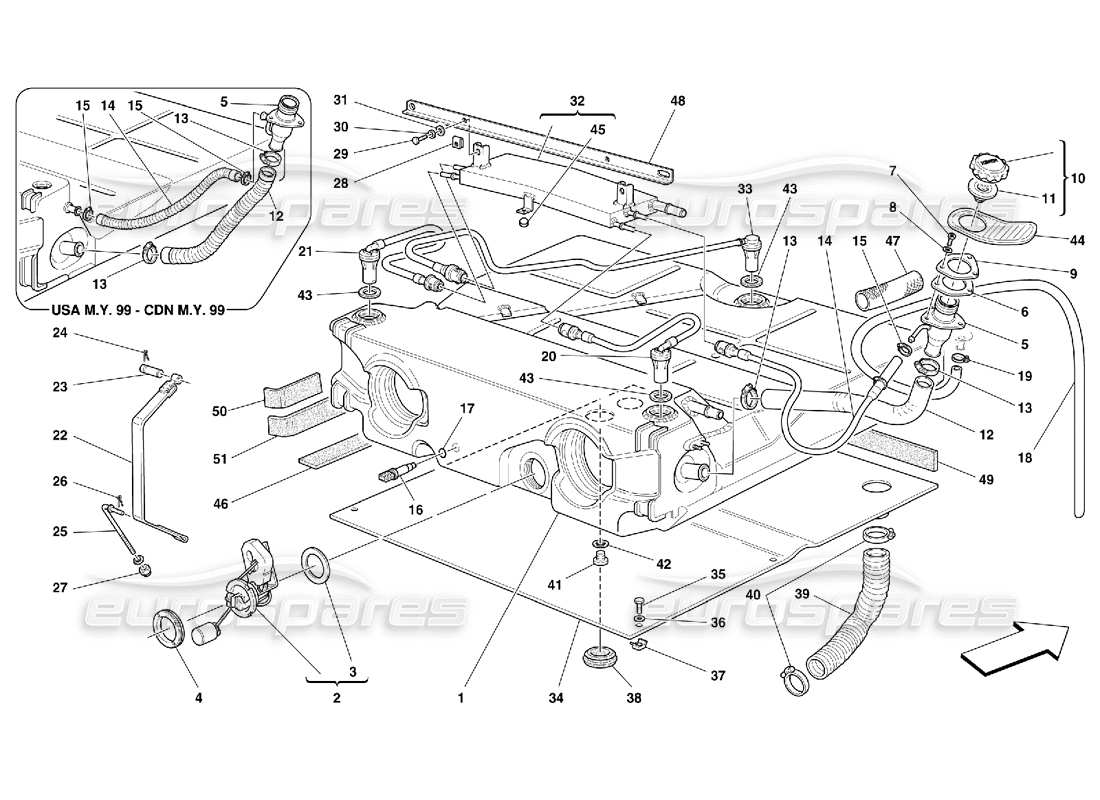

Ferrari 550 Maranello Fuel Tank -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 179178
FUEL TANK
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £1,711.85
from £1,711.85
# 001
MPN: 181926
FUEL TANK
- Valid for USA M.Y. 2000 and CDN M.Y. 2000 - Not as spare part now - Replaced by 186103
Supersession
Supersession
# 001
MPN: 186103
FUEL TANK
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £1,443.53
from £1,443.53
This part replaces part number 181926 - and 1 more. Click to view details
# 002
MPN: 168238
COMPLETE FUEL LEVEL INDICATOR CONTROL
from £390.00
from £390.00
# 003
MPN: 154802
GASKET
from £17.11
from £17.11
This part replaces part number 116792 - and 2 more. Click to view details
# 004
MPN: 121435
RING NUT
from £44.76
from £44.76
This part replaces part number 116012 - and 5 more. Click to view details
# 005
MPN: 171278
FILLER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £79.01
from £79.01
# 005
MPN: 181932
FILLER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £85.98
from £85.98
# 006
MPN: 174095
GASKET
from £3.58
from £3.58
This part replaces part number 123897
# 007
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 008
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 009
MPN: 174093
FLANGE
from £4.26
from £4.26
# 010
MPN: 180321
PLUG
Supersession
Supersession
This part replaces part number 175706
# 011
MPN: 180119
GASKET
from £29.79
from £29.79
# 012
MPN: 167131
FILLER-TANK CONNECTING PIPE
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £16.88
from £16.88
# 012
MPN: 181977
FILLER-TANK CONNECTING PIPE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
Supersession
Supersession
# 013
MPN: 170127
SCREW COLLAR
from £0.99
from £0.99
# 014
MPN: 165132
VENT PIPE FROM TANK TO FILLER
- Valid for USA M.Y. 99 and CDN M.Y. 99
Supersession
Supersession
# 014
MPN: 182265
VENT PIPE FROM VAPOR SEPARATOR TO FILLER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £65.95
from £65.95
# 015
MPN: 13432070
COLLAR FOR SLEEVE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £0.53
from £0.53
This part replaces part number 13125570
# 015
MPN: 164015
SCREW COLLAR
- Valid for USA M.Y. 99 and CDN M.Y. 99
Supersession
Supersession
This part replaces part number 12181290
# 016
MPN: 125769
TEMPERATURE SENSOR
from £18.89
from £18.89
# 017
MPN: 179321
GASKET
from £6.29
from £6.29
# 018
MPN: 179851
RUBBER HOSE
from £27.05
from £27.05
# 019
MPN: 161490
SCREW COLLAR
from £1.02
from £1.02
# 020
MPN: 179191
RH VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £56.14
from £56.14
# 020
MPN: 181936
RH VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £93.90
from £93.90
# 021
MPN: 179191
LH VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £56.14
from £56.14
# 021
MPN: 181935
LH VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £93.90
from £93.90
# 022
MPN: 172340
FUEL TANK FASTENER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £26.36
from £26.36
# 022
MPN: 181692
FUEL TANK FASTENER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £37.66
from £37.66
This part replaces part number 211324 - and 1 more. Click to view details
# 023
MPN: 103447
PIN
from £12.86
from £12.86
# 024
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 025
MPN: 127529
THREADED TIE ROD
from £122.49
from £122.49
This part replaces part number 12311271 - and 15 more. Click to view details
# 026
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 027
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 028
MPN: 62766300
CLIP
from £0.47
from £0.47
# 029
MPN: 10902124
SCREW
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 029
MPN: 10902224
SCREW
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.53
from £0.53
# 030
MPN: 12639724
WASHER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 030
MPN: 127494
WASHER
- Valid for USA M.Y. 99 and CDN M.Y. 99 - (minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 031
MPN: 10519424
WASHER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.47
from £0.47
This part replaces part number 10519401 - and 3 more. Click to view details
# 031
MPN: 127494
WASHER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000 - (minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 032
MPN: 178866
DISAREATOR
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £131.25
from £131.25
# 032
MPN: 181931
DISAREATOR
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £106.87
from £106.87
# 033
MPN: 169937
VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £122.33
from £122.33
# 033
MPN: 180469
VALVE COMPLETED WITH PIPING
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
Supersession
Supersession
# 034
MPN: 65083800
UNDER TANK SHIELD
from £368.12
from £368.12
# 035
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 - and 3 more. Click to view details
# 036
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 037
MPN: 60659100
NUT WITH CAGE
from £0.47
from £0.47
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 038
MPN: 64783600
RUBBER PLUG
from £3.00
from £3.00
# 039
MPN: 65084500
AIR DELIVERY TUBE TO TANK
from £27.30
from £27.30
# 040
MPN: 13000790
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12173190 - and 1 more. Click to view details
# 041
MPN: 148045
THREADED PLUG
from £9.18
from £9.18
# 042
MPN: 123622
O.R. GASKET
from £0.79
from £0.79
# 043
MPN: 195049
GASKET
from £2.40
from £2.40
This part replaces part number 169938
# 044
MPN: 62943200
RUBBER PROTECTION
Alternative use : 60134202
from £14.54
from £14.54
This part replaces part number 60134202
# 045
MPN: 14622387
PLUG
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £1.63
from £1.63
# 046
MPN: 156682
LOWER THICKNESS
from £12.62
from £12.62
# 047
MPN: 171163
PROTECTION SHEATH
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £25.64
from £25.64
# 048
MPN: 183850
BRACKET
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £12.49
from £12.49
# 049
MPN: 167025
FRONT THICKNESS
from £3.19
from £3.19
# 050
MPN: 183685
REAR THICKNESS
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £2.49
from £2.49
# 051
MPN: 157411
REAR THICKNESS
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £1.08
from £1.08
# 051
MPN: 183387
REAR THICKNESS
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £4.88
from £4.88
