ferrari 550 maranello antievaporation device -not for usa m.y. 99, usa m.y. 2000, cdn m.y. 99 and cdn m.y. 2000 parts diagram

014 - Antievaporation Device -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

Ferrari 550 Maranello Antievaporation Device -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram

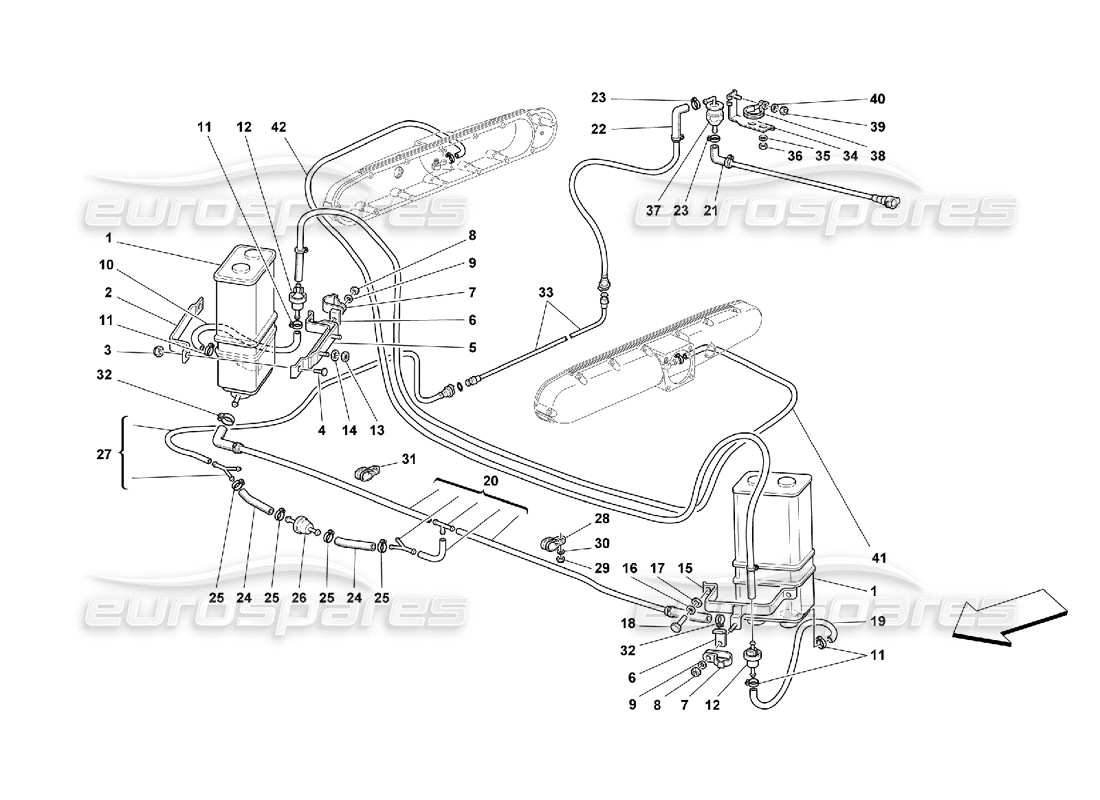

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 173791
                                                                                FUEL VAPOR FILTER
                                                                                from £101.28
                                                                                from £101.28
                                                                                This part replaces part number 168366 - and 3 more. Click to view details
                                                                                # 002
                                                                                MPN: 154385
                                                                                BRACKET
                                                                                from £15.75
                                                                                from £15.75
                                                                                # 003
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                # 004
                                                                                MPN: 10902124
                                                                                SCREW
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                # 005
                                                                                MPN: 156452
                                                                                BRACKET
                                                                                from £9.72
                                                                                from £9.72
                                                                                # 006
                                                                                MPN: 137716
                                                                                PLATE
                                                                                from £10.26
                                                                                from £10.26
                                                                                # 007
                                                                                MPN: 164437
                                                                                BRACKET
                                                                                from £1.77
                                                                                from £1.77
                                                                                # 008
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                # 009
                                                                                MPN: 10519424
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                # 010
                                                                                MPN: 170993
                                                                                RUBBER HOSE
                                                                                Supersession
                                                                                Supersession
                                                                                # 011
                                                                                MPN: 13431870
                                                                                SCREW COLLAR
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 013
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                # 014
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 015
                                                                                MPN: 169917
                                                                                BRACKET
                                                                                from £10.90
                                                                                from £10.90
                                                                                # 016
                                                                                MPN: 127494
                                                                                WASHER
                                                                                (minimum order quantity = 20)
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                # 017
                                                                                MPN: 10519424
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                # 018
                                                                                MPN: 10902124
                                                                                SCREW
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                # 019
                                                                                MPN: 139602
                                                                                RUBBER HOSE
                                                                                Supersession
                                                                                Supersession
                                                                                # 020
                                                                                MPN: 169903
                                                                                COMPLETE PLASTIC PIPE
                                                                                from £95.92
                                                                                from £95.92
                                                                                # 021
                                                                                MPN: 171853
                                                                                COMPLETE PLASTIC HOSE
                                                                                from £79.62
                                                                                from £79.62
                                                                                This part replaces part number 165146 - and 1 more. Click to view details
                                                                                # 022
                                                                                MPN: 165149
                                                                                COMPLETE PLASTIC HOSE
                                                                                - Not as spare part now - Replaced by 183809 to assembly with 183489 - See position 33
                                                                                from £88.97
                                                                                from £88.97
                                                                                # 022
                                                                                MPN: 183809
                                                                                COMPLETE PLASTIC HOSE
                                                                                from £37.24
                                                                                from £37.24
                                                                                # 023
                                                                                MPN: 13434670
                                                                                SCREW COLLAR
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 024
                                                                                MPN: 116761
                                                                                RUBBER PIPE
                                                                                from £57.18
                                                                                from £57.18
                                                                                This part replaces part number 116760
                                                                                # 025
                                                                                MPN: 13434670
                                                                                SCREW COLLAR
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 026
                                                                                MPN: 170442
                                                                                TANK VENTILATION VALVE
                                                                                from £60.15
                                                                                from £60.15
                                                                                This part replaces part number 159478 - and 1 more. Click to view details
                                                                                # 026
                                                                                MPN: 170442
                                                                                TANK VENTILATION VALVE
                                                                                from £60.15
                                                                                from £60.15
                                                                                This part replaces part number 159478 - and 1 more. Click to view details
                                                                                # 027
                                                                                MPN: 169897
                                                                                PLASTIC HOSE
                                                                                from £63.00
                                                                                from £63.00
                                                                                # 028
                                                                                MPN: 10441290
                                                                                RH AND LH FIXING BRACKET
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 029
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                # 030
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 031
                                                                                MPN: 10441690
                                                                                RH FIXING BRACKET
                                                                                from £1.10
                                                                                from £1.10
                                                                                This part replaces part number 1044690
                                                                                # 032
                                                                                MPN: 13434670
                                                                                SCREW COLLAR
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 033
                                                                                MPN: 165147
                                                                                INTERMEDIATE UNDERFLOOR TUBE
                                                                                - Valid till car Ass. Nr. 30266
                                                                                from £71.93
                                                                                from £71.93
                                                                                # 033
                                                                                MPN: 178858
                                                                                INTERMEDIATE UNDERFLOOR TUBE
                                                                                - Valid from car Ass. Nr. 30267 - Not as spare part now - Replaced by 183489 to assembly with 183809 - See position 22
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 183489
                                                                                INTERMEDIATE UNDERFLOOR TUBE
                                                                                from £7.94
                                                                                from £7.94
                                                                                This part replaces part number 178858
                                                                                # 034
                                                                                MPN: 172458
                                                                                BRACKET FOR ANTI FLOWING BACK VALVE FIXING
                                                                                from £5.49
                                                                                from £5.49
                                                                                # 035
                                                                                MPN: 14499324
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14499301 which we have in stock
                                                                                # 036
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                # 037
                                                                                MPN: 170522
                                                                                ANTI FLOWING BACK VALVE
                                                                                from £17.85
                                                                                from £17.85
                                                                                # 038
                                                                                MPN: 172460
                                                                                FIXING BRACKET
                                                                                from £1.72
                                                                                from £1.72
                                                                                # 039
                                                                                MPN: 113647
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 040
                                                                                MPN: 12637824
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                # 041
                                                                                MPN: 173418
                                                                                PIPE FROM RH VALVE TO LH SUCTION MANIFOLD
                                                                                from £60.52
                                                                                from £60.52
                                                                                # 042
                                                                                MPN: 173420
                                                                                PIPE FROM LH VALVE TO RH SUCTION MANIFOLD
                                                                                from £61.72
                                                                                from £61.72
