017 - Injection Device

Ferrari 550 Maranello Injection Device Parts Diagram

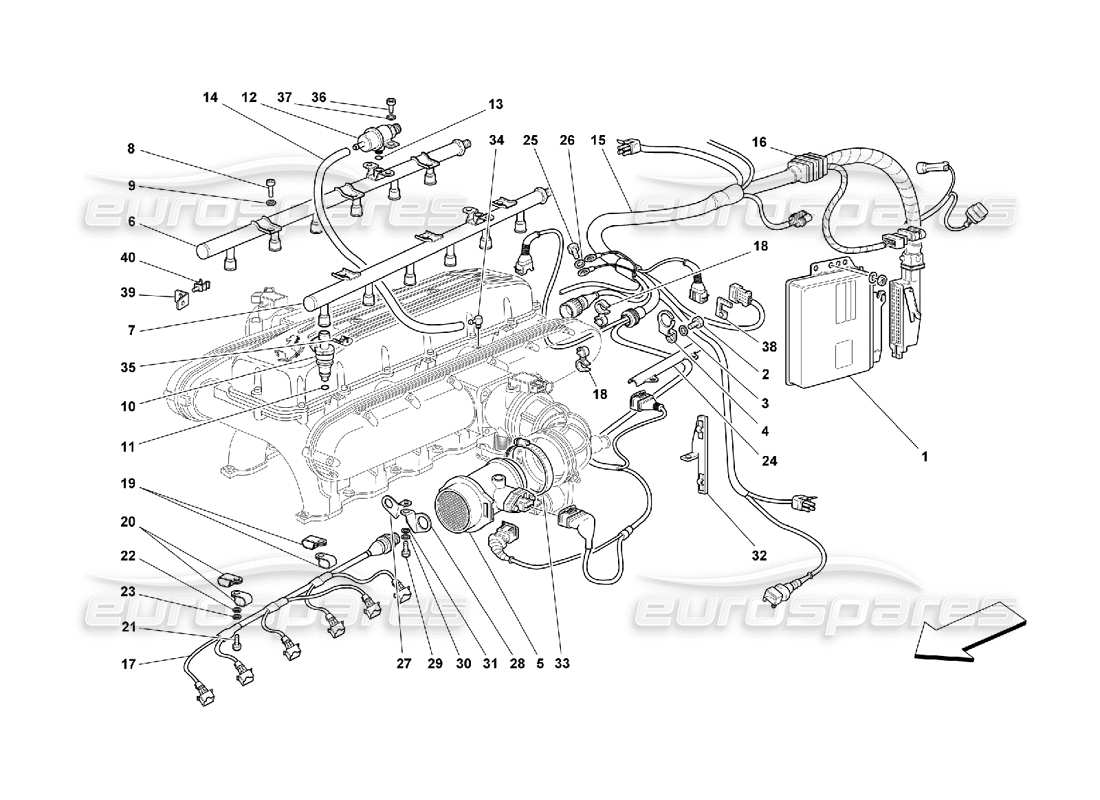

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 162683

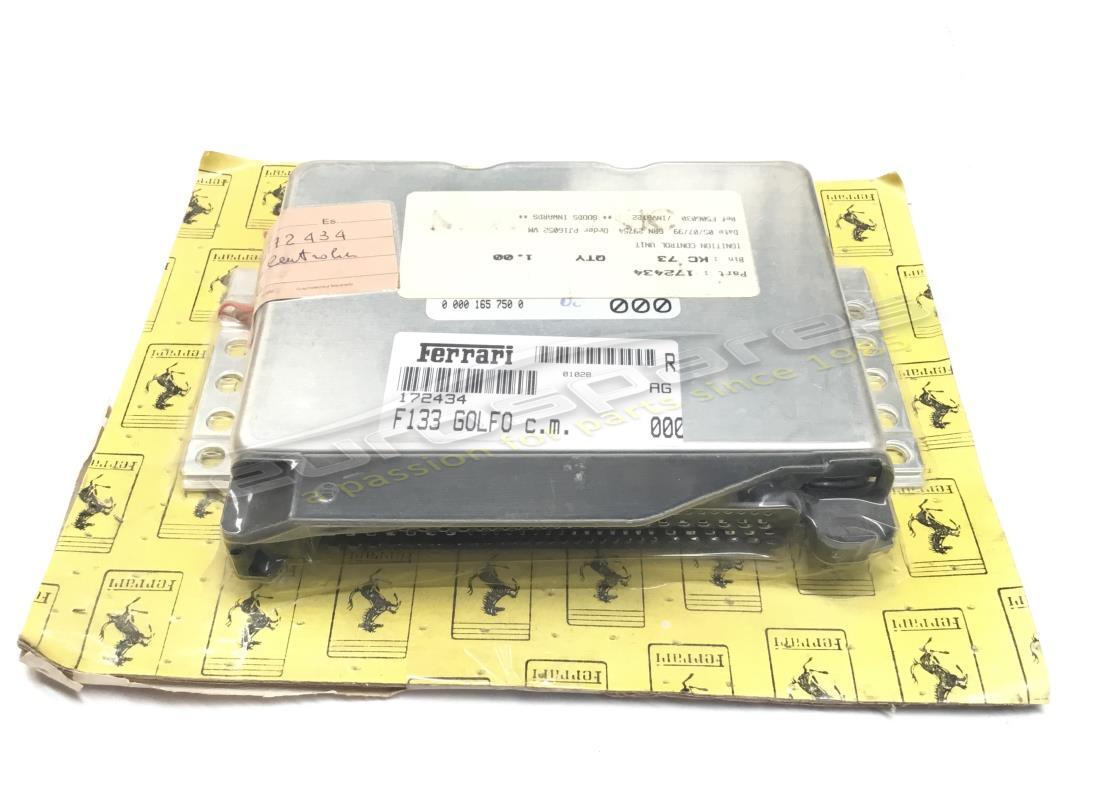

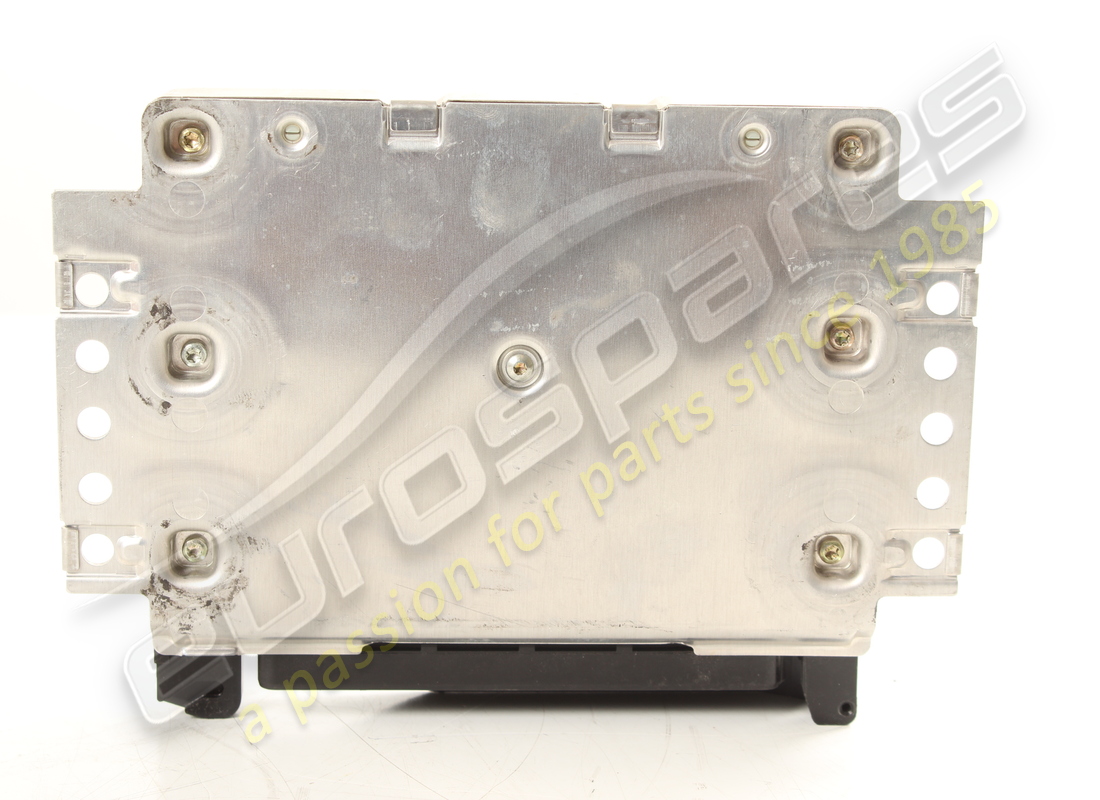

ELECTRONIC CONTROL STATION
- Not for USA, CDN, AUS, GB and BRUNEI - Not for not catalyzed cars
from £2,649.81
from £2,649.81
# 001
MPN: 172434
ELECTRONIC CONTROL STATION
- Valid for not catalyzed cars
from £2,412.48
from £2,412.48
# 001
MPN: 173653
ELECTRONIC CONTROL STATION
- Valid for BRUNEI
from £2,413.73
from £2,413.73
# 001
MPN: 179904
ELECTRONIC CONTROL STATION
- Valid for USA M.Y. 99 and CDN M.Y. 99 - Valid for AUS
Supersession
Supersession
# 001
MPN: 181673
ELECTRONIC CONTROL STATION
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £2,940.00
from £2,940.00
# 001
MPN: 186505
ELECTRONIC CONTROL STATION
- Valid for USA and CDN - Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000
from £2,649.81
from £2,649.81
This part replaces part number 172432
# 002
MPN: 16043124
SCREW
from £0.26
from £0.26
This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
SCREW Genuine Ferrari Part - Used In stock
Removed from 458 engine 178999
# 003
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 004
MPN: 155327
BRACKET
from £4.15
from £4.15
# 005
MPN: 162530
AIR FLOW METER
from £376.63
from £376.63
# 006
MPN: 172485
RH INJECTORS TUBE
from £783.86
from £783.86
# 007
MPN: 172486
LH INJECTORS TUBE
from £783.86
from £783.86
PIPE Genuine Ferrari Part - Used In stock
Removed from 550 engine 50818
# 008
MPN: 14305224
SCREW
from £0.47
from £0.47
# 009
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 010
MPN: 162613
ELECTRO-INJECTOR
from £118.63
from £118.63
# 011
MPN: 133902
O.R. GASKET
from £2.96
from £2.96
# 012
MPN: 167321
PRESSURE REGULATOR
from £356.57
from £356.57
This part replaces part number 148254
# 013
MPN: 152211
SEAL RING
from £2.59
from £2.59
# 014
MPN: 118901
RUBBER PIPE
from £3.36
from £3.36
# 015
MPN: 171389
CABLES FOR RH MAIN BEARINGS CONNECTION
- Valid for GB
from £502.48
from £502.48
# 015
MPN: 171390
CABLES FOR LH MAIN BEARINGS CONNECTION
- Valid for GB
from £491.51
from £491.51
# 015
MPN: 171394
CABLES FOR RH MAIN BEARINGS CONNECTION
- Not for GB and AUS
from £1,055.40
from £1,055.40
# 015
MPN: 173719
CABLES FOR RH MAIN BEARINGS CONNECTION
- Valid for AUS
from £591.97
from £591.97
# 015
MPN: 173940
CABLES FOR LH MAIN BEARINGS CONNECTION
- Not for GB and AUS
from £257.30
from £257.30
# 015
MPN: 173995
CABLES FOR LH MAIN BEARINGS CONNECTION
- Valid for AUS
from £579.22
from £579.22
# 016
MPN: 139465
RUBBER BOOT
from £127.25
from £127.25
# 017
MPN: 168529
INJECTORS CONNECTION CABLES
from £307.04
from £307.04
This part replaces part number 154787 which we have in stock - and 2 more. Click to view details
# 018
MPN: 145545
SPRINGS
from £0.47
from £0.47
# 019
MPN: 10418801
BRACKET
from £0.47
from £0.47
# 020
MPN: 10418601
BRACKET
from £0.54
from £0.54
# 021
MPN: 10977524
SCREW
from £0.47
from £0.47
# 022
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 023
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 024
MPN: 154772
BRACKET FOR CABLES FIXING
from £23.24
from £23.24
# 025
MPN: 10977524
SCREW
from £0.47
from £0.47
# 026
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 027
MPN: 145477
RH BRACKET
from £0.88
from £0.88
# 028
MPN: 145476
LH BRACKET
from £0.88
from £0.88
# 029
MPN: 10977524
SCREW
from £0.47
from £0.47
# 030
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 031
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 032
MPN: 169136
BRACKET
Supersession
Supersession
# 033
MPN: 13001190
SCREEW COLLAR
from £0.76
from £0.76
# 034
MPN: 128016
UNION
from £6.74
from £6.74
# 035
MPN: 144763
INJECTORS RETAINING CLIP
from £1.84
from £1.84
# 036
MPN: 172763
SCREW
# 037
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 10516470 - and 4 more. Click to view details
# 038
MPN: 155751
CLIP
from £2.80
from £2.80
# 039
MPN: 159658
BRACKET
from £1.04
from £1.04
# 040
MPN: 159740
CLIP
from £0.47
from £0.47
