ferrari 550 maranello exhaust system parts diagram

022 - Exhaust System

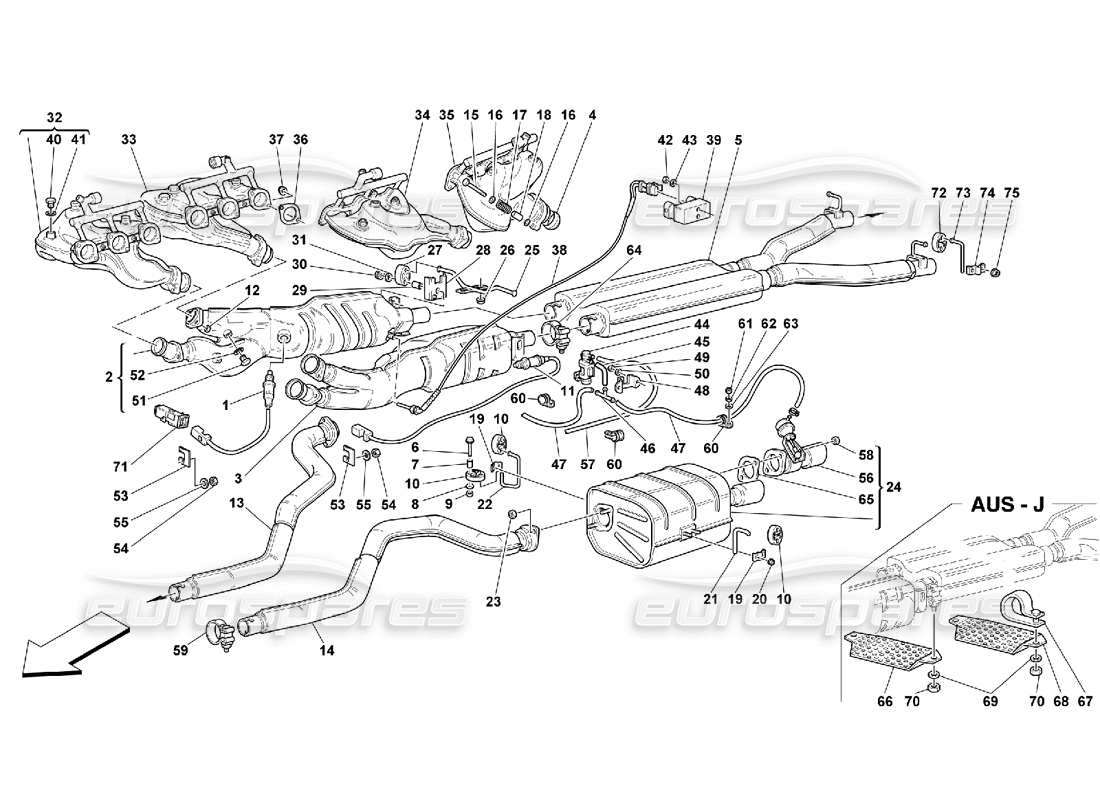

Ferrari 550 Maranello Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price

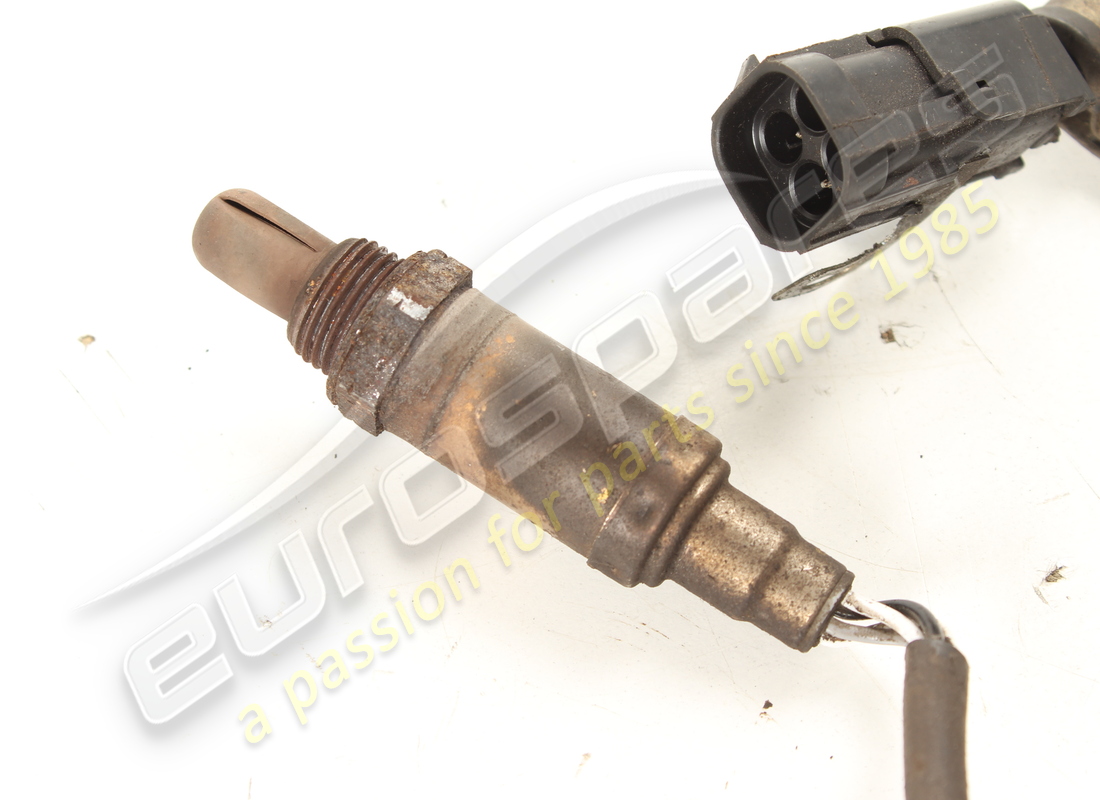

                                                                                                                    # 001
                                                                                                                    MPN: 162462

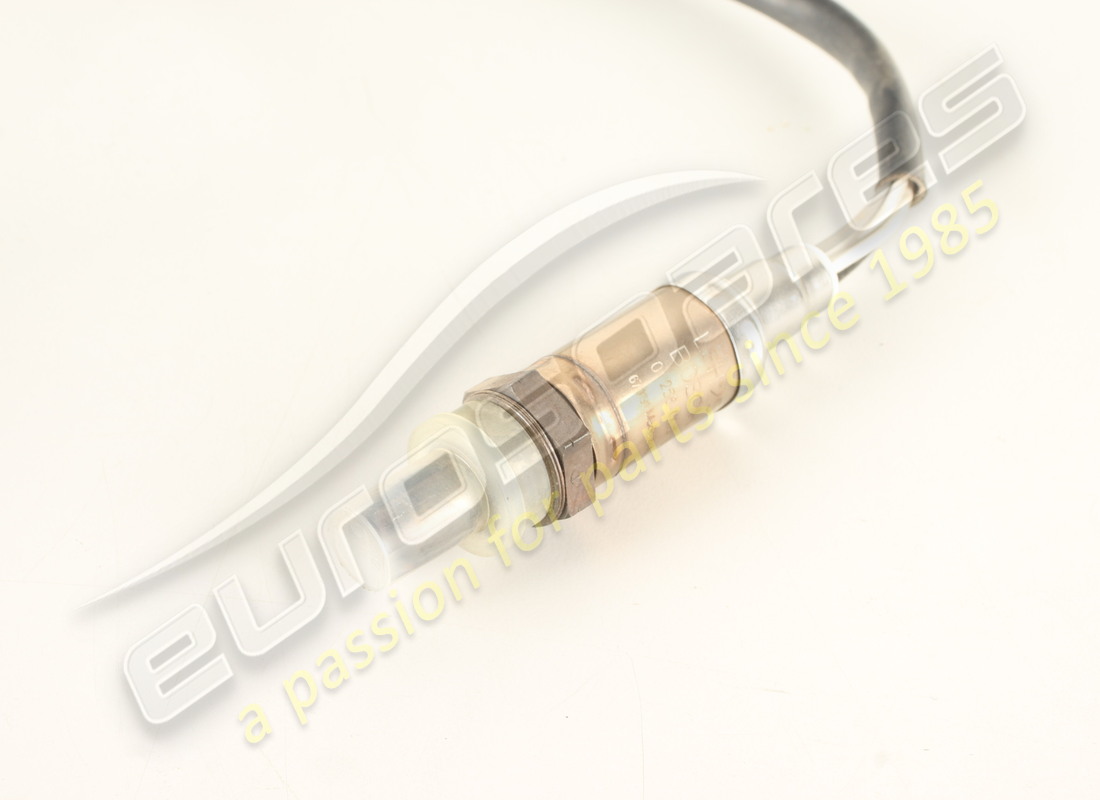

                                                                                                                    RH FRONT LAMBDA FEELER
                                                                                                                    - Not for not catalyzed cars
                                                                                                                    from £226.42
                                                                                                                    from £226.42
                                                                                                                    # 001
                                                                                                                    MPN: 168928

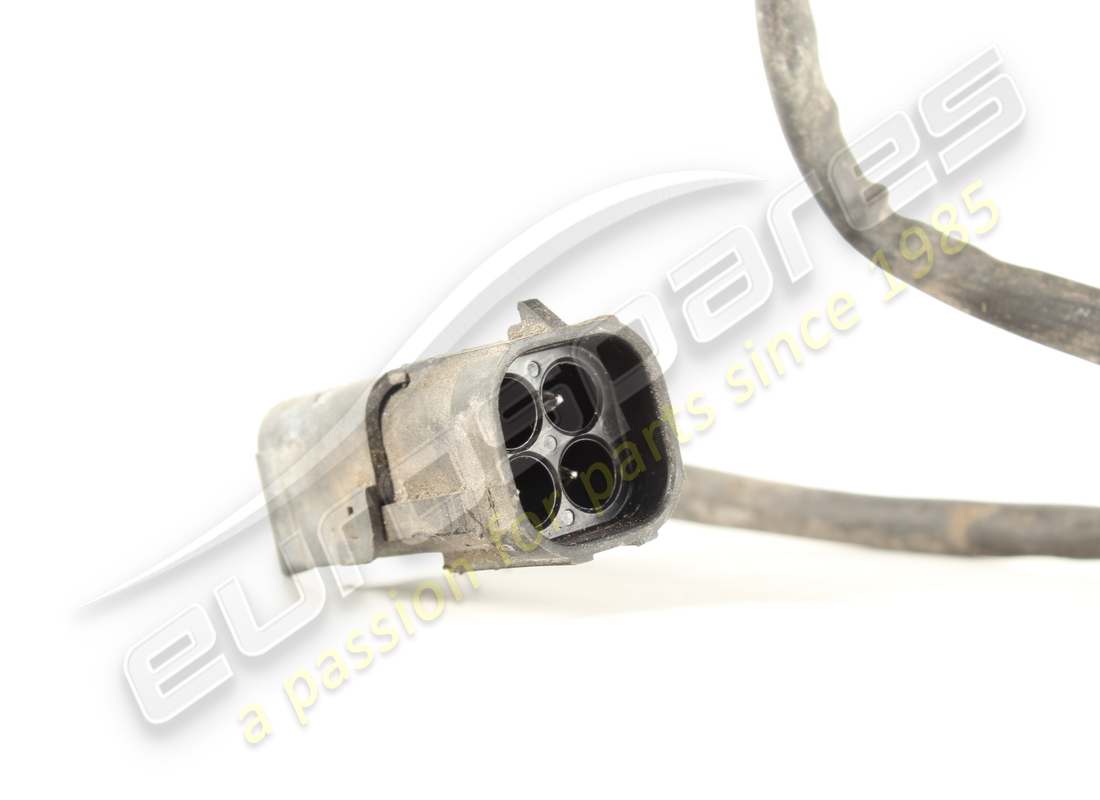

                                                                                                                    LAMBDA FEELER
                                                                                                                    - Valid for not catalyzed cars
                                                                                                                    from £90.62
                                                                                                                    from £90.62
                                                                                                                    # 001
                                                                                                                    MPN: 169953
                                                                                                                    LH FRONT LAMBDA FEELER
                                                                                                                    - Not for not catalyzed cars (can use part number: 383700107)
                                                                                                                    from £89.80
                                                                                                                    from £89.80
                                                                                                                    # 002
                                                                                                                    MPN: 167993

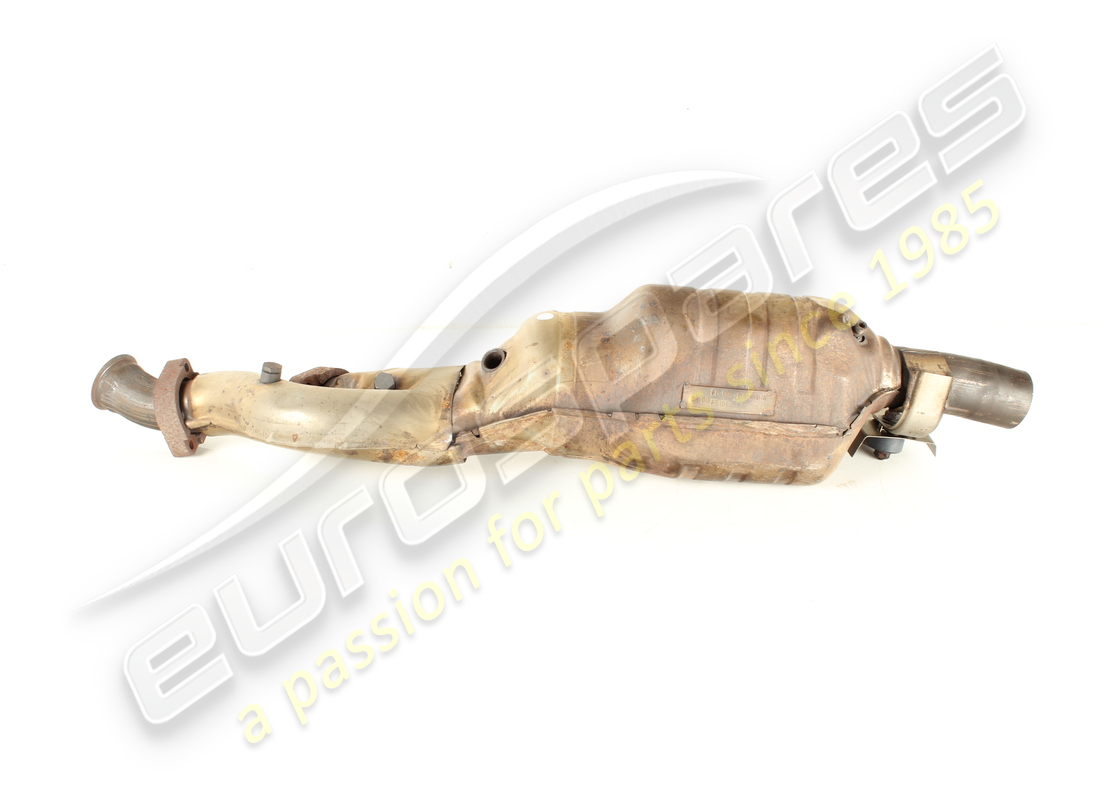

                                                                                                                    RH CATALYST
                                                                                                                    Not for USA, CDN and AUS
                                                                                                                    from £5,106.18
                                                                                                                    from £5,106.18
                                                                                                                    # 002
                                                                                                                    MPN: 168566
                                                                                                                    RH CATALYST
                                                                                                                    - Valid for USA, CDN and AUS
                                                                                                                    from £3,801.23
                                                                                                                    from £3,801.23
                                                                                                                    # 002
                                                                                                                    MPN: 174077
                                                                                                                    RH CATALYST
                                                                                                                    Not for USA, CDN and AUS
                                                                                                                    from £1,862.30
                                                                                                                    from £1,862.30
                                                                                                                    # 003
                                                                                                                    MPN: 167994
                                                                                                                    LH CATALYST
                                                                                                                    - Not for not catalyzed cars - Not for USA, CDN and AUS
                                                                                                                    from £5,131.91
                                                                                                                    from £5,131.91
                                                                                                                    # 003
                                                                                                                    MPN: 168567
                                                                                                                    LH CATALYST
                                                                                                                    - Valid for USA, CDN and AUS
                                                                                                                    from £3,726.69
                                                                                                                    from £3,726.69
                                                                                                                    # 003
                                                                                                                    MPN: 174078
                                                                                                                    LH CATALYST
                                                                                                                    Not for USA, CDN and AUS
                                                                                                                    from £1,862.30
                                                                                                                    from £1,862.30
                                                                                                                    # 004
                                                                                                                    MPN: 154981
                                                                                                                    GASKET
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 125917 - and 1 more. Click to view details
                                                                                                                    # 005
                                                                                                                    MPN: 167995
                                                                                                                    CENTRAL MUFFLER
                                                                                                                    from £925.68
                                                                                                                    from £925.68
                                                                                                                    # 006
                                                                                                                    MPN: 16287524
                                                                                                                    SCREW
                                                                                                                    from £0.74
                                                                                                                    from £0.74
                                                                                                                    This part replaces part number 16287521
                                                                                                                    # 007
                                                                                                                    MPN: 154016
                                                                                                                    SPACER
                                                                                                                    from £9.10
                                                                                                                    from £9.10
                                                                                                                    # 008
                                                                                                                    MPN: 12642078
                                                                                                                    WASHER
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12642006
                                                                                                                    # 009
                                                                                                                    MPN: 14058519
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 010
                                                                                                                    MPN: 156968
                                                                                                                    PAD
                                                                                                                    from £36.75
                                                                                                                    from £36.75
                                                                                                                    # 011
                                                                                                                    MPN: 165170
                                                                                                                    REAR LAMBDA FEELER
                                                                                                                    - Valid for catalyzed cars
                                                                                                                    from £60.00
                                                                                                                    from £60.00
                                                                                                                    # 012
                                                                                                                    MPN: 114748
                                                                                                                    NUT
                                                                                                                    from £8.97
                                                                                                                    from £8.97
                                                                                                                    # 013
                                                                                                                    MPN: 167996

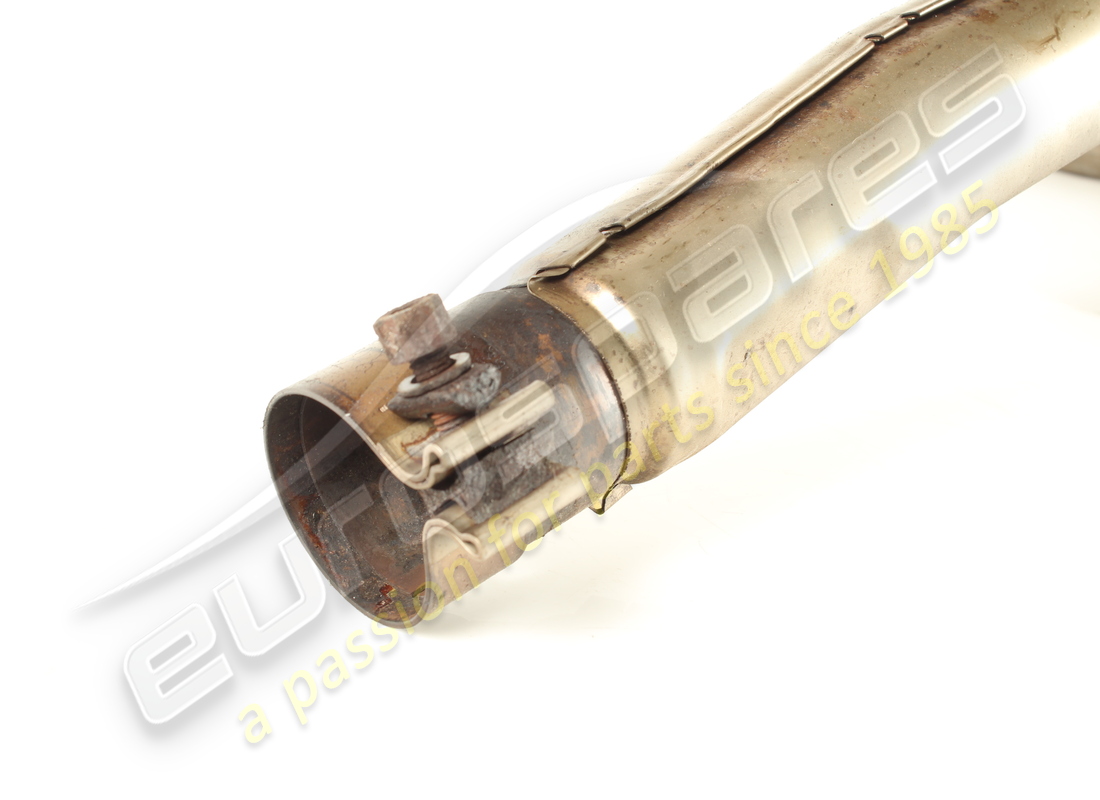

                                                                                                                    RH EXHAUST EXTENSION
                                                                                                                    from £1,239.94
                                                                                                                    from £1,239.94
                                                                                                                    # 014
                                                                                                                    MPN: 167997
                                                                                                                    LH EXHAUST EXTENSION
                                                                                                                    from £1,239.94
                                                                                                                    from £1,239.94
                                                                                                                    # 015
                                                                                                                    MPN: 16045024
                                                                                                                    SCREW
                                                                                                                    (minimum order quantity = 10)
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 125924 - and 1 more. Click to view details
                                                                                                                    # 016
                                                                                                                    MPN: 128010
                                                                                                                    WASHER
                                                                                                                    from £2.16
                                                                                                                    from £2.16
                                                                                                                    # 017
                                                                                                                    MPN: 111743
                                                                                                                    SPRING
                                                                                                                    from £6.94
                                                                                                                    from £6.94
                                                                                                                    # 018
                                                                                                                    MPN: 114749
                                                                                                                    SPACER
                                                                                                                    from £1.24
                                                                                                                    from £1.24
                                                                                                                    # 019
                                                                                                                    MPN: 154116
                                                                                                                    BRACKET
                                                                                                                    from £5.69
                                                                                                                    from £5.69
                                                                                                                    # 020
                                                                                                                    MPN: 14058519
                                                                                                                    NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    # 021
                                                                                                                    MPN: 154110
                                                                                                                    OUTER SUPPORT
                                                                                                                    from £42.91
                                                                                                                    from £42.91
                                                                                                                    # 022
                                                                                                                    MPN: 161548
                                                                                                                    LH INNER SUPPORT
                                                                                                                    from £71.54
                                                                                                                    from £71.54
                                                                                                                    This part replaces part number 156840
                                                                                                                    # 022
                                                                                                                    MPN: 161549
                                                                                                                    RH INNER SUPPORT
                                                                                                                    from £135.87
                                                                                                                    from £135.87
                                                                                                                    This part replaces part number 156849
                                                                                                                    # 023
                                                                                                                    MPN: 114748
                                                                                                                    NUT
                                                                                                                    from £9.07
                                                                                                                    from £9.07
                                                                                                                    # 024
                                                                                                                    MPN: 167998
                                                                                                                    RH REAR SILENCER
                                                                                                                    from £1,421.84
                                                                                                                    from £1,421.84
                                                                                                                    # 024
                                                                                                                    MPN: 167999
                                                                                                                    LH REAR SILENCER
                                                                                                                    from £735.00
                                                                                                                    from £735.00
                                                                                                                    # 025
                                                                                                                    MPN: 168149
                                                                                                                    SHIELD SUPPORTING MUFFLER
                                                                                                                    from £17.02
                                                                                                                    from £17.02
                                                                                                                    # 026
                                                                                                                    MPN: 14058519
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 027
                                                                                                                    MPN: 154564
                                                                                                                    PAD
                                                                                                                    from £77.13
                                                                                                                    from £77.13
                                                                                                                    # 028
                                                                                                                    MPN: 170023
                                                                                                                    R. H. PAD PROTECTION
                                                                                                                    from £4.91
                                                                                                                    from £4.91
                                                                                                                    # 028
                                                                                                                    MPN: 170024
                                                                                                                    L. H. PAD PROTECTION
                                                                                                                    from £4.91
                                                                                                                    from £4.91
                                                                                                                    # 029
                                                                                                                    MPN: 154016
                                                                                                                    SPACER
                                                                                                                    from £9.10
                                                                                                                    from £9.10
                                                                                                                    # 030
                                                                                                                    MPN: 14058519
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 031
                                                                                                                    MPN: 12642078
                                                                                                                    WASHER
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12642006
                                                                                                                    # 032
                                                                                                                    MPN: 154364
                                                                                                                    RH FRONT EXHAUST MANIFOLD
                                                                                                                    - Not for GD
                                                                                                                    from £1,109.27
                                                                                                                    from £1,109.27
                                                                                                                    This part replaces part number 169337 - and 2 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 157758
                                                                                                                    RH FRONT EXHAUST MANIFOLD
                                                                                                                    - Valid for GD
                                                                                                                    from £723.74
                                                                                                                    from £723.74
                                                                                                                    # 033
                                                                                                                    MPN: 154365
                                                                                                                    RH REAR EXHAUST MANIFOLD
                                                                                                                    - Not for GD
                                                                                                                    from £744.21
                                                                                                                    from £744.21
                                                                                                                    This part replaces part number 169339 - and 2 more. Click to view details
                                                                                                                    # 033
                                                                                                                    MPN: 157759
                                                                                                                    RH REAR EXHAUST MANIFOLD
                                                                                                                    - Valid for GD
                                                                                                                    from £738.55
                                                                                                                    from £738.55
                                                                                                                    # 034
                                                                                                                    MPN: 154366
                                                                                                                    LH FRONT EXHAUST MANIFOLD
                                                                                                                    from £1,394.58
                                                                                                                    from £1,394.58
                                                                                                                    This part replaces part number 169338 - and 3 more. Click to view details
                                                                                                                    # 035
                                                                                                                    MPN: 154367
                                                                                                                    LH REAR EXHAUST MANIFOLD
                                                                                                                    from £1,250.13
                                                                                                                    from £1,250.13
                                                                                                                    This part replaces part number 169340 - and 4 more. Click to view details
                                                                                                                    # 036
                                                                                                                    MPN: 143408
                                                                                                                    GASKET
                                                                                                                    (minimum order quantity = 12)
                                                                                                                    from £10.49
                                                                                                                    from £10.49
                                                                                                                    # 037
                                                                                                                    MPN: 138392
                                                                                                                    NUT
                                                                                                                    (minimum order quantity = 25)
                                                                                                                    from £0.58
                                                                                                                    from £0.58
                                                                                                                    # 038
                                                                                                                    MPN: 174674
                                                                                                                    THERMOCOUPLE
                                                                                                                    from £130.15
                                                                                                                    from £130.15
                                                                                                                    This part replaces part number 168661
                                                                                                                    # 038
                                                                                                                    MPN: 174674
                                                                                                                    THERMOCOUPLE
                                                                                                                    - Valid after stock exhaustion of 168661
                                                                                                                    from £130.15
                                                                                                                    from £130.15
                                                                                                                    This part replaces part number 168661
                                                                                                                    # 039
                                                                                                                    MPN: 179278
                                                                                                                    CATALYST TEMPERATURE CONTROL STATION
                                                                                                                    from £174.82
                                                                                                                    from £174.82
                                                                                                                    This part replaces part number 173533 - and 1 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 110860
                                                                                                                    THREADED PLUG
                                                                                                                    from £7.65
                                                                                                                    from £7.65
                                                                                                                    This part replaces part number 11903240
                                                                                                                    # 041
                                                                                                                    MPN: 10298460
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 93353
                                                                                                                    # 042
                                                                                                                    MPN: 10794011
                                                                                                                    NUT
                                                                                                                    from £0.26
                                                                                                                    from £0.26
                                                                                                                    # 043
                                                                                                                    MPN: 14496204
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 14496201
                                                                                                                    # 044
                                                                                                                    MPN: 159177
                                                                                                                    SOLENOID VALVE
                                                                                                                    from £103.88
                                                                                                                    from £103.88
                                                                                                                    This part replaces part number 154384 which we have in stock
                                                                                                                    # 046
                                                                                                                    MPN: 121793
                                                                                                                    3- WAY UNION
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 047
                                                                                                                    MPN: 171171
                                                                                                                    RUBBER PIPE
                                                                                                                    from £67.51
                                                                                                                    from £67.51
                                                                                                                    # 048
                                                                                                                    MPN: 145472
                                                                                                                    SMALL PLATE
                                                                                                                    from £2.25
                                                                                                                    from £2.25
                                                                                                                    # 049
                                                                                                                    MPN: 169180
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12574121
                                                                                                                    # 050
                                                                                                                    MPN: 14496324
                                                                                                                    WASHER
                                                                                                                    from £1.40
                                                                                                                    from £1.40
                                                                                                                    This part replaces part number 14496301
                                                                                                                    # 051
                                                                                                                    MPN: 110860
                                                                                                                    PLUG
                                                                                                                    from £7.65
                                                                                                                    from £7.65
                                                                                                                    This part replaces part number 11903240
                                                                                                                    # 052
                                                                                                                    MPN: 10298460
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 93353
                                                                                                                    # 053
                                                                                                                    MPN: 155751
                                                                                                                    CLIP
                                                                                                                    from £2.29
                                                                                                                    from £2.29
                                                                                                                    # 054
                                                                                                                    MPN: 62790300
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                    # 055
                                                                                                                    MPN: 12642877
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 056
                                                                                                                    MPN: 170028
                                                                                                                    COMPLETE RH BY-PASS VALVE
                                                                                                                    from £1,084.56
                                                                                                                    from £1,084.56
                                                                                                                    # 056
                                                                                                                    MPN: 170029
                                                                                                                    COMPLETE LH BY-PASS VALVE
                                                                                                                    from £672.71
                                                                                                                    from £672.71
                                                                                                                    # 057
                                                                                                                    MPN: 124032
                                                                                                                    RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                                                    - Valid for GD
                                                                                                                    from £25.06
                                                                                                                    from £25.06
                                                                                                                    # 057
                                                                                                                    MPN: 168432
                                                                                                                    RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                                                    - Not for GD
                                                                                                                    from £23.66
                                                                                                                    from £23.66
                                                                                                                    # 058
                                                                                                                    MPN: 114748
                                                                                                                    NUT
                                                                                                                    from £9.07
                                                                                                                    from £9.07
                                                                                                                    # 059
                                                                                                                    MPN: 170541
                                                                                                                    CLAMP
                                                                                                                    from £10.39
                                                                                                                    from £10.39
                                                                                                                    # 060
                                                                                                                    MPN: 10441490
                                                                                                                    CLAMP
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 061
                                                                                                                    MPN: 15896214
                                                                                                                    NUT
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 15896211
                                                                                                                    # 062
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                    # 063
                                                                                                                    MPN: 10519424
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                    # 064
                                                                                                                    MPN: 170541
                                                                                                                    CLAMP
                                                                                                                    from £10.39
                                                                                                                    from £10.39
                                                                                                                    # 065
                                                                                                                    MPN: 170041
                                                                                                                    GASKET
                                                                                                                    from £30.53
                                                                                                                    from £30.53
                                                                                                                    # 066
                                                                                                                    MPN: 174314
                                                                                                                    FRONT HEAT PROTECTION SHIELD
                                                                                                                    - Valid for AUS and J
                                                                                                                    from £26.12
                                                                                                                    from £26.12
                                                                                                                    # 067
                                                                                                                    MPN: 174316
                                                                                                                    CLAMP
                                                                                                                    - Valid for AUS and J
                                                                                                                    from £2.90
                                                                                                                    from £2.90
                                                                                                                    # 068
                                                                                                                    MPN: 174315
                                                                                                                    REAR HEAT PROTECTION SHIELD
                                                                                                                    - Valid for AUS and J
                                                                                                                    from £29.67
                                                                                                                    from £29.67
                                                                                                                    # 069
                                                                                                                    MPN: 12643724
                                                                                                                    WASHER
                                                                                                                    - Valid for AUS and J
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                    # 070
                                                                                                                    MPN: 14048327
                                                                                                                    NUT
                                                                                                                    - Valid for AUS and J
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    # 071
                                                                                                                    MPN: 171685
                                                                                                                    BLOCK
                                                                                                                    - Valid for not catalyzed cars
                                                                                                                    from £2.25
                                                                                                                    from £2.25
                                                                                                                    # 072
                                                                                                                    MPN: 156967

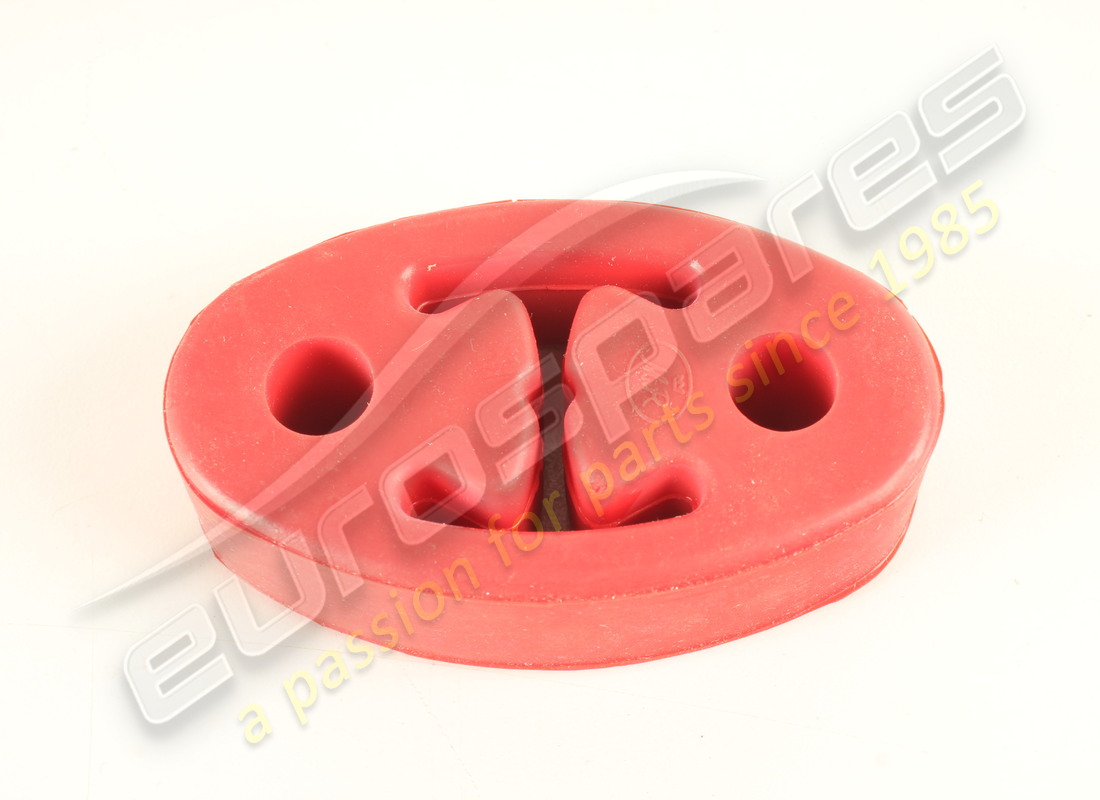

                                                                                                                    MUFFLER BUFFER FOR SUPPORT
                                                                                                                    from £16.72
                                                                                                                    from £16.72
                                                                                                                    This part replaces part number 187804 - and 1 more. Click to view details
                                                                                                                    # 073
                                                                                                                    MPN: 170693
                                                                                                                    REAR SUPPORT
                                                                                                                    from £19.69
                                                                                                                    from £19.69
                                                                                                                    # 074
                                                                                                                    MPN: 154116
                                                                                                                    BRACKET
                                                                                                                    from £5.69
                                                                                                                    from £5.69
                                                                                                                    # 075
                                                                                                                    MPN: 14058519
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
