023 - Blow - By System

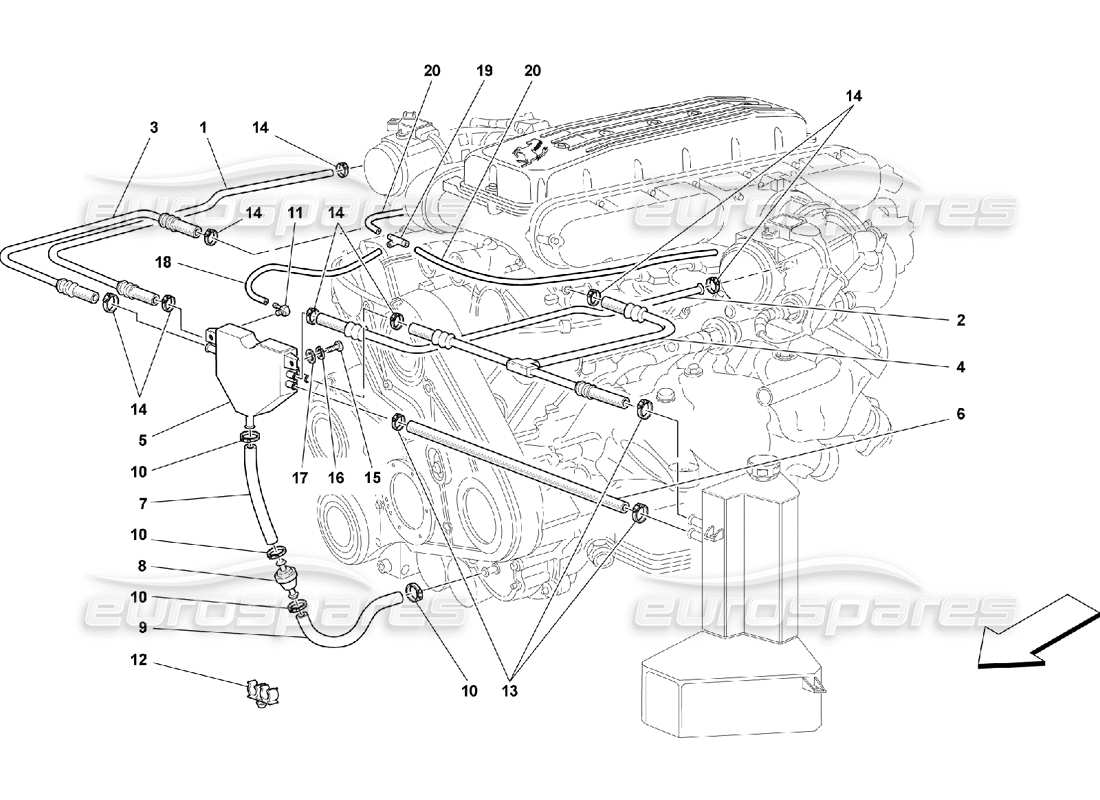

Ferrari 550 Maranello Blow - By System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 167934
PIPE FROM OIL VENT BODY TO RH SLEEVE
from £27.48
from £27.48
# 002
MPN: 167935
PIPE FROM OIL VENT BODY TO LH SLEEVE
from £56.55
from £56.55
# 003
MPN: 167936
PIPE FROM RH HEAD TO VENT BODY
from £190.79
from £190.79
# 004
MPN: 167937
PIPE FROM LH HEAD TO VENT BODY
from £219.06
from £219.06
# 005
MPN: 171660
ENGINE OIL VENT BODY
from £158.57
from £158.57
# 006
MPN: 178931
PIPE FROM VENT BODY TO OIL TANK
from £38.69
from £38.69
This part replaces part number 167938
# 006
MPN: 178931
PIPE FROM VENT BODY TO OIL TANK
from £38.69
from £38.69
This part replaces part number 167938
# 007
MPN: 115750
PIPE FROM OIL VENT BODY TO VALVE
from £3.56
from £3.56
# 008
MPN: 164548
ONE-WAY VALVE
from £8.88
from £8.88
This part replaces part number 161138
# 009
MPN: 115228
PIPE FROM VALVE TO UNION
from £13.39
from £13.39
# 010
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 011
MPN: 128016
UNION
from £5.52
from £5.52
# 012
MPN: 145543
FIXING CLIP
from £0.47
from £0.47
# 013
MPN: 12179790
SCREW COLLAR
Supersession
Supersession
# 014
MPN: 12179690
SCREW COLLAR
Supersession
Supersession
This part replaces part number 12179490
# 015
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 016
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 017
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 018
MPN: 124790
RUBBER PIPE
Replaced by 159542
from £3.12
from £3.12
# 019
MPN: 121793
3-WAY UNION
from £0.47
from £0.47
# 020
MPN: 124790
RUBBER PIPE
Replaced by 159542
from £3.12
from £3.12
